3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#52395) — 88 parça

116 186 254 205 186 50 50 186 100 187 186 186 185 186 146 195 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A

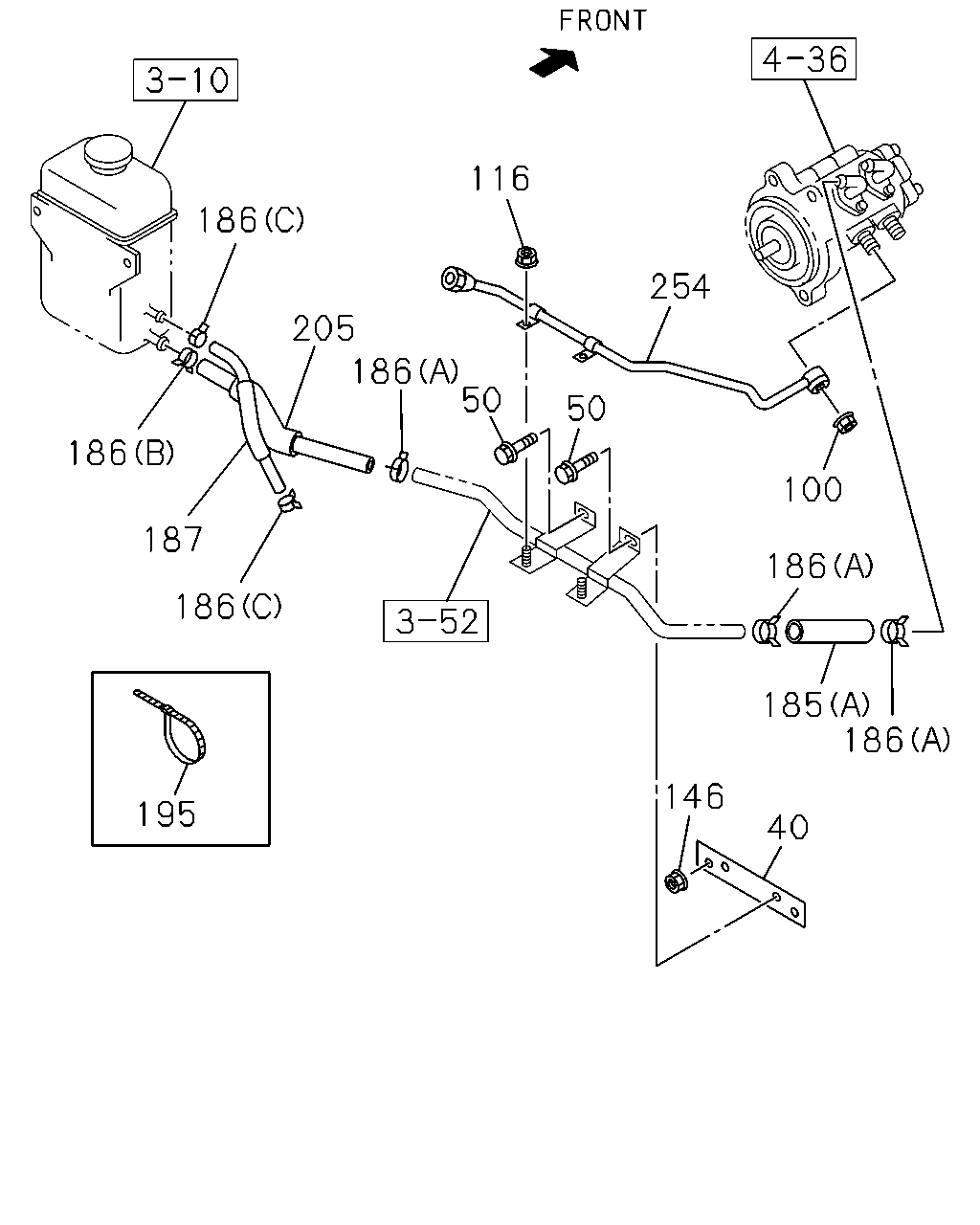

40	04.690 BRACKET HYDRO BRAKE BOOSTER(7QQ)	8-97370-408-0	01	1	0812-	●
50	04.710 BOLT; PIPE HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0812-	●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER(7QQ)	8-97358-958-0	01	1	0812-	●
116	04.686 NUT HYDRO BRAKE BOOSTER(7QQ) 01.062 M6 FLANGE	0-91180-106-0	02	1	0812-	●
146	04.685 NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	0812-	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	0812-	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98082-497-0	01	1	0812-	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 04.930 (C) ID=16	8-94238-568-0	02	1	0812-0911	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 06.672 (A) ID=21	8-94242-034-0	01	1	0812-0911	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (A) ID=21	8-98150-355-0	01	1	0912-	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 06.672 (A) ID=21	8-94242-034-0	02	1	0812-	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 08.846 (B) ID=22	8-94382-401-0	01	1	0812-1003	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 03.278 (B) ID=22	8-97359-141-0	01	1	1004-	●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER(7QQ)	8-98100-245-0	01	1	0812-	●
195	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 02.559 L=250	5-09707-030-1	02	1	0812-	●
205	04.681 HOSE; TANK TO PIPE HYDRO BRAKE BOOSTER(7QQ)	8-97334-259-1	01	1	0812-	●
254	04.685 PIPE; BRAKE,2WAY HYDRO BRAKE BOOSTER(7QQ)	8-97334-118-1	01	1	0812-	●

19 19 56 8 117 129 7 7 8 227 253 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

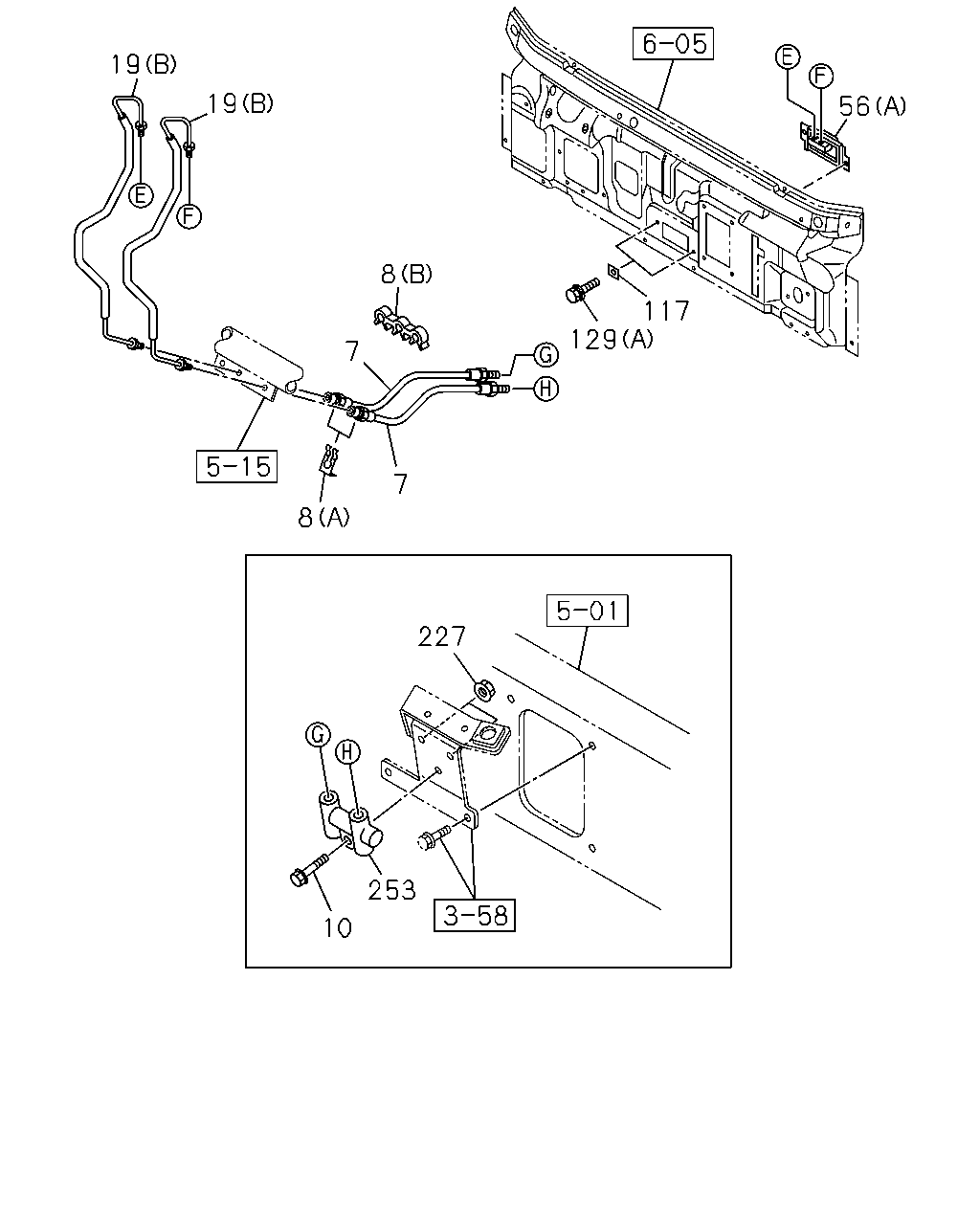

7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98029-865-0	02	1	0810-	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	0810-	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	0810-	●	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0810-	●	●

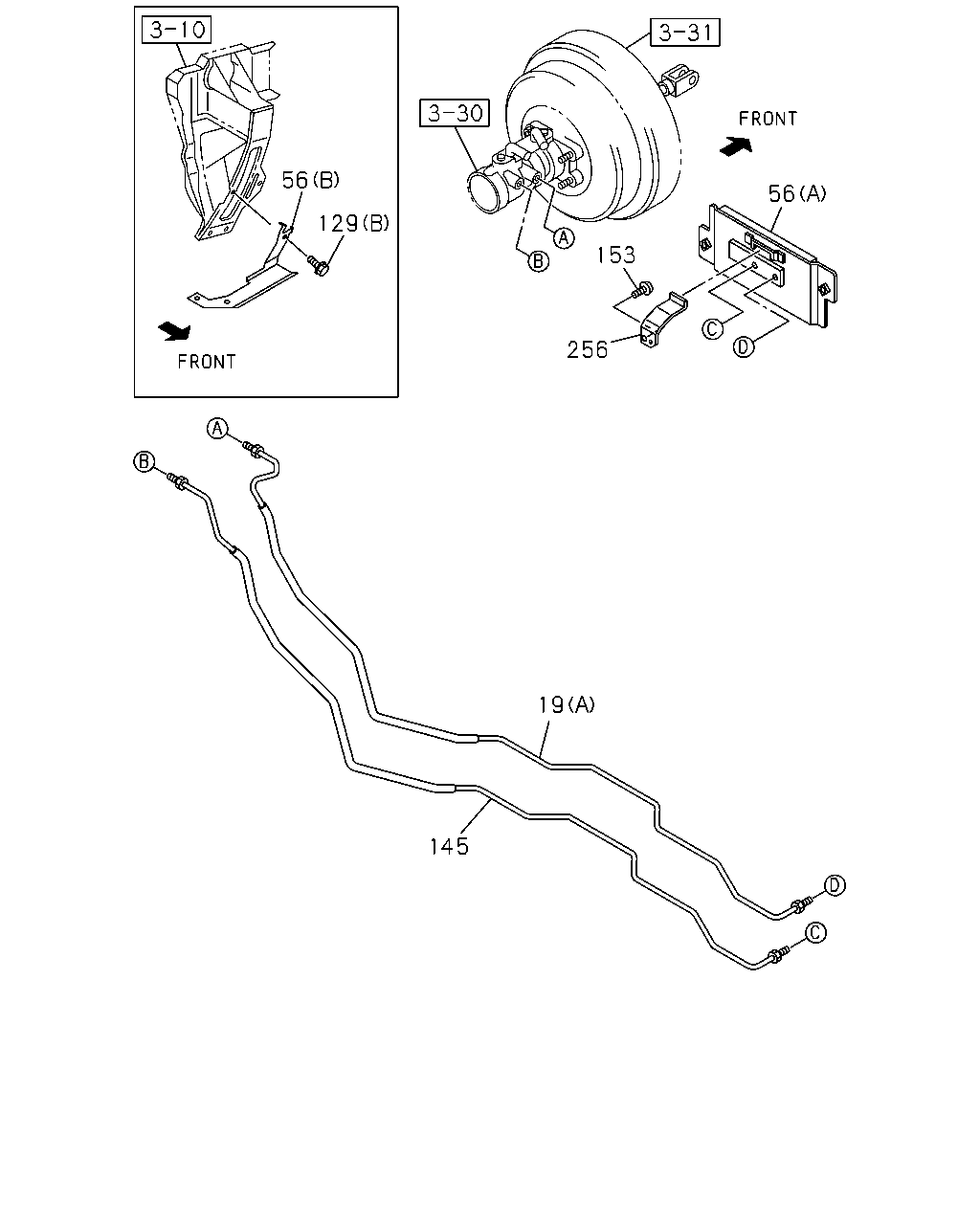

19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98080-579-1	02	1	0812-	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (A)	8-98099-794-0	01	1	0812-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98056-155-1	02	1	0810-0811	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98056-155-1	02	1	0812-		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98056-155-1	02	1	0812-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98097-183-1	01	1	0810-0811	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98097-183-1	01	1	0812-		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98097-183-1	01	1	0812-	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98034-288-4	01	1	0812-1005	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-270-1	01	1	1006-	●
56	04.686 BRACKET; UNION,BRK (B)	8-98097-178-1	01	1	0810-	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-98056-774-1	01	1	0810-0811	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-98056-774-1	01	1	0812-1005		●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98056-774-1	01	1	0812-1005	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1006-		●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1006-	●
117	04.686 SEAL; UNION,BRK PIPE JOINT 08.845	8-97856-616-0	02	1	0810-	●	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	0812-	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0810-	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0810-	●	●
227	04.685 NUT; JOINT 01.062 M8 FLANGE	0-91180-108-0	02	1	0810-	●	●
253	04.840 JOINT 04.686	5-47456-009-1	01	1	0810-	●	●

56 56 129 153 256 19 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98080-579-1	02	1	0812-	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (A)	8-98099-794-0	01	1	0812-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98056-155-1	02	1	0810-0811	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98056-155-1	02	1	0812-		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98056-155-1	02	1	0812-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98097-183-1	01	1	0810-0811	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98097-183-1	01	1	0812-		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98097-183-1	01	1	0812-	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98034-288-4	01	1	0812-1005	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-270-1	01	1	1006-	●
56	04.686 BRACKET; UNION,BRK (B)	8-98097-178-1	01	1	0810-	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-98056-774-1	01	1	0810-0811	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-98056-774-1	01	1	0812-1005		●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98056-774-1	01	1	0812-1005	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1006-		●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1006-	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	0812-	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0810-	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0810-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) L=1052	8-98099-793-0	01	1	0812-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-98097-179-1	01	1	0810-0811	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-98097-179-1	01	1	0812-		●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98097-179-1	01	1	0812-	●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	0810-1001	●	●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1002-	●	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98039-683-4	01	1	0810-1001	●	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98039-683-4	01	1	1002-1005	●	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1006-	●	●

129 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	0812-	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0810-	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0810-	●	●

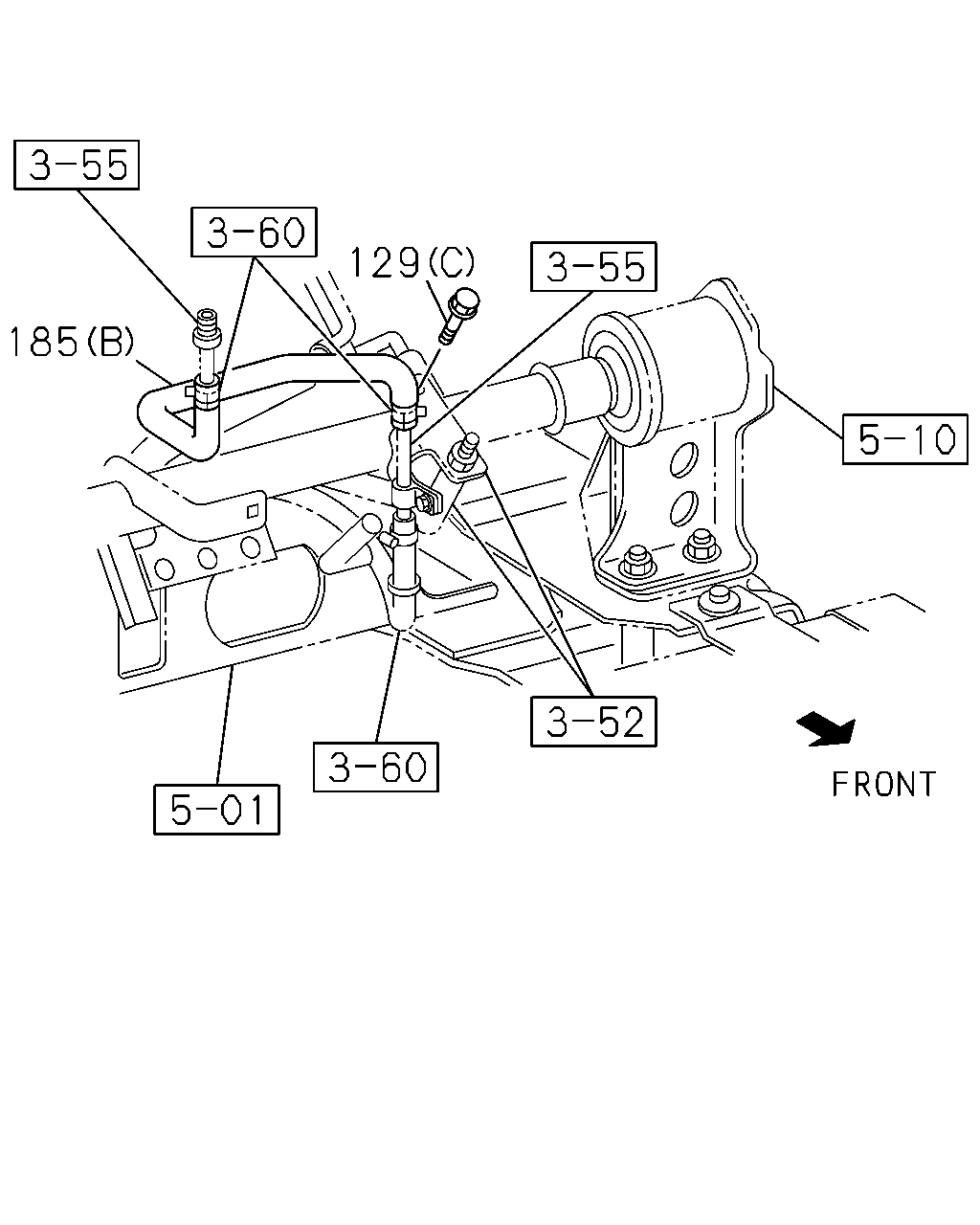

185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	0812-	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98082-497-0	01	1	0812-	●

56 192 193 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98034-288-4	01	1	0812-1005	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-270-1	01	1	1006-	●
56	04.686 BRACKET; UNION,BRK (B)	8-98097-178-1	01	1	0810-	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-98056-774-1	01	1	0810-0811	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-98056-774-1	01	1	0812-1005		●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98056-774-1	01	1	0812-1005	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1006-		●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1006-	●

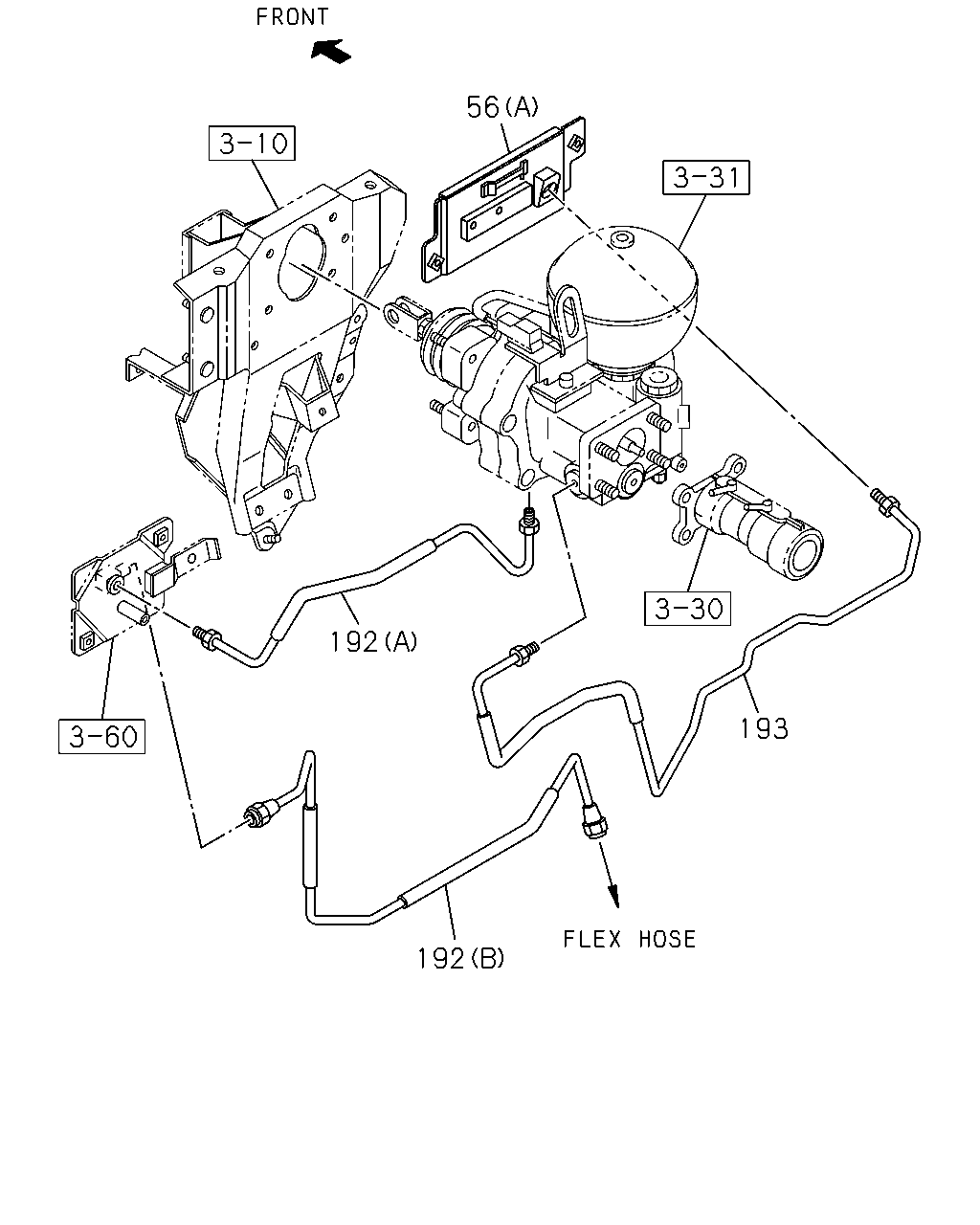

192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98033-960-0	01	1	0812-	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98033-961-3	01	1	0812-	●
193	04.685 PIPE; RETURN HYDRO BRAKE BOOSTER(7QQ)	8-98099-795-0	01	1	0812-	●
