3-21 — VACUUM TANK (#52392) — 32 parça

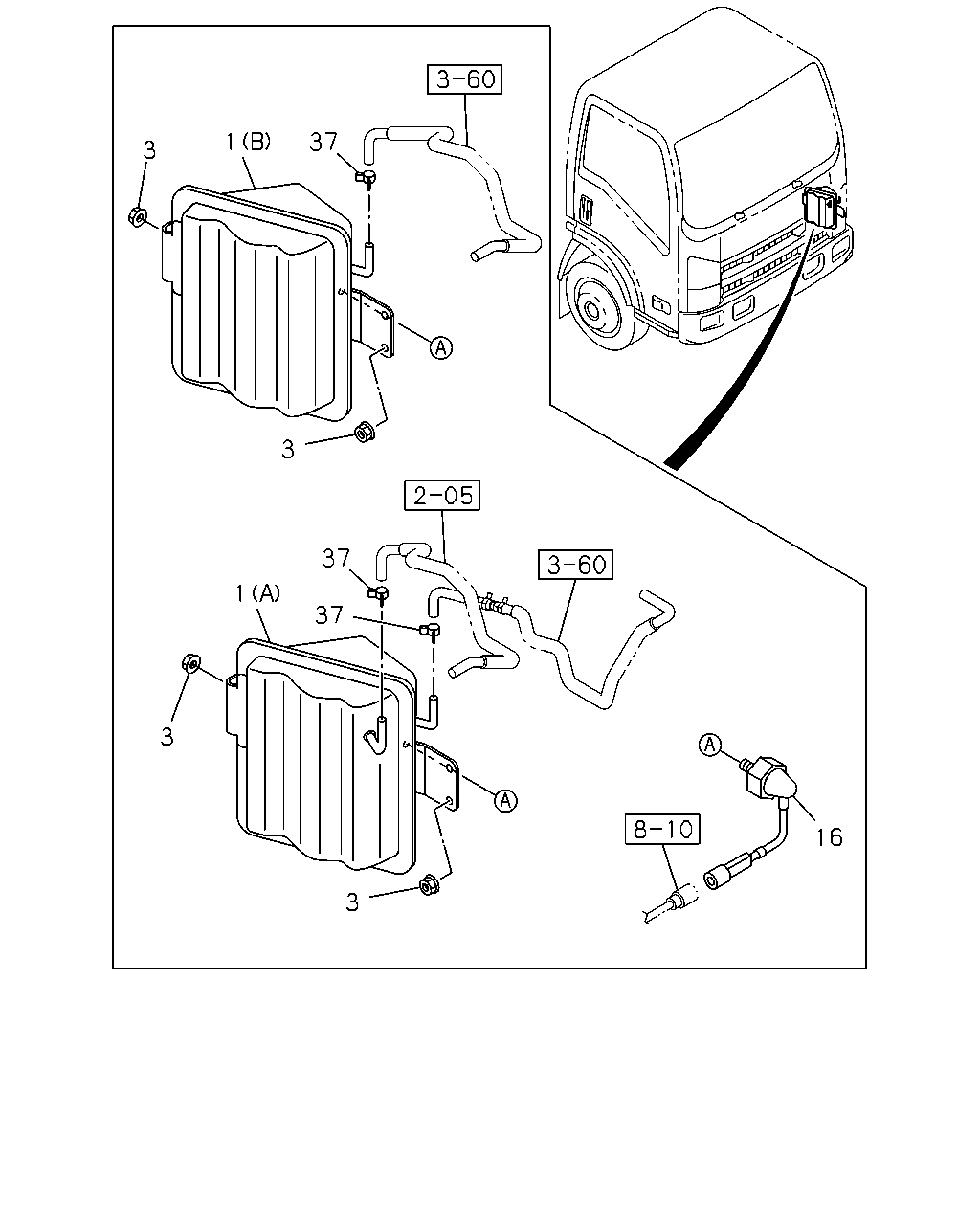

çizim 59044
1 37 3 3 37 1 37 3 16 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98032-292-0 01 1 0812- ●
1 04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (A) 		8-98009-123-0 01 1 0810-0811 ● ●
1 04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (A) 		8-98009-123-0 01 1 0812- ●
1 04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98009-123-0 01 1 0812- ●
1 04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98009-124-1 01 1 0810-0811 ● ●
1 04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98009-124-1 01 1 0812- ●
1 04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (B) 		8-98009-124-1 01 1 0812- ●
3 04.902 NUT; VAC TANK TO BRKT
04.785 		8-98008-071-0 03 1 0810- ● ●
16 04.906 SWITCH; VAC 8-98049-417-0 01 1 0810-0811 ● ●
16 04.906 SWITCH; VAC 8-98049-417-0 01 1 0812- ●
16 04.906 SWITCH; VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98049-417-0 01 1 0812- ●
37 04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5 		8-94367-944-0 01 1 0810-0811 ● ●
37 04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5 		8-94367-944-0 01 1 0812- ●
37 04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.681 ID=15.5 		8-94367-944-0 01 1 0812- ●
37 04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5 		8-94367-944-0 01 1 0812- ●
37 04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5 		8-94367-944-0 02 1 0810-0811 ● ●
37 04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5 		8-94367-944-0 02 1 0812- ●
37 04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5 		8-94367-944-0 02 1 0812- ●
çizim 59686
37 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98032-292-0 01 1 0812- ●
1 04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (A) 		8-98009-123-0 01 1 0810-0811 ● ●
1 04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (A) 		8-98009-123-0 01 1 0812- ●
1 04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98009-123-0 01 1 0812- ●
1 04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98009-124-1 01 1 0810-0811 ● ●
1 04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98009-124-1 01 1 0812- ●
1 04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (B) 		8-98009-124-1 01 1 0812- ●
37 04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5 		8-94367-944-0 01 1 0810-0811 ● ●
37 04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5 		8-94367-944-0 01 1 0812- ●
37 04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.681 ID=15.5 		8-94367-944-0 01 1 0812- ●
37 04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5 		8-94367-944-0 01 1 0812- ●
37 04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5 		8-94367-944-0 02 1 0810-0811 ● ●
37 04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5 		8-94367-944-0 02 1 0812- ●
37 04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5 		8-94367-944-0 02 1 0812- ●
