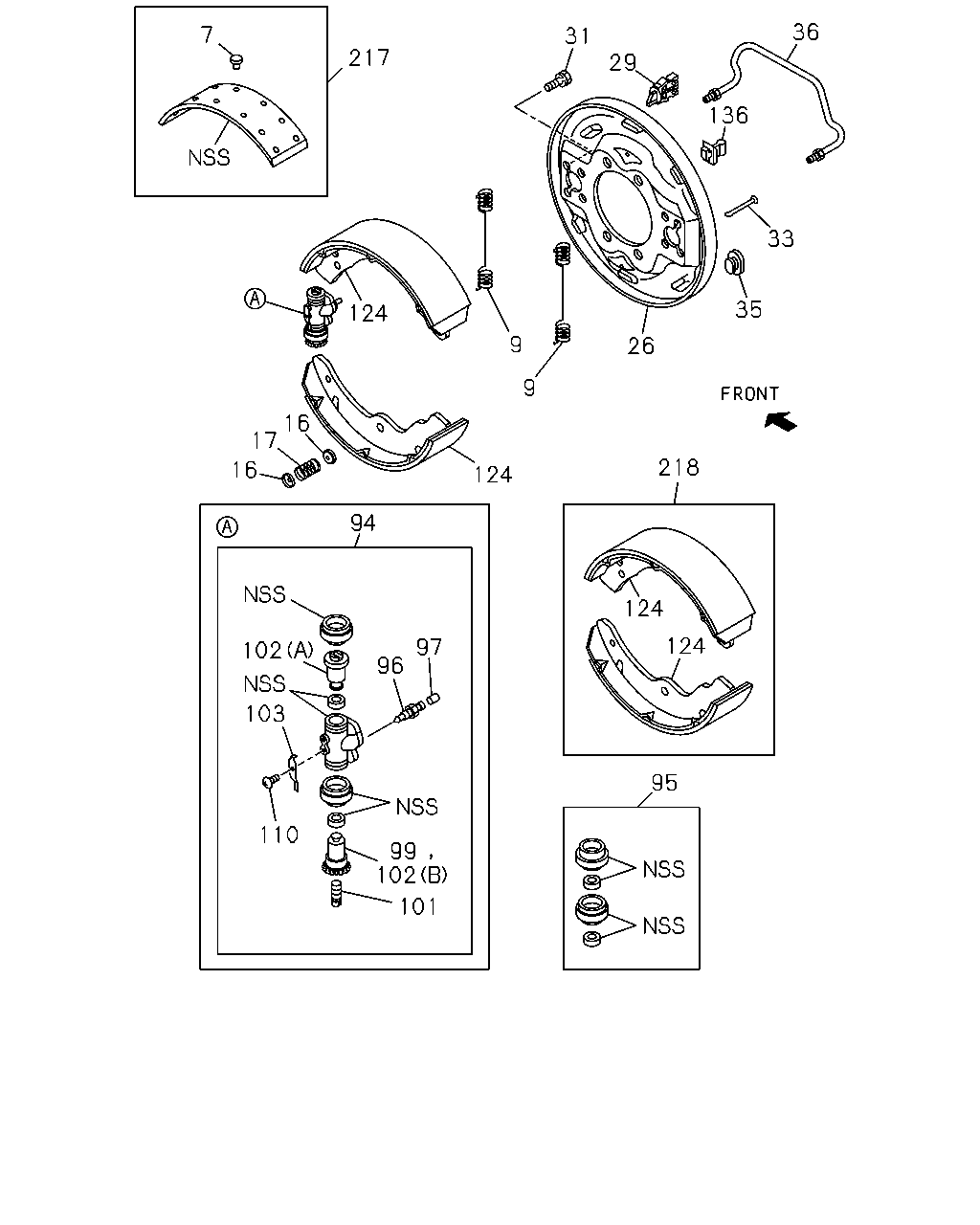

7 |
05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
|
1-09732-029-0 |
40 |
1 |
0810- |
● |
|
| |
7 |
05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
1-09732-029-0 |
48 |
1 |
0810-0912 |
● |
|
| |
7 |
05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW)
|
1-09732-029-0 |
48 |
1 |
0810-0912 |
● |
|
| |
7 |
05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
1-09732-029-0 |
48 |
1 |
1001-1007 |
● |
|
| |
7 |
05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
1-09732-029-0 |
48 |
1 |
1001-1007 |
● |
|
| |
7 |
05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
1-09732-029-0 |
48 |
1 |
1008- |
● |
|
| |
7 |
05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
EXC. MINI BUS CHASSIS(V4B)
|
1-09732-029-0 |
48 |
1 |
1008- |
● |
|
| |
7 |
05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
1-09732-029-0 |
48 |
1 |
1008- |
● |
|
| |
7 |
05.019 RIVET; LINING,RR BRK
|
1-09732-029-0 |
64 |
1 |
0810-0810 |
|
● |
| |
7 |
05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
|
1-09732-029-0 |
64 |
1 |
0811-1007 |
● |
|
| |
7 |
05.019 RIVET; LINING,RR BRK
|
1-09732-029-0 |
64 |
1 |
0811-1007 |
|
● |
| |
7 |
05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B)
|
1-09732-029-0 |
64 |
1 |
1008- |
● |
|
| |
7 |
05.019 RIVET; LINING,RR BRK
|
1-09732-029-0 |
64 |
1 |
1008- |
|
● |
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
|
5-09583-118-0 |
04 |
1 |
0810- |
● |
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97022-087-0 |
04 |
1 |
0810-0912 |
● |
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW)
|
8-97022-087-0 |
04 |
1 |
0810-0912 |
● |
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97022-087-0 |
04 |
1 |
1001-1007 |
● |
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
8-97022-087-0 |
04 |
1 |
1001-1007 |
● |
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97022-087-0 |
04 |
1 |
1008- |
● |
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
EXC. MINI BUS CHASSIS(V4B)
|
8-97022-087-0 |
04 |
1 |
1008- |
● |
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
8-97022-087-0 |
04 |
1 |
1008- |
● |
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
|
8-97122-869-0 |
04 |
1 |
0810-0810 |
|
● |
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
|
8-97122-869-0 |
04 |
1 |
0811-1007 |
● |
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
|
8-97122-869-0 |
04 |
1 |
0811-1007 |
|
● |
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B)
|
8-97122-869-0 |
04 |
1 |
1008- |
● |
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
|
8-97122-869-0 |
04 |
1 |
1008- |
|
● |
| |
16 |
05.043 CUP; SHOE HOLDING
|
9-47165-096-0 |
08 |
1 |
0810- |
● |
● |
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
05.043
|
5-09580-101-1 |
04 |
1 |
0810- |
● |
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
|
8-97078-605-0 |
01 |
1 |
0810- |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
|
8-97078-606-0 |
01 |
1 |
0810- |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97223-573-0 |
01 |
1 |
0810-0912 |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW)
|
8-97223-573-0 |
01 |
1 |
0810-0912 |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97223-573-0 |
01 |
1 |
1001-1007 |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
8-97223-573-0 |
01 |
1 |
1001-1007 |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97223-573-0 |
01 |
1 |
1008- |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
EXC. MINI BUS CHASSIS(V4B)
|
8-97223-573-0 |
01 |
1 |
1008- |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
8-97223-573-0 |
01 |
1 |
1008- |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97223-574-0 |
01 |
1 |
0810-0912 |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW)
|
8-97223-574-0 |
01 |
1 |
0810-0912 |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97223-574-0 |
01 |
1 |
1001-1007 |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
8-97223-574-0 |
01 |
1 |
1001-1007 |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97223-574-0 |
01 |
1 |
1008- |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
EXC. MINI BUS CHASSIS(V4B)
|
8-97223-574-0 |
01 |
1 |
1008- |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
8-97223-574-0 |
01 |
1 |
1008- |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
|
8-97134-731-0 |
01 |
1 |
0810-0810 |
|
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
|
8-97134-731-0 |
01 |
1 |
0811-1007 |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
|
8-97134-731-0 |
01 |
1 |
0811-1007 |
|
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B)
|
8-97134-731-0 |
01 |
1 |
1008- |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
|
8-97134-731-0 |
01 |
1 |
1008- |
|
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
|
8-97134-732-0 |
01 |
1 |
0810-0810 |
|
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
|
8-97134-732-0 |
01 |
1 |
0811-1007 |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
|
8-97134-732-0 |
01 |
1 |
0811-1007 |
|
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B)
|
8-97134-732-0 |
01 |
1 |
1008- |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
|
8-97134-732-0 |
01 |
1 |
1008- |
|
● |
| |
29 |
04.685 CLIP; PIPE,BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
|
8-94128-306-0 |
02 |
1 |
0810- |
● |
|
| |
29 |
04.685 CLIP; PIPE,BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97022-086-0 |
02 |
1 |
0810-0912 |
● |
|
| |
29 |
04.685 CLIP; PIPE,BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW)
|
8-97022-086-0 |
02 |
1 |
0810-0912 |
● |
|
| |
29 |
04.685 CLIP; PIPE,BRK
|
8-97022-086-0 |
02 |
1 |
0810-0912 |
|
● |
| |
29 |
04.685 CLIP; PIPE,BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97022-086-0 |
02 |
1 |
1001- |
● |
|
| |
29 |
04.685 CLIP; PIPE,BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
8-97022-086-0 |
02 |
1 |
1001- |
● |
|
| |
29 |
04.685 CLIP; PIPE,BRK
|
8-97022-086-0 |
02 |
1 |
1001- |
|
● |
| |
31 |
04.665 BOLT; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
|
5-09030-016-1 |
16 |
1 |
0810- |
● |
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97081-305-0 |
16 |
1 |
0810-0912 |
● |
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW)
|
8-97081-305-0 |
16 |
1 |
0810-0912 |
● |
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
|
8-97081-305-0 |
16 |
1 |
0810-0912 |
|
● |
| |
31 |
04.665 BOLT; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97081-305-0 |
16 |
1 |
1001- |
● |
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
8-97081-305-0 |
16 |
1 |
1001- |
● |
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
|
8-97081-305-0 |
16 |
1 |
1001- |
|
● |
| |
33 |
05.043 PIN; SHOE HOLD DOWN
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
|
5-47162-001-0 |
04 |
1 |
0810- |
● |
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97022-089-0 |
04 |
1 |
0810-0912 |
● |
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW)
|
8-97022-089-0 |
04 |
1 |
0810-0912 |
● |
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97022-089-0 |
04 |
1 |
1001-1007 |
● |
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
8-97022-089-0 |
04 |
1 |
1001-1007 |
● |
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97022-089-0 |
04 |
1 |
1008- |
● |
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
EXC. MINI BUS CHASSIS(V4B)
|
8-97022-089-0 |
04 |
1 |
1008- |
● |
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
8-97022-089-0 |
04 |
1 |
1008- |
● |
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
|
8-97122-870-0 |
04 |
1 |
0810-0810 |
|
● |
| |
33 |
05.043 PIN; SHOE HOLD DOWN
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
|
8-97122-870-0 |
04 |
1 |
0811-1007 |
● |
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
|
8-97122-870-0 |
04 |
1 |
0811-1007 |
|
● |
| |
33 |
05.043 PIN; SHOE HOLD DOWN
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B)
|
8-97122-870-0 |
04 |
1 |
1008- |
● |
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
|
8-97122-870-0 |
04 |
1 |
1008- |
|
● |
| |
35 |
05.002 GROMMET; CHECK HOLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
|
8-94171-287-0 |
02 |
1 |
0810- |
● |
|
| |
35 |
05.002 GROMMET; CHECK HOLE
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97017-507-0 |
02 |
1 |
0810-0912 |
● |
|
| |
35 |
05.002 GROMMET; CHECK HOLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW)
|
8-97017-507-0 |
02 |
1 |
0810-0912 |
● |
|
| |
35 |
05.002 GROMMET; CHECK HOLE
|
8-97017-507-0 |
02 |
1 |
0810-0912 |
|
● |
| |
35 |
05.002 GROMMET; CHECK HOLE
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97017-507-0 |
02 |
1 |
1001- |
● |
|
| |
35 |
05.002 GROMMET; CHECK HOLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
8-97017-507-0 |
02 |
1 |
1001- |
● |
|
| |
35 |
05.002 GROMMET; CHECK HOLE
|
8-97017-507-0 |
02 |
1 |
1001- |
|
● |
| |
36 |
04.685 PIPE; OIL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
|
8-94154-916-0 |
02 |
1 |
0810- |
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97192-215-0 |
02 |
1 |
0810-0912 |
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW)
|
8-97192-215-0 |
02 |
1 |
0810-0912 |
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97192-215-0 |
02 |
1 |
1001-1007 |
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
8-97192-215-0 |
02 |
1 |
1001-1007 |
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97192-215-0 |
02 |
1 |
1008- |
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
EXC. MINI BUS CHASSIS(V4B)
|
8-97192-215-0 |
02 |
1 |
1008- |
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
8-97192-215-0 |
02 |
1 |
1008- |
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
|
8-97079-847-0 |
02 |
1 |
0810-0810 |
|
● |
| |
36 |
04.685 PIPE; OIL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
|
8-97079-847-0 |
02 |
1 |
0811-1007 |
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
|
8-97079-847-0 |
02 |
1 |
0811-1007 |
|
● |
| |
36 |
04.685 PIPE; OIL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B)
|
8-97079-847-0 |
02 |
1 |
1008- |
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
|
8-97079-847-0 |
02 |
1 |
1008- |
|
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
EXC. MINI BUS CHASSIS(V4B)
FRONT
|
8-97332-225-0 |
01 |
1 |
1008- |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
EXC. MINI BUS CHASSIS(V4B)
REAR
|
8-97332-226-0 |
01 |
1 |
1008- |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
EXC. MINI BUS CHASSIS(V4B)
|
8-97332-227-0 |
02 |
1 |
1008- |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
HYDRO BRAKE BOOSTER(7QQ)
|
8-97353-570-0 |
02 |
1 |
0812- |
|
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
HYDRO BRAKE BOOSTER(7QQ)
REAR
|
8-97353-571-0 |
01 |
1 |
0812- |
|
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
HYDRO BRAKE BOOSTER(7QQ)
FRONT
|
8-97353-572-0 |
01 |
1 |
0812- |
|
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
FRONT
|
8-97179-350-0 |
01 |
1 |
0810- |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
REAR
|
8-97179-351-0 |
01 |
1 |
0810- |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
|
8-97179-352-0 |
02 |
1 |
0810- |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
FRONT
|
8-97139-822-0 |
01 |
1 |
0810-0912 |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW)
FRONT
|
8-97139-822-0 |
01 |
1 |
0810-0912 |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
FRONT
|
8-97139-822-0 |
01 |
1 |
1001- |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
FRONT
|
8-97139-822-0 |
01 |
1 |
1001- |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
REAR
|
8-97139-824-0 |
01 |
1 |
0810-0912 |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW)
REAR
|
8-97139-824-0 |
01 |
1 |
0810-0912 |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
REAR
|
8-97139-824-0 |
01 |
1 |
1001- |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
REAR
|
8-97139-824-0 |
01 |
1 |
1001- |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97139-825-0 |
02 |
1 |
0810-0912 |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW)
|
8-97139-825-0 |
02 |
1 |
0810-0912 |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97139-825-0 |
02 |
1 |
1001- |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
8-97139-825-0 |
02 |
1 |
1001- |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
FRONT
|
8-97332-222-0 |
01 |
1 |
0810-0811 |
|
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
FRONT
|
8-97332-222-0 |
01 |
1 |
0812-1007 |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
EXC. HYDRO BRAKE BOOSTER(7QQ)
FRONT
|
8-97332-222-0 |
01 |
1 |
0812-1007 |
|
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B)
FRONT
|
8-97332-222-0 |
01 |
1 |
1008- |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
EXC. HYDRO BRAKE BOOSTER(7QQ)
FRONT
|
8-97332-222-0 |
01 |
1 |
1008- |
|
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR
|
8-97332-223-0 |
01 |
1 |
0810-0811 |
|
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
REAR
|
8-97332-223-0 |
01 |
1 |
0812-1007 |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
EXC. HYDRO BRAKE BOOSTER(7QQ)
REAR
|
8-97332-223-0 |
01 |
1 |
0812-1007 |
|
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B)
REAR
|
8-97332-223-0 |
01 |
1 |
1008- |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
EXC. HYDRO BRAKE BOOSTER(7QQ)
REAR
|
8-97332-223-0 |
01 |
1 |
1008- |
|
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
|
8-97332-224-0 |
02 |
1 |
0810-0811 |
|
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
|
8-97332-224-0 |
02 |
1 |
0812-1007 |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
EXC. HYDRO BRAKE BOOSTER(7QQ)
|
8-97332-224-0 |
02 |
1 |
0812-1007 |
|
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B)
|
8-97332-224-0 |
02 |
1 |
1008- |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
EXC. HYDRO BRAKE BOOSTER(7QQ)
|
8-97332-224-0 |
02 |
1 |
1008- |
|
● |
| |
95 |
04.665 CUP SET; RR WHEEL CYL
|
5-87832-051-0 |
02 |
1 |
0810-0810 |
|
● |
| |
95 |
04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
|
5-87832-051-0 |
02 |
1 |
0811-0811 |
● |
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
|
5-87832-051-0 |
02 |
1 |
0811-0811 |
|
● |
| |
95 |
04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
|
5-87832-051-0 |
02 |
1 |
0812- |
● |
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
EXC. HYDRO BRAKE BOOSTER(7QQ)
|
5-87832-051-0 |
02 |
1 |
0812- |
|
● |
| |
95 |
04.665 CUP SET; RR WHEEL CYL
HYDRO BRAKE BOOSTER(7QQ)
|
5-87832-080-0 |
02 |
1 |
0812- |
|
● |
| |
95 |
04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
|
5-87831-621-0 |
01 |
1 |
0810- |
● |
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
5-87831-598-0 |
02 |
1 |
0810-0912 |
● |
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW)
|
5-87831-598-0 |
02 |
1 |
0810-0912 |
● |
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
5-87831-598-0 |
02 |
1 |
1001- |
● |
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
5-87831-598-0 |
02 |
1 |
1001- |
● |
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-98050-476-0 |
01 |
1 |
0810-1007 |
● |
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-98050-476-0 |
01 |
1 |
0810-1007 |
● |
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-98050-476-0 |
01 |
1 |
1008- |
● |
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
EXC. MINI BUS CHASSIS(V4B)
|
8-98050-476-0 |
01 |
1 |
1008- |
● |
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-98050-476-0 |
01 |
1 |
1008- |
● |
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
|
8-98050-477-0 |
01 |
1 |
0810-0810 |
|
● |
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
|
8-98050-477-0 |
01 |
1 |
0811-1007 |
● |
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
|
8-98050-477-0 |
01 |
1 |
0811-1007 |
|
● |
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B)
|
8-98050-477-0 |
01 |
1 |
1008- |
● |
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
|
8-98050-477-0 |
01 |
1 |
1008- |
|
● |
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
|
8-98050-479-0 |
01 |
1 |
0810- |
● |
● |
| |
99 |
04.668 PISTON; RR WHEEL CYL
HYDRO BRAKE BOOSTER(7QQ)
|
8-97353-579-0 |
03 |
1 |
0812- |
|
● |
| |
99 |
04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
|
8-97078-622-0 |
03 |
1 |
0810- |
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-94414-700-1 |
04 |
1 |
0810-0912 |
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW)
|
8-94414-700-1 |
04 |
1 |
0810-0912 |
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-94414-700-1 |
04 |
1 |
1001- |
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
8-94414-700-1 |
04 |
1 |
1001- |
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
|
8-97332-229-0 |
03 |
1 |
0810-0811 |
|
● |
| |
99 |
04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
|
8-97332-229-0 |
03 |
1 |
0812- |
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
EXC. HYDRO BRAKE BOOSTER(7QQ)
|
8-97332-229-0 |
03 |
1 |
0812- |
|
● |
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
05.110
|
8-97078-623-0 |
04 |
1 |
0810- |
● |
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-94414-702-0 |
04 |
1 |
0810-0912 |
● |
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW)
|
8-94414-702-0 |
04 |
1 |
0810-0912 |
● |
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
|
8-94414-702-0 |
04 |
1 |
0810-0912 |
|
● |
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-94414-702-0 |
04 |
1 |
1001- |
● |
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
8-94414-702-0 |
04 |
1 |
1001- |
● |
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
|
8-94414-702-0 |
04 |
1 |
1001- |
|
● |
| |
102 |
04.668 PISTON; REAR WHEEL CYL
HYDRO BRAKE BOOSTER(7QQ)
(A)
|
8-97353-578-0 |
04 |
1 |
0812- |
|
● |
| |
102 |
04.668 PISTON; REAR WHEEL CYL
HYDRO BRAKE BOOSTER(7QQ)
(B)
|
8-97353-579-0 |
01 |
1 |
0812- |
|
● |
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
(A)
D=25.4
|
8-94128-531-1 |
04 |
1 |
0810- |
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
(B)
|
8-97078-622-0 |
01 |
1 |
0810- |
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
(A)
D=30.16
|
8-94414-701-1 |
04 |
1 |
0810-0810 |
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW)
(A)
D=30.16
|
8-94414-701-1 |
04 |
1 |
0810-0810 |
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
(A)
|
8-97078-045-0 |
04 |
1 |
0811-0912 |
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW)
(A)
|
8-97078-045-0 |
04 |
1 |
0811-0912 |
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
(A)
|
8-97078-045-0 |
04 |
1 |
1001- |
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
(A)
|
8-97078-045-0 |
04 |
1 |
1001- |
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
(A)
|
8-97332-043-0 |
04 |
1 |
0810-0811 |
|
● |
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
(A)
|
8-97332-043-0 |
04 |
1 |
0812- |
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
EXC. HYDRO BRAKE BOOSTER(7QQ)
(A)
|
8-97332-043-0 |
04 |
1 |
0812- |
|
● |
| |
102 |
04.668 PISTON; REAR WHEEL CYL
(B)
|
8-97332-229-0 |
01 |
1 |
0810-0811 |
|
● |
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
(B)
|
8-97332-229-0 |
01 |
1 |
0812- |
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
EXC. HYDRO BRAKE BOOSTER(7QQ)
(B)
|
8-97332-229-0 |
01 |
1 |
0812- |
|
● |
| |
103 |
05.107 SPRING; LK,RR WHEEL CYL,ADJ
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-94128-486-0 |
04 |
1 |
0810-0811 |
● |
|
| |
103 |
05.107 SPRING; LK,RR WHEEL CYL,ADJ
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94128-486-0 |
04 |
1 |
0810-0811 |
● |
|
| |
103 |
05.107 SPRING; LK,RR WHEEL CYL,ADJ
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-94128-486-0 |
04 |
1 |
0812-1007 |
● |
|
| |
103 |
05.107 SPRING; LK,RR WHEEL CYL,ADJ
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94128-486-0 |
04 |
1 |
0812-1007 |
● |
|
| |
103 |
05.107 SPRING; LK,RR WHEEL CYL,ADJ
HYDRO BRAKE BOOSTER(7QQ)
|
8-94128-486-0 |
04 |
1 |
0812-1007 |
|
● |
| |
103 |
05.107 SPRING; LK,RR WHEEL CYL,ADJ
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-94128-486-0 |
04 |
1 |
1008- |
● |
|
| |
103 |
05.107 SPRING; LK,RR WHEEL CYL,ADJ
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
EXC. MINI BUS CHASSIS(V4B)
|
8-94128-486-0 |
04 |
1 |
1008- |
● |
|
| |
103 |
05.107 SPRING; LK,RR WHEEL CYL,ADJ
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94128-486-0 |
04 |
1 |
1008- |
● |
|
| |
103 |
05.107 SPRING; LK,RR WHEEL CYL,ADJ
HYDRO BRAKE BOOSTER(7QQ)
|
8-94128-486-0 |
04 |
1 |
1008- |
|
● |
| |
103 |
05.107 SPRING; LK,RR WHEEL CYL,ADJ
|
8-97122-877-0 |
04 |
1 |
0810-0811 |
|
● |
| |
103 |
05.107 SPRING; LK,RR WHEEL CYL,ADJ
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
|
8-97122-877-0 |
04 |
1 |
0812-1007 |
● |
|
| |
103 |
05.107 SPRING; LK,RR WHEEL CYL,ADJ
EXC. HYDRO BRAKE BOOSTER(7QQ)
|
8-97122-877-0 |
04 |
1 |
0812-1007 |
|
● |
| |
103 |
05.107 SPRING; LK,RR WHEEL CYL,ADJ
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B)
|
8-97122-877-0 |
04 |
1 |
1008- |
● |
|
| |
103 |
05.107 SPRING; LK,RR WHEEL CYL,ADJ
EXC. HYDRO BRAKE BOOSTER(7QQ)
|
8-97122-877-0 |
04 |
1 |
1008- |
|
● |
| |
110 |
05.107 SCREW; LOCK SPRING,RR WHEEL CYL
|
8-94128-727-0 |
04 |
1 |
0810- |
● |
● |
| |
124 |
05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
|
8-97287-778-0 |
04 |
1 |
0810- |
● |
|
| |
124 |
05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97201-061-0 |
04 |
1 |
0810-0912 |
● |
|
| |
124 |
05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW)
|
8-97201-061-0 |
04 |
1 |
0810-0912 |
● |
|
| |
124 |
05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97201-061-0 |
04 |
1 |
1001-1007 |
● |
|
| |
124 |
05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
8-97201-061-0 |
04 |
1 |
1001-1007 |
● |
|
| |
124 |
05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
8-97201-061-0 |
04 |
1 |
1008- |
● |
|
| |
124 |
05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
EXC. MINI BUS CHASSIS(V4B)
|
8-97201-061-0 |
04 |
1 |
1008- |
● |
|
| |
124 |
05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
8-97201-061-0 |
04 |
1 |
1008- |
● |
|
| |
124 |
05.017 SHOE ASM; BRK,RR
|
8-97188-455-0 |
04 |
1 |
0810-0810 |
|
● |
| |
124 |
05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
|
8-97188-455-0 |
04 |
1 |
0811-1007 |
● |
|
| |
124 |
05.017 SHOE ASM; BRK,RR
|
8-97188-455-0 |
04 |
1 |
0811-1007 |
|
● |
| |
124 |
05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B)
|
8-97188-455-0 |
04 |
1 |
1008- |
● |
|
| |
124 |
05.017 SHOE ASM; BRK,RR
|
8-97188-455-0 |
04 |
1 |
1008- |
|
● |
| |
136 |
05.002 GROMMET
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
|
9-09756-034-0 |
04 |
1 |
0810- |
● |
|
| |
136 |
05.002 GROMMET
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97044-742-1 |
04 |
1 |
0810-0912 |
● |
|
| |
136 |
05.002 GROMMET
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW)
|
8-97044-742-1 |
04 |
1 |
0810-0912 |
● |
|
| |
136 |
05.002 GROMMET
|
8-97044-742-1 |
04 |
1 |
0810-0912 |
|
● |
| |
136 |
05.002 GROMMET
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97044-742-1 |
04 |
1 |
1001- |
● |
|
| |
136 |
05.002 GROMMET
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
8-97044-742-1 |
04 |
1 |
1001- |
● |
|
| |
136 |
05.002 GROMMET
|
8-97044-742-1 |
04 |
1 |
1001- |
|
● |
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
|
5-87831-801-0 |
01 |
1 |
0810- |
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
5-87831-774-0 |
01 |
1 |
0810-0912 |
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW)
|
5-87831-774-0 |
01 |
1 |
0810-0912 |
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
5-87831-774-0 |
01 |
1 |
1001-1007 |
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
5-87831-774-0 |
01 |
1 |
1001-1007 |
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
5-87831-774-0 |
01 |
1 |
1008- |
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
EXC. MINI BUS CHASSIS(V4B)
|
5-87831-774-0 |
01 |
1 |
1008- |
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
5-87831-774-0 |
01 |
1 |
1008- |
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
|
5-87831-692-0 |
01 |
1 |
0810-0810 |
|
● |
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
|
5-87831-692-0 |
01 |
1 |
0811-1007 |
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
|
5-87831-692-0 |
01 |
1 |
0811-1007 |
|
● |
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B)
|
5-87831-692-0 |
01 |
1 |
1008- |
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
|
5-87831-692-0 |
01 |
1 |
1008- |
|
● |
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
BEST VALUE PARTS
|
5-87610-120-0 |
01 |
1 |
0810-0912 |
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW)
BEST VALUE PARTS
|
5-87610-120-0 |
01 |
1 |
0810-0912 |
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
BEST VALUE PARTS
|
5-87610-120-0 |
01 |
1 |
1001-1007 |
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
BEST VALUE PARTS
|
5-87610-120-0 |
01 |
1 |
1001-1007 |
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
BEST VALUE PARTS
|
5-87610-120-0 |
01 |
1 |
1008- |
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
EXC. MINI BUS CHASSIS(V4B)
BEST VALUE PARTS
|
5-87610-120-0 |
01 |
1 |
1008- |
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
BEST VALUE PARTS
|
5-87610-120-0 |
01 |
1 |
1008- |
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
BEST VALUE PARTS
|
5-87610-119-0 |
01 |
1 |
0810-0810 |
|
● |
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
BEST VALUE PARTS
|
5-87610-119-0 |
01 |
1 |
0811-1007 |
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
BEST VALUE PARTS
|
5-87610-119-0 |
01 |
1 |
0811-1007 |
|
● |
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B)
BEST VALUE PARTS
|
5-87610-119-0 |
01 |
1 |
1008- |
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
BEST VALUE PARTS
|
5-87610-119-0 |
01 |
1 |
1008- |
|
● |
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
BEST VALUE PARTS
|
5-87610-121-0 |
01 |
1 |
0810- |
● |
|
| |
218 |
05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
|
5-87832-047-0 |
01 |
1 |
0810- |
● |
|
| |
218 |
05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
5-87831-775-0 |
01 |
1 |
0810-0912 |
● |
|
| |
218 |
05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW)
|
5-87831-775-0 |
01 |
1 |
0810-0912 |
● |
|
| |
218 |
05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
5-87831-775-0 |
01 |
1 |
1001-1007 |
● |
|
| |
218 |
05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
5-87831-775-0 |
01 |
1 |
1001-1007 |
● |
|
| |
218 |
05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
|
5-87831-775-0 |
01 |
1 |
1008- |
● |
|
| |
218 |
05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
EXC. MINI BUS CHASSIS(V4B)
|
5-87831-775-0 |
01 |
1 |
1008- |
● |
|
| |
218 |
05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
5-87831-775-0 |
01 |
1 |
1008- |
● |
|
| |
218 |
05.017 SHOE KIT; BRK,RR
|
5-87831-693-0 |
01 |
1 |
0810-0810 |
|
● |
| |
218 |
05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
|
5-87831-693-0 |
01 |
1 |
0811-1007 |
● |
|
| |
218 |
05.017 SHOE KIT; BRK,RR
|
5-87831-693-0 |
01 |
1 |
0811-1007 |
|
● |
| |
218 |
05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B)
|
5-87831-693-0 |
01 |
1 |
1008- |
● |
|
| |
218 |
05.017 SHOE KIT; BRK,RR
|
5-87831-693-0 |
01 |
1 |
1008- |
|
● |
