2-85 — POWER TAKE OFF CONTROL (#52386) — 99 parça

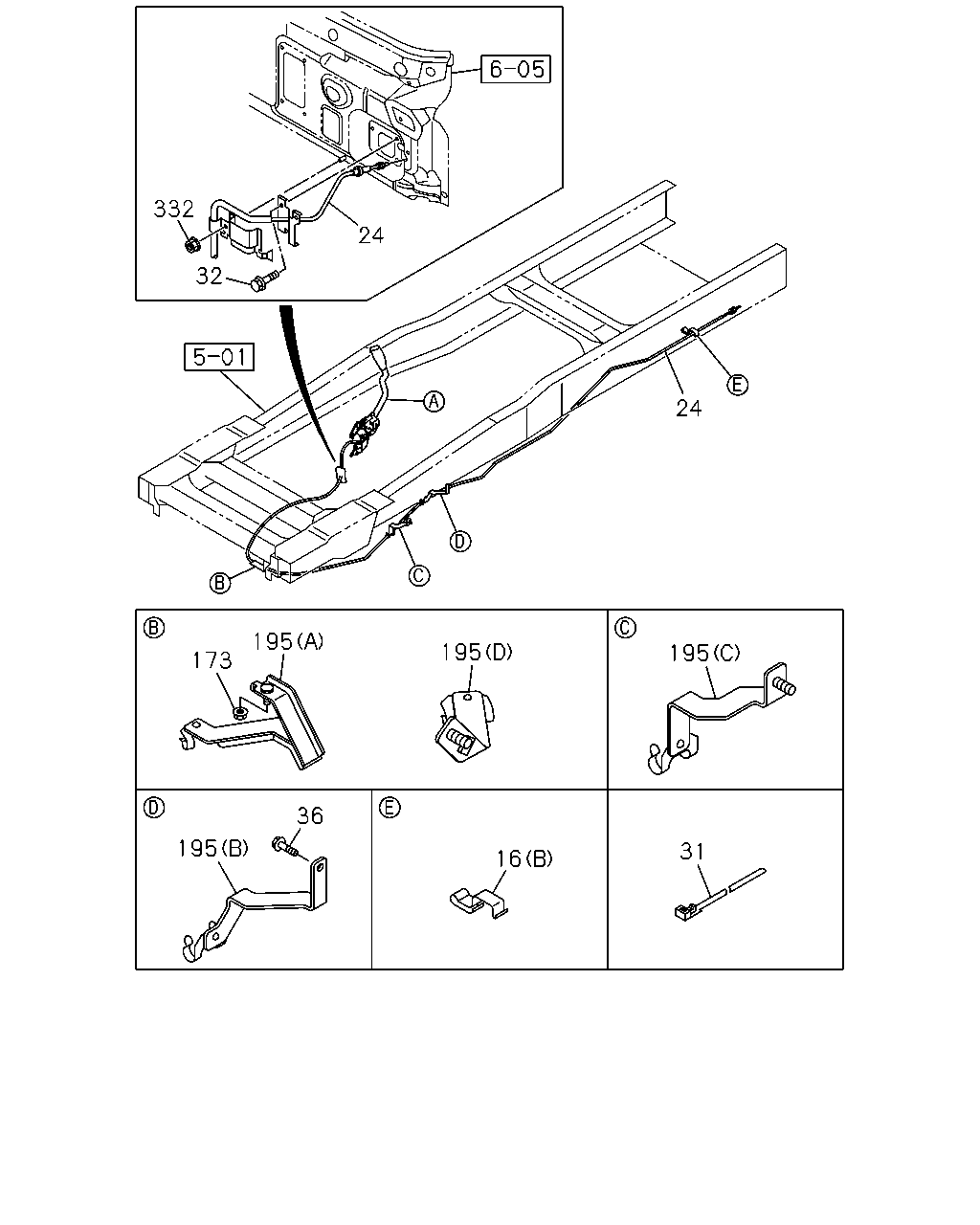

6 332 24 32 5 24 195 195 195 173 36 195 31 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-718-0	01	1	0810-
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-720-0	01	1	0810-1107
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98150-101-0	01	1	1108-
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) 02.559 (B) T=4.5 & 9	8-97371-947-0	02	1	0810-
16	04.439 CLIP; CABLE,PTO (A)	8-98050-126-0	01	1	0810-
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=4149	8-98128-392-0	01	1	0810-1204
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=4149	8-98212-285-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=4149	8-98223-303-0	01	1	1208-1507
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=4149	8-98328-271-1	01	1	1508-
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) L=3376	8-98125-321-0	01	1	0810-1204
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) L=3376	8-98212-277-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) L=3362	8-98223-361-1	01	1	1208-
31	04.439 CLIP; BAND,CABLE 02.559 L=250	5-09707-030-1	01	1	0810-
32	04.439 BOLT; CLIP,CABLE 02.361 M6X12 FLANGE	8-97329-610-0	02	1	0810-
36	04.439 BOLT; PTO BRKT DUMP CHASSIS(V4D) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0810-
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0810-
173	04.439 NUT; BRKT DUMP CHASSIS(V4D) 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-0906
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-0906
173	04.439 NUT; BRKT DUMP CHASSIS(V4D) 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-0906
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-0906
173	04.439 NUT; BRKT DUMP CHASSIS(V4D) 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-0906
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-0906
173	04.439 NUT; BRKT DUMP CHASSIS(V4D) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-
173	04.439 NUT; BRKT DUMP CHASSIS(V4D) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-
173	04.439 NUT; BRKT DUMP CHASSIS(V4D) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-
173	04.439 NUT; BRKT DUMP CHASSIS(V4D) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-
195	04.439 BRACKET; CONT CABLE (D)	8-98139-185-0	01	1	0907-
195	04.439 BRACKET; CONT CABLE (B)	8-98122-800-0	01	1	0810-
195	04.439 BRACKET; CONT CABLE (C)	8-98124-679-1	01	1	0810-
195	04.439 BRACKET; CONT CABLE (A)	8-98119-504-0	01	1	0810-1112
195	04.439 BRACKET; CONT CABLE (A)	8-98203-717-0	01	1	1201-
332	04.439 NUT; PTO CONT CABLE 01.062 M6 FLANGE	0-91180-106-0	01	1	0810-

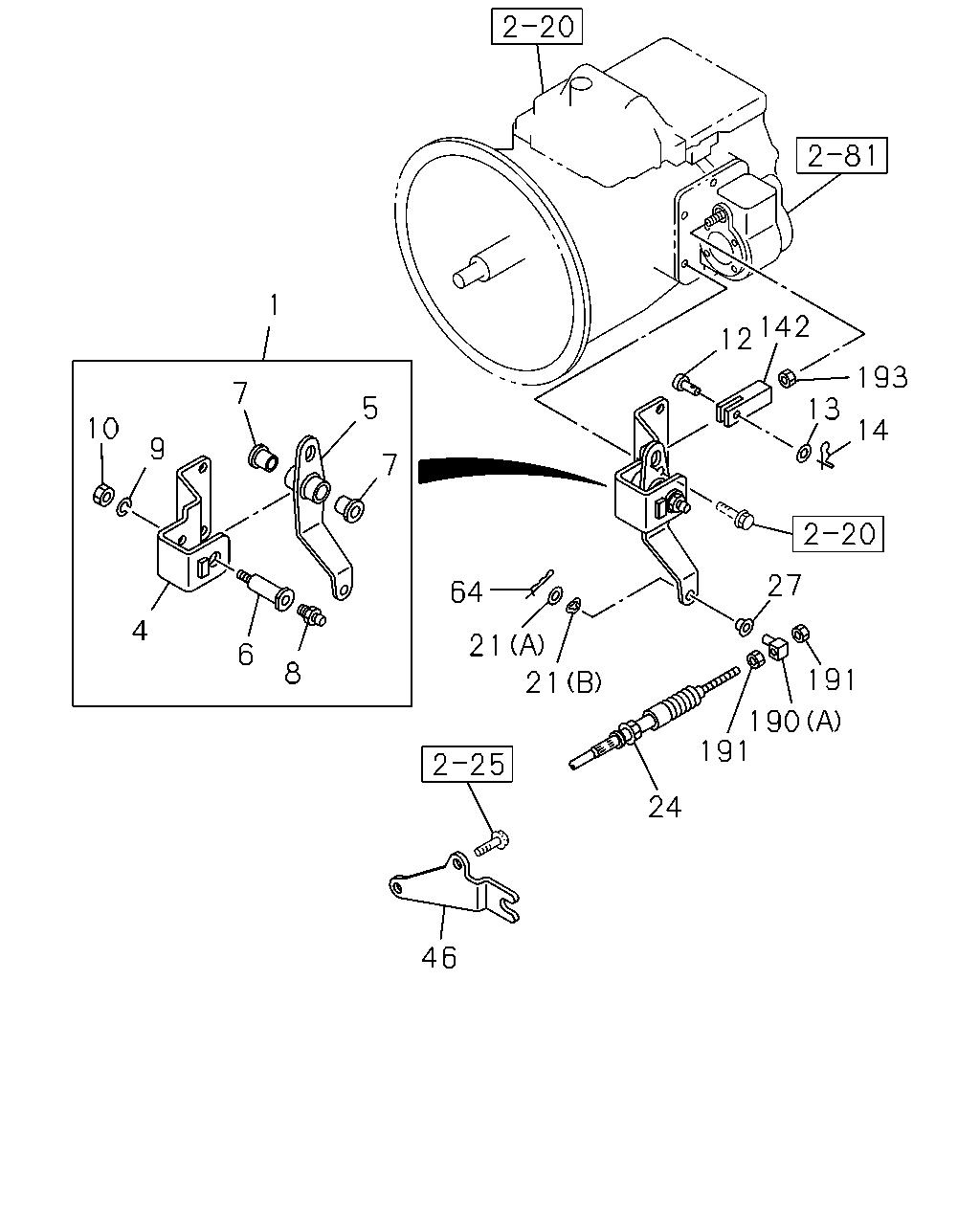

1 142 12 193 7 5 13 10 14 9 7 27 64 4 21 21 6 8 191 190 191 24 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-714-0	01	1	0810-1107
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98150-089-1	01	1	1108-
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-717-0	01	1	0810-1107
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98150-099-1	01	1	1108-
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-718-0	01	1	0810-
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-720-0	01	1	0810-1107
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98150-101-0	01	1	1108-
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	5-33659-053-0	02	1	0810-
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0810-
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) ID=8.2	0-91510-508-0	01	1	0810-
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.334 M8	0-91110-508-0	01	1	0810-
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98031-692-0	01	1	0810-
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) ID=12.5 OD=22	0-91610-512-0	01	1	0810-
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97581-216-0	01	1	0810-
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	0810-
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	0810-
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=4149	8-98128-392-0	01	1	0810-1204
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=4149	8-98212-285-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=4149	8-98223-303-0	01	1	1208-1507
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=4149	8-98328-271-1	01	1	1508-
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) L=3376	8-98125-321-0	01	1	0810-1204
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) L=3376	8-98212-277-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) L=3362	8-98223-361-1	01	1	1208-
27	04.439 BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.042	8-94367-367-0	01	1	0810-
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC)	8-98032-829-2	01	1	0810-
64	04.439 PIN; SNAP,CONT CABLE JOINT NPR(NP***N) PTO MANUAL CONTROL(6WC) 00.833 L=27.7	8-94111-137-0	01	1	0810-1012
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) 00.833 L=27.7	8-94111-137-0	01	1	1101-
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98031-691-0	01	1	0810-
190	04.439 BOSS; LEVER,PTO (B)	8-98029-878-0	01	1	0810-
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (A)	8-94366-842-2	01	1	0810-
191	04.439 NUT; BOSS PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	02	1	0810-
193	04.439 NUT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) M12	0-91111-512-0	01	1	0810-

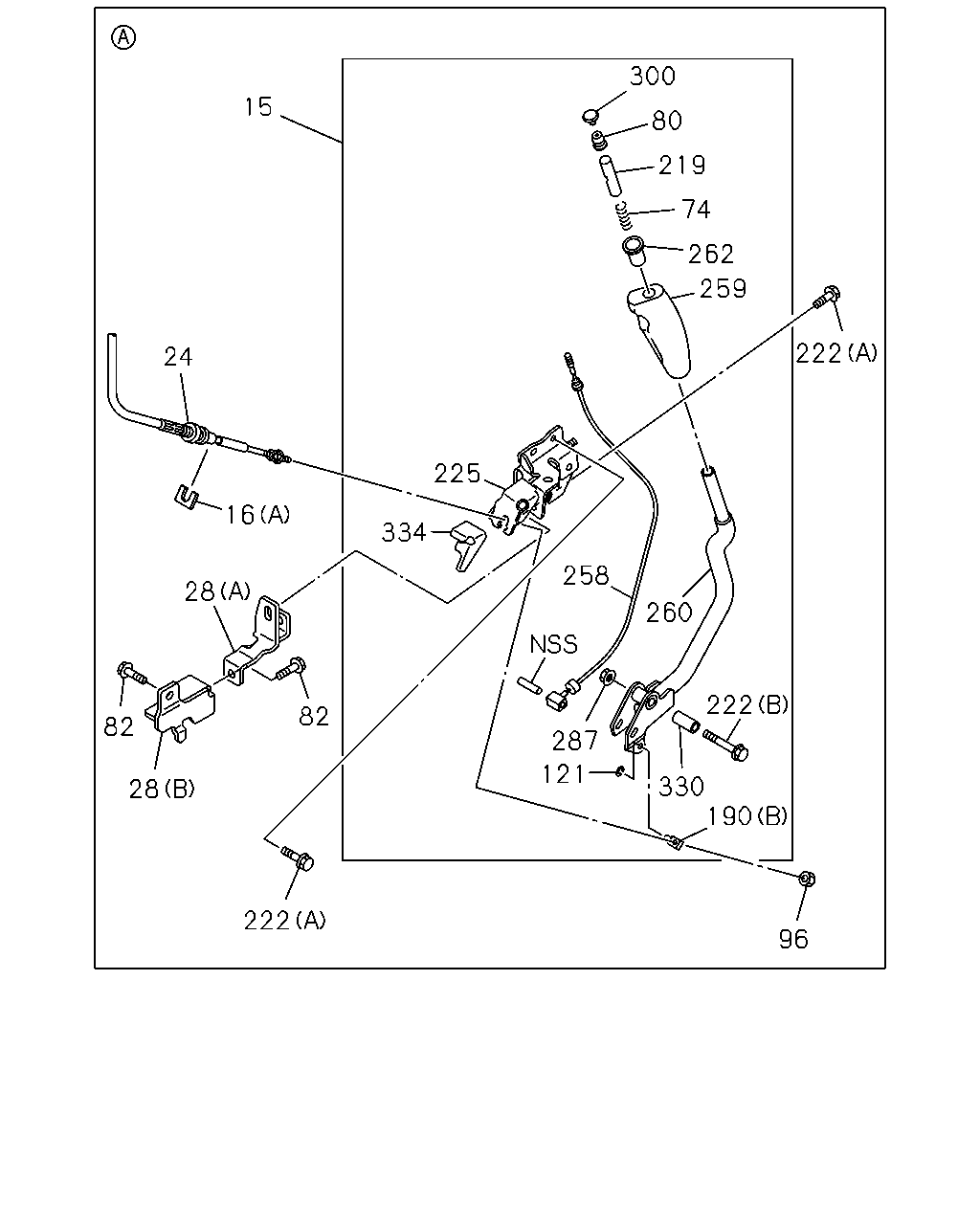

15 300 80 219 74 262 259 222 258 260 222 190 96 330 121 287 225 334 24 16 28 82 28 82 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	04.439 LEVER ASM; PTO CONT	8-98124-519-0	01	1	0810-
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) 02.559 (B) T=4.5 & 9	8-97371-947-0	02	1	0810-
16	04.439 CLIP; CABLE,PTO (A)	8-98050-126-0	01	1	0810-
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=4149	8-98128-392-0	01	1	0810-1204
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=4149	8-98212-285-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=4149	8-98223-303-0	01	1	1208-1507
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=4149	8-98328-271-1	01	1	1508-
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) L=3376	8-98125-321-0	01	1	0810-1204
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) L=3376	8-98212-277-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) L=3362	8-98223-361-1	01	1	1208-
28	04.439 BRACKET; CONT LEVER (A)	8-98096-005-2	01	1	0810-
28	04.439 BRACKET; CONT LEVER (B)	8-98096-006-0	01	1	0810-
74	04.439 SPRING; RETURN,CONT LEVER	8-98029-874-0	01	1	0810-
80	04.439 COVER; CONT LEVER	8-97122-741-0	01	1	0810-
82	04.128 BOLT; CONT LEVER 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0810-
96	04.439 NUT 03.330 M6	0-91110-506-0	01	1	0810-
121	04.439 RING; SNAP 03.485 ID=4	0-91805-504-0	01	1	0810-
190	04.439 BOSS; LEVER,PTO (B)	8-98029-878-0	01	1	0810-
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (A)	8-94366-842-2	01	1	0810-
219	04.439 KNOB; LEVER	8-97122-736-0	01	1	0810-
222	04.439 BOLT; LEVER (B) M8X60	0-10855-860-0	01	1	0810-
222	04.439 BOLT; LEVER 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	0810-
225	04.439 BRACKET; CONT LEVER	8-98077-250-2	01	1	0810-
258	04.439 CABLE; DUMP CONT .	8-98077-160-1	01	1	0810-
259	04.439 GRIP; CONT LEVER	8-97141-653-0	01	1	0810-
260	04.439 LEVER; DUMP CONT	8-98077-136-1	01	1	0810-
262	04.439 RETAINER; SPRING	8-97129-397-0	01	1	0810-
287	04.439 NUT; SWITCH,CONT LEVER 01.540 M8 FLANGE	0-91180-208-0	01	1	0810-
300	04.439 CAP; KNOB	8-97122-740-0	01	1	0810-
330	04.439 COLOR; DUMP CONT	8-98049-802-0	01	1	0810-
334	04.439 SHEET; PTO	8-98109-990-1	01	1	0811-
