Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#5238) — 62 parça

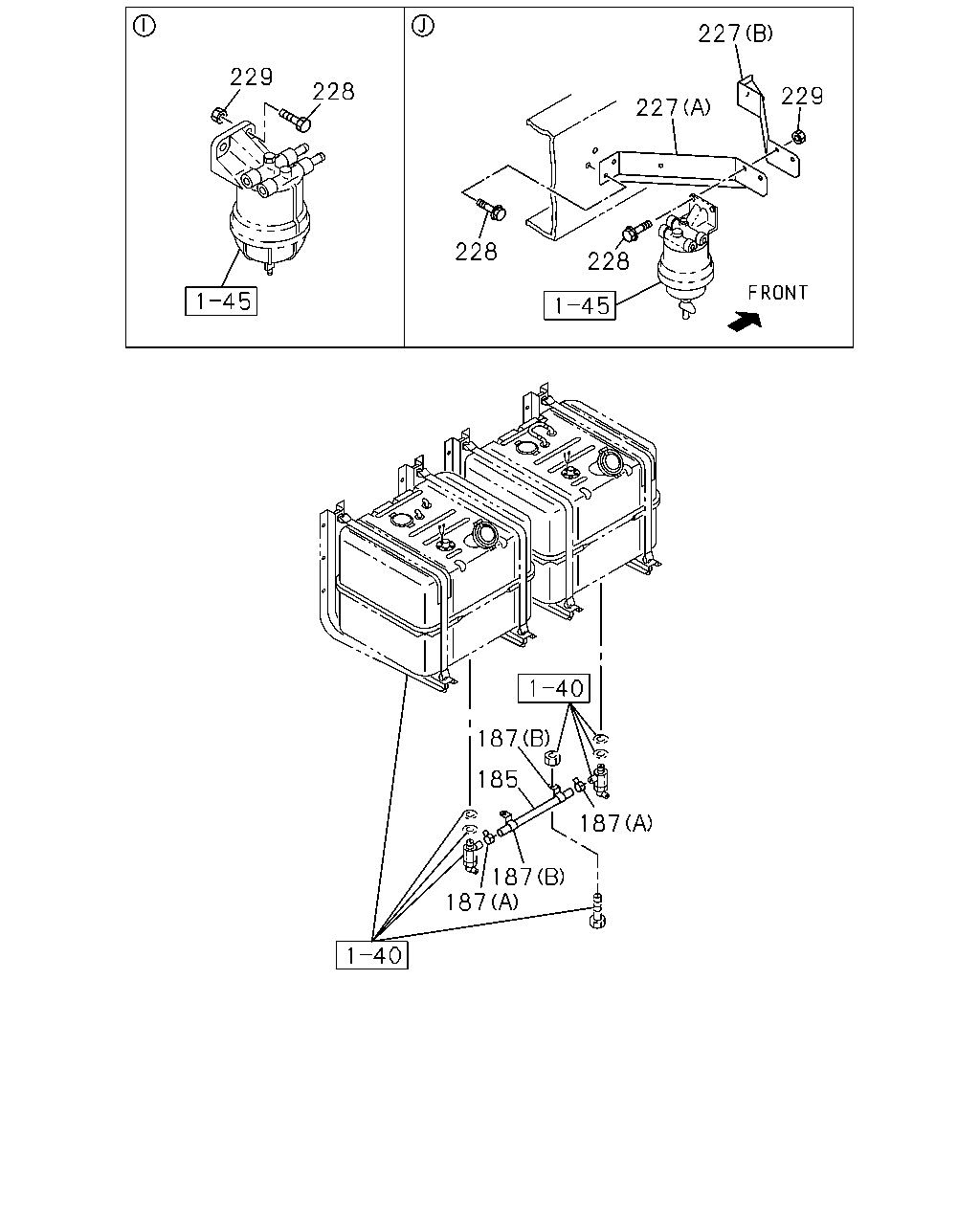

227 229 228 229 227 228 228 187 185 187 187 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
185	PIPE; FUEL TANK TO TANK FUEL TANK 200L+200L<NF7> L=840 SERVICED BY L=3000	0-01262-300-0	01	1	9604-	●	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> (A) ID=17.1	8-94122-679-0	02	1	9604-	●	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> (B) ID=19 H=25 L=25	9-09917-035-0	02	1	9604-	●	●
227	BRACKET; FUEL SEDIMENTER CONCRETE PUMP<RA5> (A)	1-22518-158-0	01	1	9604-	●	●
227	BRACKET; FUEL SEDIMENTER CONCRETE PUMP<RA5> (B)	1-22518-159-0	01	1	9604-	●	●
228	BOLT; BRKT,SEDIMENTER CONCRETE PUMP<RA5> M10X25 FLANGE	0-28081-025-0	02	1	9604-9606	●
228	BOLT; BRKT,SEDIMENTER CONCRETE PUMP<RA5> M10X30 FLANGE	0-28681-030-0	03	1	9607-	●	●
228	BOLT; BRKT,SEDIMENTER CONCRETE PUMP<RA5> M10X30 FLANGE	0-28081-030-0	02	1	9604-9606	●
228	BOLT; BRKT,SEDIMENTER CONCRETE PUMP<RA5> M10X35 FLANGE	0-28681-035-0	02	1	9607-	●	●
228	BOLT; BRKT,SEDIMENTER EXC. CONCRETE PUMP<RA5> M10X40 FLANGE	0-28081-040-0	02	1	9604-	●	●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9604-9606	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9607-	●	●
229	NUT; BRKT,FUEL FILTER CONCRETE PUMP<RA5> M10	9-09110-510-0	01	1	9604-9606	●
229	NUT; BRKT,FUEL FILTER CONCRETE PUMP<RA5> M10 FLANGE	0-91150-210-0	01	1	9607-	●	●

101 100 41 97 102 289 38 98 144 99 102 101 101 101 100 100 102 100 140 144 95 154 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	SLEEVE; RUBBER,RUBBER HOSE L=150	1-09360-677-1	01	1	9604-9908	●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150	1-09360-677-1	01	1	9909-	●	●
38	SLEEVE; RUBBER,RUBBER HOSE EXC. CONCRETE PUMP<RA5> L=150	1-09360-677-1	01	1	9909-	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9604-	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9604-9904	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9905-	●	●
97	BRACKET; CLIP CONCRETE PUMP<RA5> L=115	1-47475-305-0	02	1	9604-	●	●
97	BRACKET; CLIP EXC. CONCRETE PUMP<RA5> L=115	1-47475-305-0	01	1	9604-	●	●
98	BOLT; BRKT,FUEL PIPE CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	02	1	9604-9606	●
98	BOLT; BRKT,FUEL PIPE CONCRETE PUMP<RA5> M8X30 FLANGE	0-28680-830-0	02	1	9607-	●	●
99	NUT; BRKT,CLIP,FUEL TANK CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9604-9606	●
99	NUT; BRKT,CLIP,FUEL TANK CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	02	1	9607-	●	●
100	CLIP; FUEL PIPE CONCRETE PUMP<RA5> (C) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9604-	●	●
100	CLIP; FUEL PIPE CONCRETE PUMP<RA5> (B) ID=16X2 L=20	9-09535-536-0	06	1	9604-9908	●	●
100	CLIP; FUEL PIPE CONCRETE PUMP<RA5> (B) ID=16X2 L=20	9-09535-536-0	07	1	9909-	●	●
100	CLIP; FUEL PIPE EXC. CONCRETE PUMP<RA5> (B) ID=16X2 L=20	9-09535-536-0	03	1	9604-	●	●
100	CLIP; FUEL PIPE EXC. CONCRETE PUMP<RA5> (A) ID=16X2 L=50	9-09535-586-0	01	1	9604-	●	●
101	BOLT; CLIP,FUEL PIPE CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	06	1	9604-9606	●
101	BOLT; CLIP,FUEL PIPE CONCRETE PUMP<RA5> M8X25 FLANGE	0-28680-825-0	06	1	9607-9908	●	●
101	BOLT; CLIP,FUEL PIPE CONCRETE PUMP<RA5> M8X25 FLANGE	0-28680-825-0	07	1	9909-	●	●
101	BOLT; CLIP,FUEL PIPE CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	02	1	9604-9606	●
101	BOLT; CLIP,FUEL PIPE CONCRETE PUMP<RA5> M8X30 FLANGE	0-28680-830-0	02	1	9607-	●	●
101	BOLT; CLIP,FUEL PIPE EXC. CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	04	1	9604-9606	●
101	BOLT; CLIP,FUEL PIPE EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28680-825-0	04	1	9607-9608	●
101	BOLT; CLIP,FUEL PIPE EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28680-825-0	01	1	9609-	●	●
101	BOLT; CLIP,FUEL PIPE EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28680-825-0	03	1	9609-	●	●
102	NUT; CLIP,FUEL PIPE CONCRETE PUMP<RA5> M8	9-09110-408-0	04	1	9604-9606	●
102	NUT; CLIP,FUEL PIPE CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	04	1	9607-9908	●	●
102	NUT; CLIP,FUEL PIPE CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	05	1	9909-	●	●
102	NUT; CLIP,FUEL PIPE EXC. CONCRETE PUMP<RA5> M8	9-09110-508-0	02	1	9604-9606	●
102	NUT; CLIP,FUEL PIPE EXC. CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	01	1	9607-	●	●
140	CLIP; FUEL PIPE,C/MBR CONCRETE PUMP<RA5> (A) ID=20 L=70	1-09701-033-0	01	1	9604-	●	●
140	CLIP; FUEL PIPE,C/MBR CONCRETE PUMP<RA5> (B) ID=16X2 L=50	9-09535-586-0	02	1	9604-	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	03	1	9604-9606	●
144	BOLT; CLIP,FUEL PIPE,C/MBR CONCRETE PUMP<RA5> M8X30 FLANGE	0-28680-830-0	03	1	9607-	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR EXC. CONCRETE PUMP<RA5> M8X30 FLANGE	0-28080-830-0	01	1	9604-9606	●
144	BOLT; CLIP,FUEL PIPE,C/MBR EXC. CONCRETE PUMP<RA5> M8X35 FLANGE	0-28680-835-0	01	1	9607-	●	●
154	NUT; CLIP,FUEL PIPE,C/MBR CONCRETE PUMP<RA5> M8	9-09110-408-0	03	1	9604-9606	●
154	NUT; CLIP,FUEL PIPE,C/MBR CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	03	1	9607-	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9604-9908	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9909-	●	●
289	CLIP; BAND,HOSE EXC. CONCRETE PUMP<RA5> L=250	5-09707-030-1	02	1	9909-	●	●

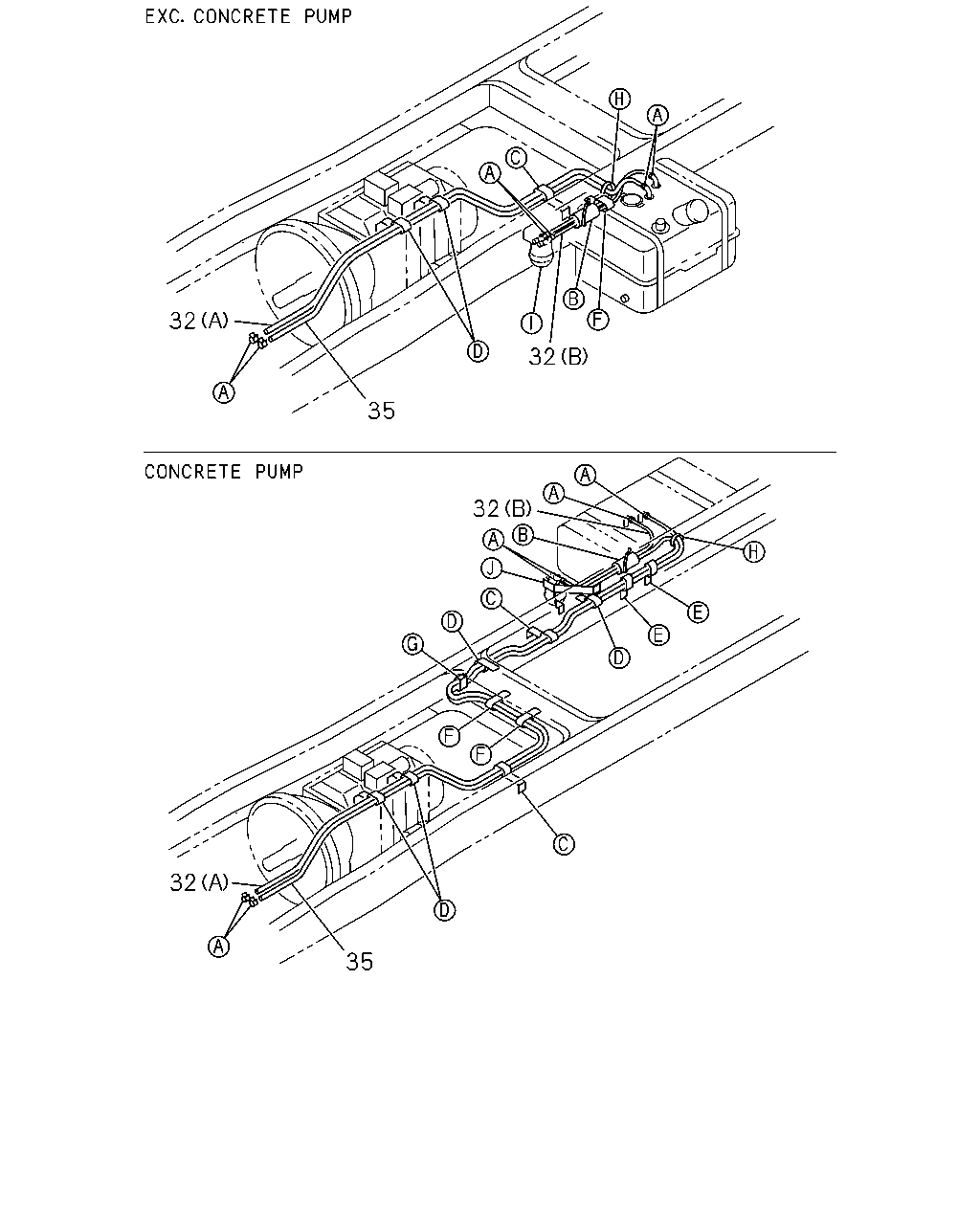

32 32 35 32 32 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK CONCRETE PUMP<RA5> (B) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	9604-	●	●
32	PIPE; DELIVERY,FUEL TANK CONCRETE PUMP<RA5> (A) L=4250 SERVICED BY L=8000	0-01260-800-0	01	1	9604-	●	●
32	PIPE; DELIVERY,FUEL TANK EXC. CONCRETE PUMP<RA5> (B) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	9604-	●	●
32	PIPE; DELIVERY,FUEL TANK EXC. CONCRETE PUMP<RA5> (B) L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	9604-	●	●
35	PIPE; FUEL TANK,RETURN CONCRETE PUMP<RA5> L=3750 SERVICED BY L=8000	0-01260-800-0	01	1	9604-	●	●
35	PIPE; FUEL TANK,RETURN EXC. CONCRETE PUMP<RA5> L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	9604-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
