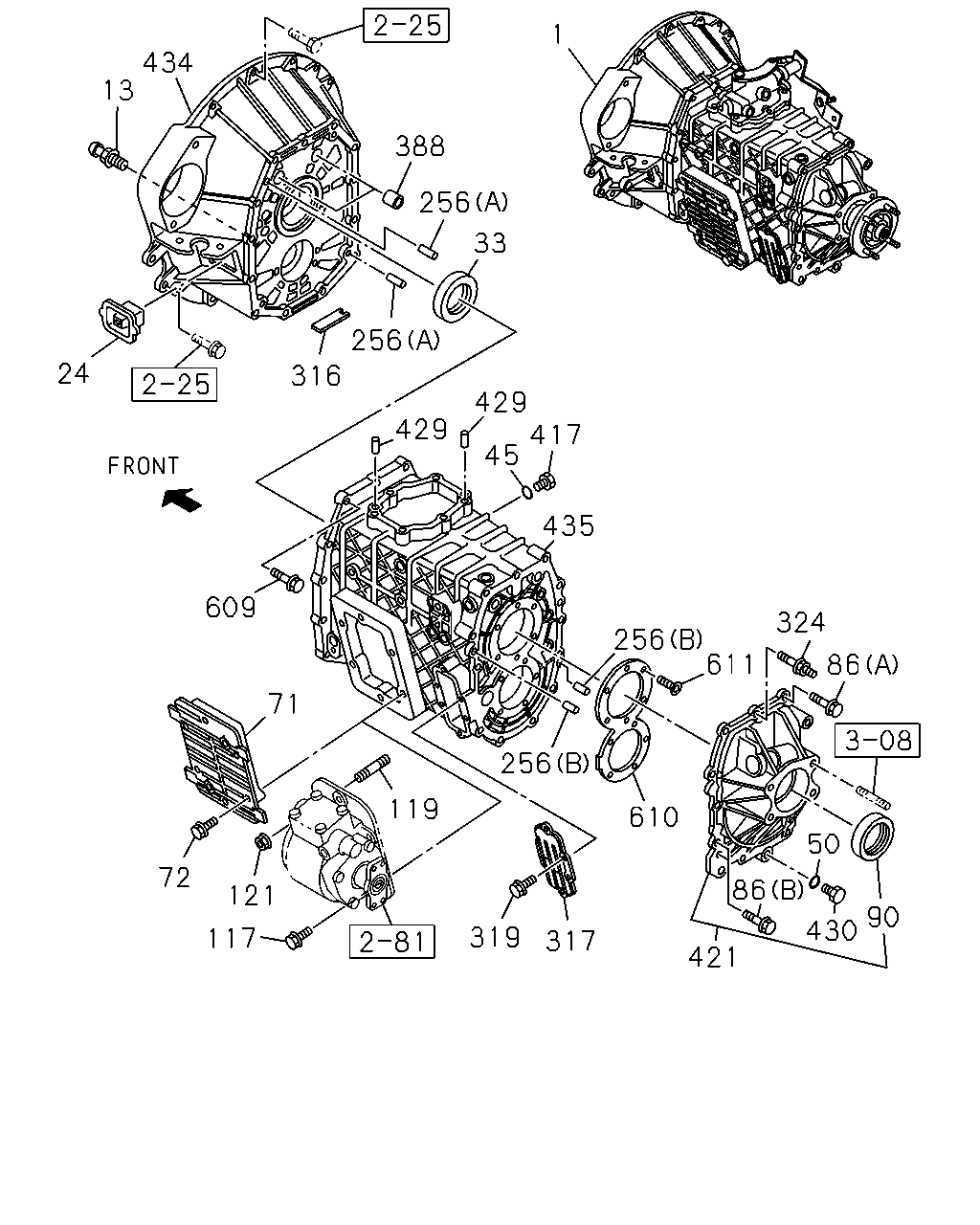

2-20 — MANUAL TRANSMISSION ASM AND CASE (#52379) — 43 parça

1 434 13 388 256 33 256 24 316 429 417 45 429 435 256 609 324 256 611 86 71 119 610 50 86 72 121 90 430 319 117 317 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98105-787-0	01	1	0810-0810
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98105-787-0	01	1	0811-1106
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98187-418-0	01	1	1107-
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98105-787-0	01	1	0810-1106
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98187-418-0	01	1	1107-
1	04.003 TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66)	8-98105-787-0	01	1	0810-1106
1	04.003 TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66)	8-98187-418-0	01	1	1107-
13	04.302 SUPPORT; SHIFT FORK	8-97255-384-1	01	1	0810-
24	00.797 COVER; CHECK HOLE,DUST	8-97255-201-0	01	1	0810-
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0810-
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0810-
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0810-
71	04.439 COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	0810-
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	0810-
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	0810-
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	0810-
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	0810-
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1108-
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	03	1	0810-1107
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.780 M10X30 FLANGE	0-28751-030-0	03	1	1108-
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.342 M10X25 L=40	0-44011-025-0	02	1	1108-
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.403 M10X30 L=45	0-44011-030-0	02	1	1108-
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	03	1	0810-1107
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.342 M10X25 L=40	0-44011-025-0	03	1	1108-
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.085 M10 FLANGE	0-91180-210-0	04	1	1007-
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	03	1	0810-1006
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.085 M10 FLANGE	0-91180-210-0	03	1	1007-
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0810-
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0810-
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0810-
317	04.109 COVER; CASE	8-97252-626-0	01	1	0810-
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	0810-
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	0810-
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	0810-
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0810-
421	04.317 COVER; RR,TRANS	8-98020-029-0	01	1	0810-
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0810-
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	0810-
434	00.683 HOUSING; CLU	8-97237-099-5	01	1	0810-
435	04.103 CASE; TRANS	8-97379-375-0	01	1	0810-
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	0810-
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	0810-
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	11	1	0810-
