2-05 — CLUTCH PIPING (#52374) — 20 parça
çizim 59246
3 7 5 4 42 17 183
BalonParca AdiParca NoAdetTipApplied Date
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 0810-
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 03 1 0810-
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97064-108-1 01 1 0810-
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 0810-
7 00.785 NUT; FLEX HOSE,CLU CONT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0810-
17 00.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0810-
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-98102-893-0 01 1 0810-
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-98047-185-0 01 1 0810-

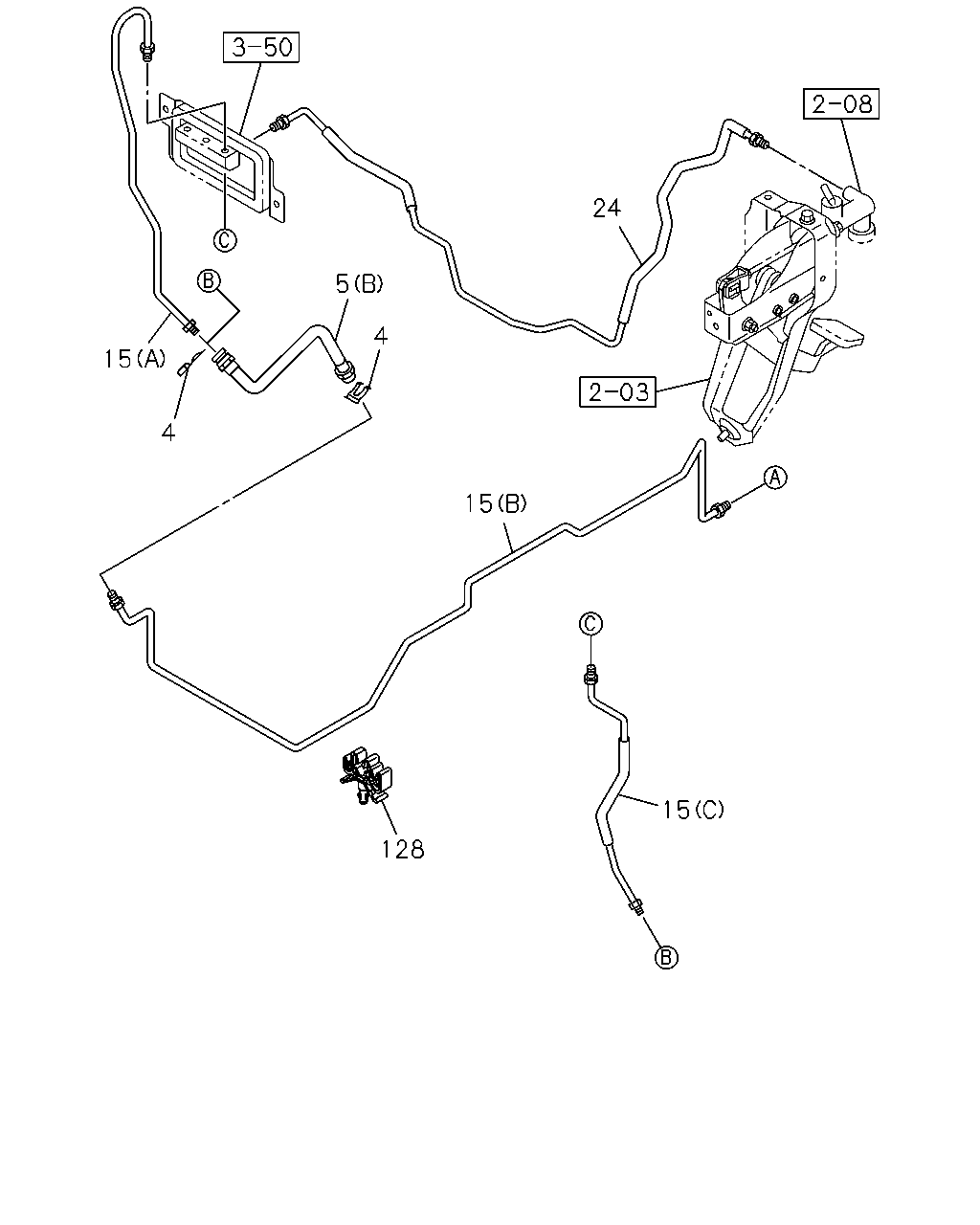

çizim 59248
24 5 4 15 4 15 15 128
BalonParca AdiParca NoAdetTipApplied Date
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 03 1 0810-
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97064-108-1 01 1 0810-
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 0810-
15 00.785 PIPE; CLU,FLEX HOSE
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98047-202-3 01 1 0812-
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-98100-236-0 01 1 0810-
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-98100-910-0 01 1 0810-0811
15 00.785 PIPE; CLU,FLEX HOSE
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98100-910-0 01 1 0812-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-98099-806-2 01 1 0810-1504
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-98250-075-0 01 1 1505-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-98097-187-1 01 1 0810-1504
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-98250-071-0 01 1 1505-
128 00.785 CLIP; AIR PIPE
04.686 ID=12 & 6.35 & 4.76 		8-97202-954-1 01 1 0810-
