◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51145 - NHR ▶ 3 - Brakes, Brake System ▶ 3-02 - FRONT DISC BRAKE CALIPER ▶
3-02 — FRONT DISC BRAKE CALIPER (#52373) — 20 parça

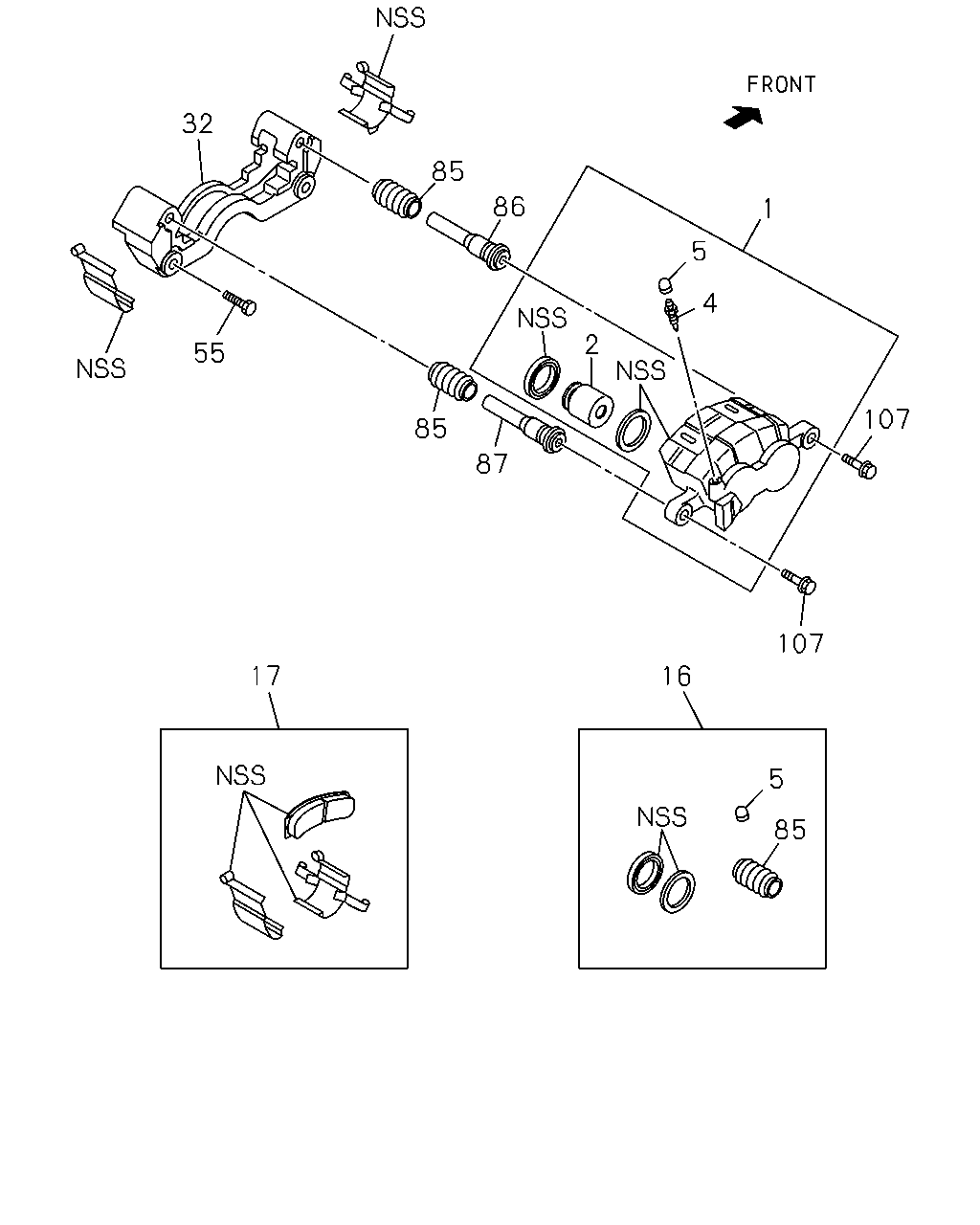

çizim 153573
32 85 86 1 5 4 2 55 107 85 87 107 17 16 5 85
BalonParca AdiParca NoAdetTipApplied Date
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) 		8-97367-534-0 01 1 0712-1412
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) 		8-98303-460-0 01 1 1501-
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) 		8-97367-533-0 01 1 0712-1412
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) 		8-98303-459-0 01 1 1501-
2 04.668 PISTON; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-97365-256-0 04 1 0712-
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		1-47615-027-0 02 1 0712-1412
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98050-476-0 02 1 1501-
5 04.666 CAP; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		1-47619-009-0 02 1 0712-1412
5 04.666 CAP; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98050-479-0 02 1 1501-
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98120-383-0 01 1 0712-1412
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98302-529-0 01 1 1501-
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98091-271-0 01 1 0712-1212
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98216-921-0 01 1 1301-
32 04.665 SUPPORT; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) 		8-97365-258-0 02 1 0712-
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) M16X48 FLANGE 		8-98033-656-0 04 1 0712-
85 04.665 BOOT; PIN
FRT INDEPENDENT SUSPENSION(FF0) 		8-97365-265-0 04 1 0712-0901
85 04.665 BOOT; PIN
FRT INDEPENDENT SUSPENSION(FF0) 		8-98120-354-0 04 1 0902-
86 04.665 PIN; GUIDE
FRT INDEPENDENT SUSPENSION(FF0) 		8-98047-530-0 02 1 0712-
87 04.665 PIN; LOCK
FRT INDEPENDENT SUSPENSION(FF0) 		8-98047-532-0 02 1 0712-
107 04.665 BOLT; PIN
FRT INDEPENDENT SUSPENSION(FF0) 		8-97365-264-0 04 1 0712-
