Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#5237) — 163 parça

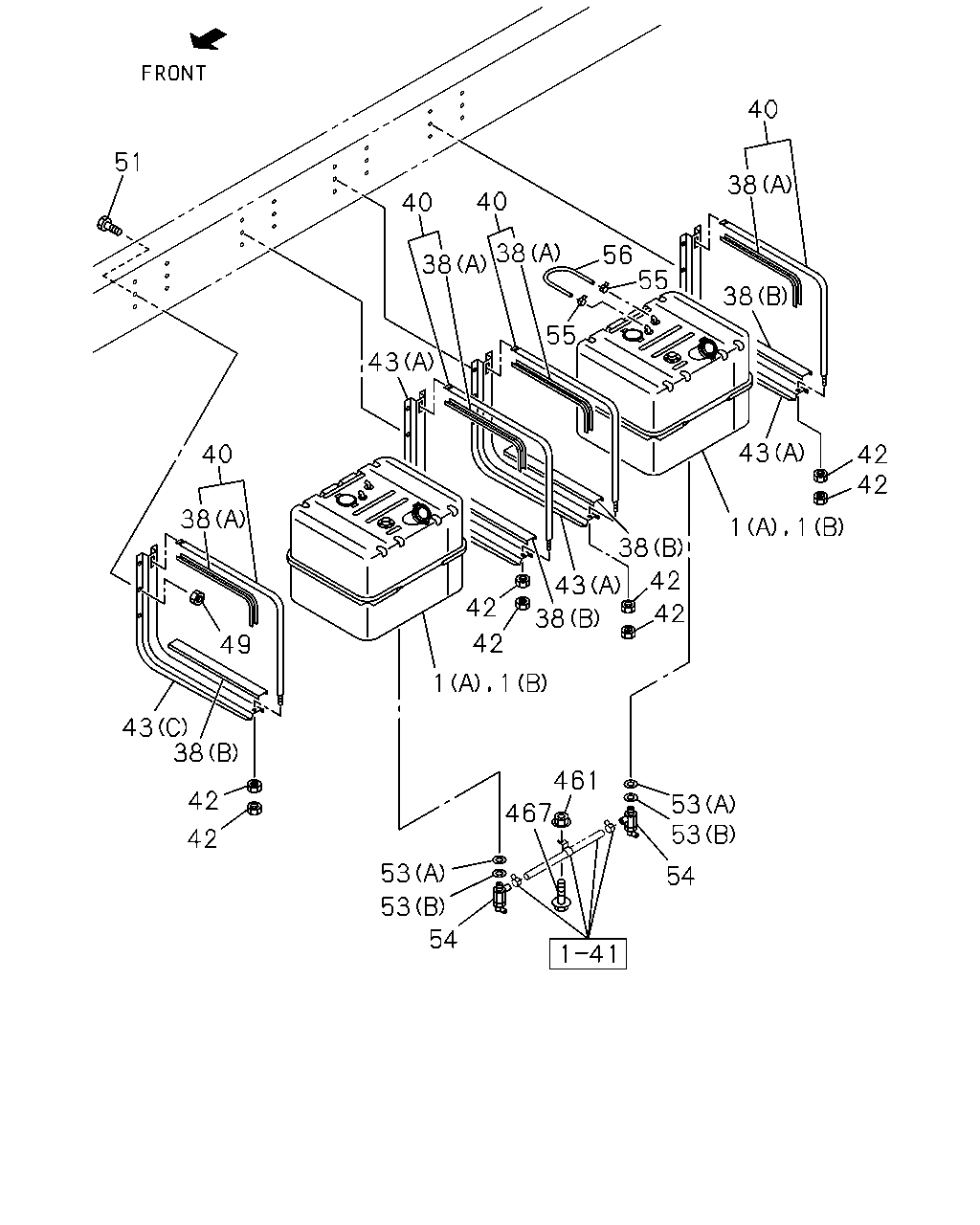

40 51 38 40 40 38 56 55 38 38 55 43 43 40 42 42 38 1 1 38 42 43 42 38 42 42 49 1 1 43 38 461 42 53 53 467 42 53 54 53 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) 720X610X496 200L	1-22400-855-0	01	1	9604-0003	●	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) 720X610X496 200L	1-22401-121-1	01	1	0004-	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-855-0	02	1	9604-0003	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-121-1	02	1	0004-	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-854-1	02	1	9604-0003	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	02	1	0004-	●	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-854-1	01	1	9604-0003	●	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	01	1	0004-	●	●
1	TANK; FUEL FUEL TANK 300L<RF5> (C) 1040X602X502 300L	1-22400-946-3	01	1	9604-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (B) L=580	1-22553-003-0	04	1	9604-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (A) L=650	1-22553-022-1	04	1	9604-	●	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) L=580	1-22553-003-0	02	1	9604-	●	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (A) L=650	1-22553-022-1	02	1	9604-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> L=1030	1-22550-204-2	04	1	9604-	●	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> L=1030	1-22550-204-2	02	1	9604-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L<RF5> L=1034	1-22550-192-1	02	1	9604-	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	9604-	●	●
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M10	9-09110-510-0	04	1	9604-	●	●
42	NUT; SUPPORT BELT FUEL TANK 300L<RF5> M12	9-99110-512-0	04	1	9604-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7> (A)	1-53461-279-4	02	1	9604-	●	●
43	BRACKET; FUEL TANK FUEL TANK 300L<RF5> (B)	1-53461-407-2	02	1	9604-	●	●
43	BRACKET; FUEL TANK EXC. FUEL TANK 300L<RF5> (A)	1-53461-279-4	01	1	9604-	●	●
43	BRACKET; FUEL TANK EXC. FUEL TANK 300L<RF5> (C)	1-53461-375-0	01	1	9604-	●	●
49	NUT; BRKT FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	24	1	9604-	●	●
49	NUT; BRKT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M12	9-99110-512-0	12	1	9604-	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X30 FLANGE	0-28081-230-0	24	1	9604-9606	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28681-235-0	24	1	9607-	●	●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M12X30 FLANGE	0-28081-230-0	12	1	9604-9606	●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M12X35 FLANGE	0-28681-235-0	12	1	9607-	●	●
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> (B) T=1.60	1-22416-001-0	02	1	9604-	●	●
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> (A) T=0.80	1-22416-004-0	02	1	9604-	●	●
54	COCK ASM; FUEL TANK FUEL TANK 200L+200L<NF7>	9-09904-176-0	02	1	9604-	●	●
55	CLIP; FUEL PIPE FUEL TANK 200L+200L<NF7> ID=14	1-09704-102-0	02	1	9604-	●	●
56	PIPE; FUEL SHUTTER FUEL TANK 200L+200L<NF7> L=260 SERVICED BY L=3000	0-01260-300-0	01	1	9604-	●	●
461	NUT; CLIP,FUEL PIPE FUEL TANK 200L+200L<NF7> M8	9-09110-508-0	02	1	9604-9606	●
461	NUT; CLIP,FUEL PIPE FUEL TANK 200L+200L<NF7> M8 FLANGE	0-91150-108-0	02	1	9607-	●	●
467	BOLT FUEL TANK 200L+200L<NF7> M8X20 FLANGE	0-28080-820-0	02	1	9604-9606	●
467	BOLT FUEL TANK 200L+200L<NF7> M8X25 FLANGE	0-28680-825-0	02	1	9607-	●	●

1 1 35 35 32 32 29 29 25 25 19 19 8 22 8 22 11 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) 720X610X496 200L	1-22400-855-0	01	1	9604-0003	●	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) 720X610X496 200L	1-22401-121-1	01	1	0004-	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-855-0	02	1	9604-0003	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-121-1	02	1	0004-	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-854-1	02	1	9604-0003	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	02	1	0004-	●	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-854-1	01	1	9604-0003	●	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	01	1	0004-	●	●
1	TANK; FUEL FUEL TANK 300L<RF5> (C) 1040X602X502 300L	1-22400-946-3	01	1	9604-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> T=2.0	9-09923-030-0	02	1	9604-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 200L+200L<NF7> T=2.0	9-09923-030-0	01	1	9604-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> M36	1-09604-052-0	02	1	9604-0003	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> M36	1-09604-052-0	02	1	0004-	●	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M36	1-09604-052-0	01	1	9604-0003	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 300L<RF5> M36	1-09604-052-0	01	1	9604-0003	●	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L+200L<NF7> M36	1-09604-052-0	01	1	0004-	●	●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> ID=42 OD=71	5-83148-001-0	01	1	9905-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L<RF5> ID=45 OD=67	1-83149-003-0	01	1	9905-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=42 OD=71	5-83148-001-0	02	1	9905-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>	9-83135-003-0	02	1	9604-9904	●	●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>	9-83135-003-0	01	1	9604-9904	●	●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>	1-83141-080-1	01	1	9604-	●	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9604-	●	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9604-	●	●
22	UNIT; FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9604-	●	●
22	UNIT; FUEL TANK FUEL TANK 300L<RF5>	1-83141-111-0	01	1	9604-	●	●
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>	1-22440-034-1	01	1	9604-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	02	1	9604-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	02	1	9604-0003	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	02	1	0004-	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	01	1	9604-0003	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	01	1	0004-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L<RF5>	1-22440-044-0	01	1	9604-	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.3	9-09160-505-0	02	1	9604-	●	●
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> ID=5.3	9-09160-505-0	01	1	9604-	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.1	9-09150-505-0	10	1	9604-	●	●
32	WASHER; LK,FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> ID=5.1	9-09150-505-0	05	1	9604-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	10	1	9604-	●	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M5X10	9-93497-510-0	05	1	9604-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 300L<RF5>	1-22419-012-0	05	1	9604-	●	●

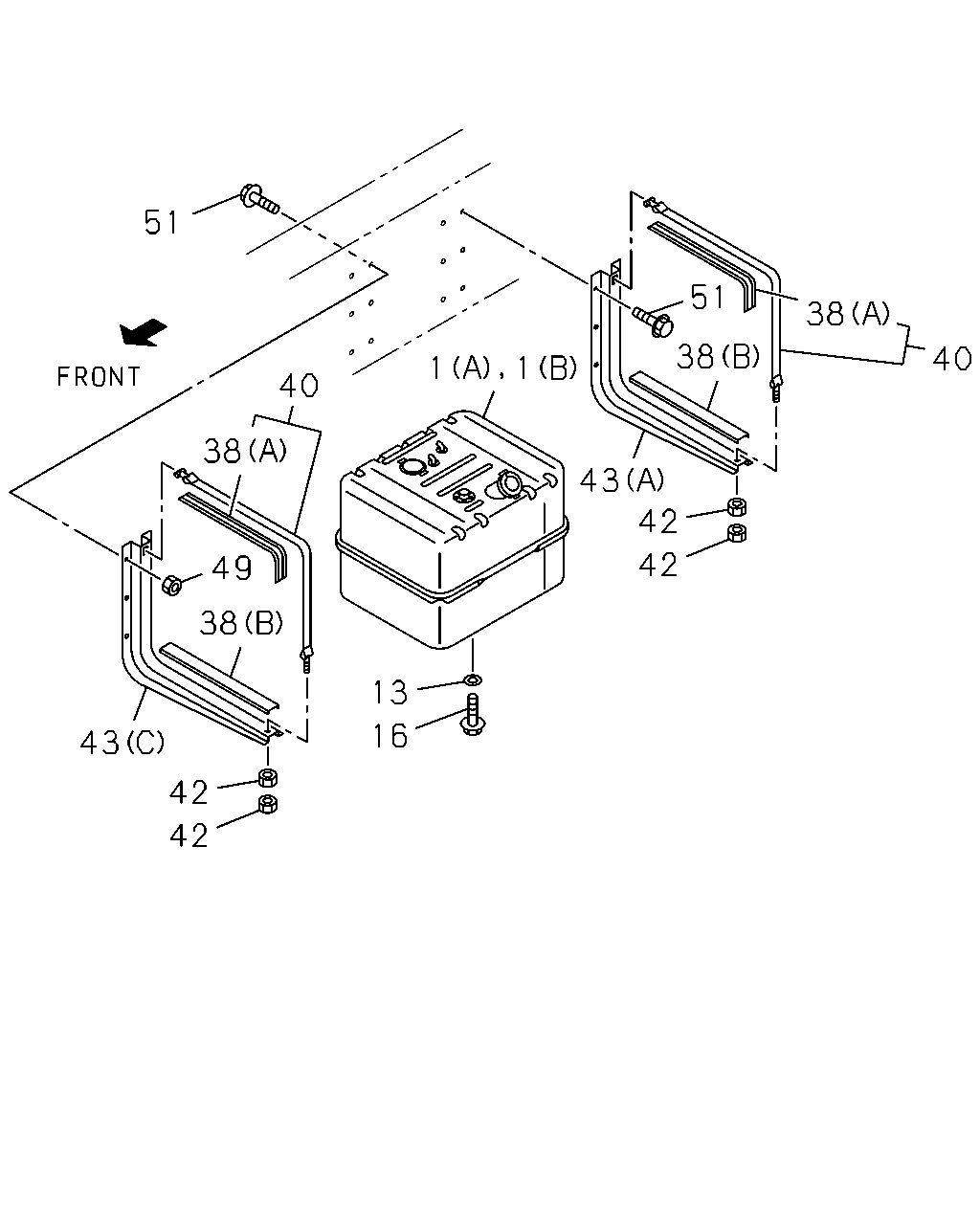

51 51 38 38 40 1 1 40 38 43 42 42 49 38 13 16 43 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) 720X610X496 200L	1-22400-855-0	01	1	9604-0003	●	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) 720X610X496 200L	1-22401-121-1	01	1	0004-	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-855-0	02	1	9604-0003	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-121-1	02	1	0004-	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-854-1	02	1	9604-0003	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	02	1	0004-	●	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-854-1	01	1	9604-0003	●	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	01	1	0004-	●	●
1	TANK; FUEL FUEL TANK 300L<RF5> (C) 1040X602X502 300L	1-22400-946-3	01	1	9604-	●	●
13	PLUG; SCREW,SUB TANK JOINT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M18X12	1-09604-081-0	01	1	9604-	●	●
16	GASKET; PLUG EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> T=1.60	1-22416-001-0	01	1	9604-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (B) L=580	1-22553-003-0	04	1	9604-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (A) L=650	1-22553-022-1	04	1	9604-	●	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) L=580	1-22553-003-0	02	1	9604-	●	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (A) L=650	1-22553-022-1	02	1	9604-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> L=1030	1-22550-204-2	04	1	9604-	●	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> L=1030	1-22550-204-2	02	1	9604-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L<RF5> L=1034	1-22550-192-1	02	1	9604-	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	9604-	●	●
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M10	9-09110-510-0	04	1	9604-	●	●
42	NUT; SUPPORT BELT FUEL TANK 300L<RF5> M12	9-99110-512-0	04	1	9604-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7> (A)	1-53461-279-4	02	1	9604-	●	●
43	BRACKET; FUEL TANK FUEL TANK 300L<RF5> (B)	1-53461-407-2	02	1	9604-	●	●
43	BRACKET; FUEL TANK EXC. FUEL TANK 300L<RF5> (A)	1-53461-279-4	01	1	9604-	●	●
43	BRACKET; FUEL TANK EXC. FUEL TANK 300L<RF5> (C)	1-53461-375-0	01	1	9604-	●	●
49	NUT; BRKT FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	24	1	9604-	●	●
49	NUT; BRKT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M12	9-99110-512-0	12	1	9604-	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X30 FLANGE	0-28081-230-0	24	1	9604-9606	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28681-235-0	24	1	9607-	●	●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M12X30 FLANGE	0-28081-230-0	12	1	9604-9606	●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M12X35 FLANGE	0-28681-235-0	12	1	9607-	●	●

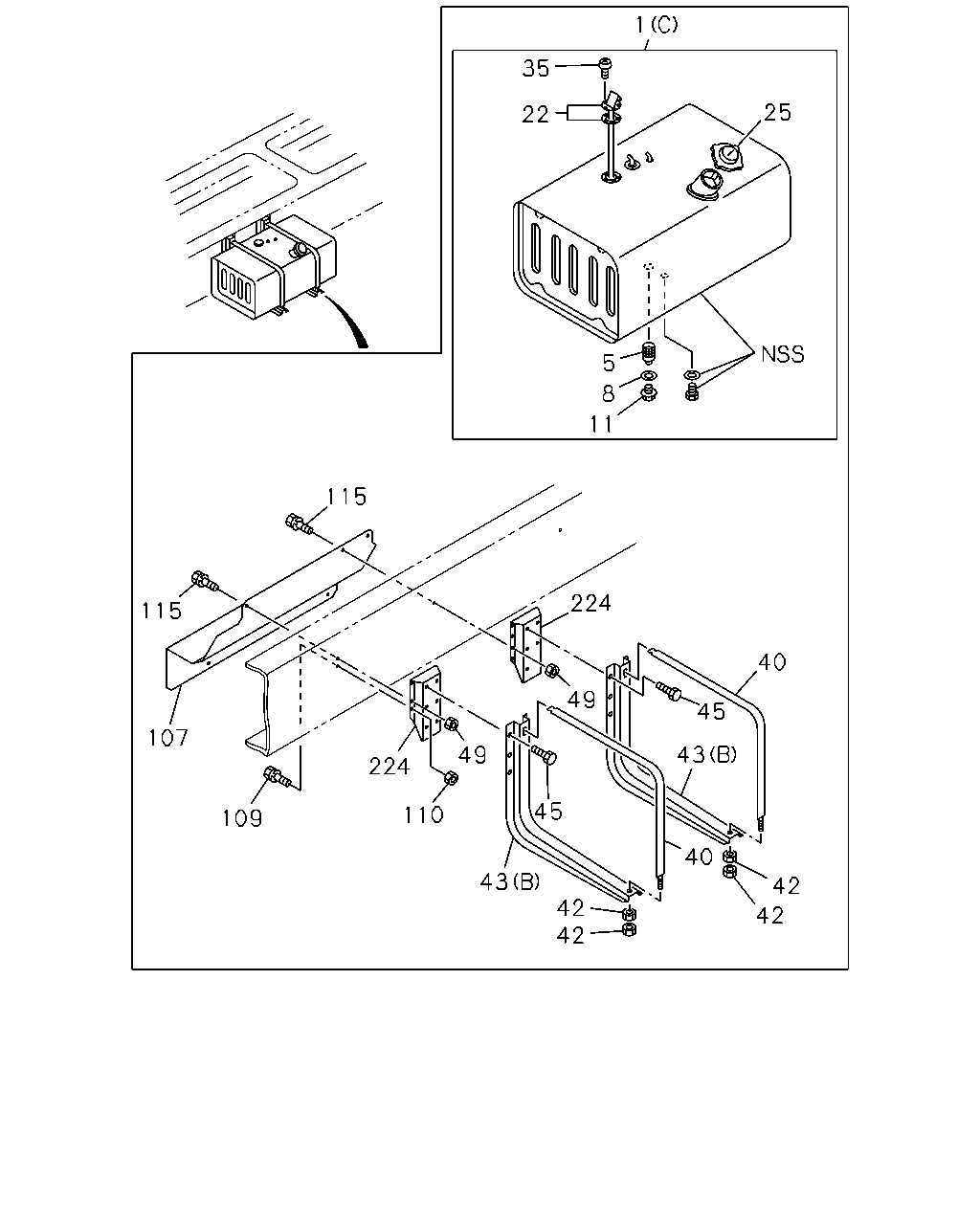

1 35 25 22 5 8 11 115 224 115 40 49 45 107 43 49 224 45 110 109 40 43 42 42 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) 720X610X496 200L	1-22400-855-0	01	1	9604-0003	●	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> (B) 720X610X496 200L	1-22401-121-1	01	1	0004-	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-855-0	02	1	9604-0003	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-121-1	02	1	0004-	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-854-1	02	1	9604-0003	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	02	1	0004-	●	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-854-1	01	1	9604-0003	●	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	01	1	0004-	●	●
1	TANK; FUEL FUEL TANK 300L<RF5> (C) 1040X602X502 300L	1-22400-946-3	01	1	9604-	●	●
5	STRAINER; FUEL TANK FUEL TANK 300L<RF5>	1-22460-001-1	01	1	9604-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> T=2.0	9-09923-030-0	02	1	9604-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 200L+200L<NF7> T=2.0	9-09923-030-0	01	1	9604-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> M36	1-09604-052-0	02	1	9604-0003	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> M36	1-09604-052-0	02	1	0004-	●	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M36	1-09604-052-0	01	1	9604-0003	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 300L<RF5> M36	1-09604-052-0	01	1	9604-0003	●	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L+200L<NF7> M36	1-09604-052-0	01	1	0004-	●	●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>	1-83141-080-1	01	1	9604-	●	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9604-	●	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9604-	●	●
22	UNIT; FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9604-	●	●
22	UNIT; FUEL TANK FUEL TANK 300L<RF5>	1-83141-111-0	01	1	9604-	●	●
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>	1-22440-034-1	01	1	9604-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	02	1	9604-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	02	1	9604-0003	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	02	1	0004-	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	01	1	9604-0003	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	01	1	0004-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L<RF5>	1-22440-044-0	01	1	9604-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	10	1	9604-	●	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M5X10	9-93497-510-0	05	1	9604-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 300L<RF5>	1-22419-012-0	05	1	9604-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> L=1030	1-22550-204-2	04	1	9604-	●	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> L=1030	1-22550-204-2	02	1	9604-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L<RF5> L=1034	1-22550-192-1	02	1	9604-	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	9604-	●	●
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M10	9-09110-510-0	04	1	9604-	●	●
42	NUT; SUPPORT BELT FUEL TANK 300L<RF5> M12	9-99110-512-0	04	1	9604-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7> (A)	1-53461-279-4	02	1	9604-	●	●
43	BRACKET; FUEL TANK FUEL TANK 300L<RF5> (B)	1-53461-407-2	02	1	9604-	●	●
43	BRACKET; FUEL TANK EXC. FUEL TANK 300L<RF5> (A)	1-53461-279-4	01	1	9604-	●	●
43	BRACKET; FUEL TANK EXC. FUEL TANK 300L<RF5> (C)	1-53461-375-0	01	1	9604-	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 300L<RF5> M12X30 FLANGE	0-28081-230-0	12	1	9604-9606	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 300L<RF5> M12X35 FLANGE	0-28681-235-0	12	1	9607-	●	●
49	NUT; BRKT FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	24	1	9604-	●	●
49	NUT; BRKT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5> M12	9-99110-512-0	12	1	9604-	●	●
107	PROTECTOR; HEAT,FUEL TANK FUEL TANK 300L<RF5>	1-22159-273-0	01	1	9604-	●	●
109	BOLT; HEAT PROTECTOR FUEL TANK 300L<RF5> M10X25 FLANGE	0-28081-025-0	04	1	9604-9606	●
109	BOLT; HEAT PROTECTOR FUEL TANK 300L<RF5> M10X30 FLANGE	0-28681-030-0	04	1	9607-	●	●
110	NUT; PROTECTOR FUEL TANK 300L<RF5> M10	9-09110-510-0	04	1	9604-9606	●
110	NUT; PROTECTOR FUEL TANK 300L<RF5> M10 FLANGE	0-91150-210-0	04	1	9607-	●	●
115	BOLT; BRKT FUEL TANK 300L<RF5> M12X30 FLANGE	0-28081-230-0	08	1	9604-9606	●
115	BOLT; BRKT FUEL TANK 300L<RF5> M12X35 FLANGE	0-28681-235-0	08	1	9607-	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME FUEL TANK 300L<RF5>	1-53469-016-0	02	1	9604-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
