2-25 — SPEEDOMETER DRIVEN GEAR (#52365) — 17 parça

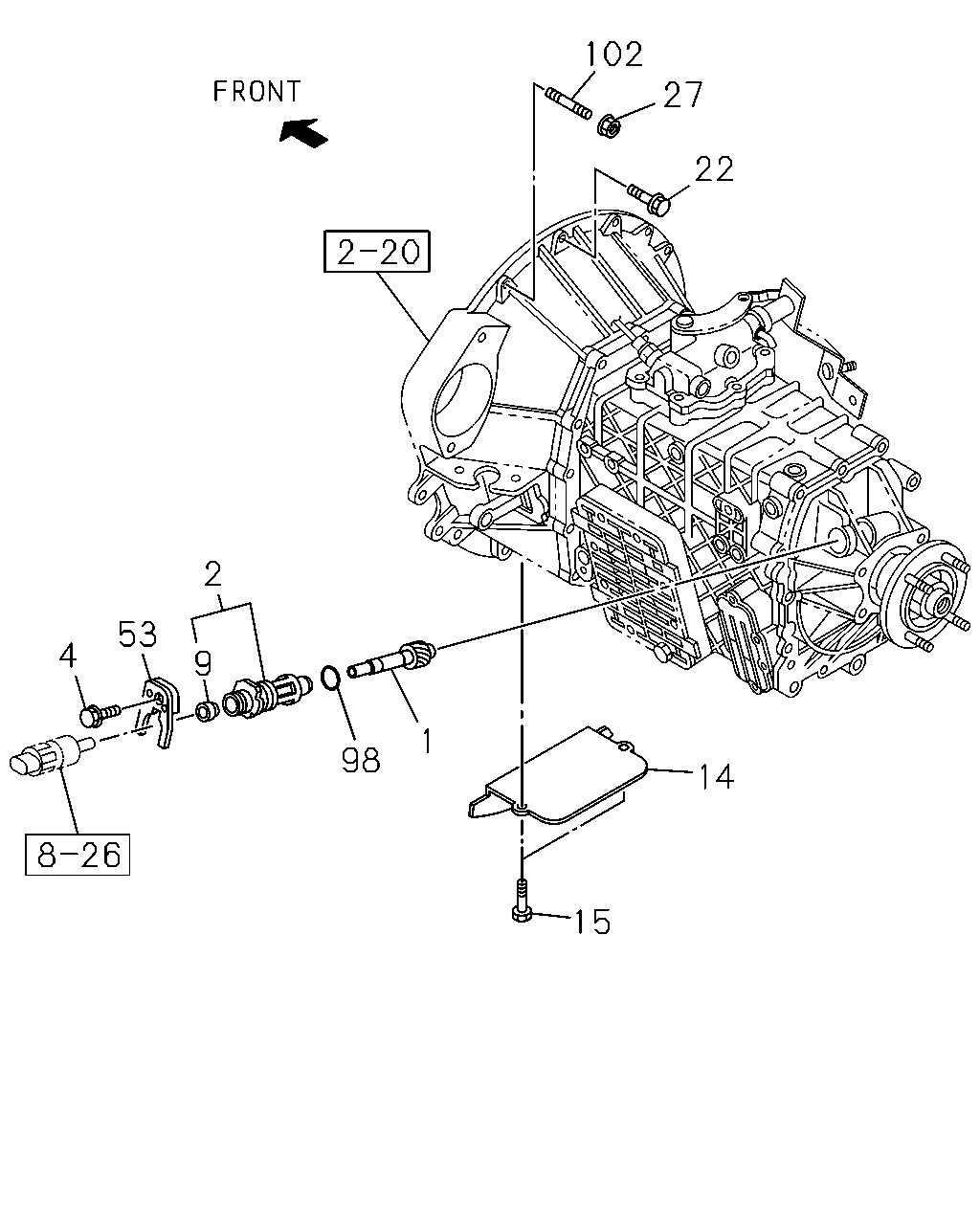

çizim 153561
102 27 22 2 53 4 9 1 98 14 15
BalonParca AdiParca NoAdetTipApplied Date
1 04.337 GEAR; DRIVEN,SPD
Z=13 		8-97253-562-1 01 1 0712-
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
MARK "12,13,14,15" 		8-97253-125-0 01 1 0712-
4 04.338 BOLT; RET,DRIVEN GEAR
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0712-
9 04.338 SEAL; OIL,DRIVEN GEAR
NOK 		8-97131-328-1 01 1 0712-
14 00.679 COVER; UNDER,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97308-233-0 01 1 0712-
15 00.685 BOLT; UNDER COVER TO TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0712-
22 00.685 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 09.171 M10X30 FLANGE 		0-28151-030-0 03 1 0712-
22 00.685 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.670 M10X35 FLANGE 		0-28151-035-0 03 1 0712-
22 00.685 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.042 M10X50 FLANGE 		0-28151-050-0 01 1 0712-
22 00.685 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 0712-
22 00.685 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.683 M10X140 FLANGE 		0-28156-014-0 01 1 0712-
22 00.685 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X50 FLANGE 		0-28151-050-0 05 1 0712-
22 00.685 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.683 M10X140 FLANGE 		0-28156-014-0 02 1 0712-
27 00.685 NUT; CLU HSG TO TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE 		0-91180-210-0 02 1 0712-
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-98046-217-0 01 1 0712-
98 04.338 SEAL; OIL,BUSH
04.439 		9-09561-324-0 01 1 0712-
102 00.683 STUD; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) M10X50 L=99 		0-49241-050-0 02 1 0712-
