Isuzu WW
▶
TRUCKS
▶
NHR
▶
51145 - NHR
▶
2 - Clutch, Transmission, Trans Axle
▶
2-08 - CLUTCH MASTER CYLINDER
▶

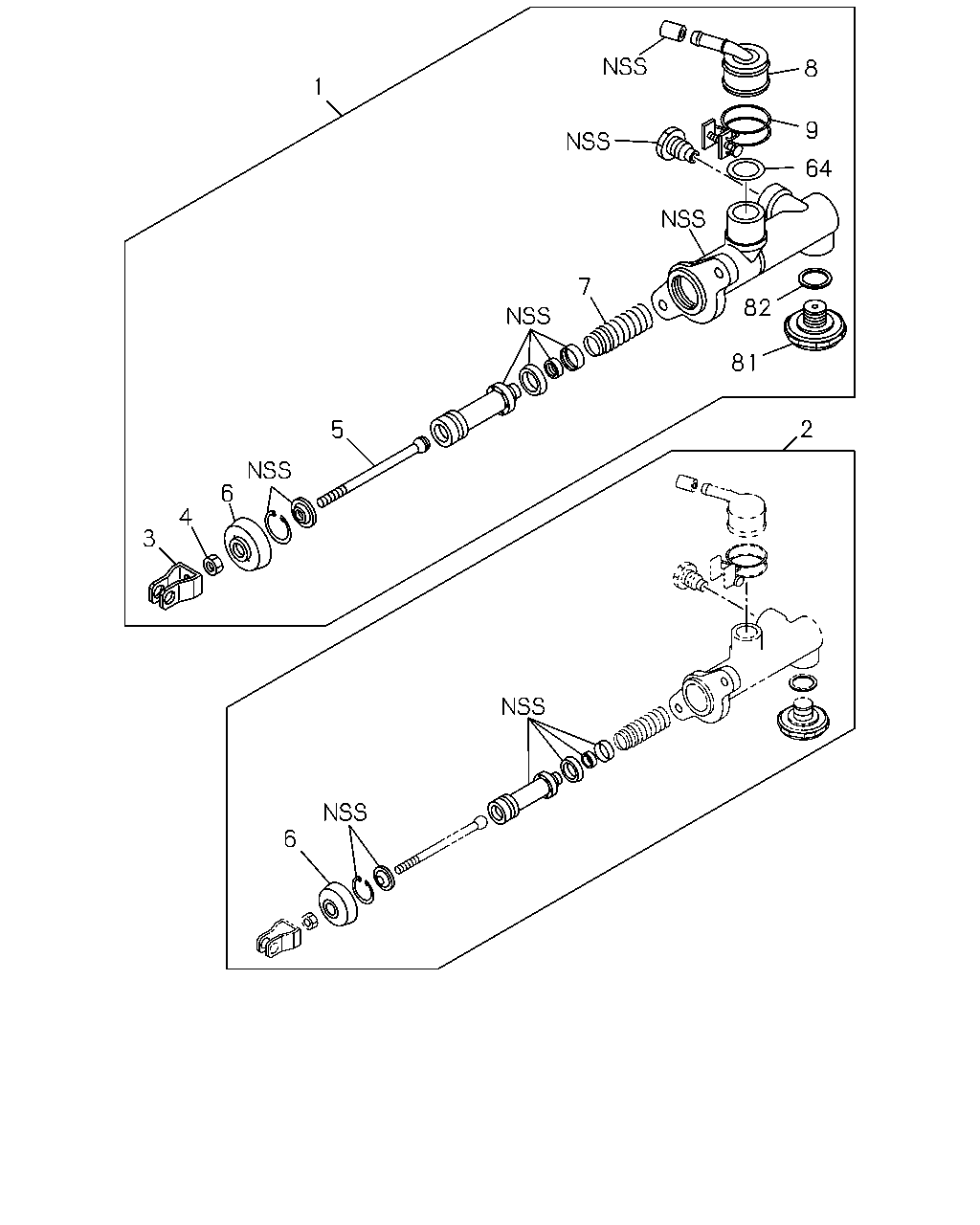

2-08 — CLUTCH MASTER CYLINDER
(#52362) — 14 parça
8
1
9
64
7
82
81
2
5
6
4
3
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.775 CYLINDER ASM; CLUTCH MASTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97300-210-0
01
1
0712-0803
1
00.775 CYLINDER ASM; CLUTCH MASTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98117-641-0
01
1
0804-
2
00.775 REPAIR KIT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
5-87831-597-0
01
1
0712-0803
2
00.775 REPAIR KIT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
5-87832-226-0
01
1
0804-
3
00.777 JOINT; JAW,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97167-770-0
01
1
0712-
4
00.777 NUT; JAW JOINT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8
0-91111-508-0
01
1
0712-
5
00.775 ROD; PUSH,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97167-768-0
01
1
0712-
6
00.775 BOOT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-94412-200-0
01
1
0712-
7
00.775 SPRING ASM; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97167-780-0
01
1
0712-
8
00.777 CONNECTOR; PIPE,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97163-191-0
01
1
0712-
9
00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97167-773-0
01
1
0712-
64
00.777 GASKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97167-767-0
01
1
0712-
81
00.777 DAMPER; MASTER CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97190-913-0
01
1
0712-
82
00.777 GASKET; DAMPER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97191-396-0
01
1
0712-
