2-03 — CLUTCH PEDAL AND CONTROL (#52359) — 24 parça

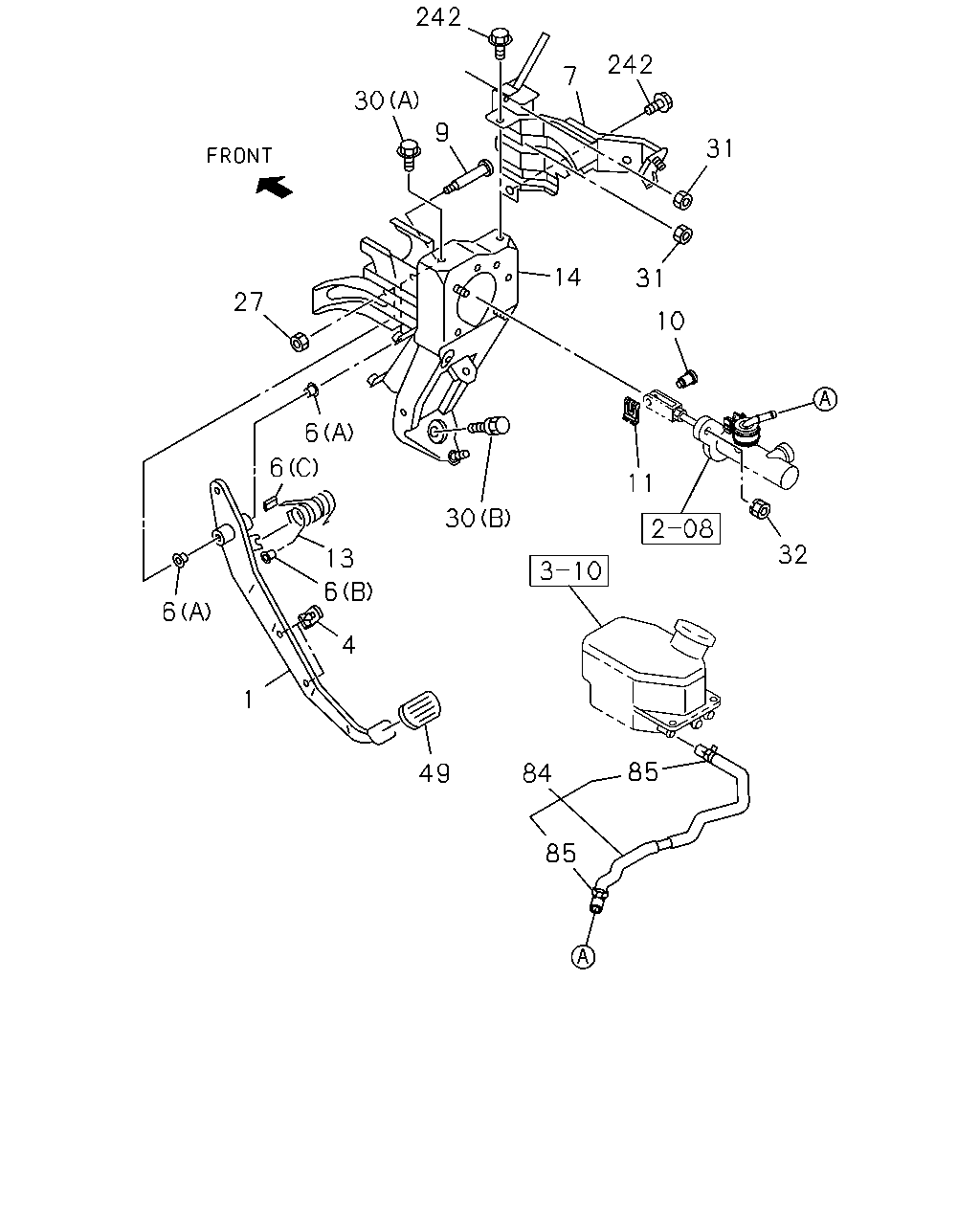

çizim 153554
242 242 7 30 9 31 14 31 27 10 6 6 11 32 13 6 6 4 1 85 84 49 85
BalonParca AdiParca NoAdetTipApplied Date
1 00.830 PEDAL; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-219-2 01 1 0712-
4 00.829 STOPPER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-534-1 02 1 0712-
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.792 (A) 		8-94238-596-0 02 1 0712-
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97853-619-0 02 1 0712-
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-97853-620-0 01 1 0712-
7 00.829 BRACKET; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98008-273-3 01 1 0712-
9 00.833 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 		8-97866-667-0 01 1 0712-
10 00.833 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 		8-97387-230-0 01 1 0712-1007
10 00.833 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 		8-98147-657-0 01 1 1008-
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98007-161-0 01 1 0712-
13 00.844 SPRING; ASSIST,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98034-014-0 01 1 0712-
14 00.829 BRACKET ASM; CLU PEDAL MTG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98034-749-0 01 1 0712-
27 00.833 NUT; FULCRUM PIN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 0712-
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 0712-
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 (B) M10X22 W/PL WASHER 		8-98033-926-0 01 1 0712-0903
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 0904-
31 01.153 NUT; MTG BRKT TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0712-
32 00.777 NUT; BRKT TO CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER 		8-94279-050-0 02 1 0712-
49 00.829 RUBBER; PAD,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-413-2 01 1 0712-
84 00.785 HOSE; RUBBER,CLU LINE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98025-424-1 01 1 0712-1208
84 00.785 HOSE; RUBBER,CLU LINE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98218-204-1 01 1 1209-
85 00.785 CLIP; HOSE TO M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 		8-98031-178-0 02 1 0712-1208
85 00.785 CLIP; HOSE TO M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98168-080-0 02 1 1209-
242 00.785 BOLT; BRKT,CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.604 M8X16 FLANGE 		0-28450-816-0 02 1 0712-
