◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51145 - NHR ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#52358) — 31 parça

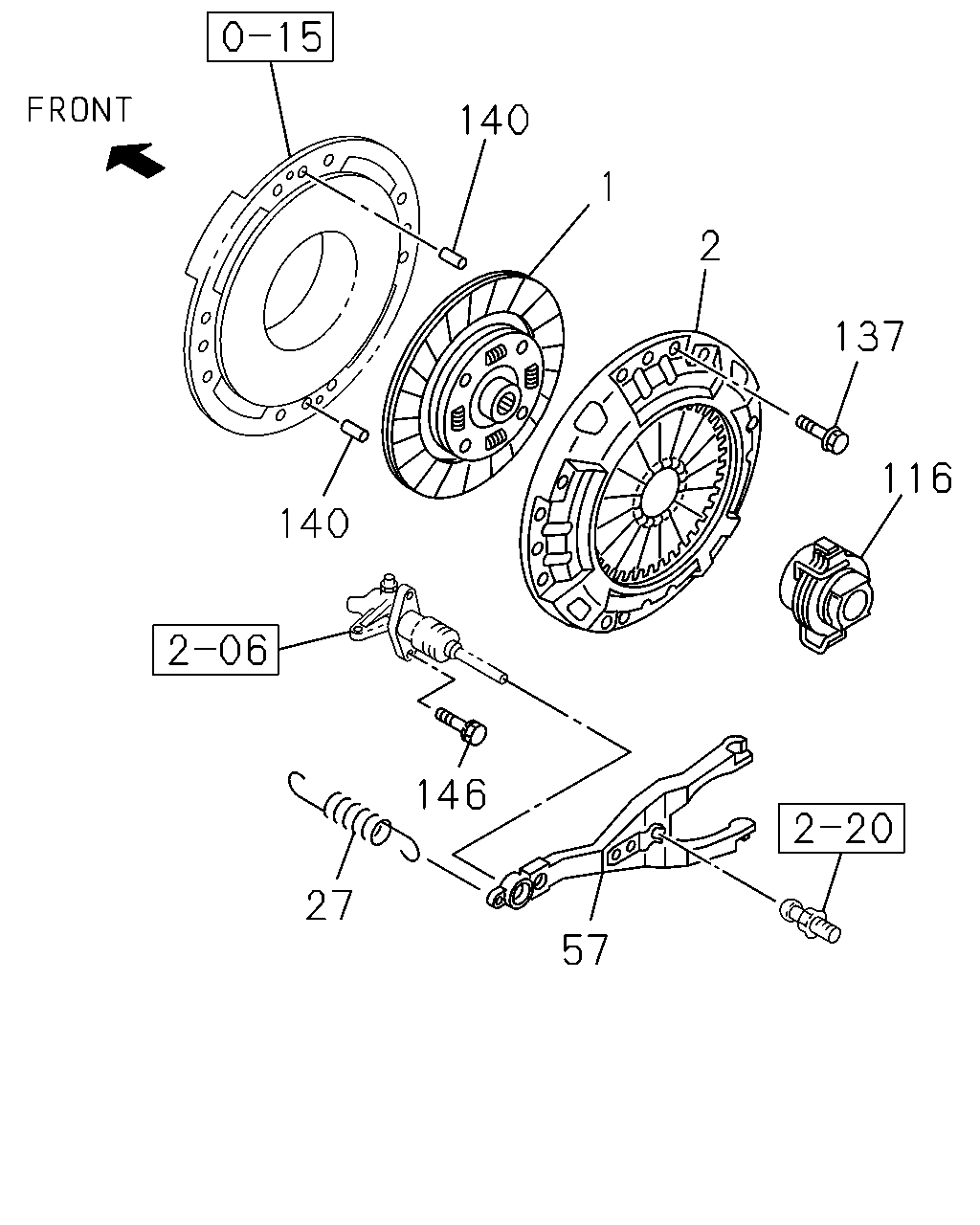

çizim 153551
140 1 2 137 116 140 146 27 57
BalonParca AdiParca NoAdetTipApplied Date
1 00.886 DISC; CLUTCH
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-004-2 01 1 0712-1401
1 00.886 DISC; CLUTCH
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98255-139-1 01 1 1402-
1 00.886 DISC; CLUTCH
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BEST VALUE PARTS 		5-87610-077-1 01 1 0806-1501
2 00.859 PLATE ASM; PRESSURE,CLU
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98040-093-0 01 1 0712-
2 00.859 PLATE ASM; PRESSURE,CLU
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BEST VALUE PARTS 		5-87610-091-0 01 1 0712-
27 00.837 SPRING; RETURN,SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98025-313-0 01 1 0712-
57 00.795 FORK; SHIFT,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-303-0 01 1 0712-
116 00.799 BLOCK; SHIFT,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-313-0 01 1 0712-
116 00.799 BLOCK; SHIFT,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		5-87610-110-0 01 1 0712-
137 00.862 BOLT; CLU COVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.483 M10X16 FLANGE 		0-28051-016-0 10 1 0712-
140 00.862 PIN; STRAIGHT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=25 		8-94410-361-0 02 1 0712-
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0712-

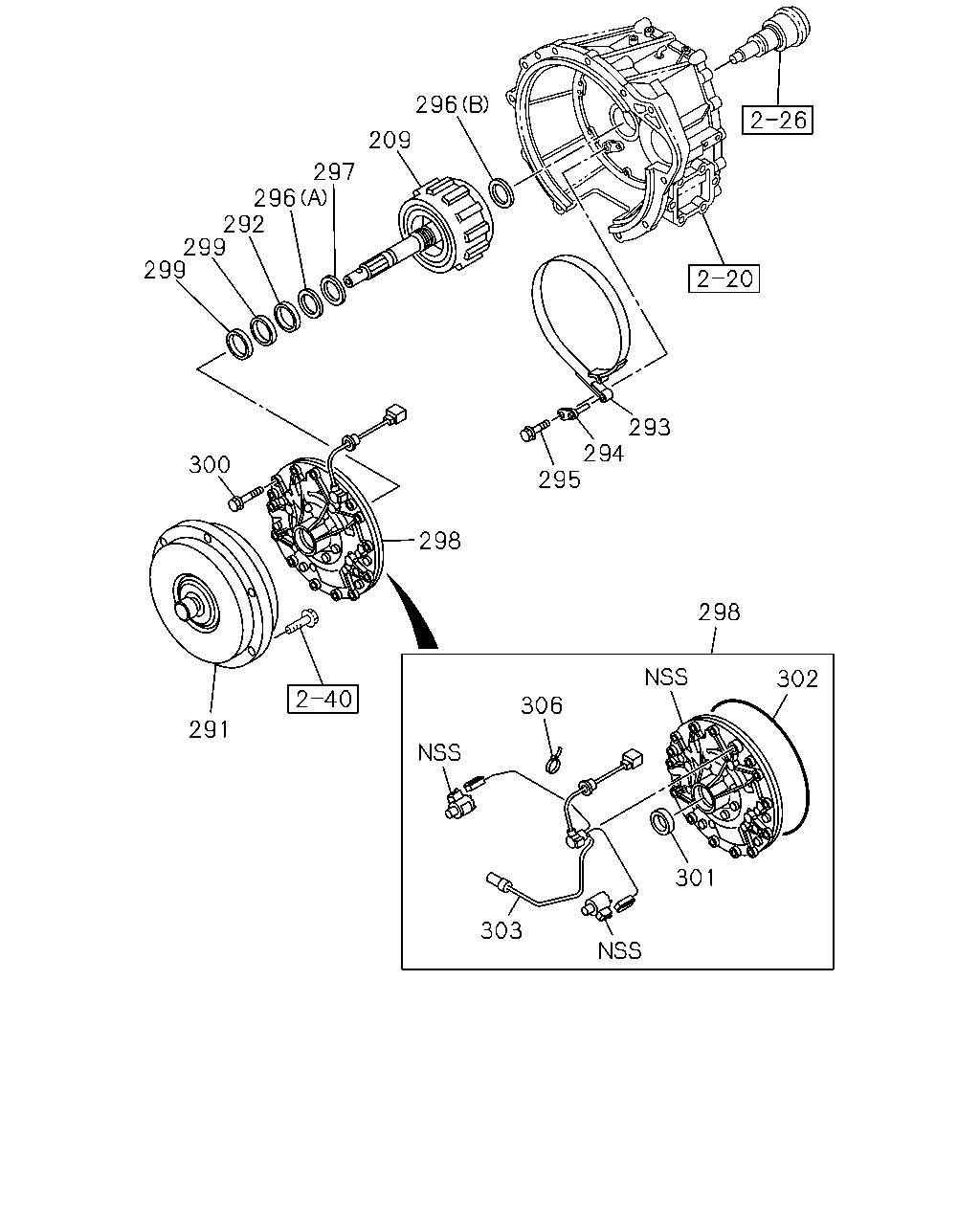

çizim 153552
296 209 297 296 292 299 299 293 294 295 300 298 298 302 306 291 301 303
BalonParca AdiParca NoAdetTipApplied Date
209 00.885 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98044-525-0 01 1 0712-0904
209 00.885 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98116-930-2 01 1 0905-1412
209 00.885 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98275-320-0 01 1 1501-
291 00.863 COUPLING; FLUID
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98087-659-2 01 1 0712-
292 00.862 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-329-0 01 1 0712-
293 00.799 BAND; BRAKE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97254-651-0 01 1 0712-
294 00.846 PIN; ANCHOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-703-0 01 1 0712-
295 00.864 BOLT; ANCHOR PIN
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0712-
296 00.862 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97255-688-0 01 1 0712-
296 00.862 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97255-689-0 01 1 0712-
297 00.862 WASHER; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97300-070-0 01 1 0712-
298 04.020 PUMP ASM; OIL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98040-037-0 01 1 0712-0803
298 04.020 PUMP ASM; OIL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98107-924-1 01 1 0804-
299 04.105 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-330-0 02 1 0712-
300 04.226 BOLT; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 09.173 M8X45 FLANGE 		0-28050-845-0 11 1 0712-
301 04.166 SEAL; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97289-811-0 01 1 0712-
302 04.226 RING; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-188-0 01 1 0712-
303 02.480 HARNESS ASM; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-265-2 01 1 0712-
306 00.785 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=100 		8-94279-939-0 03 1 0712-
