Isuzu WW
▶
TRUCKS
▶
NHR
▶
51145 - NHR
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-56 - EXHAUST BRAKE SYSTEM
▶
1-56 — EXHAUST BRAKE SYSTEM
(#52357) — 25 parça
◀
[156A] NO.2 (4 parça)
[156A] NO.3 (13 parça)
[156A] NO.1 (8 parça)
▶

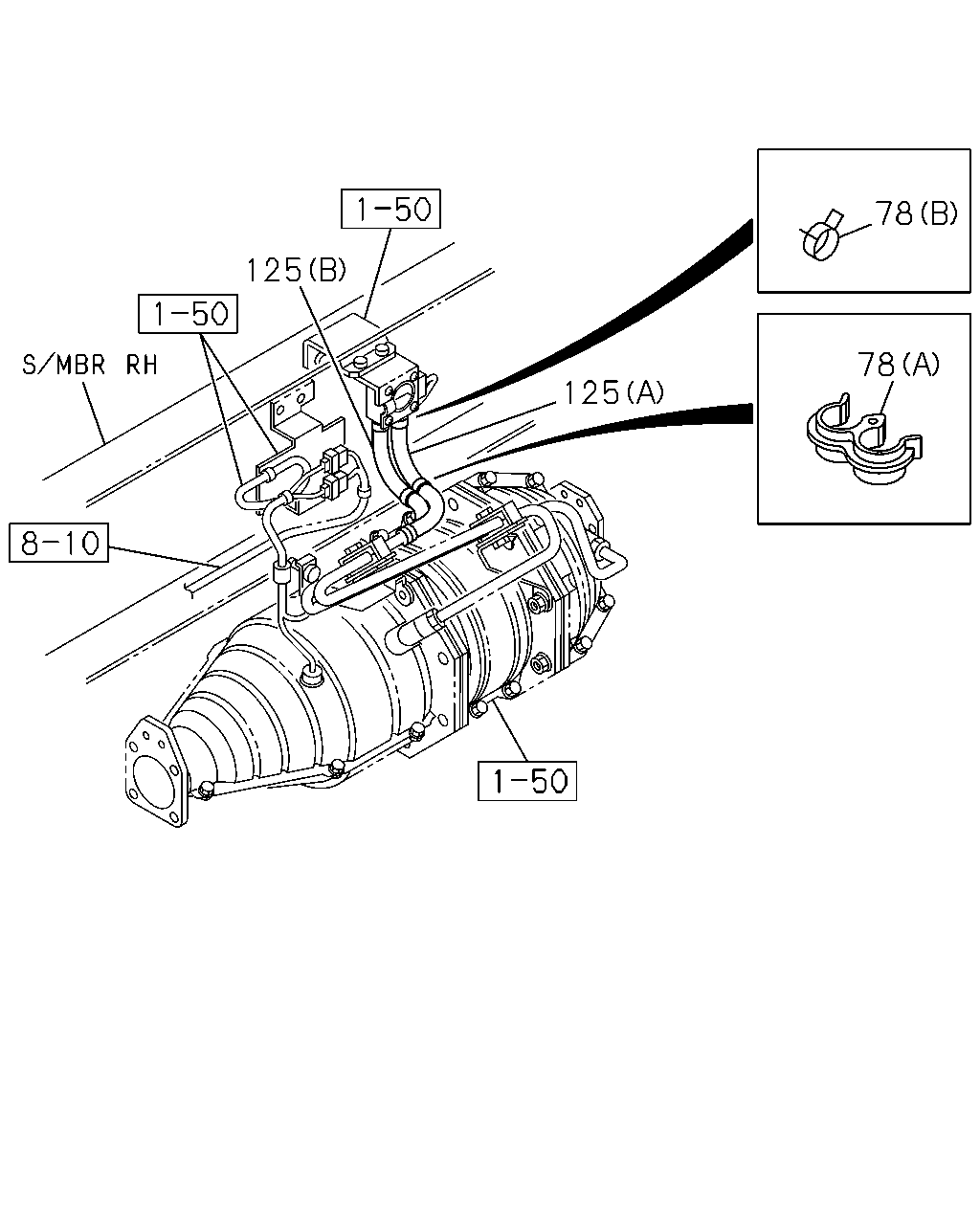

78
125
78
125
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
78
03.636 CLIP; HOSE
03.162 (A)
8-97173-119-0
01
1
0712-
78
03.636 CLIP; HOSE
03.162 (B) ID=13
8-97329-627-0
04
1
0712-
125
03.630 HOSE; DPD
(A) FRONT L=90
8-98029-399-0
01
1
0712-
125
03.630 HOSE; DPD
(B) REAR L=110
8-98029-400-0
01
1
0712-

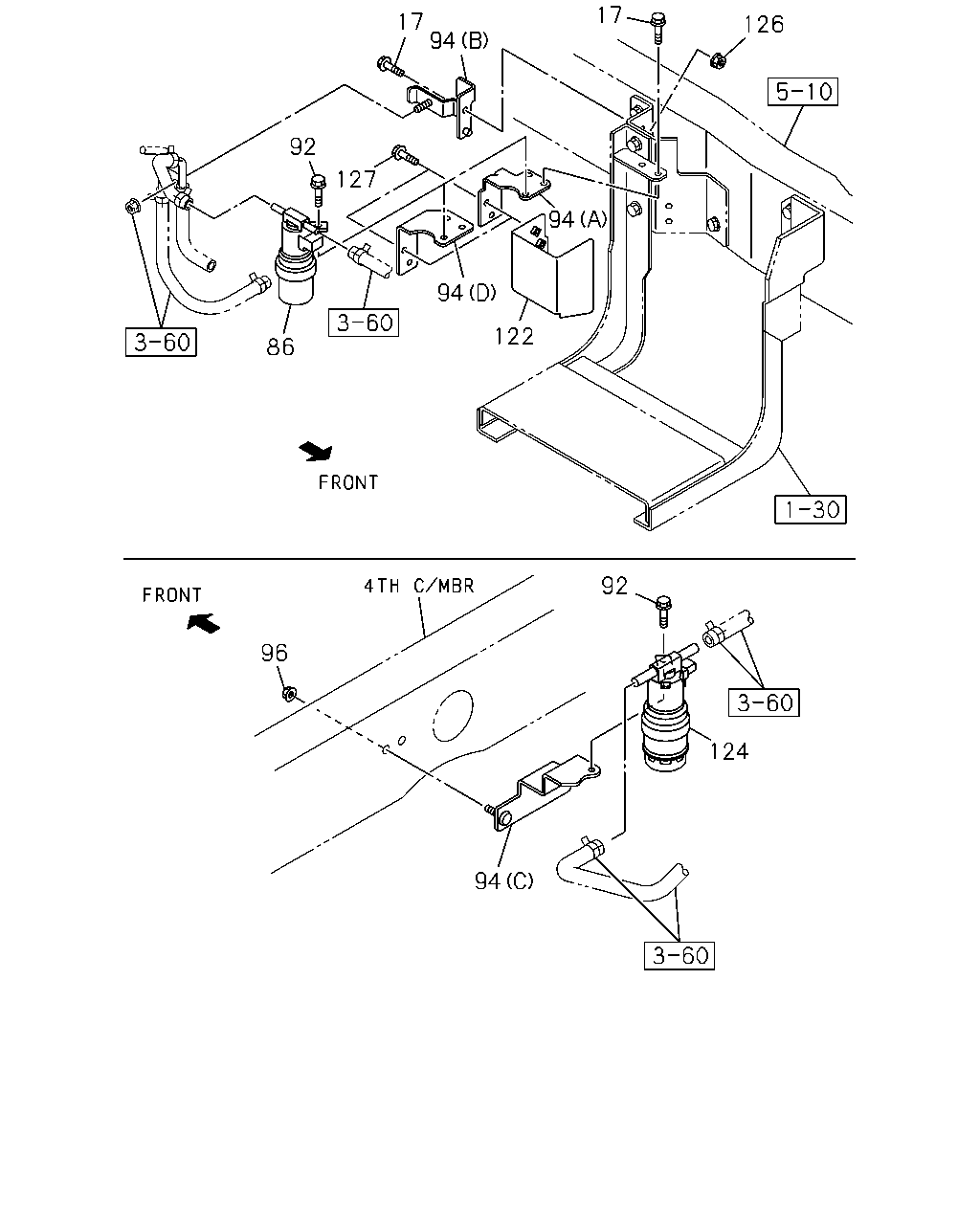

17
17
94
126
92
127
94
94
122
86
92
96
124
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
03.634 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
03
1
0712-
86
03.636 VALVE; MAG,EXH BRK
8-98043-344-0
01
1
0712-
92
08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0712-
92
08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0712-
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(A)
8-98042-145-2
01
1
0712-1206
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(D)
8-98211-757-1
01
1
1207-
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(B)
8-98042-694-2
01
1
0712-
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(C)
8-98064-722-0
01
1
0712-
96
03.636 NUT; BRKT,MAG VLV,EXH BRAKE
01.062 M8 FLANGE
0-91180-108-0
02
1
0712-
122
03.640 PROTECTOR; MAG VLV
8-98098-564-0
01
1
0712-
124
03.636 VALVE; MAG,DPD EXH THROTTLE
8-98043-344-0
01
1
0712-
126
03.634 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
0712-
127
04.902 BOLT; PROTECTOR
03.162 M6X12 FLANGE
0-28050-612-0
02
1
0712-
1
8
5
5
1
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.632 BRAKE UNIT; EXH
(B) REAR
8-97384-098-2
01
1
0712-1012
1
03.632 BRAKE UNIT; EXH
(B) REAR
8-98167-677-1
01
1
1101-1310
1
03.632 BRAKE UNIT; EXH
(B) REAR
8-98258-268-0
01
1
1311-
1
03.632 BRAKE UNIT; EXH
(A) FRONT
8-98068-178-1
01
1
0712-1212
1
03.632 BRAKE UNIT; EXH
(A) FRONT
8-98227-170-0
01
1
1301-
5
03.634 GASKET; EXH BRAKE UNIT
03.611 ID=64
8-97373-108-0
02
1
0712-
8
03.632 NUT; EXH BRAKE UNIT FIX
03.417 M8 W/LK WASHER
8-97581-234-0
04
1
0712-
10
03.634 NUT; BRKT,EXH BRAKE
03.417 M8 W/LK WASHER
8-97581-234-0
04
1
0712-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
