Isuzu WW
▶
TRUCKS
▶
NHR
▶
51145 - NHR
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#52348) — 43 parça
◀

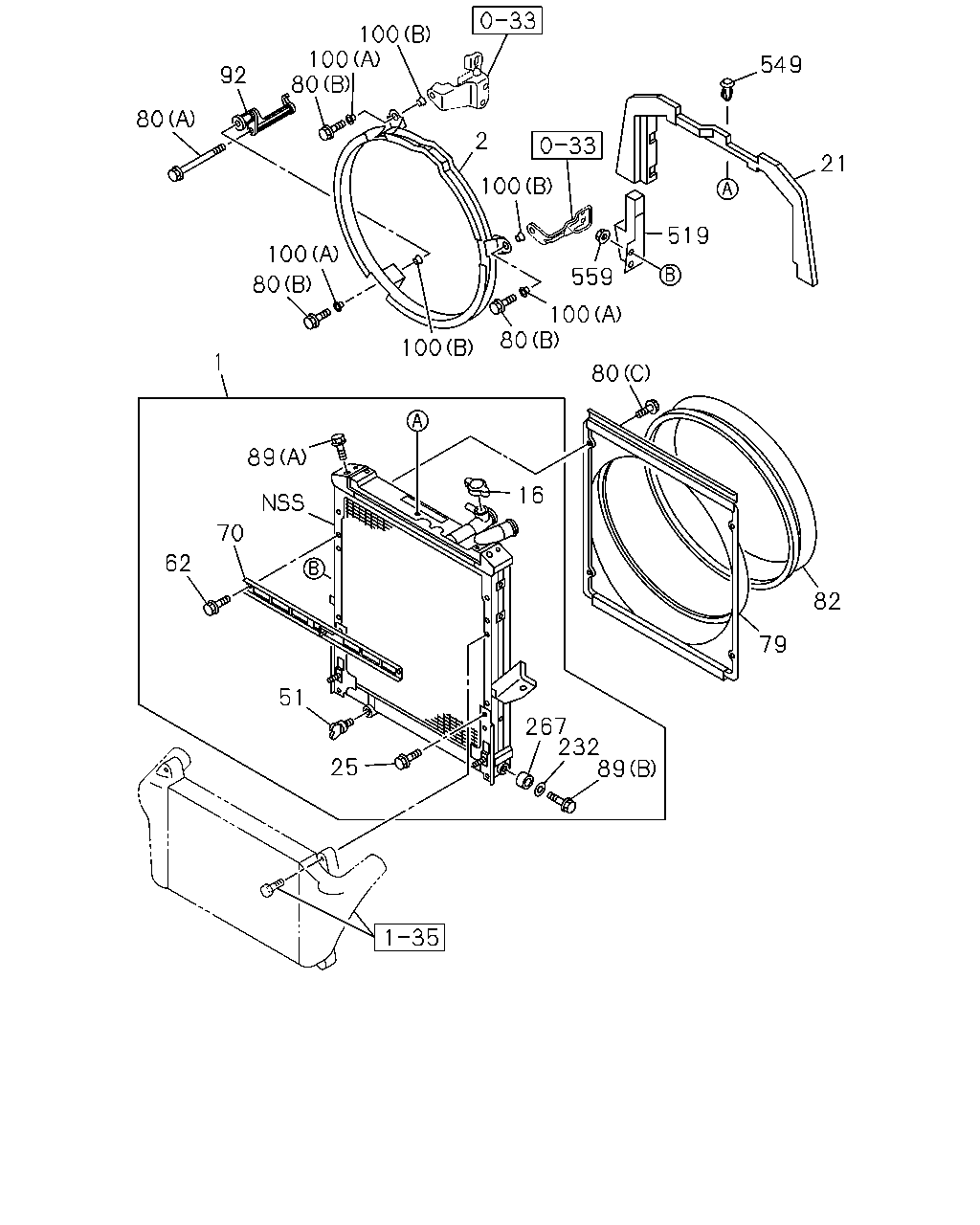

[110A] NO.2 (30 parça)
[110A] NO.1 (13 parça)
▶
100
100
80
549
92
80
2
21
100
519
100
559
80
100
80
100
1
80
89
16
70
62
82
79
51
267
232
89
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.219 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97387-470-2
01
1
0712-1312
1
01.219 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98253-685-0
02
1
1401-
1
01.219 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97387-468-1
01
1
0712-1312
1
01.219 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98253-684-0
02
1
1401-
2
01.277 GUIDE; FAN
8-98054-659-0
01
1
0712-
16
01.203 CAP; RAD
8-97239-187-0
01
1
0712-
21
01.276 SEAL; RAD
8-98018-398-1
01
1
0712-
25
01.271 BOLT; BRKT
03.162 M6X12 FLANGE
0-28050-612-0
04
1
0712-
51
08.951 PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
0712-
62
01.271 BOLT; STAY
02.343 M8X12 FLANGE
0-28050-812-0
02
1
0712-
70
01.271 STAY; RAD
8-98018-940-0
01
1
0712-
79
01.277 GUIDE; FAN,RAD
8-97387-081-1
01
1
0712-1312
79
01.277 GUIDE; FAN,RAD
8-98234-712-0
01
1
1401-
80
01.277 BOLT; FAN GUIDE
01.428 (A) M8X130 FLANGE
0-28055-813-0
01
1
0712-
80
01.277 BOLT; FAN GUIDE
03.403 (B) M8X30 FLANGE
0-28650-830-0
03
1
0712-
80
01.277 BOLT; FAN GUIDE
(C) M6X12
8-98039-672-0
02
1
0712-1312
80
01.277 BOLT; FAN GUIDE
(C) M6X12
8-98039-672-0
04
1
1401-
82
01.277 COVER; FAN,RAD
8-97387-085-1
01
1
0712-
89
01.277 BOLT
02.343 (A) M8X12 FLANGE
0-28050-812-0
02
1
0712-
89
01.277 BOLT
01.271 (B) M8X25 W/PL WASHER
1-21469-153-0
02
1
0712-
92
01.277 BRACKET; FAN GUIDE
8-97381-550-1
01
1
0712-1303
92
01.277 BRACKET; FAN GUIDE
8-98237-770-0
01
1
1304-
100
01.277 RUBBER; MTG
(B) OD=32
8-94395-766-0
03
1
0712-
100
01.277 RUBBER; MTG
(A)
8-98058-502-1
03
1
0712-
232
01.540 COLLAR; DIST,CUSHION RUBBER
1-87410-723-0
02
1
0712-1312
232
01.540 COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
02
1
1401-
267
01.277 RUBBER; CUSHION
1-21467-023-0
02
1
0712-
519
01.276 SEAL; RAD SIDE
8-98038-591-0
01
1
0712-
549
03.438 CLIP; SEAL,RAD
01.276
8-97228-568-0
05
1
0712-
559
01.276 NUT; RAD SIDE
01.062 M6 FLANGE
0-91180-106-0
02
1
0712-
65
65
74
514
204
482
56
57
59
57
59
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.219 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97387-470-2
01
1
0712-1312
1
01.219 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98253-685-0
02
1
1401-
1
01.219 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97387-468-1
01
1
0712-1312
1
01.219 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98253-684-0
02
1
1401-
56
01.270 STAY; RAD
8-97383-947-1
01
1
0712-
57
01.271 WASHER; PL,STAY
17.198 ID=10.5
0-91610-510-0
02
1
0712-
59
01.271 PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
0712-
65
01.271 INSULATOR; RAD
01.270 (A)
8-94249-346-0
02
1
0712-
65
01.271 INSULATOR; RAD
01.270 (B)
8-94249-347-0
02
1
0712-
74
01.270 WASHER; PL,CUSHION RUBBER
ID=8.5 OD=36
8-97359-049-1
02
1
0712-
204
01.267 GUIDE ASM; AIR
8-97383-928-1
01
1
0712-
482
01.277 NUT; AIR GUIDE
01.062 M8 FLANGE
0-91180-108-0
02
1
0712-
514
01.276 NUT; RAD
01.062 M8 FLANGE
0-91180-108-0
02
1
0712-
