◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51145 - NHR ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-01 - ACCELERATOR PEDAL AND CONTROL ▶
1-01 — ACCELERATOR PEDAL AND CONTROL (#52347) — 27 parça

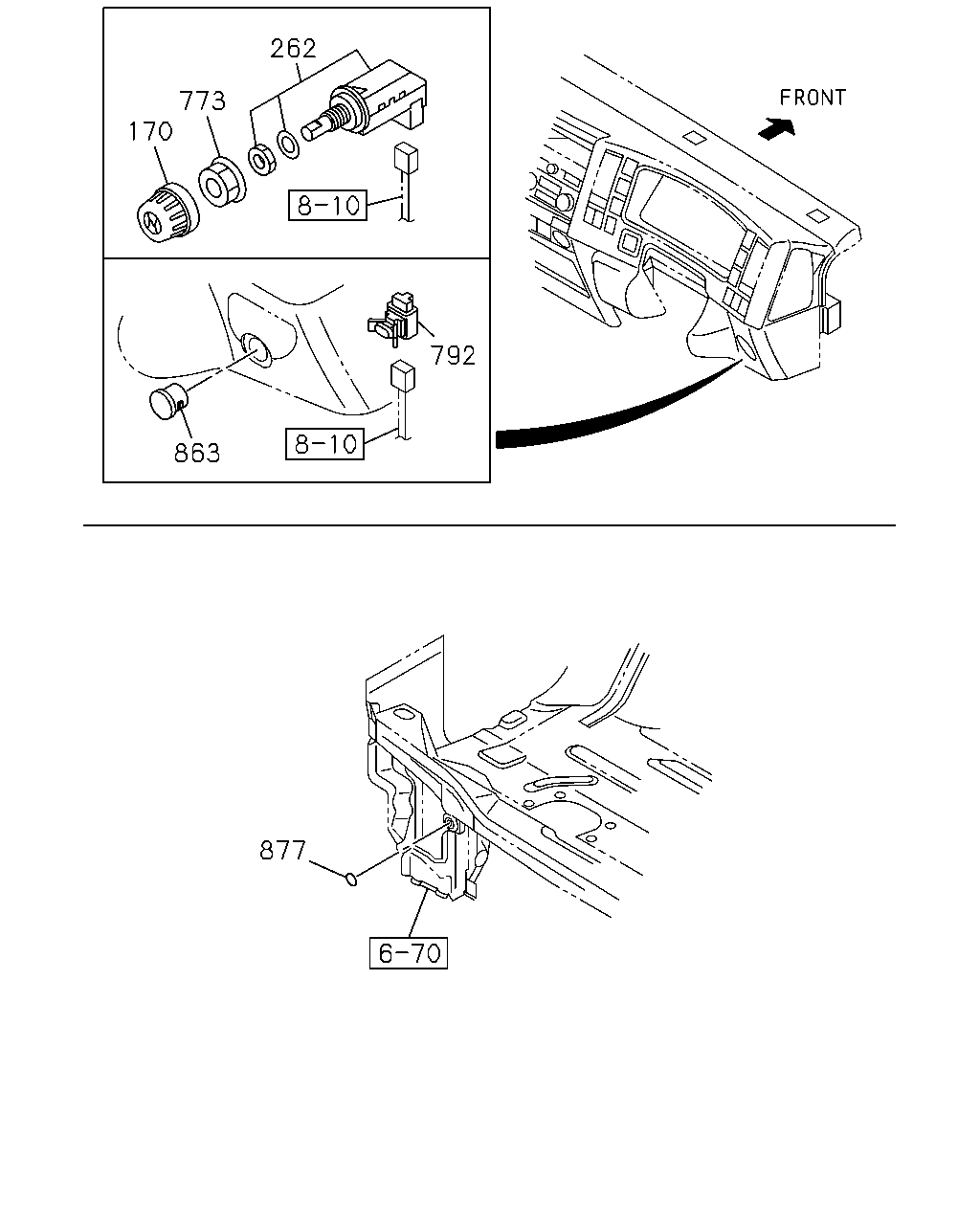

çizim 153754
262 773 170 792 863 877
BalonParca AdiParca NoAdetTipApplied Date
170 03.480 KNOB
SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT> 		8-98013-420-0 01 1 0712-0712
170 03.480 KNOB 8-98013-420-0 01 1 0801-
262 03.452 SWITCH; ACCEL,IDLE
SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT> 		8-98013-418-0 01 1 0712-0712
262 03.452 SWITCH; ACCEL,IDLE 8-98013-418-0 01 1 0801-
773 03.452 HOLDER; ACCEL PEDAL
SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT> 		8-97352-127-0 01 1 0712-0712
773 03.452 HOLDER; ACCEL PEDAL 8-97352-127-0 01 1 0801-
792 03.483 RESISTOR; IDLE
EXC. SWITCH HIGH IDLE ENGINE SPEED CONTROL <NMT> 		8-98013-906-0 01 1 0712-0712
863 03.463 COVER; SENSOR
EXC. SWITCH HIGH IDLE ENGINE SPEED CONTROL <NMT> GRAY 		8-97408-816-0 01 1 0712-0712
877 03.454 SEAL; HOLE
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0712-

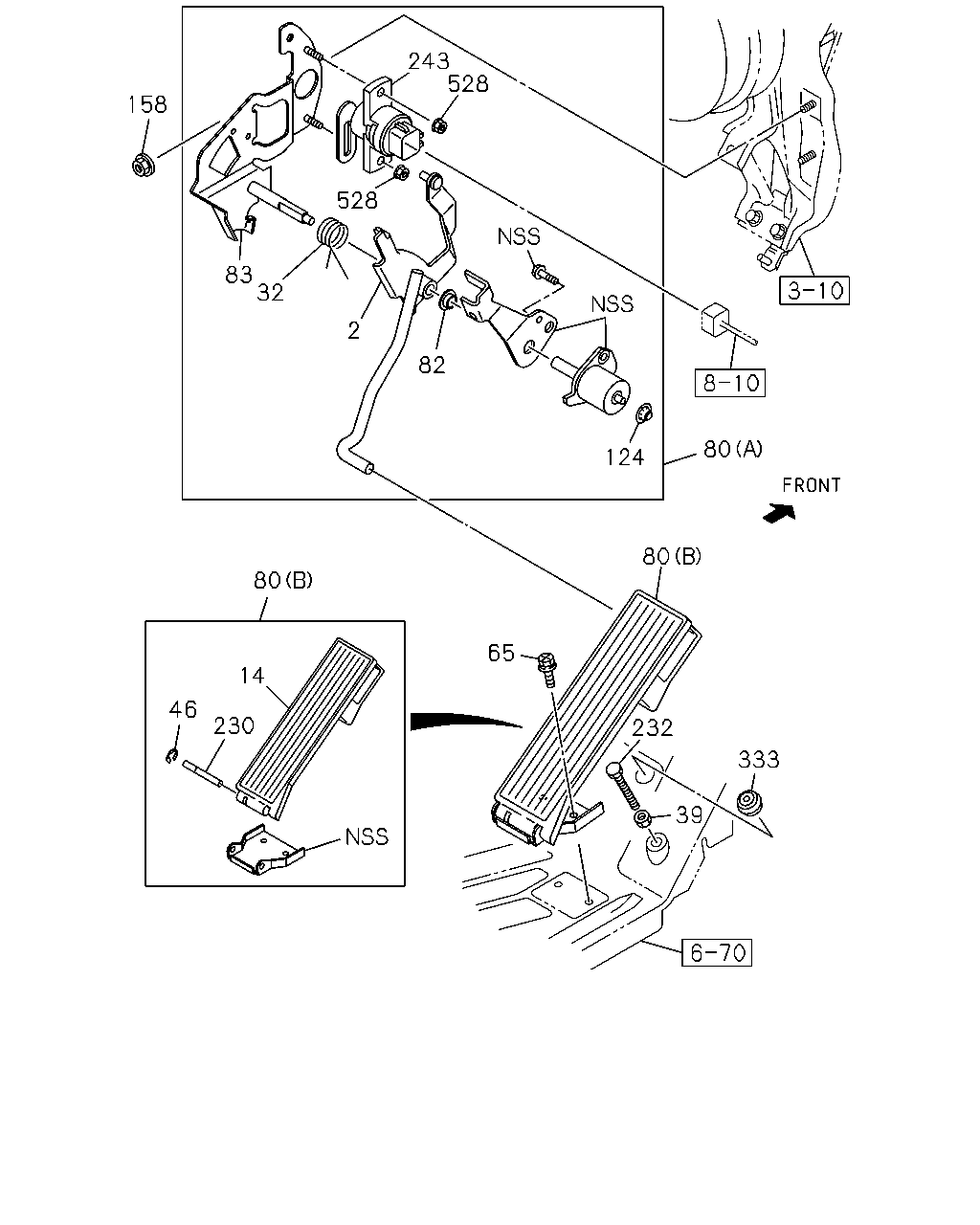

çizim 153755
39 333 232 65 80 80 14 230 46 124 80 82 2 32 83 528 158 243 528
BalonParca AdiParca NoAdetTipApplied Date
2 03.454 LEVER; ENG CONT 8-98035-065-1 01 1 0712-
14 03.451 PAD; PEDAL,ACCEL 8-97853-062-2 01 1 0712-
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-98031-665-0 01 1 0712-
39 03.459 NUT; ACCEL PEDAL STOPPER
02.334 M8 		0-91110-508-0 01 1 0712-
46 03.485 RING; SNAP,ACCEL CONT PEDAL
ID=4 		0-91805-504-0 01 1 0712-
65 03.483 BOLT
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 0712-
80 03.452 LINK ASM; ENG CONT
(B) 		8-97853-061-2 01 1 0712-
80 03.452 LINK ASM; ENG CONT
(A) 		8-98008-164-3 01 1 0712-
82 03.463 BUSHING; ENG CONT LVR 8-97581-053-0 01 1 0712-
83 03.452 BRACKET; CONT LINK 8-98023-885-2 01 1 0712-
124 03.463 NUT; LEVER
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0712-
158 03.452 NUT; BRKT
08.857 M8 FLANGE 		8-94279-060-0 02 1 0712-
230 03.452 PIN; JOINT,ACCEL PEDAL TO BRKT 8-97853-064-0 01 1 0712-
232 03.459 BOLT; STOPPER,ACCEL PEDAL
M8X45 		8-97378-461-0 01 1 0712-
243 03.425 SENSOR; ACCEL 8-97602-416-0 01 1 0712-0910
243 03.425 SENSOR; ACCEL 8-98131-263-0 01 1 0911-
333 03.671 GROMMET; HOLE,CABLE
16.545 OD=24.5 T=7.5 		8-97224-683-0 01 1 0712-
528 03.463 NUT; ACCEL SENSOR
12.183 M5 		8-94169-022-0 02 1 0712-
