1-11 — RADIATOR HOSE AND SUB TANK (#5234) — 45 parça

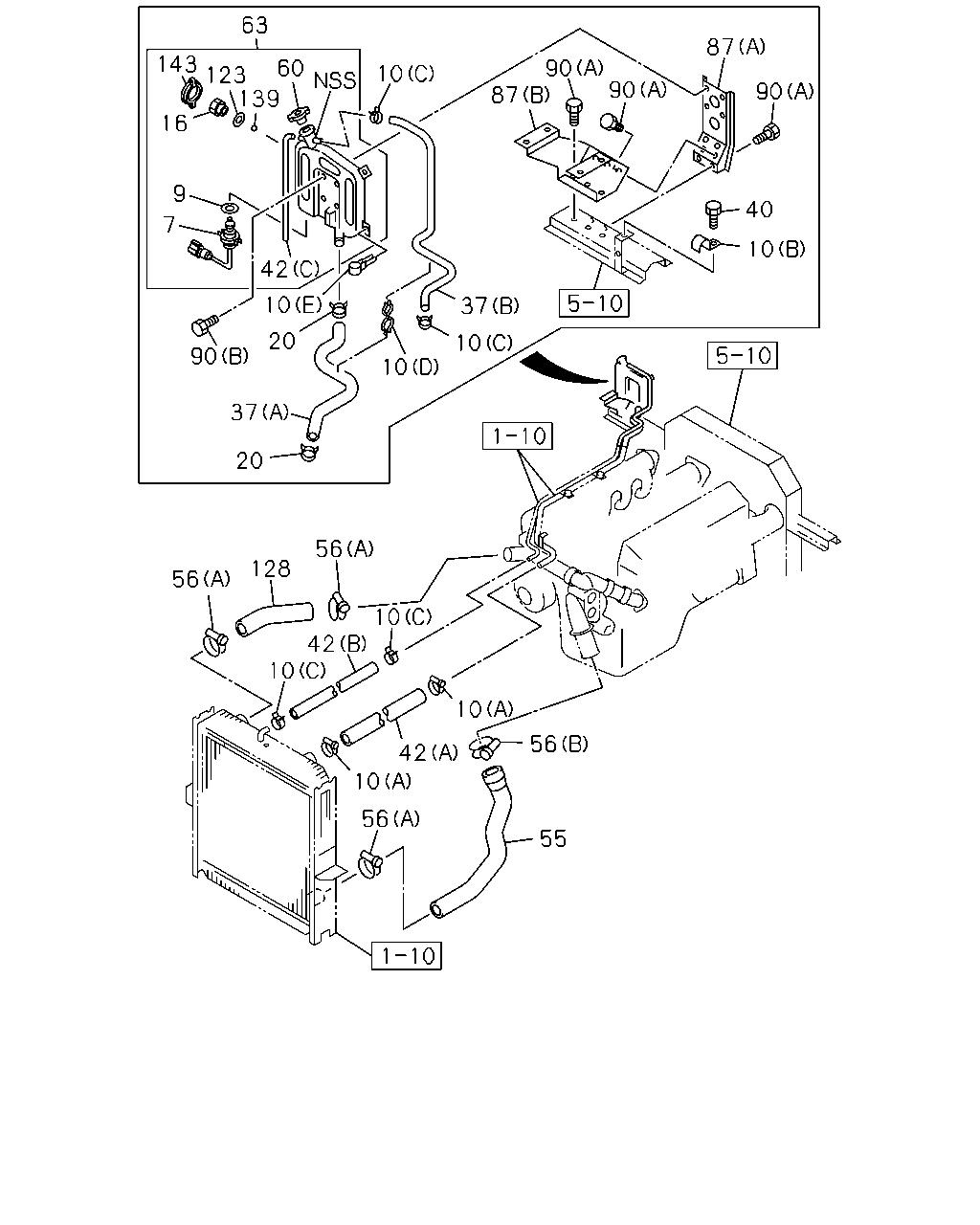

çizim 6636
63 87 90 87 143 60 90 10 123 139 90 16 9 40 7 10 42 10 37 20 10 90 10 37 20 56 128 56 10 42 10 10 56 42 10 56 55
BalonParca AdiParca NoAdetTipApplied Date A B
7 SWITCH ASM; TANK 1-82480-045-0 01 1 9604- ● ●
9 GASKET; SWITCH
ID=28 T=2.5 		1-09630-126-0 01 1 9604- ● ●
10 CLIP; RUBBER HOSE
(B) D=43 		1-09700-703-0 01 1 9604- ● ●
10 CLIP; RUBBER HOSE
(A) ID=44 		1-09704-077-0 02 1 9604- ● ●
10 CLIP; RUBBER HOSE
(C) ID=14 		1-09704-102-0 04 1 9604- ● ●
10 CLIP; RUBBER HOSE
(D) ID=44 & 16 		1-09709-125-0 04 1 9604- ● ●
10 CLIP; RUBBER HOSE
(E) ID=14 L=44 		9-09917-427-0 02 1 9604- ● ●
16 PLUG; TANK 1-21464-425-0 02 1 9604-9609 ●
16 PLUG; TANK 1-21464-514-0 02 1 9610- ● ●
20 CLIP; HOSE,RAD
ID=31 		1-09707-093-1 02 1 9604- ● ●
37 HOSE; RUBBER
(B) 		1-21437-570-0 01 1 9604-9712 ●
37 HOSE; RUBBER
(B) 		1-21437-706-0 01 1 9801- ● ●
37 HOSE; RUBBER
(A) L=1350 SERVICED BY L=3000 		0-03259-300-0 01 1 9604- ● ●
40 BOLT; CLIP
M10X20 FLANGE 		0-28081-020-0 01 1 9604-9606 ●
40 BOLT; CLIP
M10X20 FLANGE 		0-28681-020-0 01 1 9607-9802 ●
40 BOLT; CLIP
M10X25 FLANGE 		0-28681-025-0 01 1 9803- ● ●
42 HOSE; RUBBER
(B) L=480 SERVICED BY L=3000 		0-03259-300-0 01 1 9604-9904 ●
42 HOSE; RUBBER
(B) L=480 SERVICED BY L=3000 		0-03259-300-0 01 1 9905-0001 ● ●
42 HOSE; RUBBER
(B) L=480 SERVICED BY L=3000 		0-03259-300-0 01 1 0002- ●
42 HOSE; RUBBER
(A) L=440 SERVICED BY L=3000 		5-09361-047-0 01 1 9604-9712 ●
42 HOSE; RUBBER
(A) L=440 SERVICED BY L=3000 		5-09361-047-0 01 1 9801- ●
42 HOSE; RUBBER
(C) L=850 		1-21489-154-0 01 1 9604- ● ●
42 HOSE; RUBBER
(B) L=330 SERVICED BY L=3000 		0-03259-300-0 01 1 0002- ●
42 HOSE; RUBBER
(A) L=290 SERVICED BY L=3000 		5-09361-047-0 01 1 0002- ●
55 HOSE; WATER,RAD OUTLET 1-21437-528-2 01 1 9604- ●
55 HOSE; WATER,RAD OUTLET 1-21437-489-2 01 1 9905- ●
56 CLIP; WATER HOSE,RAD
(A) ID=72 		1-09704-068-0 03 1 9604- ● ●
56 CLIP; WATER HOSE,RAD
(B) ID=83 		1-09704-075-0 01 1 9604- ● ●
60 CAP; SUB TANK 1-21450-083-4 01 1 9604-9807 ●
60 CAP; SUB TANK 1-21450-137-0 01 1 9808- ● ●
63 TANK ASM; SUB 1-21481-096-1 01 1 9604-9609 ●
63 TANK ASM; SUB 1-21481-105-2 01 1 9610- ● ●
87 BRACKET; SUB TANK
(B) 		1-21489-155-0 01 1 9604- ● ●
87 BRACKET; SUB TANK
(A) 		1-21489-157-0 01 1 9604- ● ●
90 BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE 		0-28080-820-0 06 1 9604-9606 ●
90 BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE 		0-28680-820-0 06 1 9607- ● ●
90 BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 9604- ● ●
123 GASKET
ID=26.2 		8-94399-716-1 02 1 9604- ● ●
128 HOSE; WATER,RAD INL 1-21437-026-1 01 1 9604-9909 ●
128 HOSE; WATER,RAD INL 1-21437-837-1 01 1 9910- ●
128 HOSE; WATER,RAD INL 1-21437-025-1 01 1 9905-9909 ●
128 HOSE; WATER,RAD INL 1-21437-836-1 01 1 9910- ●
139 FLOAT 1-21489-118-1 02 1 9604-9609 ●
139 FLOAT 1-21489-161-0 02 1 9610- ● ●
143 COVER; PLUG 1-82389-017-0 02 1 9610- ● ●
