0-40 — FUEL INJECTION SYSTEM (#52337) — 83 parça

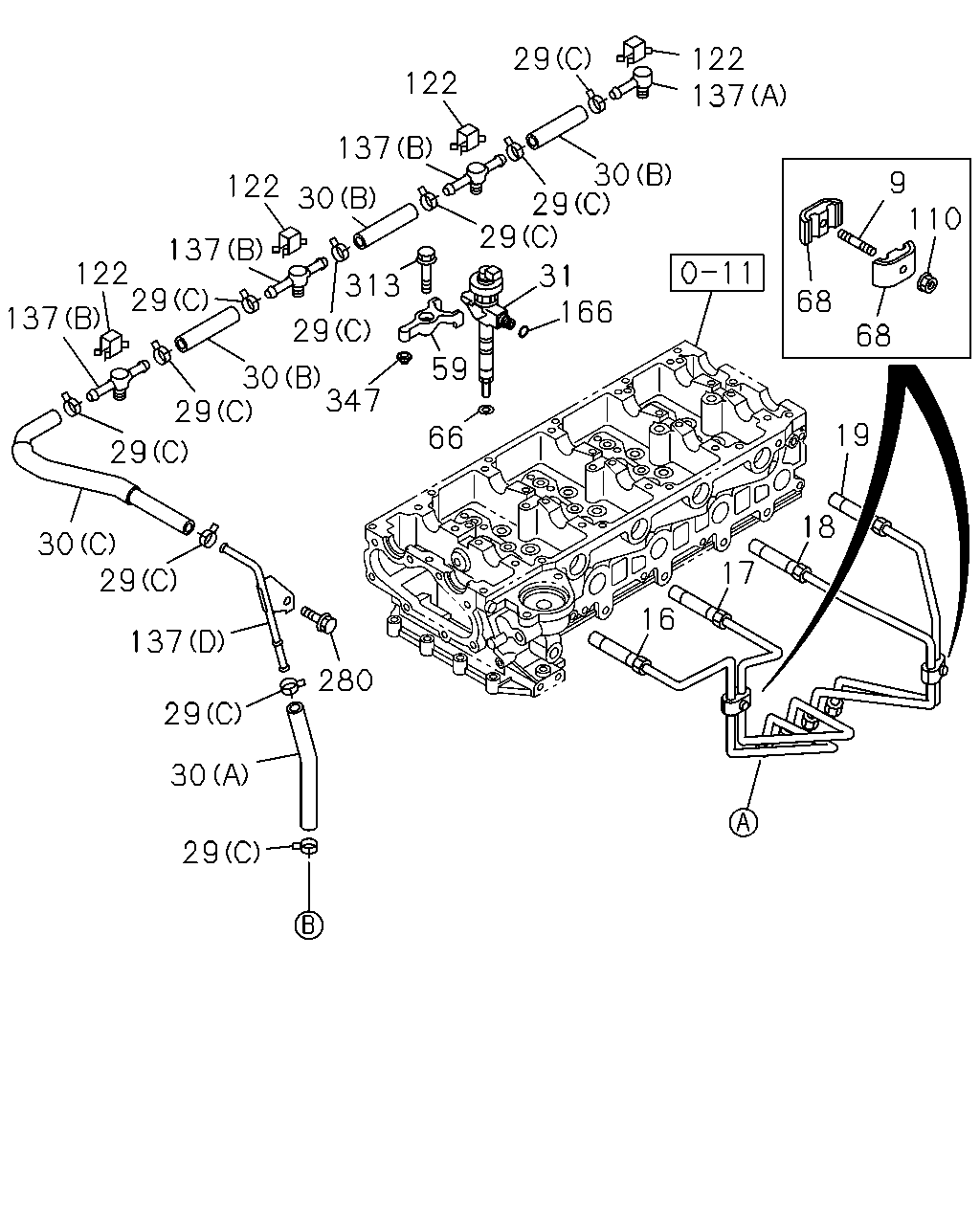

çizim 153545
29 122 137 122 137 30 29 29 9 110 122 30 137 122 29 31 166 313 68 137 29 68 59 30 347 29 19 66 29 18 30 29 17 16 137 280 29 30 29
BalonParca AdiParca NoAdetTipApplied Date
9 03.340 STUD; CLIP
03.162 M6X25 L=36 		8-97214-234-1 02 1 0712-1201
9 03.340 STUD; CLIP
00.413 M6X30 L=38 		0-41010-630-0 02 1 1202-
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 0712-1201
16 03.330 PIPE; INJ NO.1 8-98203-719-0 01 1 1202-
17 03.330 PIPE; INJ NO.2 8-98011-607-0 01 1 0712-0804
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 0805-1201
17 03.330 PIPE; INJ NO.2 8-98203-720-0 01 1 1202-
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 0712-1201
18 03.330 PIPE; INJ NO.3 8-98203-721-0 01 1 1202-
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 0712-1201
19 03.330 PIPE; INJ NO.4 8-98203-722-0 01 1 1202-
29 03.162 CLIP; HOSE
00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-1 02 1 0712-
29 03.162 CLIP; HOSE
01.240 (B) ID=16 		8-94392-924-0 02 1 0712-
29 03.162 CLIP; HOSE
03.374 (C) ID=10.5 		8-97019-473-0 10 1 0712-
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=130 		0-01804-130-0 01 1 0712-
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 0712-
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 0712-
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=110 		8-97377-894-0 01 1 0712-
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98009-700-2 01 1 0712-1101
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1102-
31 03.332 NOZZLE ASM; INJ 8-98011-604-5 04 1 0712-
59 03.332 CLAMP; NOZZLE HOLDER 8-98011-528-2 04 1 0712-0801
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0802-
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98077-165-0 04 1 0712-1103
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-540-0 04 1 1104-
68 03.162 CLIP; INJ PIPE 8-97213-481-0 04 1 0712-1201
68 03.162 CLIP; INJ PIPE 8-98039-293-0 04 1 1202-1405
68 03.162 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98148-996-2 04 1 1406-
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0712-
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 0712-
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 0712-1101
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98161-062-0 01 1 1102-
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 0712-1101
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98161-061-0 03 1 1102-
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98009-699-0 01 1 0712-
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-98036-510-0 01 1 0712-
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 0712-
280 03.330 BOLT; CLIP,FUEL HOSE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0712-
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-97372-144-0 04 1 0712-
347 03.332 PIN 8-97383-286-0 04 1 0712-1011
347 03.332 PIN 8-98165-035-0 04 1 1012-

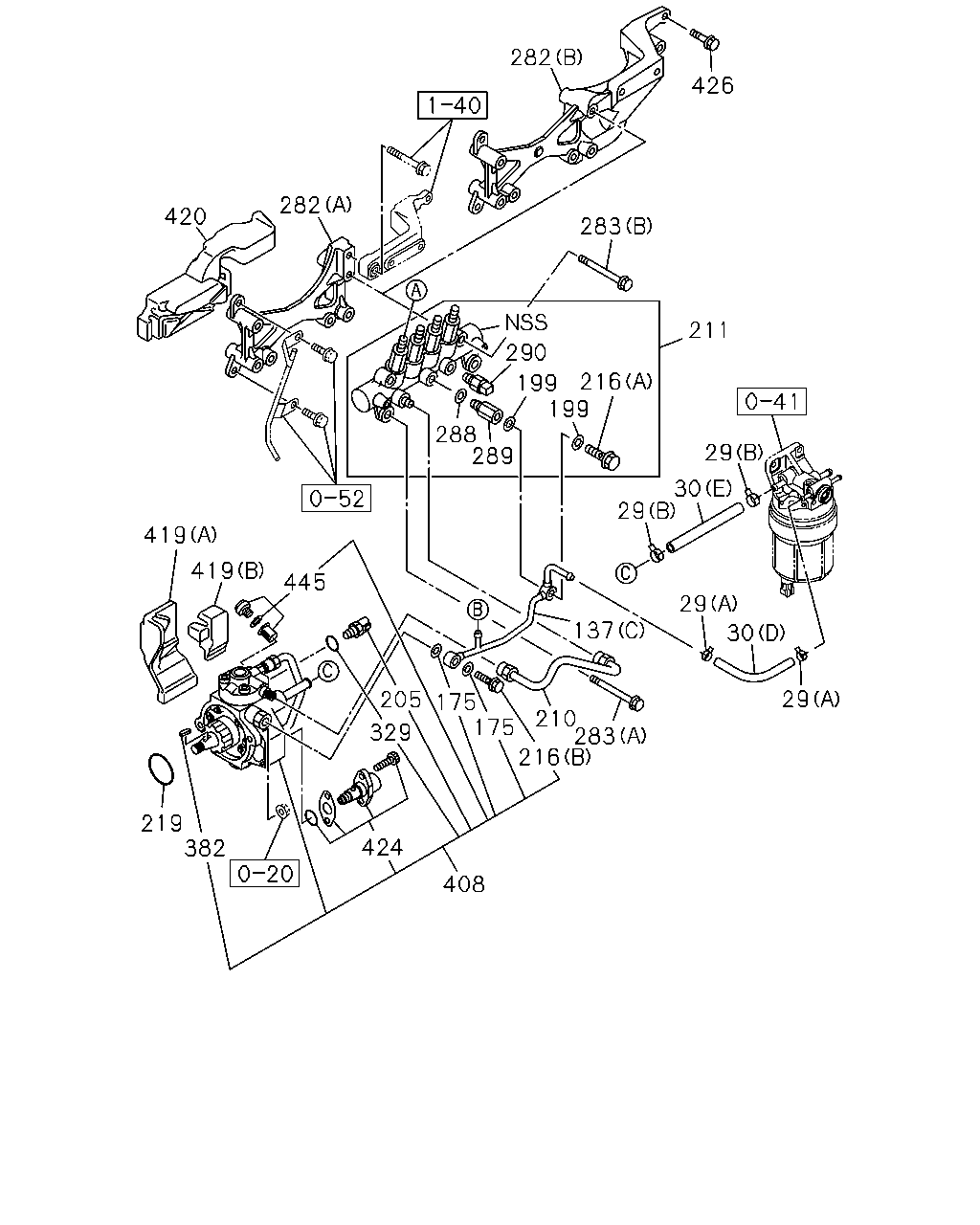

çizim 153740
408 424 382 219 329 445 419 419 205 175 175 216 29 283 210 137 30 29 29 29 211 30 289 288 199 216 199 290 283 426 282 282 420
BalonParca AdiParca NoAdetTipApplied Date
29 03.162 CLIP; HOSE
00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-1 02 1 0712-
29 03.162 CLIP; HOSE
01.240 (B) ID=16 		8-94392-924-0 02 1 0712-
29 03.162 CLIP; HOSE
03.374 (C) ID=10.5 		8-97019-473-0 10 1 0712-
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=130 		0-01804-130-0 01 1 0712-
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 0712-
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 0712-
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=110 		8-97377-894-0 01 1 0712-
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98009-700-2 01 1 0712-1101
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1102-
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 0712-1101
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98161-062-0 01 1 1102-
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 0712-1101
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98161-061-0 03 1 1102-
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98009-699-0 01 1 0712-
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-98036-510-0 01 1 0712-
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 0712-
199 03.332 GASKET; EYE BOLT 8-97602-218-0 02 1 0712-
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0712-
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 0712-
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 0712-
216 03.162 BOLT; EYE
03.280 (B) 		9-88130-088-0 01 1 0712-
216 03.162 BOLT; EYE
(A) 		8-98043-033-0 01 1 0712-
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 0712-
282 03.163 BRACKET; COMMON RAIL
(A) 		8-98053-912-0 01 1 0712-1001
282 03.163 BRACKET; COMMON RAIL
(B) 		8-98147-694-0 01 1 1002-
283 03.330 BOLT; COMMON RAIL
00.206 (A) M8X70 FLANGE 		0-28050-870-0 02 1 0712-
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 0712-
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0712-
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0712-
290 03.331 SENSOR; PRESS 8-97318-684-0 01 1 0712-0809
290 03.331 SENSOR; PRESS 8-98119-790-0 01 1 0810-
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 0712-1104
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 0712-1104
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1105-
408 03.306 PUMP ASM; FUEL,SUPPLY 8-97381-555-5 01 1 0712-
419 03.340 RUBBER; SPACE,PUMP
(A) 		8-98037-442-0 01 1 0712-1011
419 03.340 RUBBER; SPACE,PUMP
(B) 		8-98037-443-0 01 1 0712-1011
420 03.340 RUBBER; SPACE,COMMON RAIL 8-98037-444-1 01 1 0712-
424 03.332 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98145-484-0 01 1 0712-0905
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 0906-
426 03.330 BOLT; BRACKET
04.686 M8X60 FLANGE 		0-28050-860-0 01 1 1002-
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 0712-
