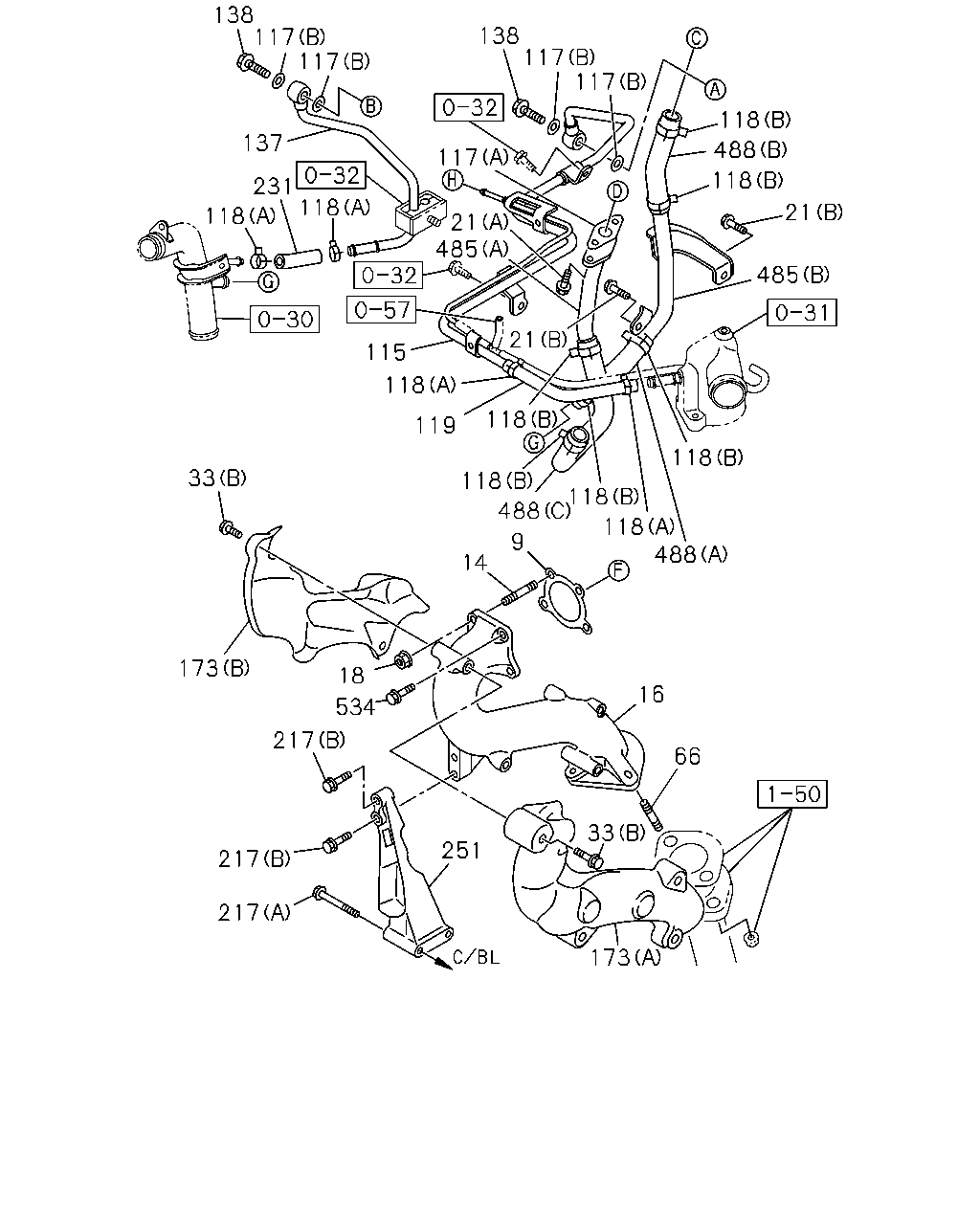

0-36 — TURBOCHARGER SYSTEM (#52336) — 53 parça

138 117 117 138 117 117 118 137 488 117 118 231 118 21 118 21 485 485 21 115 118 118 119 118 33 118 118 488 118 488 9 14 173 18 16 534 217 66 33 251 217 217 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611	8-98011-532-0	01	1	0712-
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	03	1	0712-0903
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0904-
16	03.609 ADAPTER; EXH PIPE	8-98009-717-3	01	1	0712-0910
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	0911-
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	03	1	0712-0903
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	0904-
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0712-
21	03.358 BOLT; PIPE (A) M6X20 HEX SOCKET	0-58330-620-0	02	1	0712-0809
21	03.358 BOLT; PIPE 03.162 (A) M6X20 FLANGE	0-28650-620-0	02	1	0810-
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0712-
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0712-
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0712-
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98091-838-0	01	1	0712-0802
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98113-333-0	01	1	0803-
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A)	8-97262-117-0	01	1	0712-
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0712-0904
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=12.6	8-97331-137-1	02	1	0905-
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	04	1	0712-
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=22	8-94382-401-0	06	1	0712-1003
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	06	1	1004-
119	03.342 HOSE; WATER,TURBOCHARGER	8-98022-074-0	01	1	0712-0802
119	03.342 HOSE; WATER,TURBOCHARGER	8-98113-336-0	01	1	0803-
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97381-650-0	01	1	0712-
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0712-
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	0712-
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	0712-
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	0712-
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	0712-
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0712-
251	03.417 BRACKET; ADAPTER	8-98009-098-1	01	1	0712-
485	01.097 PIPE; WATER EGR (A)	8-97381-651-0	01	1	0712-
485	01.097 PIPE; WATER EGR (B)	8-97381-652-0	01	1	0712-
488	03.163 HOSE; RUBBER 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	0712-
488	03.163 HOSE; RUBBER (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	0712-
488	03.163 HOSE; RUBBER (C)	8-98015-118-0	01	1	0712-
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	01	1	0712-0903
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	0904-

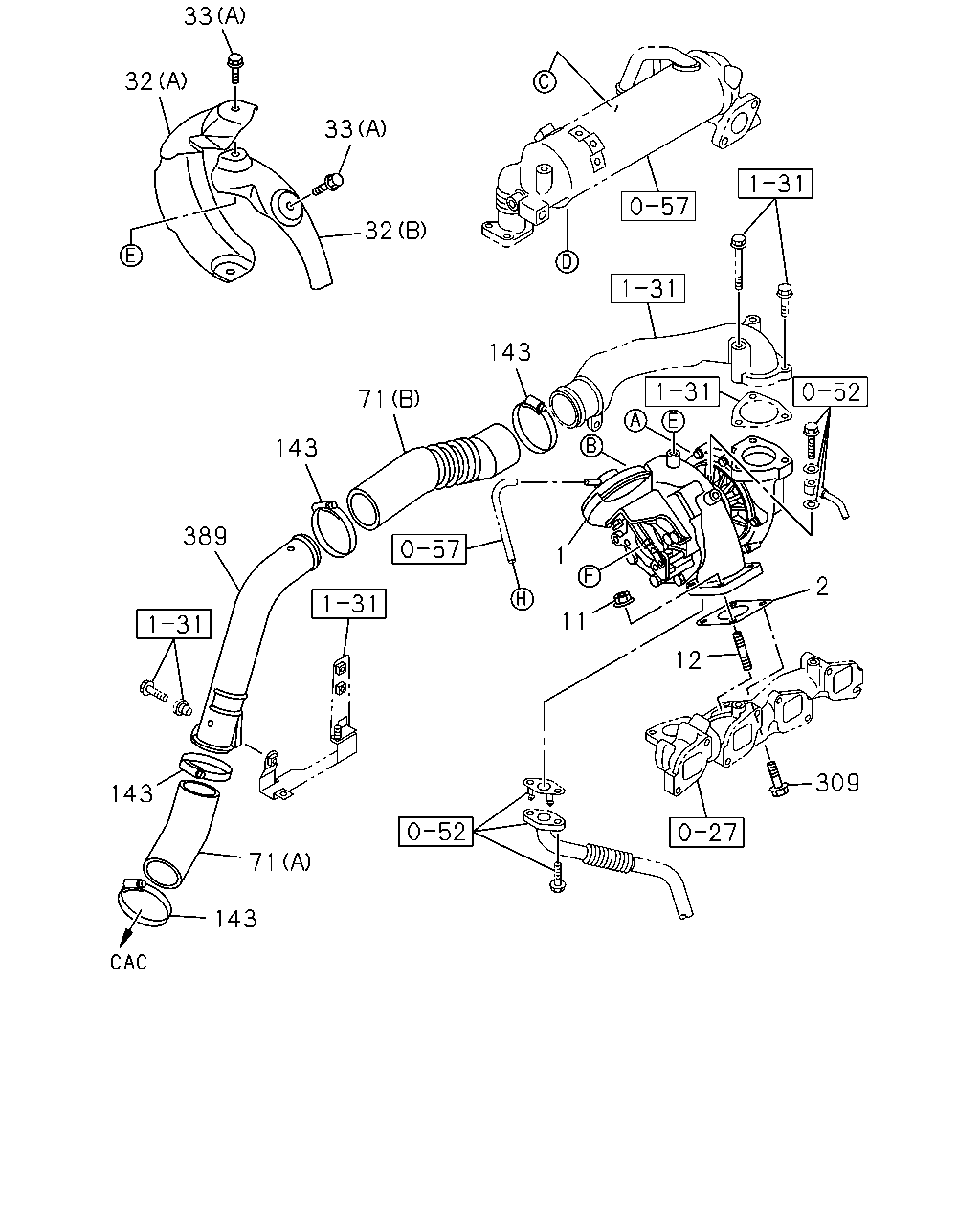

33 32 33 32 143 71 143 389 1 2 11 12 309 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.342 TURBOCHARGER ASM	8-97381-507-5	01	1	0712-
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	0712-
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0712-
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0712-
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98034-990-3	01	1	0712-
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	0712-
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0712-
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0712-
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-2	01	1	0712-
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98050-918-1	01	1	0712-
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=50-65	1-09707-204-0	04	1	0712-0810
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=45-65	8-98133-348-0	04	1	0811-1001
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=60-65	8-98096-418-0	04	1	1002-
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	0712-
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98038-996-1	01	1	0712-
