0-22 — ENGINE MOUNTING (#52329) — 28 parça

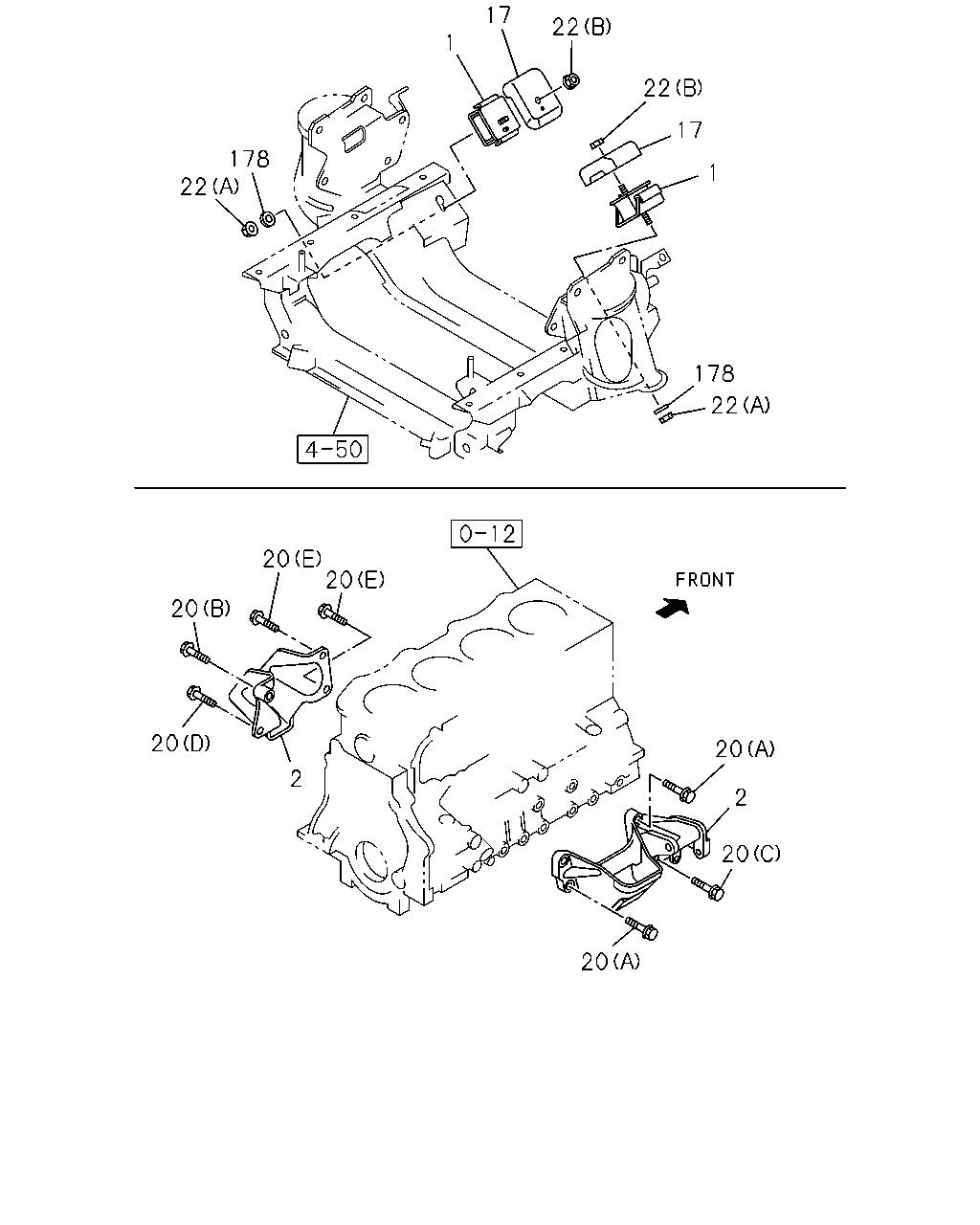

çizim 153725
17 22 1 22 17 178 1 22 178 22 20 20 20 20 20 2 2 20 20
BalonParca AdiParca NoAdetTipApplied Date
1 00.027 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98053-832-0 01 1 0712-
1 00.027 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98053-831-0 01 1 0712-
2 00.029 FOOT; ENG 8-97381-513-1 01 1 0712-
2 00.029 FOOT; ENG 8-97381-514-2 01 1 0712-
17 00.027 COVER; CUSHION RUBBER,FRT 8-97229-825-0 01 1 0712-
17 00.027 COVER; CUSHION RUBBER,FRT 8-97383-796-0 01 1 0712-
20 00.029 BOLT; ENG FOOT
03.706 (C) M10X70 FLANGE 		0-28051-070-0 01 1 0712-
20 00.029 BOLT; ENG FOOT
(A) M10X30 FLANGE 		0-28651-030-0 03 1 0712-
20 00.029 BOLT; ENG FOOT
02.343 (D) M10X20 FLANGE 		0-28651-020-0 01 1 0712-
20 00.029 BOLT; ENG FOOT
(E) M10X25 FLANGE 		0-28651-025-0 02 1 0712-
20 00.029 BOLT; ENG FOOT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0712-
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (B) M12 FLANGE 		0-91180-112-0 02 1 0712-
22 00.002 NUT; CUSHION RUBBER TO BRKT
FRT INDEPENDENT SUSPENSION(FF0) 05.002 (A) M12 		0-91110-512-0 02 1 0712-
178 00.002 WASHER; PL,CUSHION RUBBER TO BRK
FRT INDEPENDENT SUSPENSION(FF0) 07.529 ID=12.5 OD=32 		0-91614-712-0 02 1 0712-

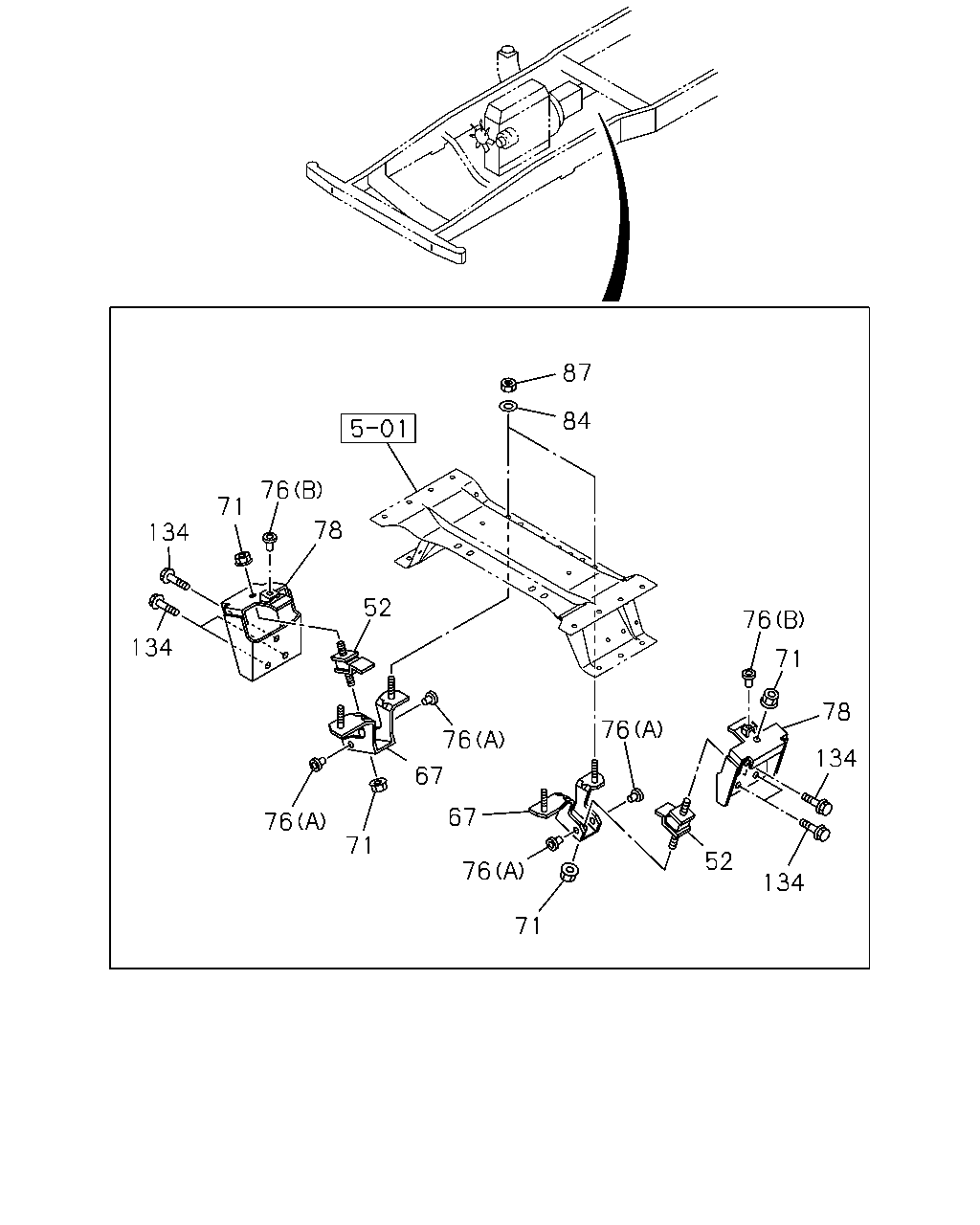

çizim 153750
87 84 76 71 78 134 52 76 134 71 78 76 76 134 67 67 76 71 52 76 134 71
BalonParca AdiParca NoAdetTipApplied Date
52 00.027 RUBBER; CUSHION,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94111-903-1 02 1 0712-
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97354-876-1 01 1 0712-
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97354-877-1 01 1 0712-
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98004-324-1 01 1 0712-
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98004-325-1 01 1 0712-
71 00.002 NUT; SUPPORT RUBBER TO BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0712-
76 00.002 STOPPER; ENG MTG RUBBER
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.027 (B) 		8-94111-904-0 02 1 0712-
76 00.002 STOPPER; ENG MTG RUBBER
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97039-947-1 04 1 0712-
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98053-902-1 02 1 0712-
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98053-903-0 02 1 0712-1407
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98220-858-0 02 1 1408-
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0712-
87 00.029 NUT; ENG MTG RR
03.162 M10 FLANGE 		0-91180-110-0 04 1 0712-
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 0712-
