0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#52328) — 72 parça

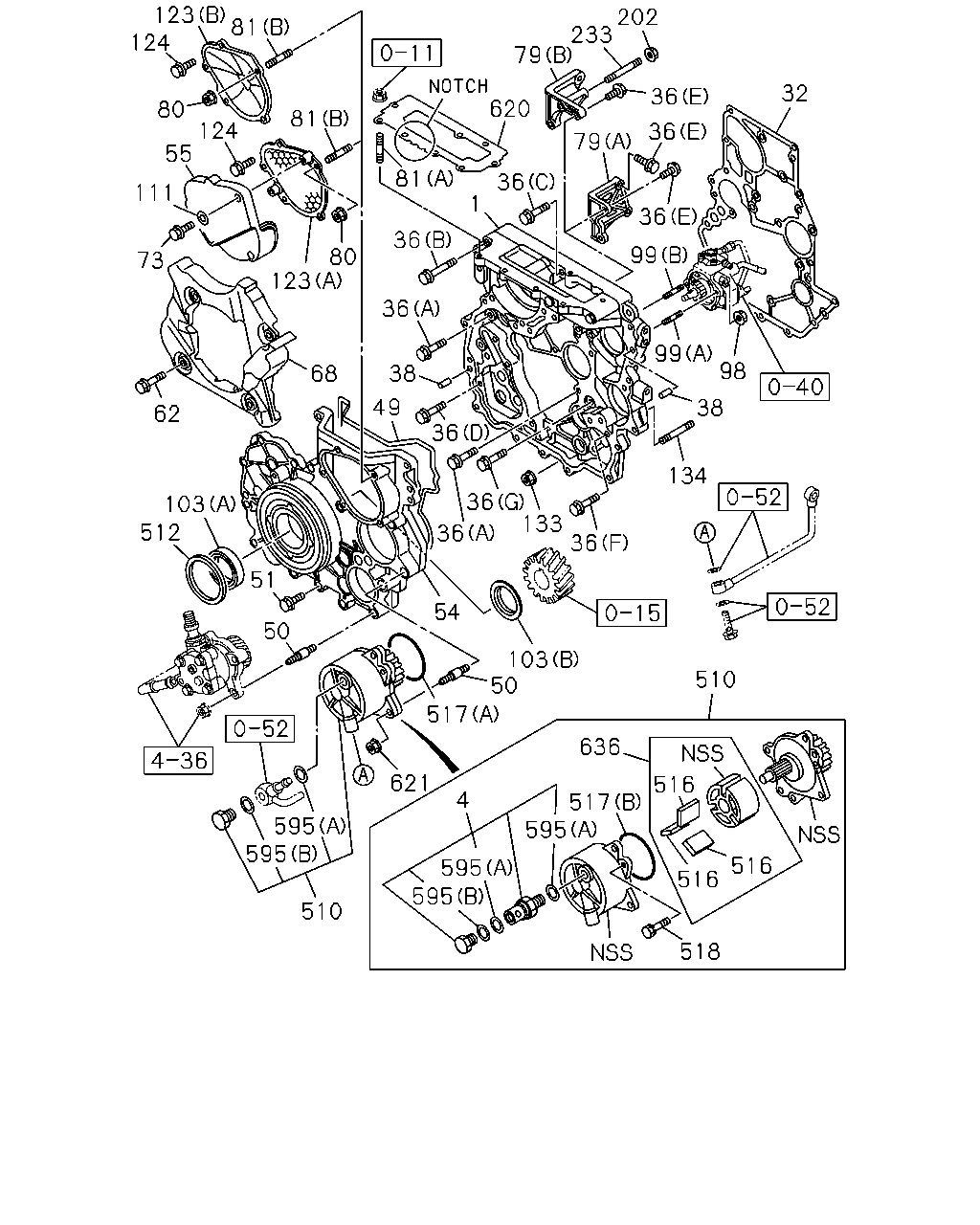

123 124 81 80 55 124 81 111 80 123 73 62 68 103 512 51 50 595 595 510 621 517 50 103 54 36 36 36 49 38 36 36 81 620 1 36 79 233 202 79 36 36 32 36 99 99 98 38 134 133 36 510 516 516 516 636 4 595 517 518 595 595

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.206 CASE; TIMING GEAR	8-97945-261-2	01	1	0712-1203
1	00.206 CASE; TIMING GEAR	8-98074-747-1	01	1	1204-
4	00.213 VALVE ASM; CHECK	8-98049-521-0	01	1	0712-
32	00.207 GASKET; GEAR CASE TO C/BL	8-97312-221-2	01	1	0712-
36	00.206 BOLT; GEAR CASE 02.343 (G) M8X16 FLANGE	0-28050-816-0	01	1	0712-
36	00.206 BOLT; GEAR CASE 04.338 (A) M8X20 FLANGE	0-28050-820-0	12	1	0712-
36	00.206 BOLT; GEAR CASE 03.162 (C) M8X35 FLANGE	0-28050-835-0	01	1	0712-
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE	0-28050-845-0	02	1	0712-
36	00.206 BOLT; GEAR CASE 04.686 (B) M8X60 FLANGE	0-28050-860-0	01	1	0712-
36	00.206 BOLT; GEAR CASE 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0712-
36	00.206 BOLT; GEAR CASE 03.403 (E) M8X30 FLANGE	0-28650-830-0	03	1	0712-
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0712-
49	00.206 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97945-298-0	01	1	0712-
50	00.206 STUD M8X27,M8X14 L=64.5	8-97354-808-2	06	1	0712-
51	00.206 BOLT; GEAR CASE COVER	8-97354-697-1	14	1	0712-
54	00.206 COVER; GEAR CASE	8-98012-960-2	01	1	0712-1007
54	00.206 COVER; GEAR CASE	8-98165-119-1	01	1	1008-1405
54	00.206 COVER; GEAR CASE	8-98253-700-1	01	1	1406-
55	00.206 COVER; NOISE SHIELD	8-97375-190-1	01	1	0712-1006
62	00.206 BOLT; COVER 03.162 M6X20 FLANGE	0-28650-620-0	04	1	0712-
68	00.206 COVER ASM; GEAR CASE COVER	8-98009-466-3	01	1	0712-1409
68	00.206 COVER ASM; GEAR CASE COVER	8-98245-226-0	01	1	1410-
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0712-1006
79	00.219 BRACKET; GEAR CASE COVER (A)	8-97370-390-2	01	1	0712-1203
79	00.219 BRACKET; GEAR CASE COVER (B)	8-98107-106-0	01	1	1204-
80	00.206 NUT; COVER 01.540 M6 FLANGE	0-91180-206-0	02	1	0712-
81	00.206 STUD; GEAR CASE COVER FIX (B) M6X16 L=25	0-41010-616-0	02	1	0712-
81	00.206 STUD; GEAR CASE COVER FIX 00.413 (A) M8X30 L=48	0-49140-830-0	02	1	0712-
98	00.206 NUT; STUD,INJ PUMP 01.540 M8 FLANGE	0-91180-208-0	02	1	0712-
99	00.206 STUD; INJ PUMP (A) M8X30 L=41	8-97369-449-0	01	1	0712-1203
99	00.206 STUD; INJ PUMP (A) M8X30 L=41	8-97369-449-0	02	1	1204-
99	00.206 STUD; INJ PUMP (B) M8X45 L=56	8-97369-450-0	01	1	0712-1203
103	00.213 SEAL; OIL,CR/SHF,FRT (A) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97382-606-0	01	1	0712-1007
103	00.213 SEAL; OIL,CR/SHF,FRT (A) ALSO INCLUDED IN GASKET SET(ENGINE).	8-98158-110-0	01	1	1008-
103	00.213 SEAL; OIL,CR/SHF,FRT (B)	8-97386-601-0	01	1	0712-1007
111	00.206 WASHER; PL 02.334 ID=6.4 OD=22	9-09164-806-0	02	1	0712-1006
123	00.206 COVER; TIMING,LWR (A)	8-97371-720-1	01	1	0712-1006
123	00.206 COVER; TIMING,LWR (B)	8-98158-145-0	01	1	1007-
124	00.206 BOLT; TIMING COVER 09.242 M6X16 FLANGE	0-28050-616-0	03	1	0712-
133	00.206 NUT; TIMING GEAR CASE 01.540 M8 FLANGE	0-91180-208-0	02	1	0712-
134	00.669 STUD; TIMING GEAR CASE 02.510 M8X20 L=32	0-41010-820-0	02	1	0712-
202	00.206 NUT; BRKT 01.540 M8 FLANGE	0-91180-208-0	01	1	1204-
233	00.669 STUD; BRKT 03.275 M8X71 L=83	8-98017-063-0	01	1	1204-
510	04.895 PUMP ASM; VACUUM	8-98005-250-0	01	1	0712-1005
510	04.895 PUMP ASM; VACUUM	8-98162-748-0	01	1	1006-1305
510	04.895 PUMP ASM; VACUUM	8-98241-234-0	01	1	1306-1311
510	04.895 PUMP ASM; VACUUM	8-98251-764-0	01	1	1312-
512	04.895 RUBBER; SPACE	8-97322-675-0	01	1	0712-1007
512	04.895 RUBBER; SPACE	8-98165-120-0	01	1	1008-1011
516	04.895 VANE; VAC PUMP	8-98051-275-0	03	1	0712-
517	04.895 GASKET; VAC PUMP (B)	8-98049-522-0	01	1	0712-1305
517	04.895 GASKET; VAC PUMP (B)	8-98244-022-0	01	1	1306-1311
517	04.895 GASKET; VAC PUMP (B)	8-98251-769-0	01	1	1312-
517	04.895 GASKET; VAC PUMP 00.206 (A) ALSO INCLUDED IN GASKET SET(ENGINE).	9-09566-271-0	01	1	0712-
518	04.895 BOLT; VAC PUMP	8-98049-523-0	03	1	0712-
595	00.213 GASKET; VLV (B) ID=12	8-98018-518-0	01	1	0712-
595	00.213 GASKET; VLV (A) ID=18	8-98018-519-0	02	1	0712-
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 1-NOTCH	8-97328-828-2	01	1	0712-
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.45 2-NOTCH	8-97331-631-2	01	1	0712-
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.50 3-NOTCH	8-97331-632-2	01	1	0712-
621	00.207 NUT; VAC PUMP 01.540 M8 FLANGE	0-91180-208-0	03	1	0712-
636	00.206 ROTOR & VANE ASM; VAC PUMP	8-98049-520-0	01	1	0712-

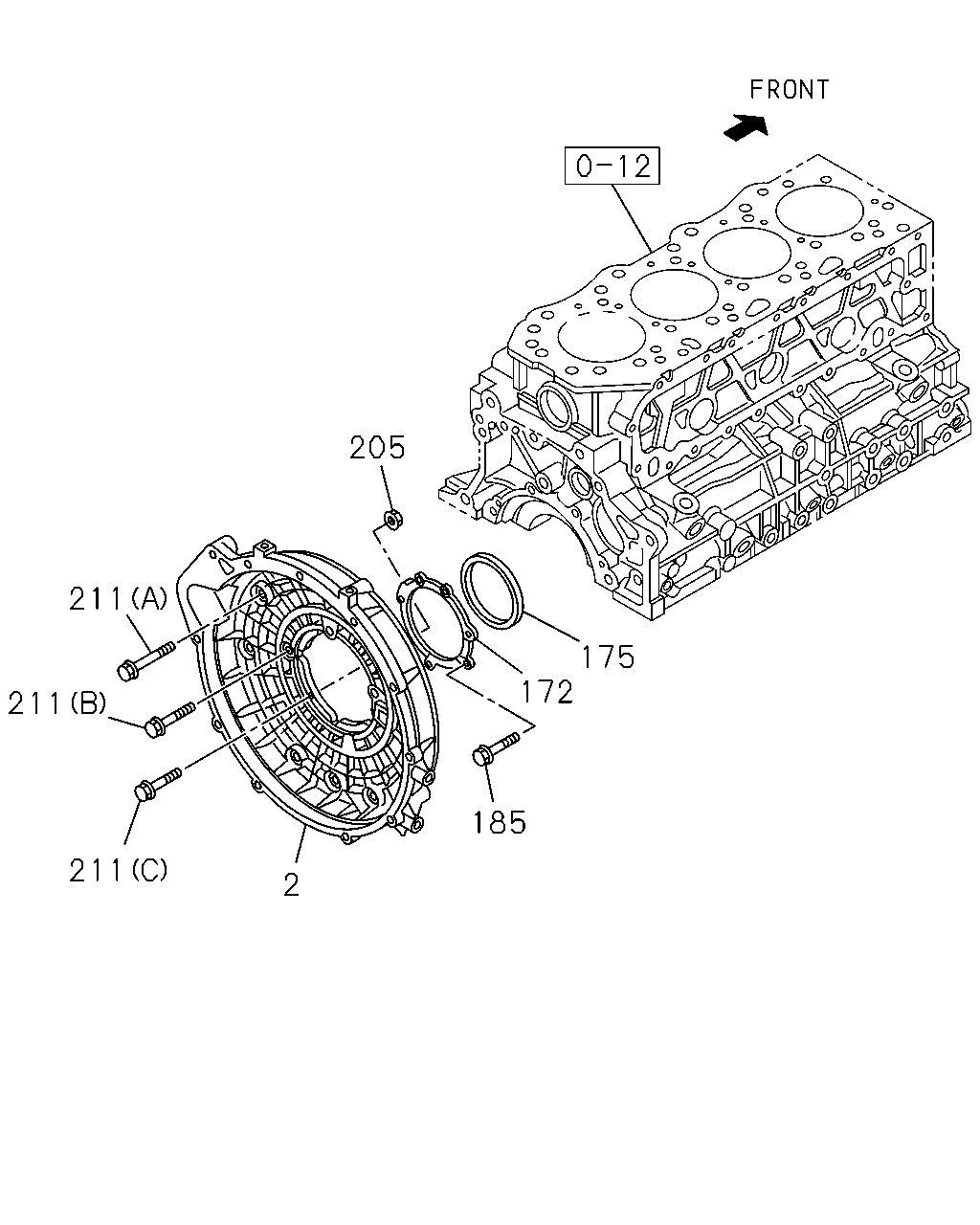

205 211 175 172 211 185 211 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	00.683 HOUSING; FLYWHEEL	8-97381-492-3	01	1	0712-1310
2	00.683 HOUSING; FLYWHEEL	8-98252-203-0	01	1	1311-
172	00.137 RETAINER; CR/SHF	8-97175-986-3	01	1	0712-1012
172	00.137 RETAINER; CR/SHF	8-97379-826-0	01	1	1101-
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0712-
185	00.727 BOLT; RET TO C/BL 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0712-
205	00.669 NUT; HSG 04.085 M10 FLANGE	0-91180-210-0	01	1	0712-
211	00.669 BOLT; HSG 09.003 (A) M12X35 FLANGE	0-28651-235-0	06	1	0712-
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0712-
211	00.669 BOLT; HSG 00.862 (C) M10X43	9-09606-535-0	01	1	0712-
