1-01 — ACCELERATOR PEDAL AND CONTROL (#5232) — 84 parça

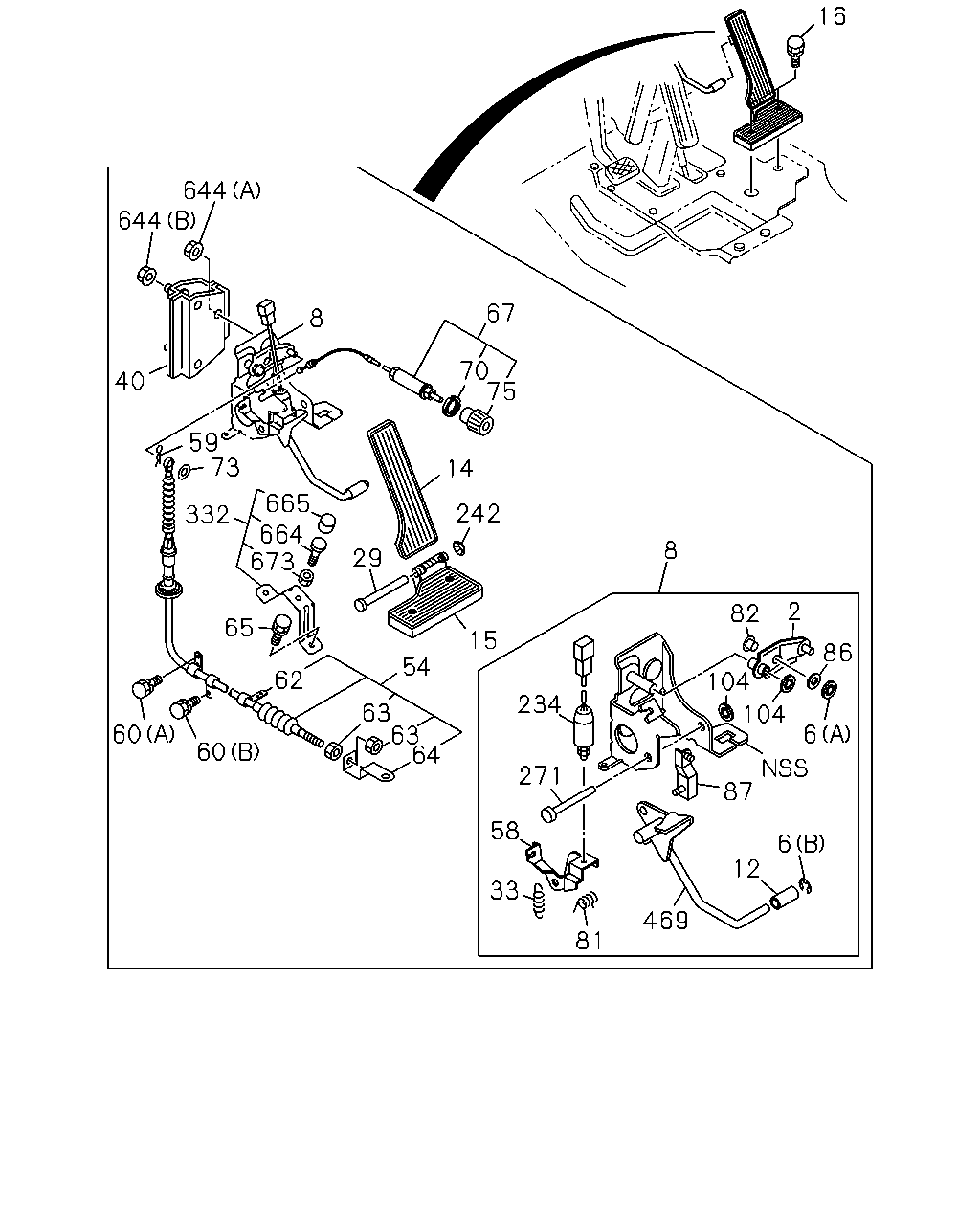

16 644 644 67 8 70 75 40 59 73 14 665 242 332 664 673 8 29 2 82 65 15 86 54 62 104 234 63 63 64 104 60 6 60 87 271 58 6 12 33 469 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LEVER; ENG CONT	1-71907-210-2	01	1	9604-	●	●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	9604-	●	●
6	RING; SNAP,LINK TO LINK (B) ID=6	9-09185-406-0	01	1	9604-9802	●	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	9604-	●	●
12	ROLLER; ENG CONT LEVER	1-09989-007-0	01	1	9604-9802	●	●
14	PAD; PEDAL,ACCEL	1-23241-021-0	01	1	9604-9708	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	9709-	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9604-	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X20 W/LK&PL WASHER	8-94279-202-0	02	1	9604-9902	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	9903-	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9604-	●	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	9604-	●	●
40	BRACKET; ENG CONT CABLE	1-71907-269-0	01	1	9604-	●	●
54	CABLE; ENG CONT L=2735	1-73907-421-3	01	1	9604-0001	●	●
54	CABLE; ENG CONT EXC. RLD GOVERNOR(SD7) L=2735	1-73907-421-3	01	1	0002-	●	●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) L=2035	1-73907-627-1	01	1	0002-		●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	9604-	●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9604-	●	●
60	BOLT; CABLE (A) M8X20 FLANGE	0-28080-820-0	01	1	9604-9606	●	●
60	BOLT; CABLE (A) M8X20 FLANGE	0-28680-820-0	01	1	9607-0001	●	●
60	BOLT; CABLE EXC. RLD GOVERNOR(SD7) (A) M8X20 FLANGE	0-28680-820-0	01	1	0002-	●	●
60	BOLT; CABLE (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9604-	●	●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9604-9605	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9604-0001	●	●
63	NUT; LOCK,BRKT EXC. RLD GOVERNOR(SD7) M8	9-09111-408-0	02	1	0002-	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	0002-		●
64	BRACKET; ENG CONT CABLE	1-09768-018-1	01	1	9604-0001	●	●
64	BRACKET; ENG CONT CABLE EXC. RLD GOVERNOR(SD7)	1-09768-018-1	01	1	0002-	●
64	BRACKET; ENG CONT CABLE	1-09768-018-1	01	1	0002-		●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9604-	●	●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-3	01	1	9604-	●	●
70	NUT; CONT CABLE	1-73908-045-1	01	1	9604-	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9604-	●	●
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	9604-	●	●
81	SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	9604-	●	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	9604-	●	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	9604-	●	●
87	LINK; ENG CONT	1-71907-211-1	01	1	9604-	●	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9604-	●	●
234	SWITCH; ACCEL	1-82380-114-3	01	1	9604-	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9604-	●	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9604-	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9604-	●	●
469	LEVER ASM	1-71907-209-5	01	1	9604-	●	●
644	NUT; LINK,ENG CONT (A) M8 FLANGE	0-91150-108-0	02	1	9604-	●	●
644	NUT; LINK,ENG CONT (B) M8 FLANGE W/RUBBER	1-09984-176-0	03	1	9604-	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9604-	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9604-	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9604-	●	●

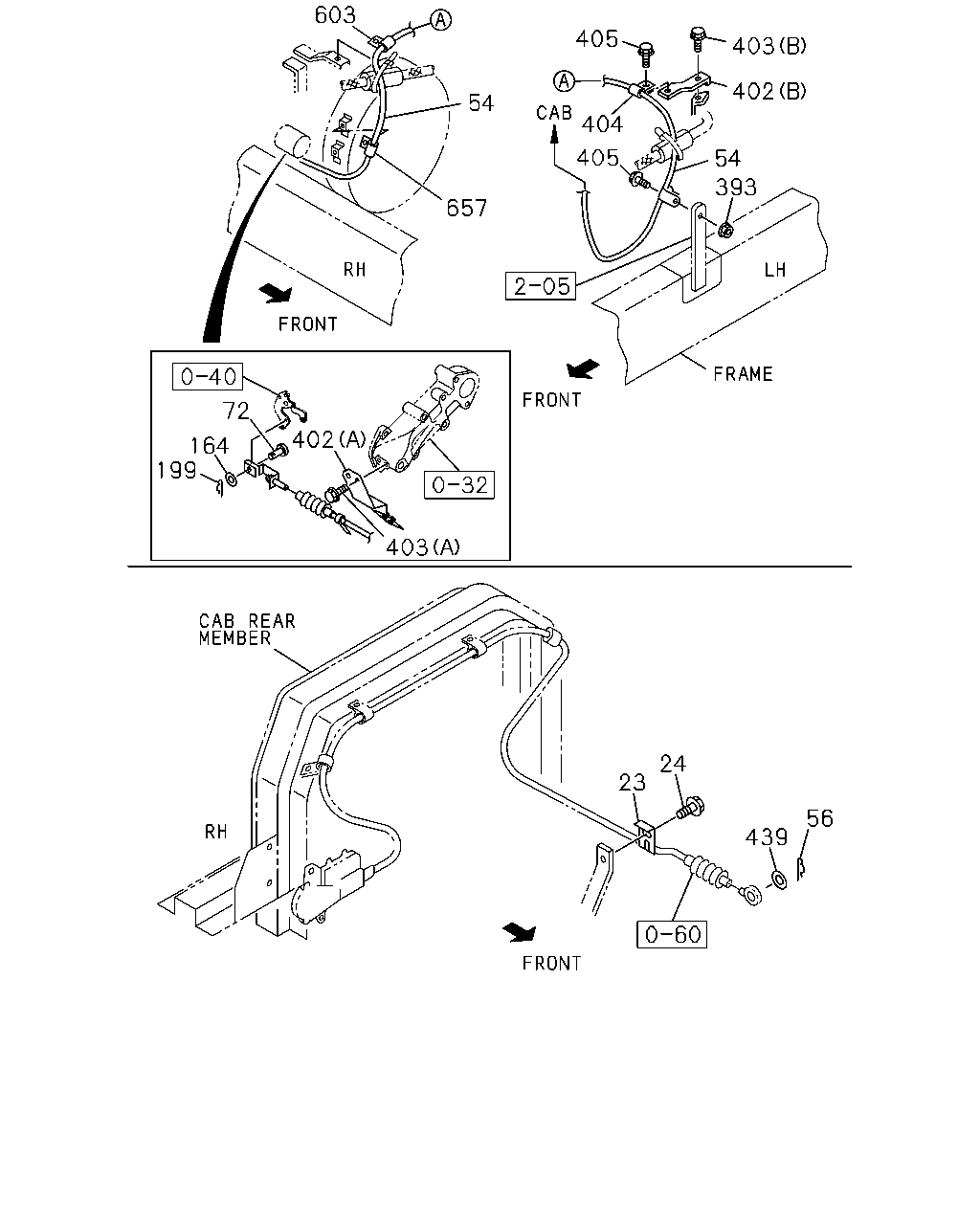

603 405 403 402 54 404 405 54 393 657 402 72 164 199 403 24 23 56 439

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	BRACKET; FUEL CUT CABLE	1-14319-082-0	01	1	9604-9808	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-138-0	01	1	9809-	●	●
24	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	01	1	9604-9606	●	●
24	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	9607-9609	●	●
24	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	01	1	9610-	●	●
54	CABLE; ENG CONT L=2735	1-73907-421-3	01	1	9604-0001	●	●
54	CABLE; ENG CONT EXC. RLD GOVERNOR(SD7) L=2735	1-73907-421-3	01	1	0002-	●	●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) L=2035	1-73907-627-1	01	1	0002-		●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9604-	●	●
72	PIN; JAW JOINT,CABLE END OD=8 L=17	9-08223-817-0	01	1	9604-0001	●	●
72	PIN; JAW JOINT,CABLE END EXC. RLD GOVERNOR(SD7) OD=8 L=17	9-08223-817-0	01	1	0002-	●	●
164	WASHER; PL ID=8.4	9-09160-508-0	01	1	9604-	●	●
199	PIN; SNAP L=27.7	1-09747-005-0	01	1	9604-	●	●
393	NUT; CLIP TO FRAME M8 FLANGE	0-91150-208-0	01	1	9604-9606	●	●
393	NUT; CLIP TO FRAME M8 FLANGE	0-91150-108-0	01	1	9607-	●	●
402	BRACKET; CABLE CLIP (A)	1-23335-379-0	01	1	9604-0001	●	●
402	BRACKET; CABLE CLIP EXC. RLD GOVERNOR(SD7) (A)	1-23335-379-0	01	1	0002-	●	●
402	BRACKET; CABLE CLIP (B)	1-47476-527-0	01	1	9604-	●	●
403	BOLT; BRKT,ACCEL PEDAL (A) M8X16 FLANGE	0-28080-816-0	02	1	9604-9606	●	●
403	BOLT; BRKT,ACCEL PEDAL (A) M8X20 FLANGE	0-28680-820-0	02	1	9607-9709	●	●
403	BOLT; BRKT,ACCEL PEDAL (A) M8X16 FLANGE	0-28080-816-0	02	1	9710-0001	●	●
403	BOLT; BRKT,ACCEL PEDAL EXC. RLD GOVERNOR(SD7) (A) M8X16 FLANGE	0-28080-816-0	02	1	0002-	●	●
403	BOLT; BRKT,ACCEL PEDAL (B) M8X20 FLANGE	0-28080-820-0	01	1	9604-9606	●	●
403	BOLT; BRKT,ACCEL PEDAL (B) M8X25 FLANGE	0-28680-825-0	01	1	9607-	●	●
404	CLIP; CABLE ID=7 L=20	9-09524-635-0	01	1	9604-	●	●
404	CLIP; CABLE ID=11 L=20	9-09525-035-0	01	1	9606-	●	●
405	BOLT; CABLE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9604-9606	●	●
405	BOLT; CABLE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9604-9606	●	●
405	BOLT; CABLE CLIP M8X20 FLANGE	0-28680-820-0	01	1	9607-	●	●
405	BOLT; CABLE CLIP M8X20 FLANGE	0-28680-820-0	01	1	9607-	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9604-	●	●
603	BRACKET; ENG CONT SHAFT L=30	1-09700-326-0	01	1	9606-0001	●	●
603	BRACKET; ENG CONT SHAFT EXC. RLD GOVERNOR(SD7) L=30	1-09700-326-0	01	1	0002-0005	●	●
603	BRACKET; ENG CONT SHAFT L=30	1-09700-326-0	01	1	0006-	●	●
657	CLIP; ENG CONT CABLE ID=11 L=20	9-09525-035-0	01	1	9606-	●	●
