9-01 — TOOLS (#52319) — 21 parça

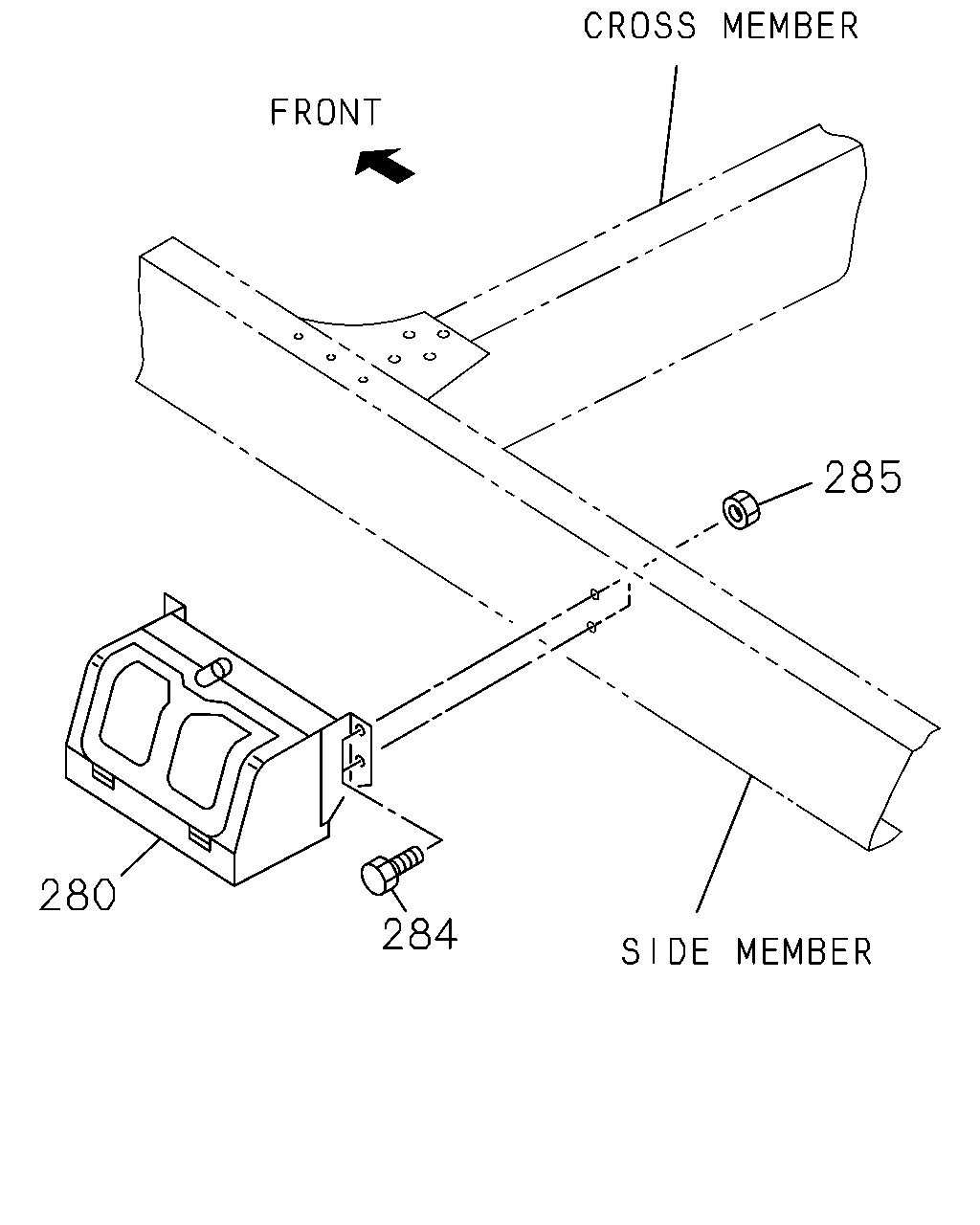

285 280 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
280	BOX; TOOL TOOL & STORAGE BOX<VK2>	8-97222-496-0	01	1	0707-	●
284	BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> M8X25 FLANGE	0-28650-825-0	04	1	0707-	●
285	NUT; TOOL BOX TOOL & STORAGE BOX<VK2> M8 FLANGE	0-91180-108-0	03	1	0707-	●

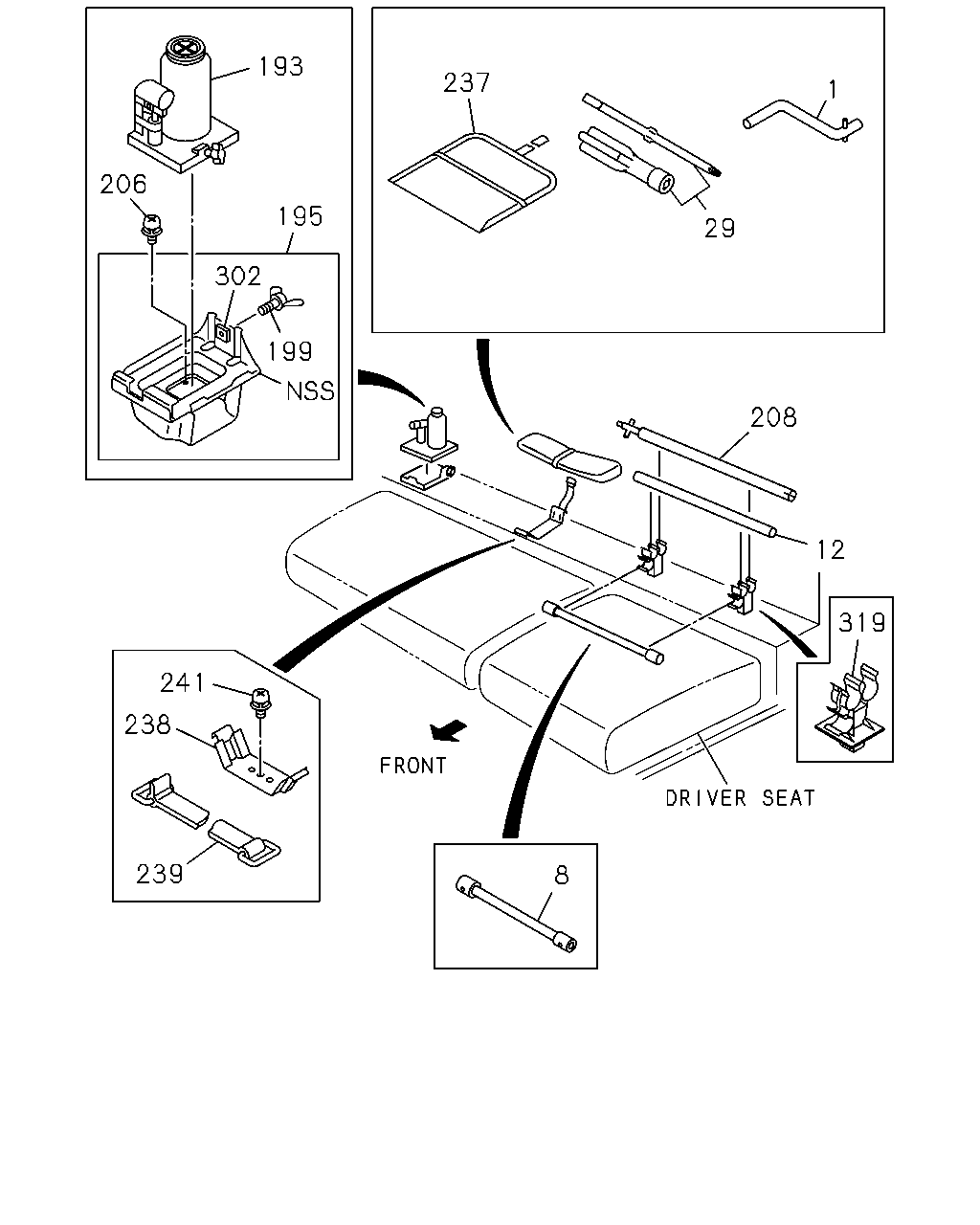

193 206 195 237 29 1 208 12 319 241 238 239 8 302 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANDLE; SPARE TIRE CARRIER	8-97218-985-0	01	1	0707-	●	●
8	WRENCH; WHEEL B=41X19 L=330	8-94386-490-1	01	1	0707-	●	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=590	8-97332-988-0	01	1	0707-1001	●	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	1002-1407	●	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	8-98257-407-0	01	1	1408-	●	●
29	DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	0707-	●	●
193	JACK ASM 4TON	8-98012-285-0	01	1	0707-	●	●
195	BRACKET; JACK	8-97856-997-4	01	1	0707-	●	●
199	BOLT; JACK M8X50 WING	8-94279-136-0	01	1	0707-	●	●
206	SCREW; OIL JACK BRKT M6X16	0-38050-616-0	01	1	0707-	●	●
208	HANDLE; JACK L=642	8-97217-800-0	01	1	0707-1108	●	●
208	HANDLE; JACK L=642	8-98181-477-0	01	1	1109-	●	●
237	BAG; TOOL	8-97130-903-1	01	1	0707-	●	●
238	SUPPORT; TOOL BAG	8-97994-977-0	01	1	0707-	●	●
239	BAND; TOOL BAG L=100	5-73997-026-1	01	1	0707-	●	●
241	SCREW; TOOL BAG SUPPORT M6X16	0-38050-616-0	01	1	0707-	●	●
302	NUT; JACK BRKT	8-94279-522-0	01	1	0707-	●	●
319	CLIP; TOOL BAR	8-97853-077-2	02	1	0707-	●	●
