8-90 — RADIO AND TV (#52318) — 29 parça

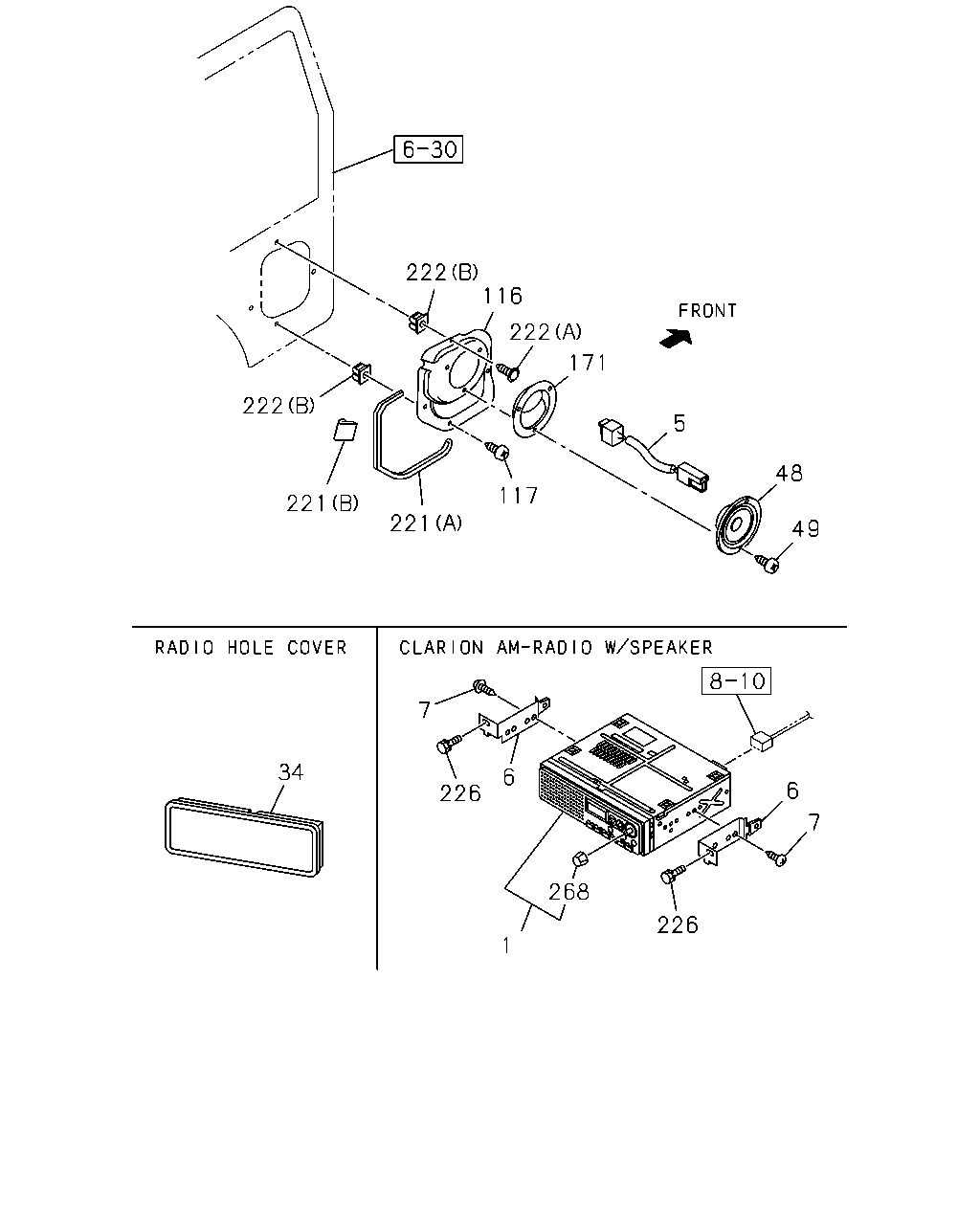

çizim 57339
222 116 222 171 222 5 48 117 221 221 49 7 34 6 6 226 7 268 226 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> CLARION AM-RADIO W/SPEAKER 		8-97316-997-0 01 1 0707- ● ●
5 HARNESS; EXT
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97131-327-0 02 1 0707- ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM W/AMPLIFIER(RS2) 		8-97853-615-2 01 1 0707- ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM W/AMPLIFIER(RS2) 		8-97853-614-2 01 1 0707- ● ●
7 SCREW; RADIO
RADIO AM W/AMPLIFIER(RS2) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 0707- ● ●
34 COVER; RADIO HOLE
EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97856-203-3 01 1 0707- ● ●
48 SPEAKER; AUDIO
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97317-001-1 02 1 0707- ● ●
49 SCREW; SPEAKER
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 0707- ● ●
116 PANEL; SPEAKER,FRT DOOR
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97852-325-3 01 1 0707- ● ●
116 PANEL; SPEAKER,FRT DOOR
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97852-324-3 01 1 0707- ● ●
117 SCREW; SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 06 1 0707- ● ●
171 COVER; SPEAKER
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97852-331-4 02 1 0707- ● ●
221 SEAL; SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (A) 		8-97852-327-5 02 1 0707- ● ●
221 SEAL; SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (B) 		8-97852-601-2 02 1 0707- ● ●
222 GROMMET; SCREW,SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (A) 		1-09987-144-0 02 1 0707- ● ●
222 GROMMET; SCREW,SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (B) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0707- ● ●
226 BOLT; BRKT
RADIO AM W/AMPLIFIER(RS2) M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 0707-1210 ● ●
226 BOLT; BRKT
RADIO AM W/AMPLIFIER(RS2) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1211- ● ●
268 KNOB; VOL
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> CLARION 		8-97331-589-0 01 1 0707- ● ●

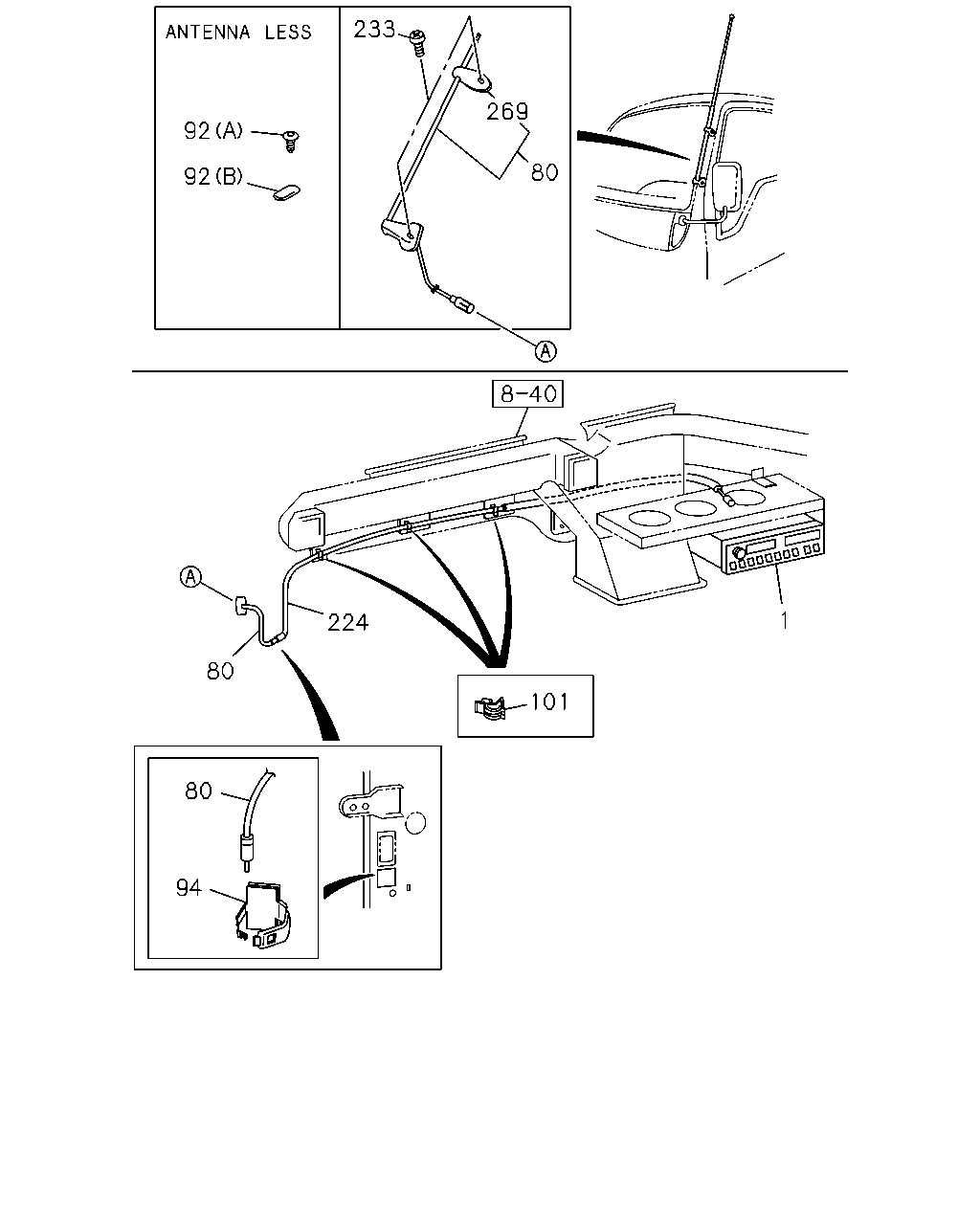

çizim 58854
233 269 92 80 92 1 224 80 101 80 94
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> CLARION AM-RADIO W/SPEAKER 		8-97316-997-0 01 1 0707- ● ●
80 ANTENNA
ANTENNA<U73> 		8-97211-565-0 01 1 0707- ● ●
92 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> (A) OD=12 L=14.8 		8-94279-921-0 01 1 0707- ● ●
92 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> (B) 		8-97088-275-3 01 1 0707- ● ●
94 CLIP; ANTENNA FEEDER
ANTENNA<U73> 		1-09987-155-3 01 1 0707- ● ●
101 CLIP; FEEDER TO BRKT
ANTENNA<U73> ID=7 		5-09707-053-0 03 1 0707- ● ●
224 CABLE; EXT,FEEDER
ANTENNA<U73> 		8-97213-766-0 01 1 0707- ● ●
233 SCREW
ANTENNA<U73> M6X20 		8-97120-686-0 01 1 0707- ● ●
233 SCREW
ANTENNA<U73> M6X16 		8-97123-696-0 01 1 0707- ● ●
269 SUPPORT KIT; ANTENNA
ANTENNA<U73> 		8-97219-080-0 01 1 0707- ● ●
