8-80 — WINDSHIELD WIPER AND WASHER (#52317) — 42 parça

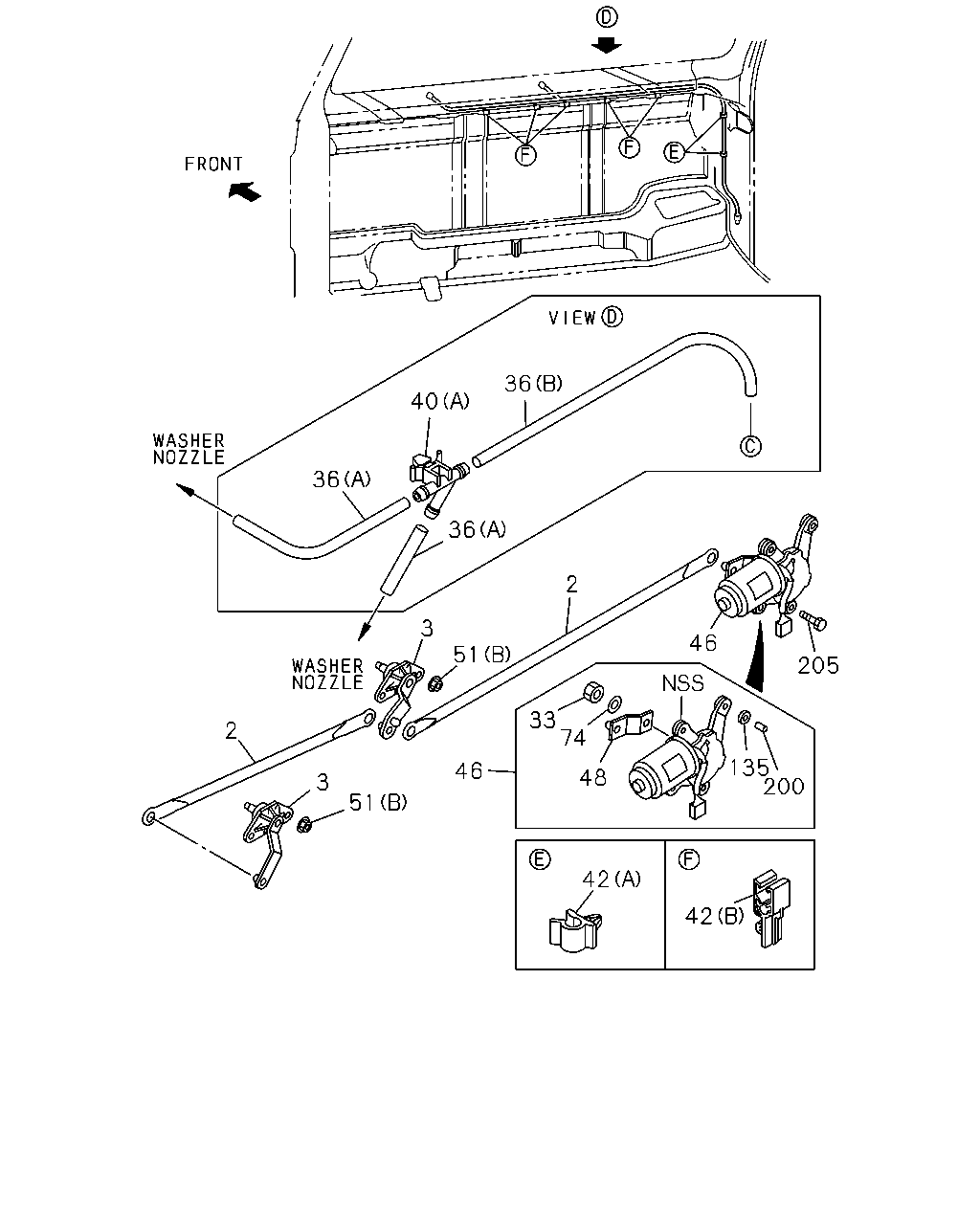

çizim 57990
36 40 36 36 2 3 46 51 205 33 74 2 135 200 46 48 3 51 42 42
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINK; FRT WIPER
MOTOR TO PIVOT 		8-97855-150-0 01 1 0707- ● ●
2 LINK; FRT WIPER
PIVOT TO PIVOT L=580 W/CAP 		8-97855-153-0 01 1 0707- ● ●
3 PIVOT ASM; FRT WIPER
CENTER 		8-97855-145-1 01 1 0707- ● ●
3 PIVOT ASM; FRT WIPER
DRIVER SIDE 		8-98003-074-0 01 1 0707-1103 ● ●
3 PIVOT ASM; FRT WIPER
DRIVER SIDE 		8-97855-148-2 01 1 1104- ● ●
33 NUT; MOTOR TO ARM
M8 		8-97855-157-0 01 1 0707- ● ●
36 HOSE; WASHER
(A) SERVICED BY L=10000 		8-94389-303-0 01 1 0707- ● ●
36 HOSE; WASHER
(B) SERVICED BY L=10000 		9-09914-906-0 01 1 0707- ● ●
40 JOINT; WASHER HOSE
(B) 		5-83363-006-0 01 1 0707- ● ●
40 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 0707- ● ●
42 CLIP; WASHER HOSE
(A) 		8-94144-956-0 02 1 0707- ● ●
42 CLIP; WASHER HOSE
(B) 		8-94279-819-0 05 1 0707- ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-97361-376-2 01 1 0707- ● ●
48 ARM; WIPER MOTOR 8-97218-924-0 01 1 0707- ● ●
51 NUT; WIPER MOTOR LINK
(A) 		8-97135-435-0 02 1 0707- ● ●
51 NUT; WIPER MOTOR LINK
(B) M8 FLANGE 		8-97581-233-0 04 1 0707- ● ●
74 WASHER; ARM TO MOTOR
ID=8 		8-97855-158-0 01 1 0707- ● ●
135 RUBBER; CUSHION,WIPER MOTOR 8-97855-159-0 03 1 0707- ● ●
200 COLLAR; WIPER MOTOR 8-97855-160-0 03 1 0707- ● ●
205 BOLT; WIPER MOTOR
M6X28 W/PL WASHER 		8-94148-420-0 03 1 0707- ● ●
çizim 58605
9 7 198 125 51 10 11 5 39 199
BalonParca AdiParca NoAdetTipApplied Date A B
5 ARM; WIPER
DRIVER SIDE 		8-97226-885-0 01 1 0707- ● ●
5 ARM; WIPER
PASSENGER SIDE 		8-97226-886-0 01 1 0707- ● ●
7 BLADE; WIPER 8-97137-469-2 02 1 0707- ● ●
9 RUBBER; FRT WIPER BLADE
L=475 		8-97142-093-1 02 1 0707- ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M8 		0-91110-508-0 02 1 0707- ● ●
11 COVER; WIPER ARM
BLACK 		8-94282-851-0 02 1 0707- ● ●
39 NOZZLE; WINDSHIELD WASHER 8-98010-172-0 02 1 0707- ● ●
51 NUT; WIPER MOTOR LINK
(A) 		8-97135-435-0 02 1 0707- ● ●
51 NUT; WIPER MOTOR LINK
(B) M8 FLANGE 		8-97581-233-0 04 1 0707- ● ●
125 SPACER; WIPER PIVOT 8-97135-434-0 02 1 0707- ● ●
198 COVER; PIVOT,WIPER 8-97359-329-0 02 1 0707- ● ●
199 COVER; NOZZLE,WIPER 8-97855-022-1 02 1 0707- ● ●

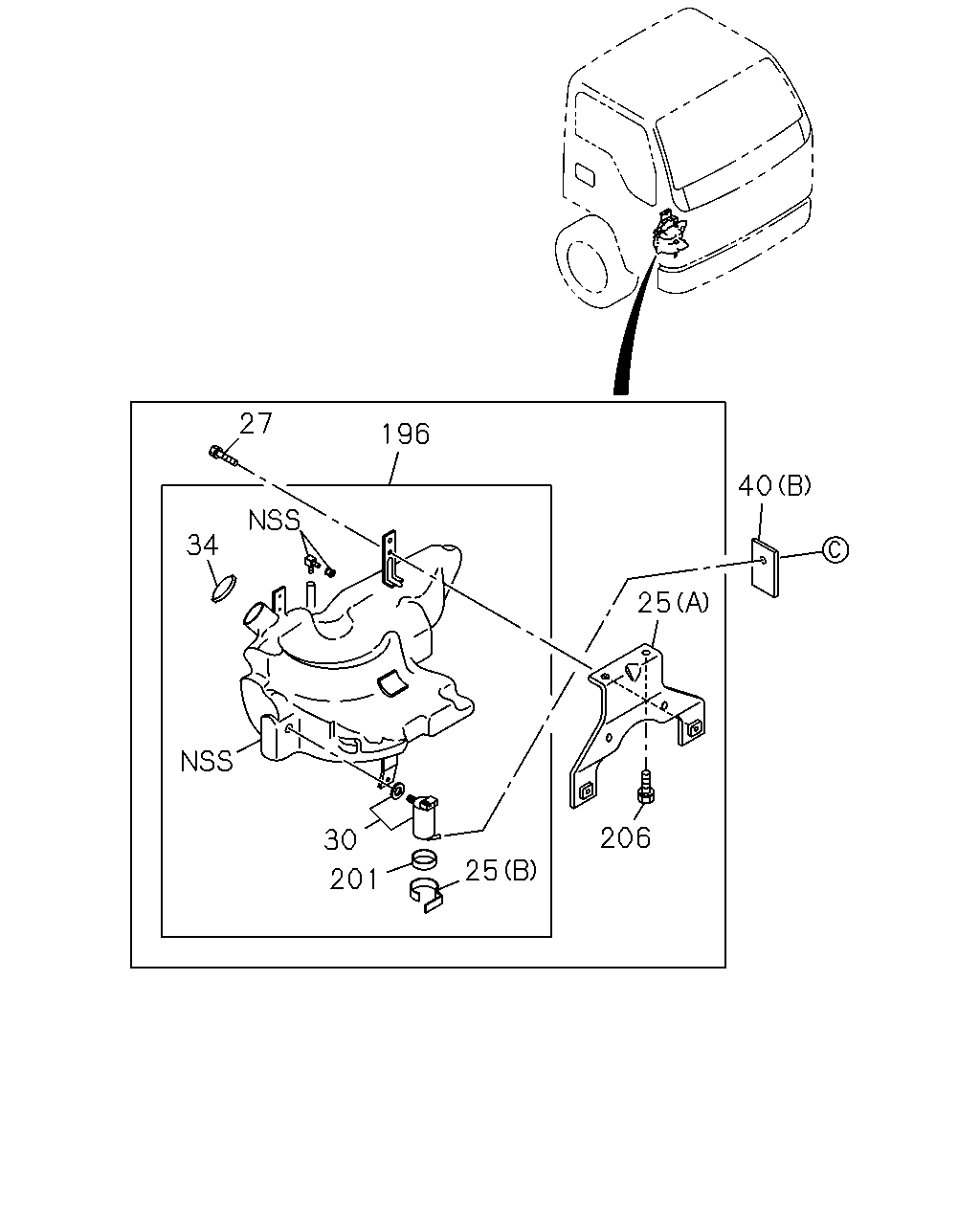

çizim 58667
27 196 40 34 25 206 30 25 201
BalonParca AdiParca NoAdetTipApplied Date A B
25 BRACKET; WASHER TANK
(A) 		8-97855-067-0 01 1 0707- ● ●
25 BRACKET; WASHER TANK
(B) 		8-97855-226-0 01 1 0707- ● ●
27 BOLT; WASHER TANK
M8X16 W/LK&PL WASHER 		8-94310-730-0 03 1 0707- ● ●
30 MOTOR ASM; FRT WASHER TANK 8-97855-139-0 01 1 0707- ● ●
34 CAP; WASHER TANK 8-97855-140-0 01 1 0707- ● ●
40 JOINT; WASHER HOSE
(B) 		5-83363-006-0 01 1 0707- ● ●
40 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 0707- ● ●
196 TANK; WASHER 8-97855-066-6 01 1 0707- ● ●
201 LINING; WIPER MOTOR 8-97352-826-0 01 1 0707- ● ●
206 BOLT; BRKT,WASHER TANK
M6X16 FLANGE 		0-28650-616-0 02 1 0707- ● ●
