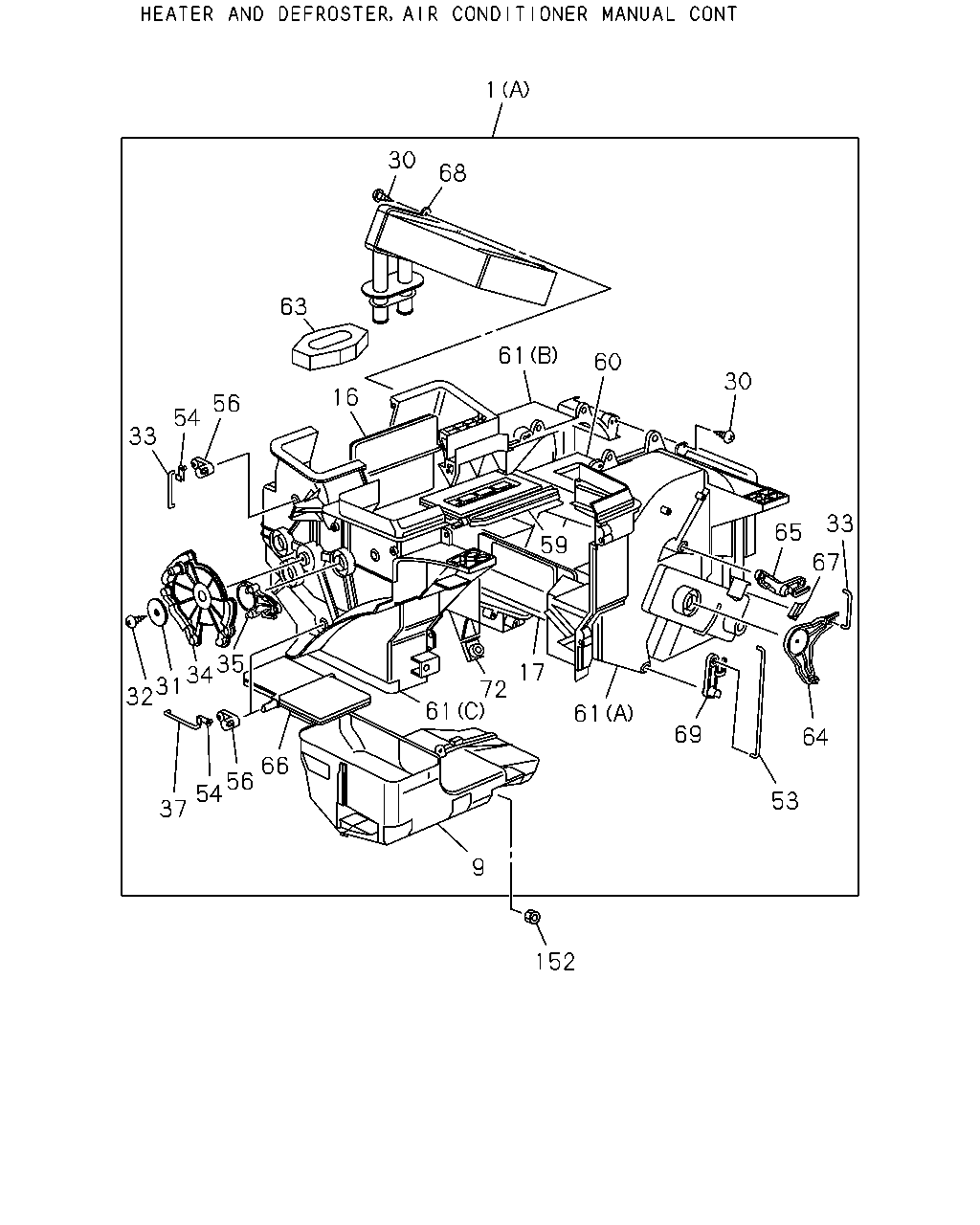

8-60 — HEATER UNIT; FRONT (#52314) — 67 parça

1 30 68 63 61 60 30 16 56 54 33 33 65 59 67 35 34 31 32 17 72 61 61 69 64 66 56 54 37 53 9 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97174-733-6	01	1	0707-1408	●	●
1	HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98238-500-0	01	1	1409-	●	●
1	HEATER UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97071-697-3	01	1	0707-	●	●
9	DUCT; HTR UNIT	8-97101-638-0	01	1	0707-	●	●
16	SHUTTER; HTR UNIT,CENTER UPR	8-97101-642-0	01	1	0707-	●	●
17	SHUTTER; HTR UNIT,CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-640-0	01	1	0707-	●	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	11	1	0707-	●	●
30	SCREW; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	10	1	0707-	●	●
31	WASHER; HTR UNIT	8-94129-950-0	01	1	0707-	●	●
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16	8-94248-820-0	01	1	1409-	●	●
32	SCREW; HTR UNIT M5X20	9-09829-324-1	01	1	0707-1408	●	●
32	SCREW; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20	9-09829-324-1	01	1	1409-	●	●
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97087-566-0	02	1	0707-	●	●
33	ROD; SHUTTER LEVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97087-566-0	01	1	0707-	●	●
34	LEVER; SHUTTER,HTR UNIT	8-97101-669-0	01	1	0707-	●	●
35	LEVER; SHUTTER,HTR UNIT	8-97101-673-0	03	1	0707-	●	●
37	ROD; LEVER	8-97101-677-2	02	1	0707-	●	●
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97087-567-1	01	1	0707-	●	●
54	CLIP; SHUTTER LEVER	1-83574-136-0	03	1	0707-	●	●
56	LEVER; SHUTTER,HTR UNIT	8-97096-142-0	03	1	0707-	●	●
59	SHUTTER; HTR UNIT,SIDE	8-97101-641-0	01	1	0707-	●	●
60	DOOR; MIX,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97087-556-1	01	1	0707-	●	●
61	CASE; HTR UNIT (A)	8-97101-634-4	01	1	0707-	●	●
61	CASE; HTR UNIT (B)	8-97101-635-4	01	1	0707-	●	●
61	CASE; HTR UNIT (C)	8-97101-636-4	01	1	0707-	●	●
63	LINING; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97131-580-0	01	1	0707-1408	●	●
63	LINING; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97131-323-0	01	1	1409-	●	●
64	LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-670-1	01	1	0707-	●	●
65	LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97200-276-0	01	1	0707-	●	●
66	SHUTTER; HTR UNIT,CENTER LWR	8-97101-643-0	01	1	0707-	●	●
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94337-654-0	02	1	0707-	●	●
67	CLIP; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94337-654-0	01	1	0707-	●	●
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97240-941-0	01	1	0707-1408	●	●
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98238-504-0	01	1	1409-	●	●
69	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-671-0	01	1	0707-	●	●
72	NUT; CASE,HTR UNIT	8-97085-613-0	01	1	0707-	●	●
152	NUT; HTR UNIT	8-97107-811-0	01	1	0707-	●	●

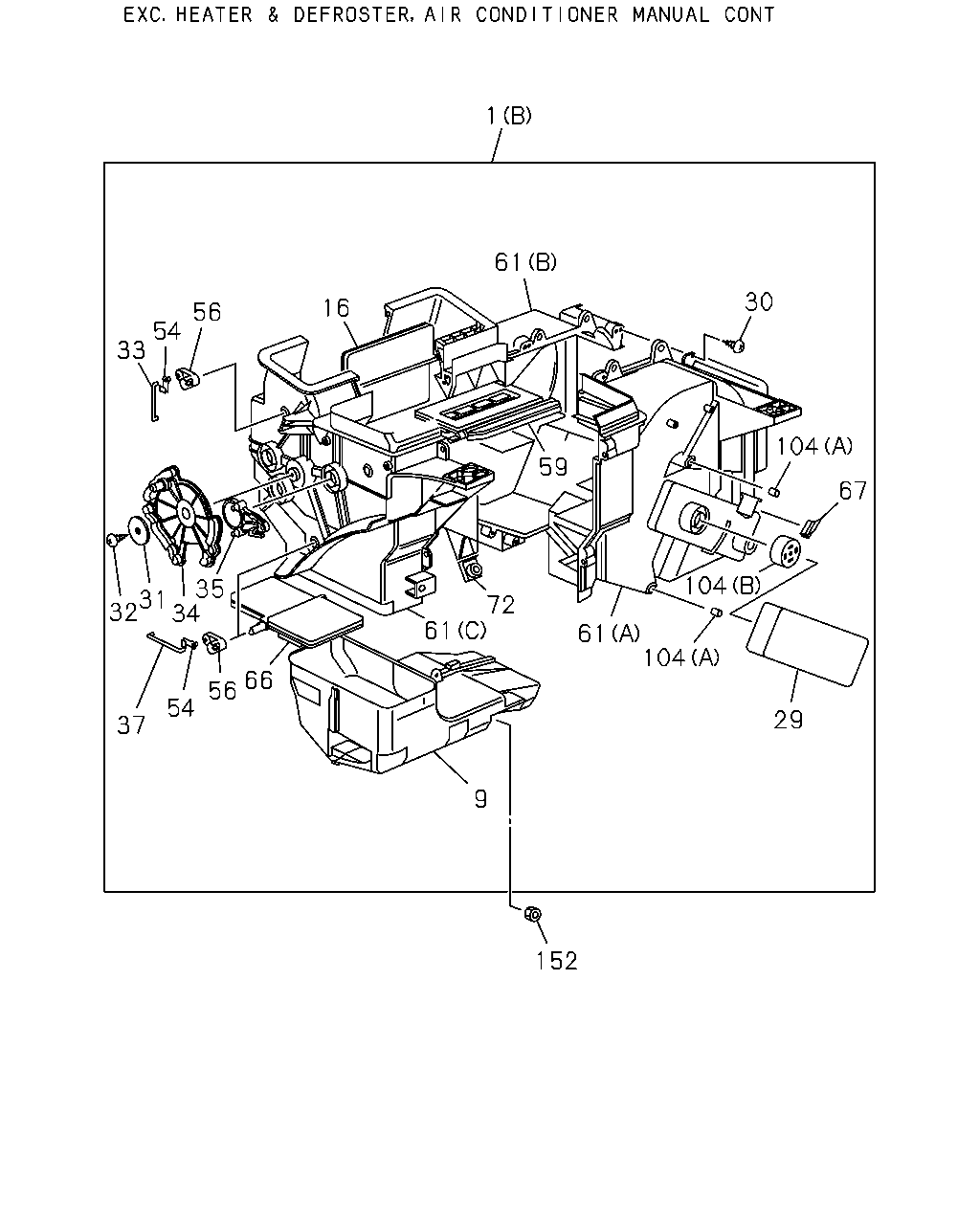

1 61 30 16 56 54 33 104 59 67 104 35 31 72 61 61 104 66 56 54 29 37 9 152 32 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97174-733-6	01	1	0707-1408	●	●
1	HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98238-500-0	01	1	1409-	●	●
1	HEATER UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97071-697-3	01	1	0707-	●	●
9	DUCT; HTR UNIT	8-97101-638-0	01	1	0707-	●	●
16	SHUTTER; HTR UNIT,CENTER UPR	8-97101-642-0	01	1	0707-	●	●
29	COVER; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97102-661-0	01	1	0707-	●	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	11	1	0707-	●	●
30	SCREW; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	10	1	0707-	●	●
31	WASHER; HTR UNIT	8-94129-950-0	01	1	0707-	●	●
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16	8-94248-820-0	01	1	1409-	●	●
32	SCREW; HTR UNIT M5X20	9-09829-324-1	01	1	0707-1408	●	●
32	SCREW; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20	9-09829-324-1	01	1	1409-	●	●
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97087-566-0	02	1	0707-	●	●
33	ROD; SHUTTER LEVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97087-566-0	01	1	0707-	●	●
34	LEVER; SHUTTER,HTR UNIT	8-97101-669-0	01	1	0707-	●	●
35	LEVER; SHUTTER,HTR UNIT	8-97101-673-0	03	1	0707-	●	●
37	ROD; LEVER	8-97101-677-2	02	1	0707-	●	●
54	CLIP; SHUTTER LEVER	1-83574-136-0	03	1	0707-	●	●
56	LEVER; SHUTTER,HTR UNIT	8-97096-142-0	03	1	0707-	●	●
59	SHUTTER; HTR UNIT,SIDE	8-97101-641-0	01	1	0707-	●	●
61	CASE; HTR UNIT (A)	8-97101-634-4	01	1	0707-	●	●
61	CASE; HTR UNIT (B)	8-97101-635-4	01	1	0707-	●	●
61	CASE; HTR UNIT (C)	8-97101-636-4	01	1	0707-	●	●
66	SHUTTER; HTR UNIT,CENTER LWR	8-97101-643-0	01	1	0707-	●	●
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94337-654-0	02	1	0707-	●	●
67	CLIP; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94337-654-0	01	1	0707-	●	●
72	NUT; CASE,HTR UNIT	8-97085-613-0	01	1	0707-	●	●
104	CAP; CASE,HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-94328-657-0	04	1	0707-	●	●
104	CAP; CASE,HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-94387-703-0	01	1	0707-	●	●
152	NUT; HTR UNIT	8-97107-811-0	01	1	0707-	●	●
