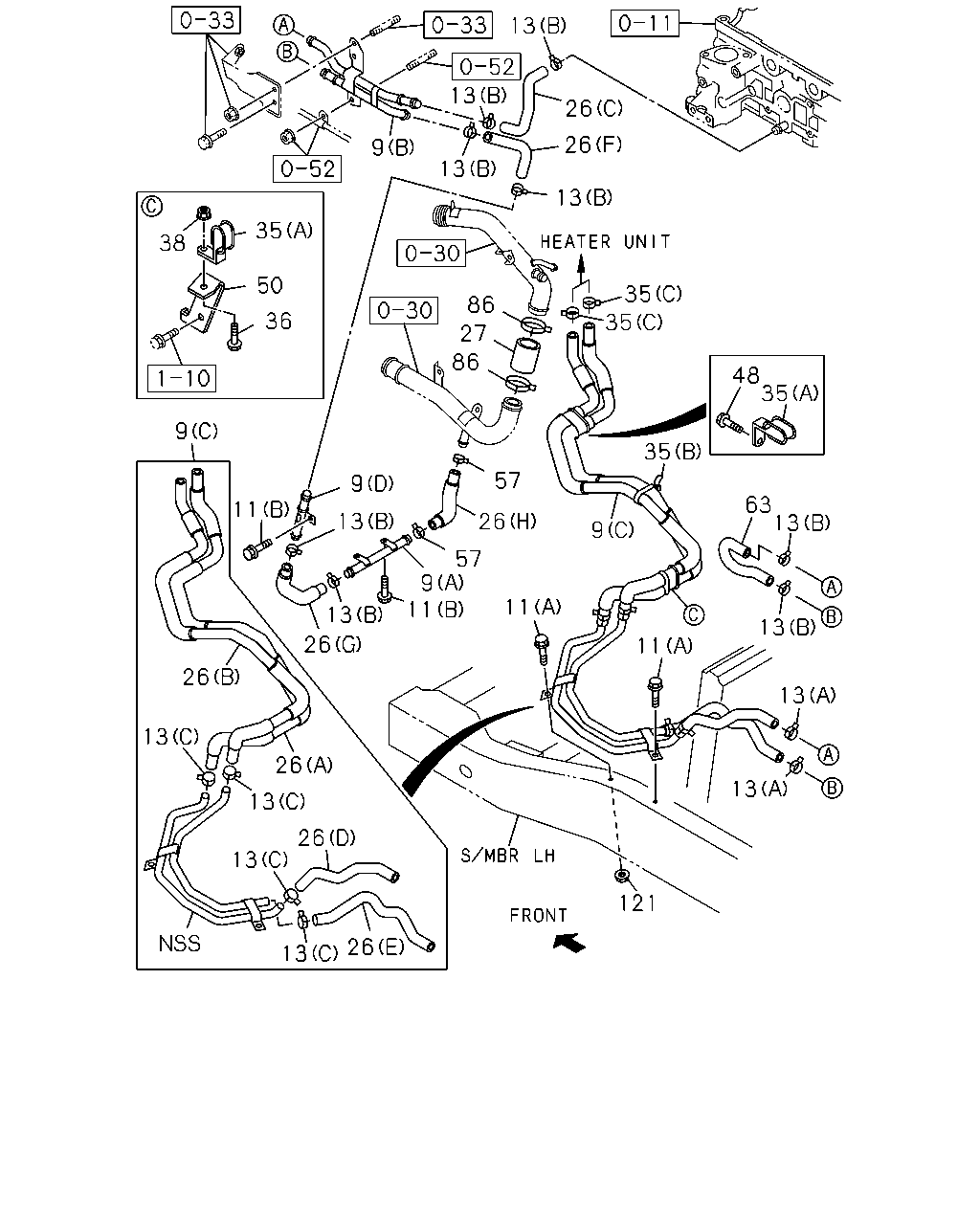

8-45 — HEATER PIPING (#52313) — 32 parça

13 13 26 26 9 13 13 35 38 50 35 86 36 35 27 86 48 35 9 35 57 9 63 13 11 13 26 9 57 9 11 11 13 13 26 11 26 13 13 26 13 13 26 13 121 26 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	PIPE; HTR HEATER & DEFROSTER(C41) (C)	8-97386-898-3	01	1	0707-	●	●
9	PIPE; HTR EXC. KD PREPARATORY PACK<6HF> (D)	8-97381-481-3	01	1	0707-	●	●
9	PIPE; HTR EXC. KD PREPARATORY PACK<6HF> (A)	8-97383-035-1	01	1	0707-	●	●
9	PIPE; HTR EXC. KD PREPARATORY PACK<6HF> (B)	8-98028-829-1	01	1	0707-	●	●
11	BOLT; HTR PIPE HEATER & DEFROSTER(C41) (A) M8X25 FLANGE	0-28650-825-0	02	1	0707-	●	●
11	BOLT; HTR PIPE EXC. KD PREPARATORY PACK<6HF> (B) M8X16 FLANGE	0-28050-816-0	03	1	0707-	●	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41) (C) ID=22	8-94382-401-0	04	1	0707-	●	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41) (A) ID=22	8-97359-141-0	02	1	0707-	●	●
13	CLIP; HTR HOSE EXC. HEATER & DEFROSTER(C41) (B) ID=20.8	8-94125-862-1	02	1	0707-	●	●
13	CLIP; HTR HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=20.8	8-94125-862-1	06	1	0707-	●	●
26	HOSE; HTR HEATER & DEFROSTER(C41) (A)	8-97239-084-0	01	1	0707-	●	●
26	HOSE; HTR HEATER & DEFROSTER(C41) (B)	8-97239-085-0	01	1	0707-	●	●
26	HOSE; HTR HEATER & DEFROSTER(C41) (D)	8-98050-289-0	01	1	0707-	●	●
26	HOSE; HTR HEATER & DEFROSTER(C41) (E)	8-98050-290-0	01	1	0707-	●	●
26	HOSE; HTR EXC. KD PREPARATORY PACK<6HF> (F)	0-03516-240-0	01	1	0707-0910	●	●
26	HOSE; HTR EXC. KD PREPARATORY PACK<6HF> (F)	8-98143-868-0	01	1	0911-	●	●
26	HOSE; HTR EXC. KD PREPARATORY PACK<6HF> (C)	8-97383-048-1	01	1	0707-	●	●
26	HOSE; HTR EXC. KD PREPARATORY PACK<6HF> (G)	8-98000-099-1	01	1	0707-	●	●
26	HOSE; HTR EXC. KD PREPARATORY PACK<6HF> (H)	8-98000-101-2	01	1	0707-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE EXC. KD PREPARATORY PACK<6HF>	8-98009-701-0	01	1	0707-	●	●
35	CLIP; WATER HOSE HEATER & DEFROSTER(C41) (B) L=250	5-09707-030-1	01	1	0707-	●	●
35	CLIP; WATER HOSE HEATER & DEFROSTER(C41) (C) ID=22	8-97359-141-0	02	1	0707-	●	●
35	CLIP; WATER HOSE HEATER & DEFROSTER(C41) (A)	8-98032-129-0	01	1	0707-	●	●
35	CLIP; WATER HOSE HEATER & DEFROSTER(C41) (A)	8-98032-129-0	01	1	0707-	●	●
36	BOLT; BRKT HEATER & DEFROSTER(C41) M8X25 FLANGE	0-28650-825-0	01	1	0707-	●	●
38	NUT; BRKT HEATER & DEFROSTER(C41) M8 FLANGE	0-91180-208-0	01	1	0707-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41) M6X12 FLANGE	0-28050-612-0	01	1	0707-	●	●
50	BRACKET HEATER & DEFROSTER(C41)	8-97230-028-0	01	1	0707-	●	●
57	CLIP; HOSE EXC. KD PREPARATORY PACK<6HF> ID=20.8	8-94125-862-1	02	1	0707-	●	●
63	HOSE; WATER EXC. HEATER & DEFROSTER(C41)	8-98015-119-3	01	1	0707-	●	●
86	CLIP; HTR HOSE EXC. KD PREPARATORY PACK<6HF> ID=40.5	8-97313-472-0	02	1	0707-	●	●
121	NUT; PIPE HEATER & DEFROSTER(C41) M8 FLANGE	0-91180-208-0	01	1	0707-	●	●
