8-40 — HEATER SYSTEM (#52312) — 29 parça

371 370

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	370	PLATE; BAFFLE,BLOWER UNIT	8-97856-617-1	01	1	0707-	●	●
	371	FASTENER; BAFFLE PLATE D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	01	1	0707-	●	●

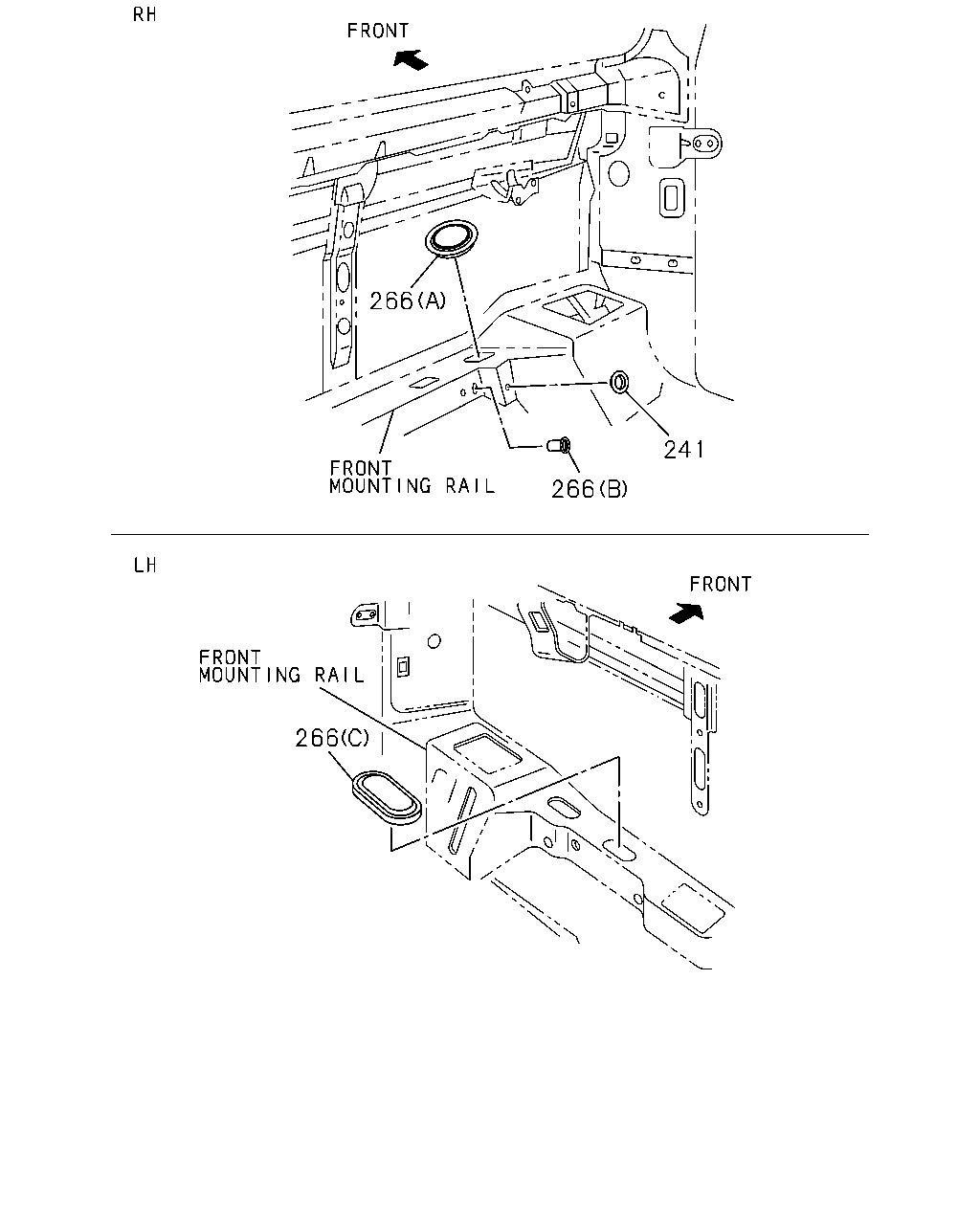

266 241 266 266

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
241	PLUG; RUBBER,EVAP DRAIN HOLE EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97037-392-0	01	1	0707-	●	●
266	PLUG; HTR HOLE EXC. AIR CONDITIONER MANUAL CONT(C60) (A) H=78 B=37	8-97036-019-0	01	1	0707-	●	●
266	PLUG; HTR HOLE EXC. AIR CONDITIONER MANUAL CONT(C60) (B) OD=13	9-09756-019-0	01	1	0707-	●	●
266	PLUG; HTR HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.5 B=29.5	8-97036-020-0	01	1	0707-	●	●

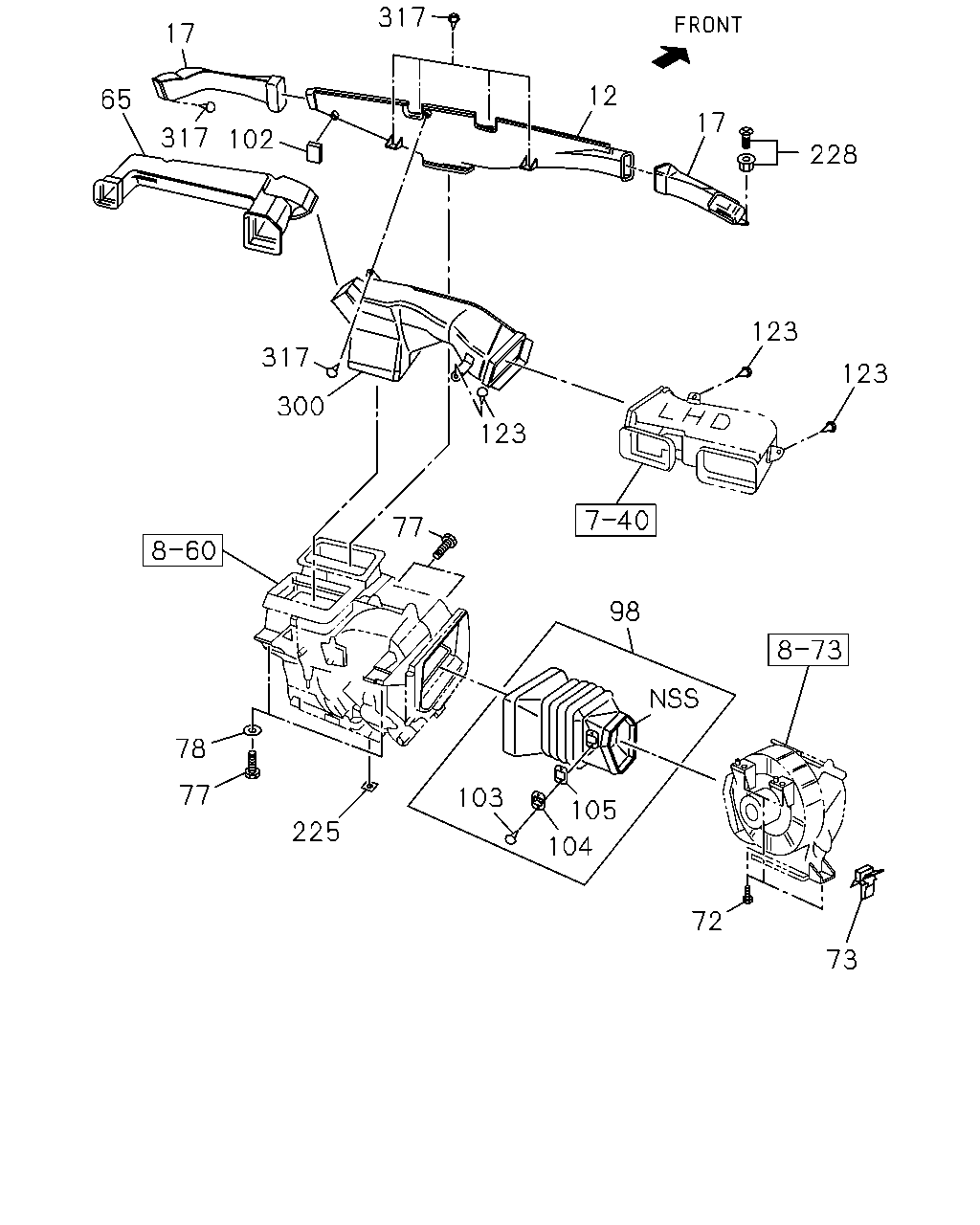

317 17 12 65 17 317 102 228 123 317 123 300 123 77 98 78 77 103 105 225 104 72 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NOZZLE; DEFROSTER	8-97251-629-0	01	1	0707-	●	●
17	NOZZLE; DEFROSTER,SIDE	8-97262-693-0	01	1	0707-	●	●
17	NOZZLE; DEFROSTER,SIDE	8-97262-694-0	01	1	0707-	●	●
65	DUCT; VENT,DRIVER SIDE	8-97262-695-0	01	1	0707-	●	●
72	BOLT; BLOWER UNIT M6X20 FLANGE	0-28650-620-0	02	1	0707-	●	●
72	BOLT; BLOWER UNIT M8X35	8-97103-452-0	02	1	0707-	●	●
73	CLIP; HARNESS TO BLOWER UNIT	8-94337-654-0	01	1	0707-	●	●
77	BOLT; HTR UNIT M6X20 FLANGE	0-28650-620-0	02	1	0707-	●	●
77	BOLT; HTR UNIT M8X40 FLANGE	0-28650-840-0	01	1	0707-	●	●
77	BOLT; HTR UNIT M8X25	8-97103-451-0	01	1	0707-	●	●
78	WASHER; PL,HTR UNIT ID=8.4 OD=22	0-91610-708-0	01	1	0707-	●	●
98	DUCT; BLOWER UNIT TO HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97374-885-0	01	1	0707-	●	●
102	LINING; HTR DUCT	8-97145-038-0	01	1	0707-	●	●
103	SCREW; TAPPING,RESISTOR FIX EXC. AIR CONDITIONER MANUAL CONT(C60) M4X16 TAPPING	1-83579-114-0	02	1	0707-	●	●
104	RESISTOR; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97358-389-0	01	1	0707-	●	●
105	PLATE; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97020-761-0	01	1	0707-	●	●
123	SCREW; DUCT T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	02	1	0707-	●	●
225	SEAL; WATER	8-97856-616-0	04	1	0707-	●	●
228	CLIP; DEFROSTER D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	01	1	0707-	●	●
300	DUCT; VENT,CENTER	8-97262-697-0	01	1	0707-	●	●
317	SCREW; DEFROSTER NOZZLE T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	05	1	0707-	●	●

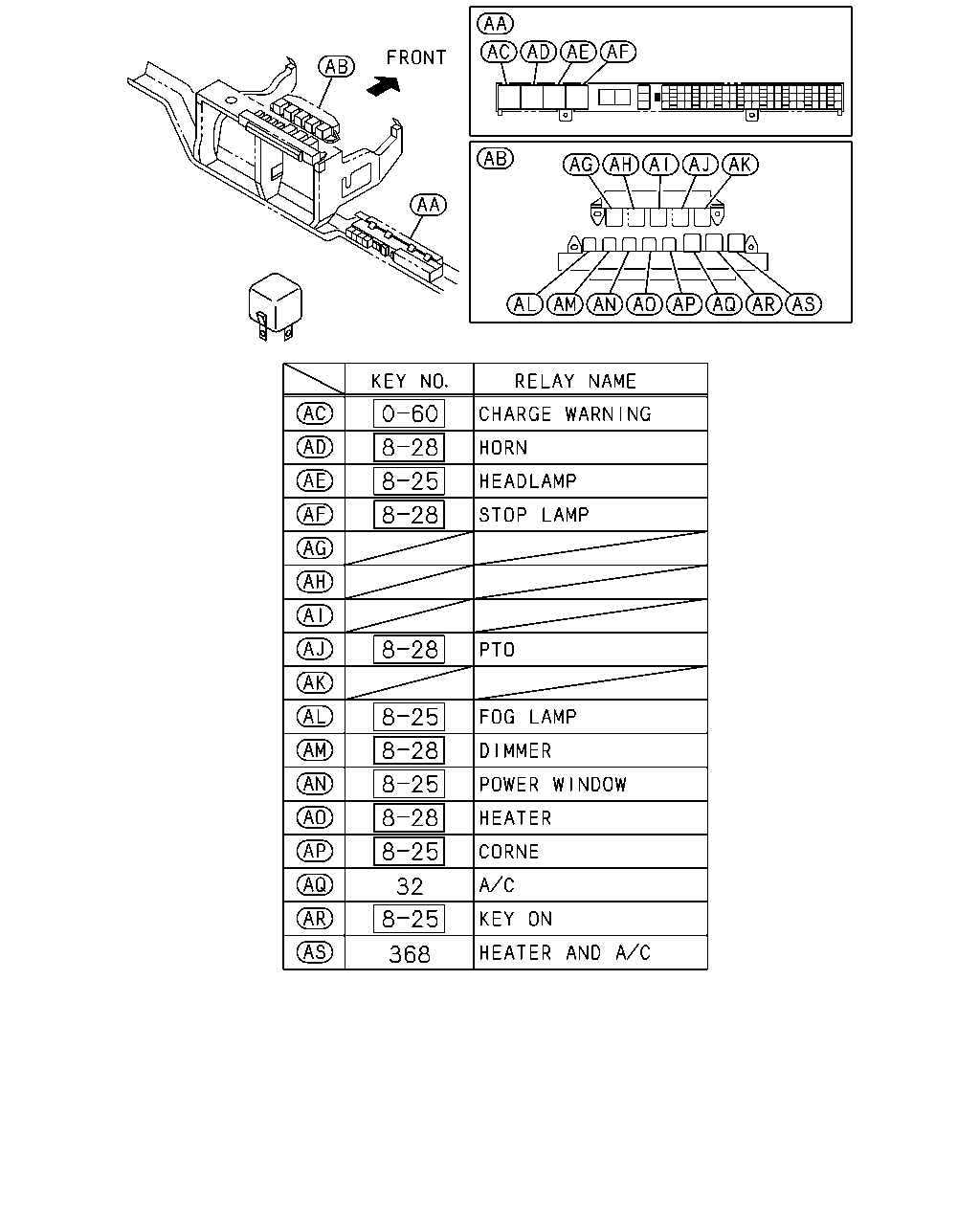

32 368

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	32	RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0707-	●	●
	368	RELAY; HEATER AND A/C 24V 12.5A PANASONIC	8-97262-933-0	01	1	0707-	●	●
