◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51139 - ELF300(MEXICO) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#52309) — 41 parça
çizim 12651
257 29 30
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR 8-97855-032-3 01 1 0707- ● ●
30 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 0707- ● ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 0707- ● ●
257 COVER; HOLE,SW
EXC. FOG LAMP<T96>,ROOM LAMP SWITCH<7KL> (C) 		8-97136-694-0 01 1 0707- ● ●
257 COVER; HOLE,SW
(C) 		8-97136-694-0 01 1 0707- ● ●
257 COVER; HOLE,SW
(C) 		8-97136-694-0 01 1 0707- ● ●
257 COVER; HOLE,SW
EXC. PTO TRANSMISSION SIDE(V66) (B) 		8-94310-890-0 01 1 0707- ● ●

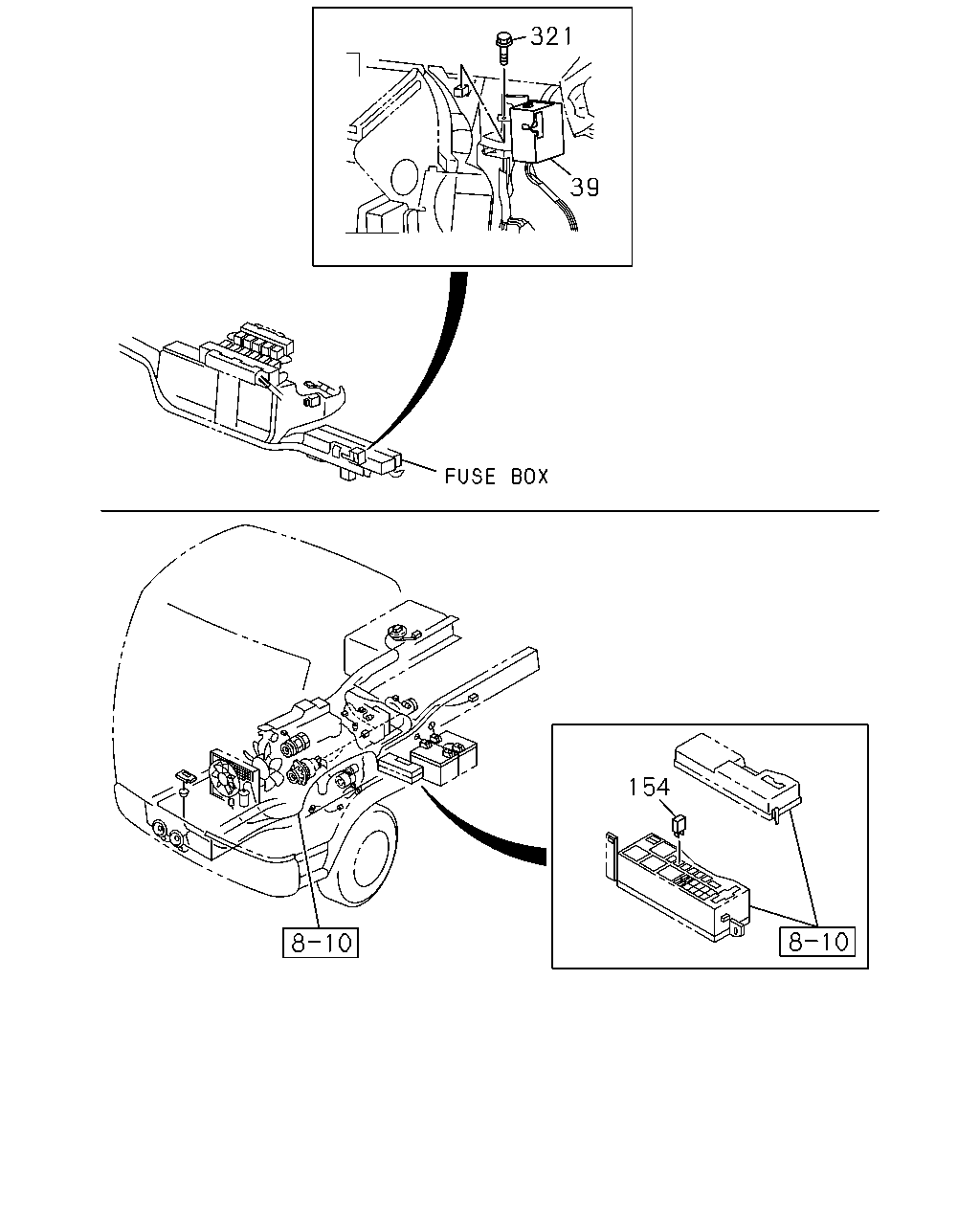

çizim 13597
321 39 154
BalonParca AdiParca NoAdetTipApplied Date A B
39 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97177-214-0 01 1 0707- ● ●
154 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 24V 10A PANASONIC 		8-97173-035-1 01 1 0707- ● ●
321 BOLT; RELAY
AUTO DOOR LOCK<AU4> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0707-1101 ● ●
321 BOLT; RELAY
AUTO DOOR LOCK<AU4> M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
321 BOLT; RELAY
AUTO DOOR LOCK<AU4> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●

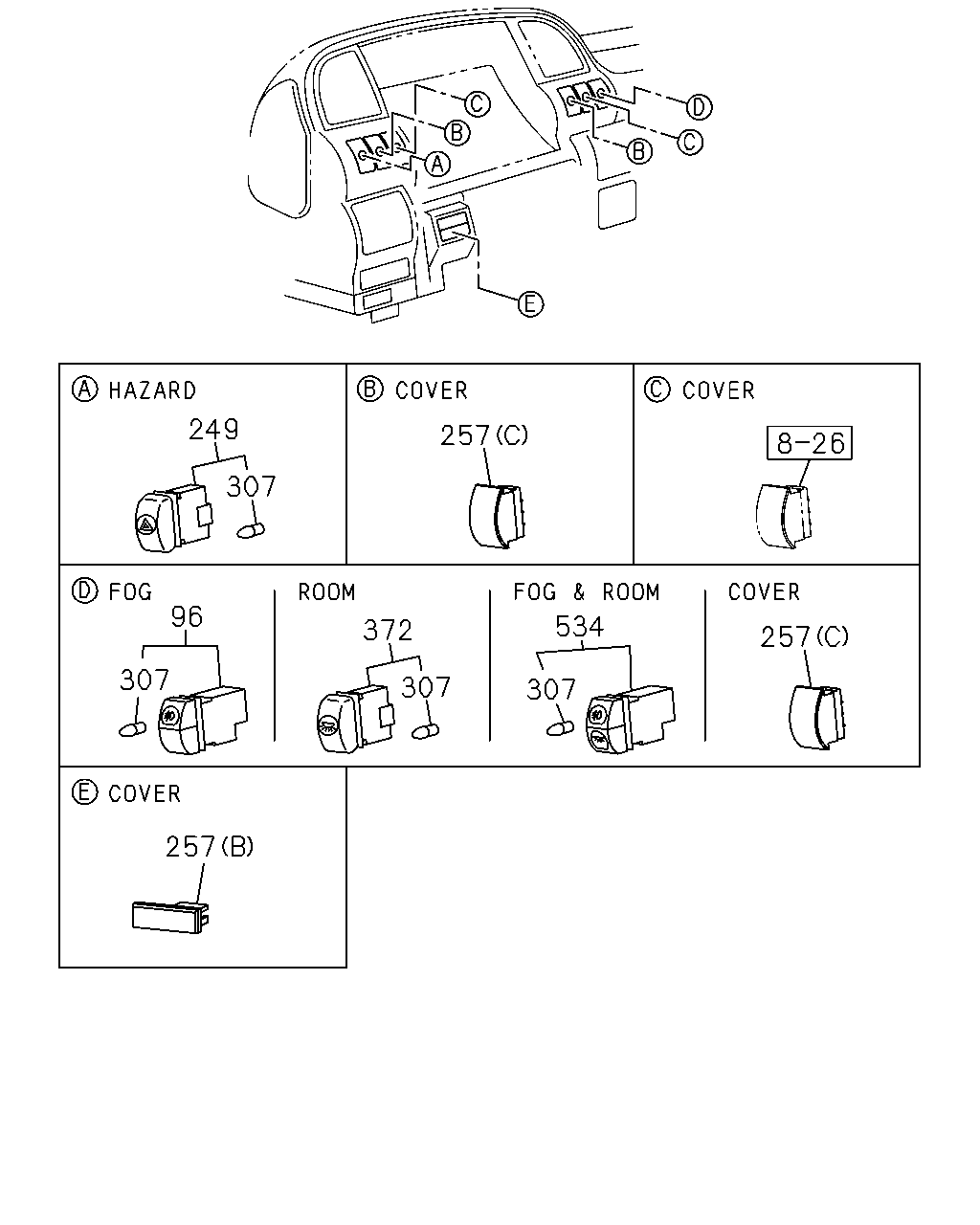

çizim 57981
249 307 257 96 372 534 307 257 257 307 307
BalonParca AdiParca NoAdetTipApplied Date A B
96 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. ROOM LAMP SWITCH<7KL> 		8-97364-308-1 01 1 0707- ● ●
249 SWITCH; HAZARD 8-97202-475-0 01 1 0707- ● ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 0707- ● ●
257 COVER; HOLE,SW
EXC. FOG LAMP<T96>,ROOM LAMP SWITCH<7KL> (C) 		8-97136-694-0 01 1 0707- ● ●
257 COVER; HOLE,SW
(C) 		8-97136-694-0 01 1 0707- ● ●
257 COVER; HOLE,SW
(C) 		8-97136-694-0 01 1 0707- ● ●
257 COVER; HOLE,SW
EXC. PTO TRANSMISSION SIDE(V66) (B) 		8-94310-890-0 01 1 0707- ● ●
307 BULB ASM; SW
28V 40MA 		8-97116-331-0 02 1 0707- ● ●
307 BULB ASM; SW
FOG LAMP<T96> ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 02 1 0707- ● ●
307 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. FOG LAMP<T96> 28V 40MA 		8-97116-331-0 01 1 0707- ● ●
307 BULB ASM; SW
FOG LAMP<T96> EXC. ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 0707- ● ●
372 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> EXC. FOG LAMP<T96> 		8-97363-946-1 01 1 0707- ● ●
534 SWITCH SET; FOG & ROOM
FOG LAMP<T96> ROOM LAMP SWITCH<7KL> 		8-97140-585-0 01 1 0707- ● ●

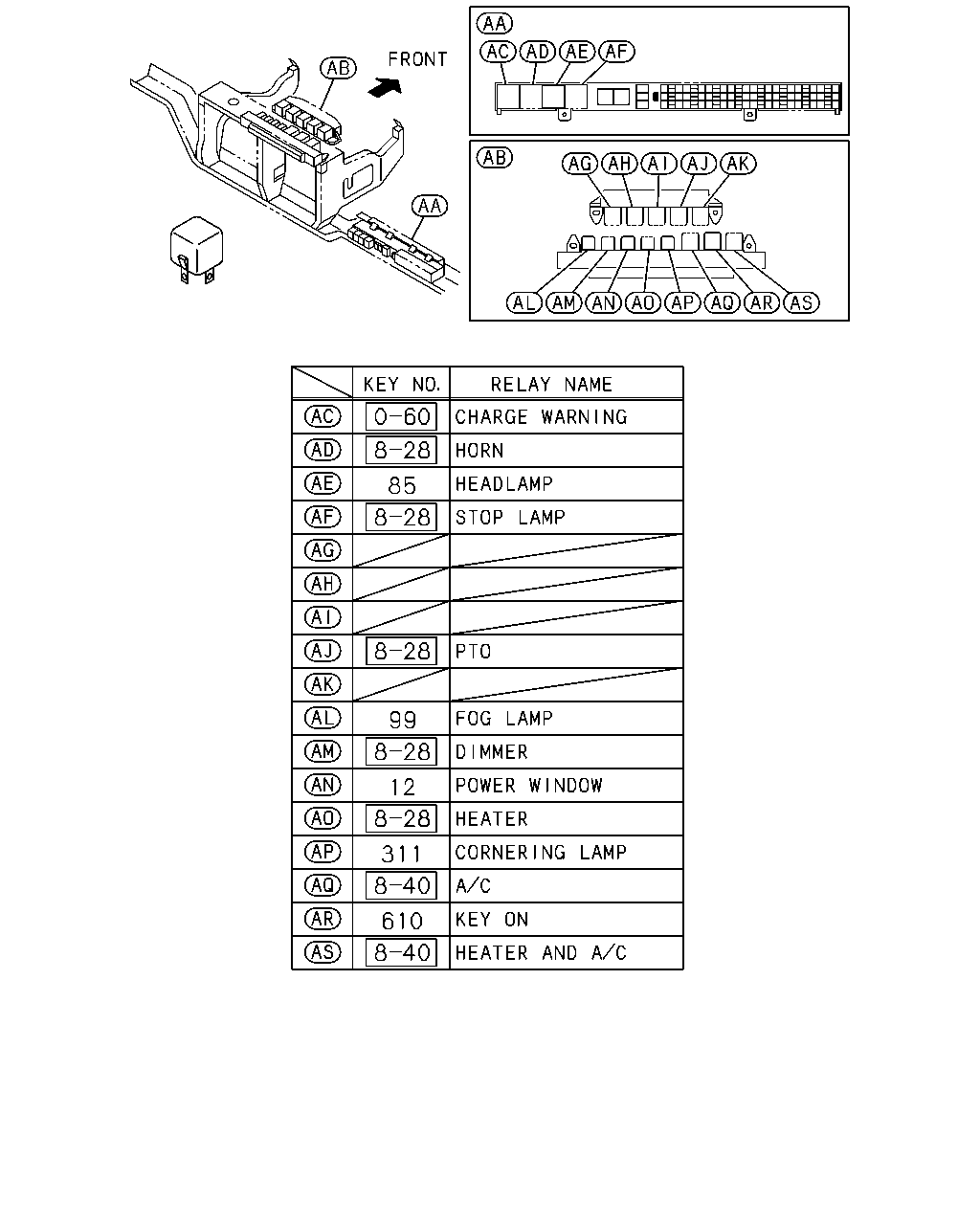

çizim 58298
85 99 12 311 610
BalonParca AdiParca NoAdetTipApplied Date A B
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0707- ● ●
85 RELAY; HEADLAMP
24V 10A PANASONIC 		8-97173-035-1 01 1 0707- ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC 		8-97173-035-1 01 1 0707- ● ●
311 RELAY; CORNERING LAMP
24V 10A PANASONIC 		8-97173-035-1 01 1 0707- ● ●
610 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0707- ● ●

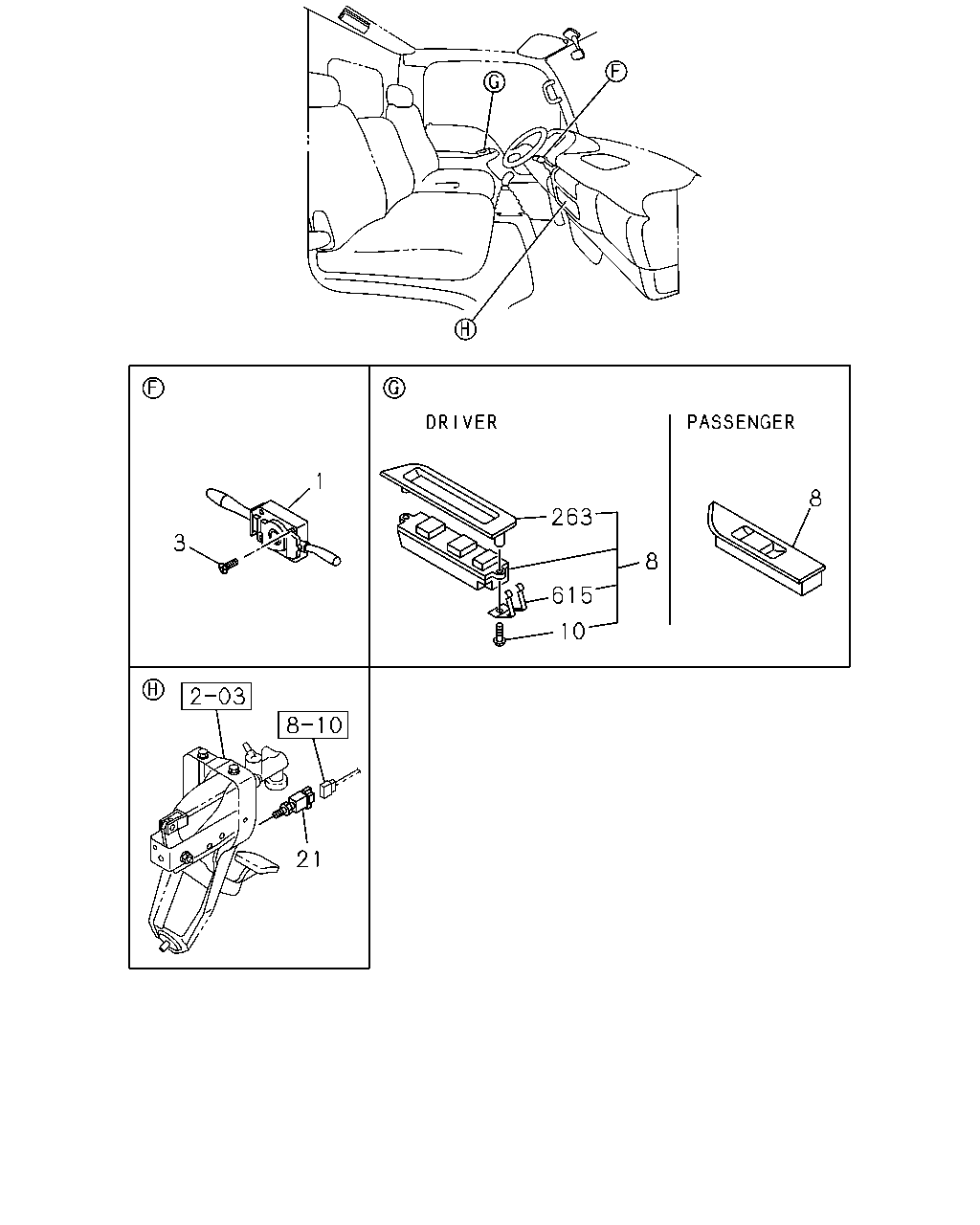

çizim 58439
1 8 263 3 8 615 10 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-97383-517-0 01 1 0707- ● ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-97383-513-0 01 1 0707- ● ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 04 1 0707- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97315-178-0 01 1 0707-0907 ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98147-226-0 01 1 0908- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98075-446-0 01 1 0707-0907 ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98147-236-0 01 1 0908- ● ●
10 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 0707- ● ●
21 SWITCH; CLU 8-97358-248-0 01 1 0707- ● ●
263 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-236-0 01 1 0707- ● ●
615 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 0707- ● ●
