Sayfa 8-21 - Isuzu EPC

8-21 — METER ASM (#52308) — 23 parça

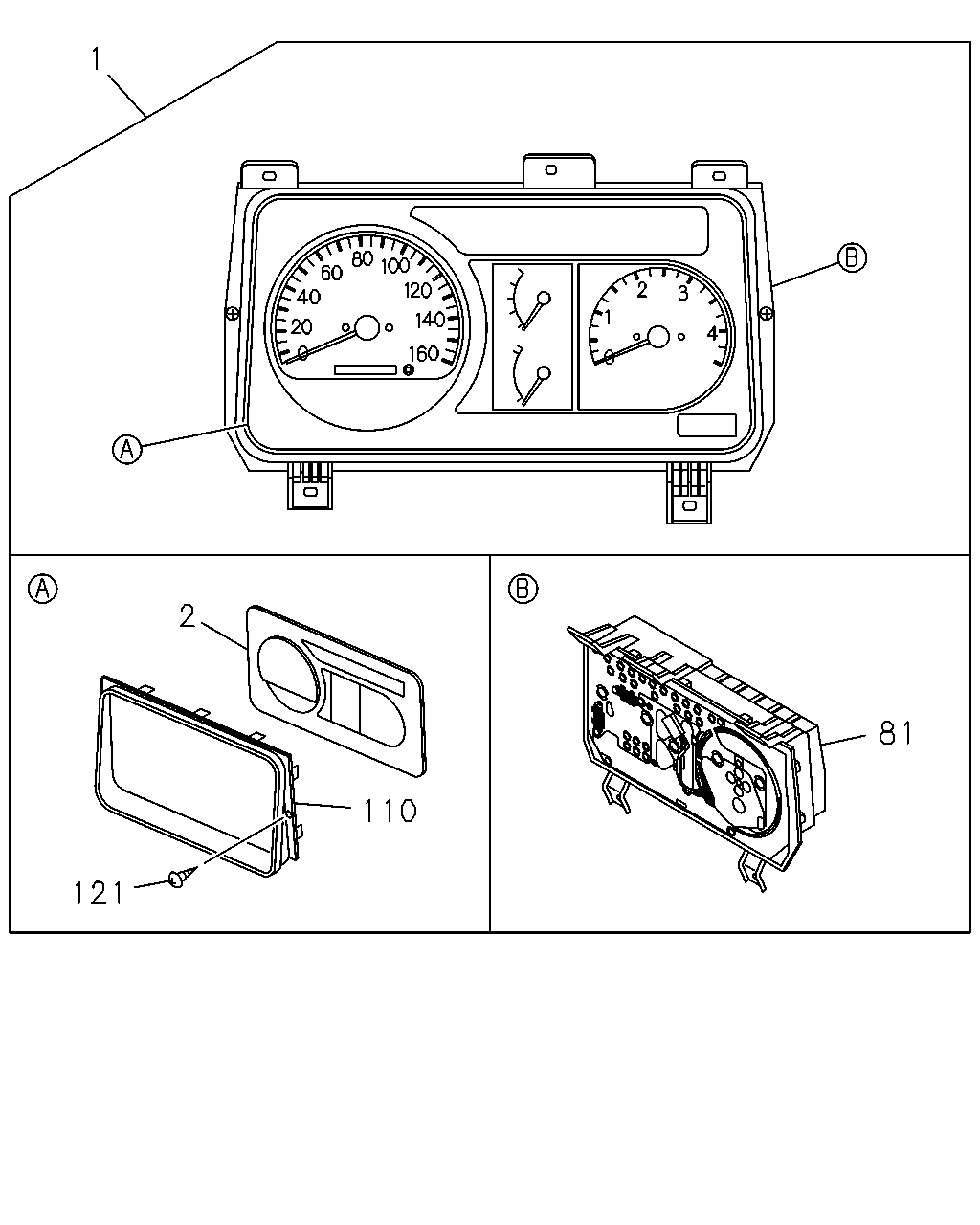

1 2 81 110 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	METER COMPL; CLUSTER	8-98000-527-4	01	1	0707-	●	●
2	PANEL; CLUSTER	8-97185-047-0	01	1	0707-	●	●
81	METER SUB ASM	8-98003-843-0	01	1	0707-	●	●
110	GLASS; CLUSTER METER	8-97185-045-0	01	1	0707-	●	●
121	SCREW; PANEL FIX,CLUSTER METER	8-97185-100-0	02	1	0707-	●	●

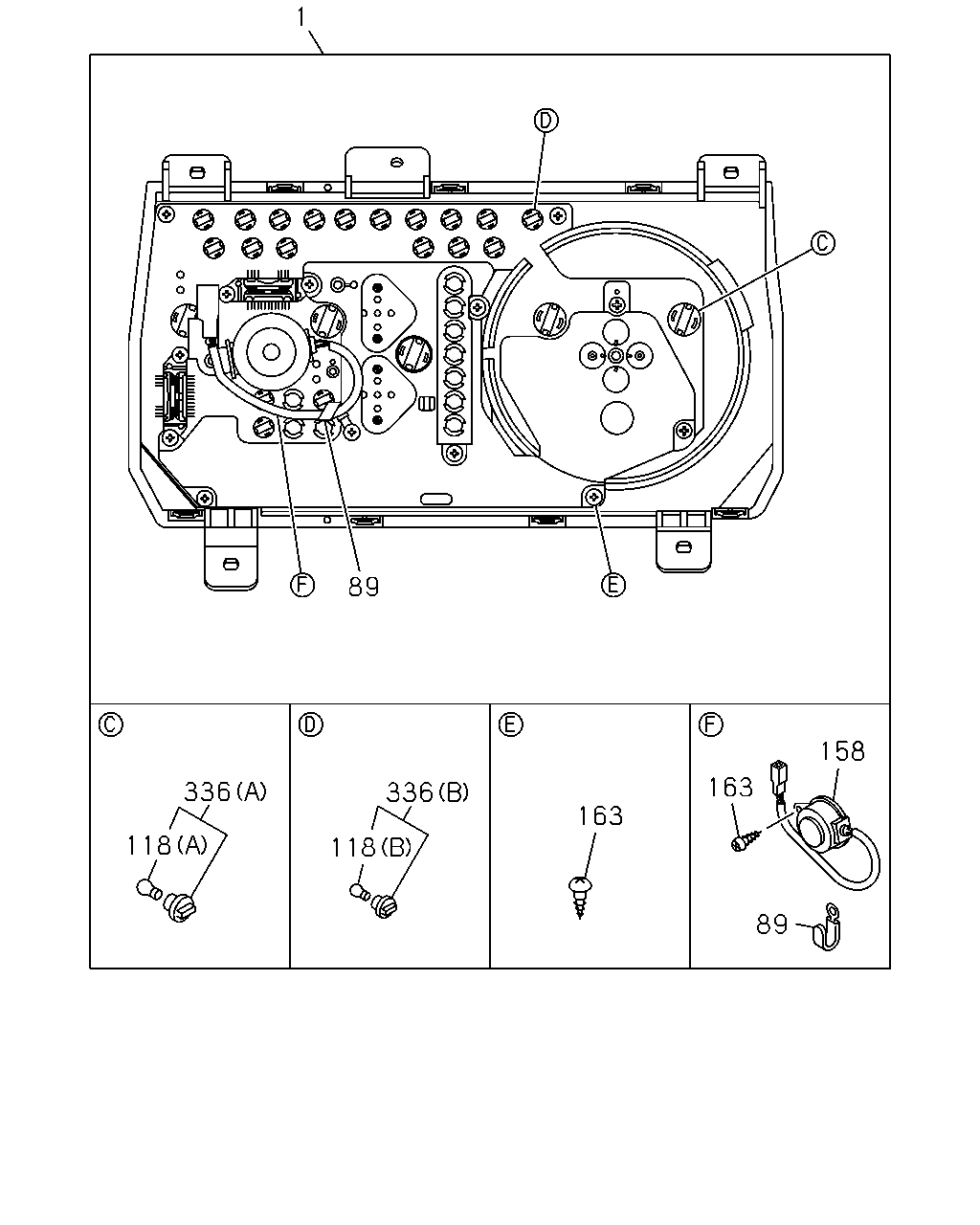

1 89 158 163 336 336 163 118 118 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	METER COMPL; CLUSTER	8-98000-527-4	01	1	0707-	●	●
89	CLIP; HARNESS	8-97253-928-0	01	1	0707-	●	●
118	BULB; CLUSTER METER (B) 28V 1.8W	8-97305-177-0	14	1	0707-	●	●
118	BULB; CLUSTER METER (A) 28V 3W	8-97305-178-0	05	1	0707-	●	●
158	BUZZER; VAC WARNING	8-98003-830-0	01	1	0707-	●	●
163	SCREW; BUZZER	8-97185-099-0	02	1	0707-	●	●
336	LAMP ASM; WARNING (B)	8-97185-091-0	14	1	0707-	●	●
336	LAMP ASM; WARNING (A)	8-97185-093-0	05	1	0707-	●	●

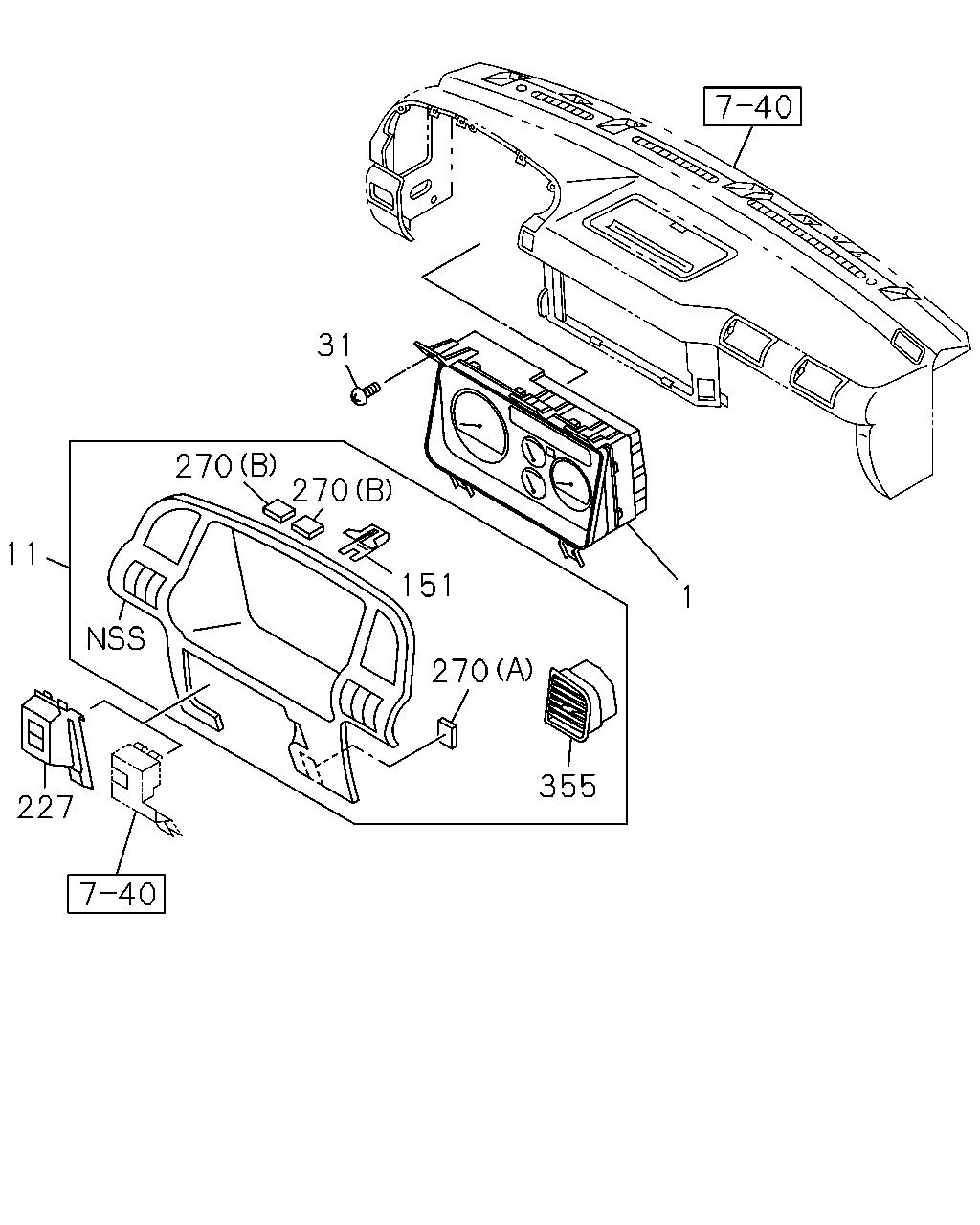

31 270 11 151 1 355 227 270 270

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	METER COMPL; CLUSTER	8-98000-527-4	01	1	0707-	●	●
11	CLUSTER ASM; METER BLACK	8-97195-965-2	01	1	0707-	●	●
31	SCREW; METER,INST PANEL M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	0707-1210	●	●
31	SCREW; METER,INST PANEL M6X19.5 W/LK&PL WASHER	8-97360-226-0	05	1	1211-	●	●
151	CLIP; METER CLUSTER	8-97217-066-0	07	1	0707-	●	●
227	BEZEL; METER EXC. PTO TRANSMISSION SIDE(V66) BLACK	8-97307-066-0	01	1	0707-	●	●
270	CUSHION; METER CLUSTER (A) 15X30 T=5	8-94270-366-2	01	1	0707-	●	●
270	CUSHION; METER CLUSTER (B) 6X30 T=2	8-94270-378-1	02	1	0707-	●	●
355	GRILLE; VENT BLACK	8-97195-967-1	01	1	0707-	●	●
355	GRILLE; VENT BLACK	8-97195-966-1	01	1	0707-	●	●
