◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51139 - ELF300(MEXICO) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#52307) — 139 parça
çizim 56887
16 16 48 16 264 22 48 22 22
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155 		8-97173-307-0 04 1 1011-1405 ● ●
16 CLIP; HARNESS
(D) ID=14 L=47 		5-09700-319-0 06 1 0707- ●
16 CLIP; HARNESS
(C) L=135 		1-09987-143-1 01 1 0707- ● ●
16 CLIP; HARNESS
(G) 1 SET=5 PIECE 		1-09987-214-0 03 1 0707- ● ●
16 CLIP; HARNESS
(H) ID=10 & 16 		8-94413-325-0 02 1 0707- ● ●
16 CLIP; HARNESS
(I) ID=22 & 22 		8-94464-837-0 01 1 0707- ● ●
16 CLIP; HARNESS
(J) ID=6 & 10-13 		8-97069-515-0 02 1 0707- ● ●
16 CLIP; HARNESS
(E) ID=15-32 		8-97174-404-0 02 1 0707- ● ●
16 CLIP; HARNESS
EXC. AIR CONDITIONER MANUAL CONT(C60) (F) L=140 		5-09707-031-1 01 1 0707-1403 ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=100 		8-94327-067-1 04 1 0707- ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (B) L=100 		8-94327-067-1 04 1 0707- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 04 1 0707-1009 ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155 		8-97173-307-0 04 1 0707-1009 ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 05 1 1010-1010 ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155 		8-97173-307-0 05 1 1010-1010 ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 06 1 1011-1405 ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 04 1 1406- ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155 		8-97173-307-0 04 1 1406- ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 10 1 0707-1009 ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 11 1 1010-1010 ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 05 1 1011-1405 ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 05 1 1011-1405 ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (A) L=155 		8-97173-307-0 05 1 1011-1405 ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 05 1 1406- ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 05 1 1406- ● ●
16 CLIP; HARNESS
(D) ID=14 L=47 		5-09700-319-0 09 1 0707- ●
22 CLIP; ENG HARNESS
EXC. KD PREPARATORY PACK<6HF> (A) L=140 		5-09707-031-1 01 1 0707- ● ●
22 CLIP; ENG HARNESS
EXC. KD PREPARATORY PACK<6HF> (B) ID=6 & 8.3 		8-94167-742-0 01 1 0707- ● ●
22 CLIP; ENG HARNESS
EXC. KD PREPARATORY PACK<6HF> (C) ID=13.2 & 14.5 		8-94475-649-0 01 1 0707- ● ●
22 CLIP; ENG HARNESS
EXC. KD PREPARATORY PACK<6HF> (D) ID=12 & 6.8 		8-97125-842-0 01 1 0707- ● ●
48 CLIP; FRAME HARNESS
(E) L=170.3 		1-09987-182-0 01 1 0707- ● ●
48 CLIP; FRAME HARNESS
(B) ID=14 L=47 		5-09700-319-0 01 1 0707- ● ●
48 CLIP; FRAME HARNESS
(A) L=140 		5-09707-031-1 02 1 0707- ● ●
48 CLIP; FRAME HARNESS
(F) ID=9 		8-97063-874-0 01 1 0707- ● ●
48 CLIP; FRAME HARNESS
(C) ID=40 L=90 		1-09701-290-0 05 1 0707- ● ●
48 CLIP; FRAME HARNESS
(A) L=140 		5-09707-031-1 01 1 0707- ● ●
48 CLIP; FRAME HARNESS
(G) ID=30 W/STUD 		8-97078-642-2 01 1 0707- ● ●
48 CLIP; FRAME HARNESS
(D) T=4.5 & 9 		5-09709-023-0 02 1 0707- ● ●
264 CLIP; HARNESS,HEADLAMP
ID=6 & 10-13 		8-97069-515-0 01 1 0707- ● ●

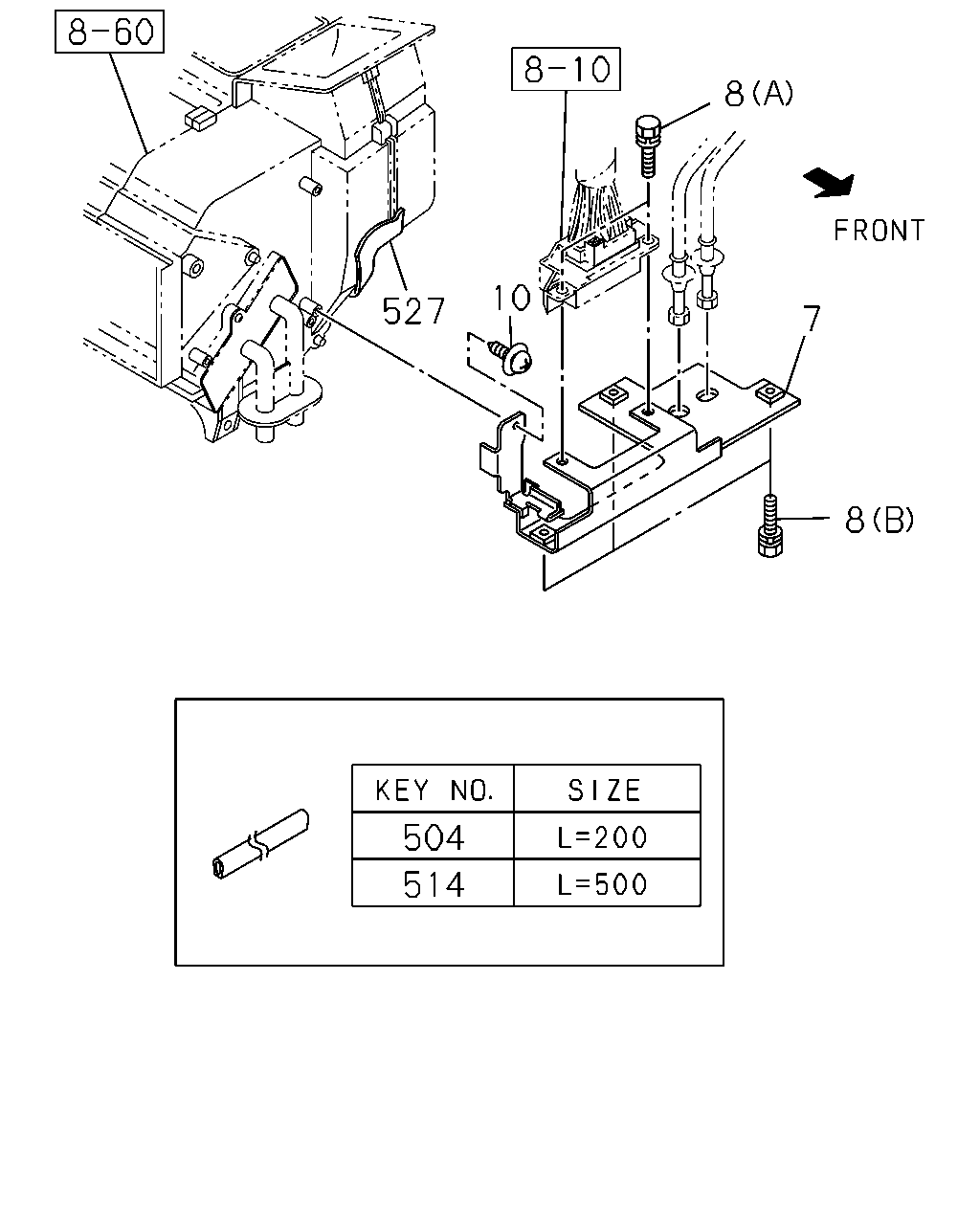

çizim 56888
8 10 7 8 527 504 514
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-97102-247-2 01 1 0707- ● ●
8 BOLT; BRKT,CONNECTOR
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0707- ● ●
8 BOLT; BRKT,CONNECTOR
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0707-1210 ● ●
8 BOLT; BRKT,CONNECTOR
(A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1211- ● ●
10 SCREW; BRKT TO BODY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0707-1101 ● ●
10 SCREW; BRKT TO BODY
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
10 SCREW; BRKT TO BODY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
504 PROTECTOR; HARNESS
L=200 		8-97096-423-0 01 1 0707- ● ●
514 FINISHER; HARNESS
L=120 SERVICED BY L=500 		1-79937-746-0 01 1 0707- ● ●
514 FINISHER; HARNESS
L=120 SERVICED BY L=500 		1-79937-746-0 02 1 0707- ● ●
514 FINISHER; HARNESS
L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0707- ● ●
514 FINISHER; HARNESS
L=290 SERVICED BY L=500 		1-79937-746-0 02 1 0707- ● ●
527 TAPE; SOFT,CONNECTOR
100X100 		8-94232-622-0 01 1 0707- ● ●

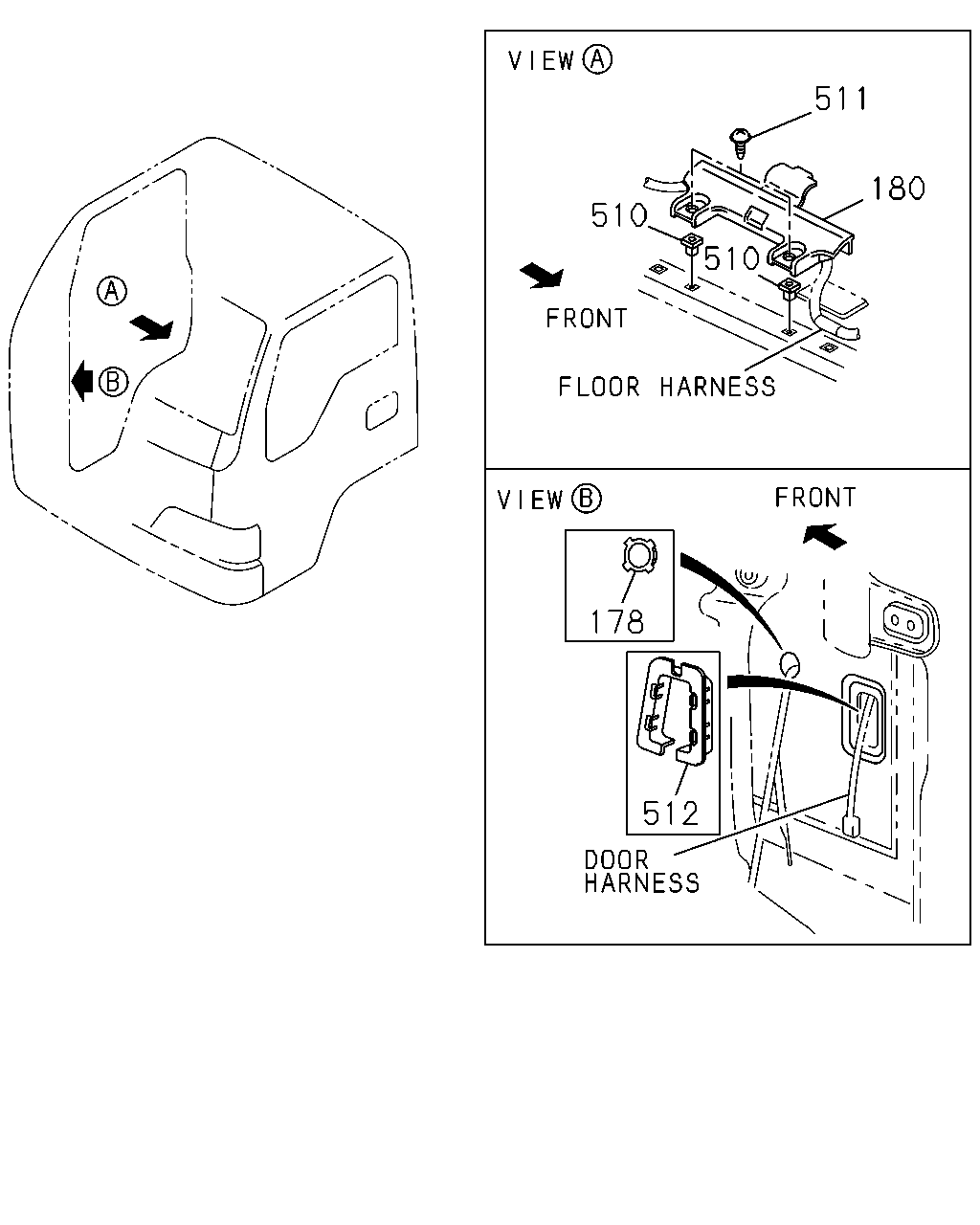

çizim 57490
511 180 510 510 178 512
BalonParca AdiParca NoAdetTipApplied Date A B
178 GROMMET; HARNESS
ID=47 		8-94279-735-0 01 1 0707- ● ●
180 COVER; HARNESS 8-97856-130-4 02 1 0707- ● ●
510 GROMMET; SCREW
H=15 		8-94463-268-1 04 1 0707- ● ●
511 SCREW; HARNESS COVER
T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 04 1 0707- ● ●
512 PROTECTOR; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0707- ● ●
512 PROTECTOR; HARNESS
POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0707- ● ●
512 PROTECTOR; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) 		8-97072-950-0 02 1 0707- ● ●
çizim 57555
8 139 38 38 516 139 8 38 466 377 386 377 386 159 159 511 139 10
BalonParca AdiParca NoAdetTipApplied Date A B
8 BOLT; BRKT,CONNECTOR
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0707- ● ●
8 BOLT; BRKT,CONNECTOR
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0707-1210 ● ●
8 BOLT; BRKT,CONNECTOR
(A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1211- ● ●
10 SCREW; BRKT TO BODY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0707-1101 ● ●
10 SCREW; BRKT TO BODY
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
10 SCREW; BRKT TO BODY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0707- ● ●
38 BOLT; CLIP,HARNESS
(B) M6X25 FLANGE 		0-28650-625-0 01 1 0707- ● ●
38 BOLT; CLIP,HARNESS
EXC. KD PREPARATORY PACK<6HF> (C) M8X12 FLANGE 		0-28050-812-0 01 1 0707- ● ●
139 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 03 1 0707- ● ●
139 BOLT; BRKT
(A) M6X20 FLANGE 		0-28650-620-0 01 1 0707- ● ●
139 BOLT; BRKT
(C) 		8-97028-451-3 01 1 0707- ● ●
159 BOLT; GRAND ENG ELEC
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0707-1004 ● ●
159 BOLT; GRAND ENG ELEC
(B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ● ●
377 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0707-1004 ● ●
377 BOLT; CAB EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005- ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0707-1004 ● ●
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005- ● ●
466 BOLT; HEAT PROTECTOR
M8X35 FLANGE 		0-28650-835-0 01 1 0707- ● ●
511 SCREW; HARNESS COVER
T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 04 1 0707- ● ●
516 BOLT; HARNESS
EXC. KD PREPARATORY PACK<6HF> M8X12 FLANGE 		0-28050-812-0 01 1 0707- ● ●
çizim 57971
16 22 48 162 488 16 16 205 48 142 16 16 48 52 48 48 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155 		8-97173-307-0 04 1 1011-1405 ● ●
16 CLIP; HARNESS
(D) ID=14 L=47 		5-09700-319-0 06 1 0707- ●
16 CLIP; HARNESS
(C) L=135 		1-09987-143-1 01 1 0707- ● ●
16 CLIP; HARNESS
(G) 1 SET=5 PIECE 		1-09987-214-0 03 1 0707- ● ●
16 CLIP; HARNESS
(H) ID=10 & 16 		8-94413-325-0 02 1 0707- ● ●
16 CLIP; HARNESS
(I) ID=22 & 22 		8-94464-837-0 01 1 0707- ● ●
16 CLIP; HARNESS
(J) ID=6 & 10-13 		8-97069-515-0 02 1 0707- ● ●
16 CLIP; HARNESS
(E) ID=15-32 		8-97174-404-0 02 1 0707- ● ●
16 CLIP; HARNESS
EXC. AIR CONDITIONER MANUAL CONT(C60) (F) L=140 		5-09707-031-1 01 1 0707-1403 ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=100 		8-94327-067-1 04 1 0707- ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (B) L=100 		8-94327-067-1 04 1 0707- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 04 1 0707-1009 ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155 		8-97173-307-0 04 1 0707-1009 ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 05 1 1010-1010 ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155 		8-97173-307-0 05 1 1010-1010 ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 06 1 1011-1405 ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 04 1 1406- ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155 		8-97173-307-0 04 1 1406- ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 10 1 0707-1009 ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 11 1 1010-1010 ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 05 1 1011-1405 ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 05 1 1011-1405 ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (A) L=155 		8-97173-307-0 05 1 1011-1405 ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 05 1 1406- ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 05 1 1406- ● ●
16 CLIP; HARNESS
(D) ID=14 L=47 		5-09700-319-0 09 1 0707- ●
22 CLIP; ENG HARNESS
EXC. KD PREPARATORY PACK<6HF> (A) L=140 		5-09707-031-1 01 1 0707- ● ●
22 CLIP; ENG HARNESS
EXC. KD PREPARATORY PACK<6HF> (B) ID=6 & 8.3 		8-94167-742-0 01 1 0707- ● ●
22 CLIP; ENG HARNESS
EXC. KD PREPARATORY PACK<6HF> (C) ID=13.2 & 14.5 		8-94475-649-0 01 1 0707- ● ●
22 CLIP; ENG HARNESS
EXC. KD PREPARATORY PACK<6HF> (D) ID=12 & 6.8 		8-97125-842-0 01 1 0707- ● ●
48 CLIP; FRAME HARNESS
(E) L=170.3 		1-09987-182-0 01 1 0707- ● ●
48 CLIP; FRAME HARNESS
(B) ID=14 L=47 		5-09700-319-0 01 1 0707- ● ●
48 CLIP; FRAME HARNESS
(A) L=140 		5-09707-031-1 02 1 0707- ● ●
48 CLIP; FRAME HARNESS
(F) ID=9 		8-97063-874-0 01 1 0707- ● ●
48 CLIP; FRAME HARNESS
(C) ID=40 L=90 		1-09701-290-0 05 1 0707- ● ●
48 CLIP; FRAME HARNESS
(A) L=140 		5-09707-031-1 01 1 0707- ● ●
48 CLIP; FRAME HARNESS
(G) ID=30 W/STUD 		8-97078-642-2 01 1 0707- ● ●
48 CLIP; FRAME HARNESS
(D) T=4.5 & 9 		5-09709-023-0 02 1 0707- ● ●
52 CLIP; HARNESS TO BRKT
ID=14 L=47 		5-09700-319-0 01 1 0707- ● ●
142 CLIP; HARNESS,ENG
L=170.3 		1-09987-182-0 01 1 0707- ● ●
162 CLIP; SW HARNESS
L=140 		5-09707-031-1 01 1 0707- ● ●
205 CLIP; BACK LAMP HARNESS
L=135 		1-09987-143-1 01 1 0707- ● ●
488 CLIP; CABLE,TRAILER
L=250 		5-09707-030-1 01 1 0707- ● ●
çizim 58327
219 515 219 294 469 515 294
BalonParca AdiParca NoAdetTipApplied Date A B
219 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0707- ● ●
219 NUT
(A) M6 FLANGE 		0-91180-106-0 01 1 0707- ● ●
219 NUT
(A) M6 FLANGE 		0-91180-106-0 01 1 0707- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0707- ● ●
294 NUT
(B) M10 FLANGE 		0-91180-110-0 01 1 0707- ● ●
469 NUT; PROTECTOR
M8 FLANGE 		0-91180-108-0 01 1 0707- ● ●
515 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 01 1 0707- ● ●
515 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 02 1 0707- ● ●
515 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 0707- ● ●
çizim 58450
31 53 31 21 412 53 53
BalonParca AdiParca NoAdetTipApplied Date A B
21 BRACKET; ENG HARNESS 8-98019-634-0 01 1 0707- ● ●
31 BRACKET; HARNESS CLIP,PIPE
(A) 		8-97362-859-0 02 1 0707- ● ●
31 BRACKET; HARNESS CLIP,PIPE
(B) 		8-98019-633-0 01 1 0707- ● ●
53 BRACKET; HARNESS
(A) 		8-97357-140-0 01 1 0707- ● ●
53 BRACKET; HARNESS
(B) 		8-98026-091-0 01 1 0707- ● ●
53 BRACKET; HARNESS
(C) 		8-98028-248-0 01 1 0707- ● ●
412 BRACKET; HARNESS,TRANS 8-97324-451-1 01 1 0707- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
