◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51139 - ELF300(MEXICO) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#52306) — 81 parça

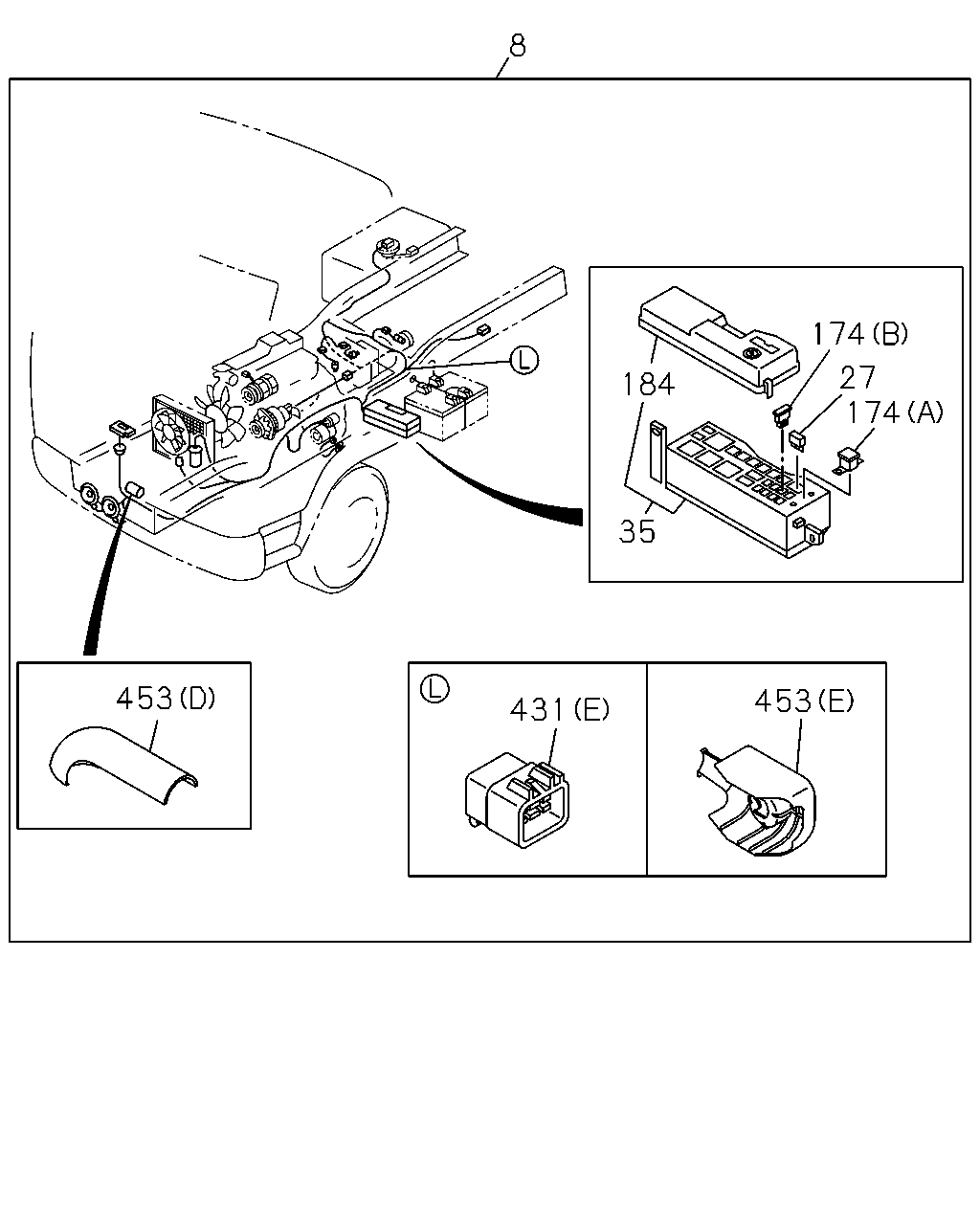

çizim 13805
8 174 27 174 184 35 453 453 431
BalonParca AdiParca NoAdetTipApplied Date A B
8 HARNESS; FRAME,FRT 8-98019-348-6 01 1 0707- ● ●
27 FUSE UNIT
10A MINI RED 		8-97062-022-0 01 1 0707- ● ●
27 FUSE UNIT
15A MINI BLUE 		8-97062-023-0 02 1 0707- ● ●
35 BOX; RELAY & FUSE 8-97377-739-0 01 1 0707- ● ●
174 FUSE; SLOW BLOW
(A) 100A BLUE 		8-94388-306-1 01 1 0707- ● ●
174 FUSE; SLOW BLOW
(B) 30A PINK 		8-97183-643-0 01 1 0707- ● ●
174 FUSE; SLOW BLOW
(B) 40A GREEN 		8-97183-644-0 03 1 0707- ● ●
174 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-97219-407-0 03 1 0707- ● ●
184 COVER; RELAY & FUSE BOX 8-97377-741-0 01 1 0707- ● ●
431 CONNECTOR; JOINT
(D) 3P & 3P 		1-82698-170-0 03 1 0707- ● ●
431 CONNECTOR; JOINT
(A) 10P GREEN 		1-82699-599-0 02 1 0707- ● ●
431 CONNECTOR; JOINT
(B) 4P 		8-97077-939-0 01 1 0707- ● ●
431 CONNECTOR; JOINT
(C) 6P 		8-97077-941-0 01 1 0707- ● ●
431 CONNECTOR; JOINT
(E) 6P 		8-97381-428-0 02 1 0707- ● ●
453 PROTECTOR; HARNESS
(B) 		8-94417-716-0 01 1 0707- ● ●
453 PROTECTOR; HARNESS
(C) 		8-94452-553-0 01 1 0707- ● ●
453 PROTECTOR; HARNESS
(D) 		8-94482-169-0 01 1 0707- ● ●
453 PROTECTOR; HARNESS
(E) 		8-97062-169-0 01 1 0707- ● ●
453 PROTECTOR; HARNESS
(A) 		8-97074-957-0 01 1 0707- ● ●

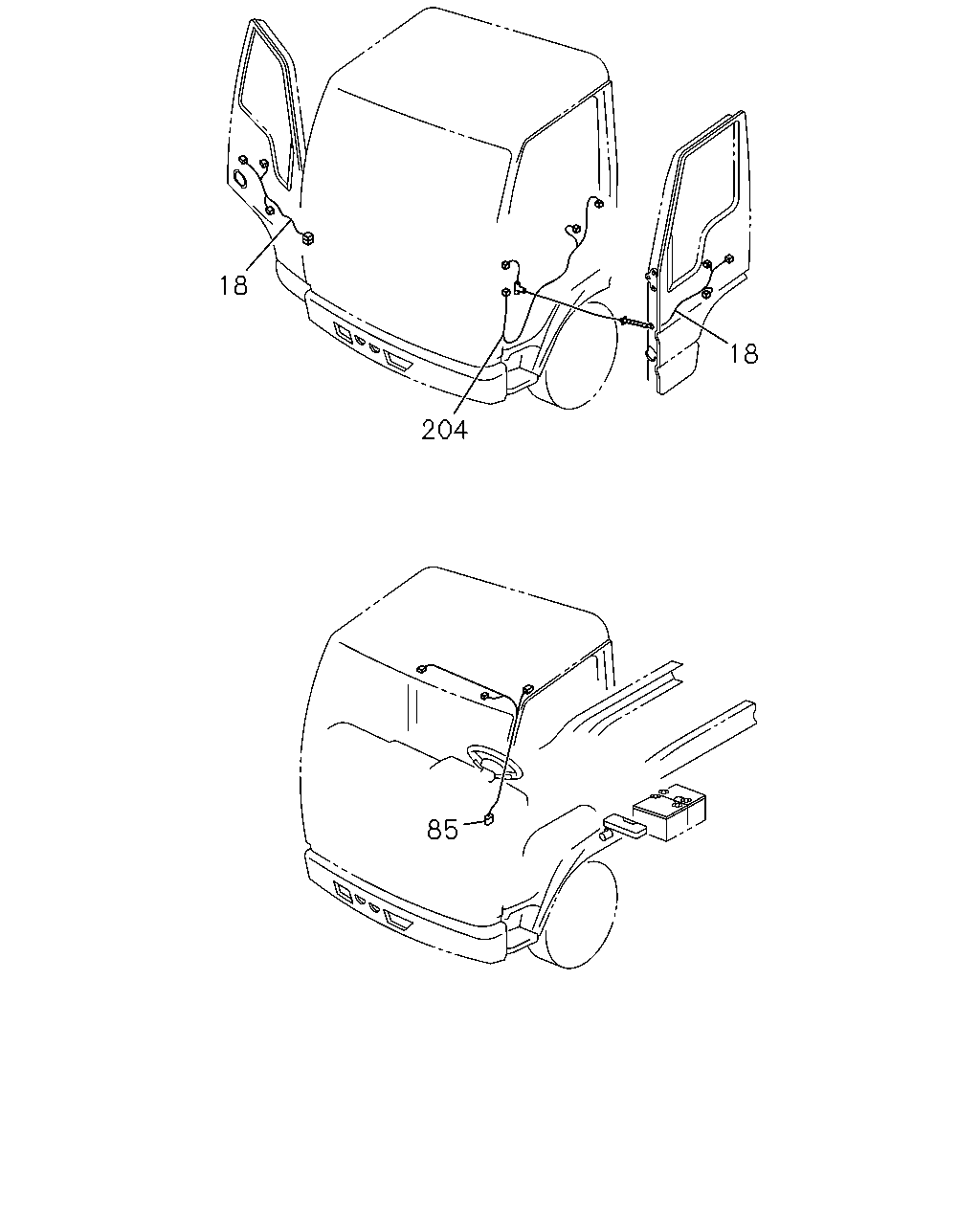

çizim 14072
18 18 204 85
BalonParca AdiParca NoAdetTipApplied Date A B
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> 		8-97226-669-0 01 1 1011-1405 ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97226-669-0 01 1 1406- ● ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) 		8-97226-671-1 01 1 1011-1405 ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97226-671-1 01 1 1406- ● ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) 		8-97226-671-1 01 1 1406- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97105-571-1 01 1 0707- ● ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) 		8-97105-571-1 01 1 0707- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97226-671-1 01 1 0707-1009 ● ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) 		8-97226-671-1 01 1 0707-1009 ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-98166-819-0 01 1 1010-1010 ● ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) 		8-98166-819-0 01 1 1010-1010 ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-98166-819-0 01 1 1011-1405 ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97185-142-1 01 1 0707- ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97226-669-0 01 1 0707-1009 ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98166-820-0 01 1 1010-1010 ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98166-820-0 01 1 1011-1405 ● ●
85 HARNESS; ROOM LAMP 8-97364-158-0 01 1 0707- ● ●
204 HARNESS; CABLE,FLOOR 8-97364-140-0 01 1 0707- ● ●

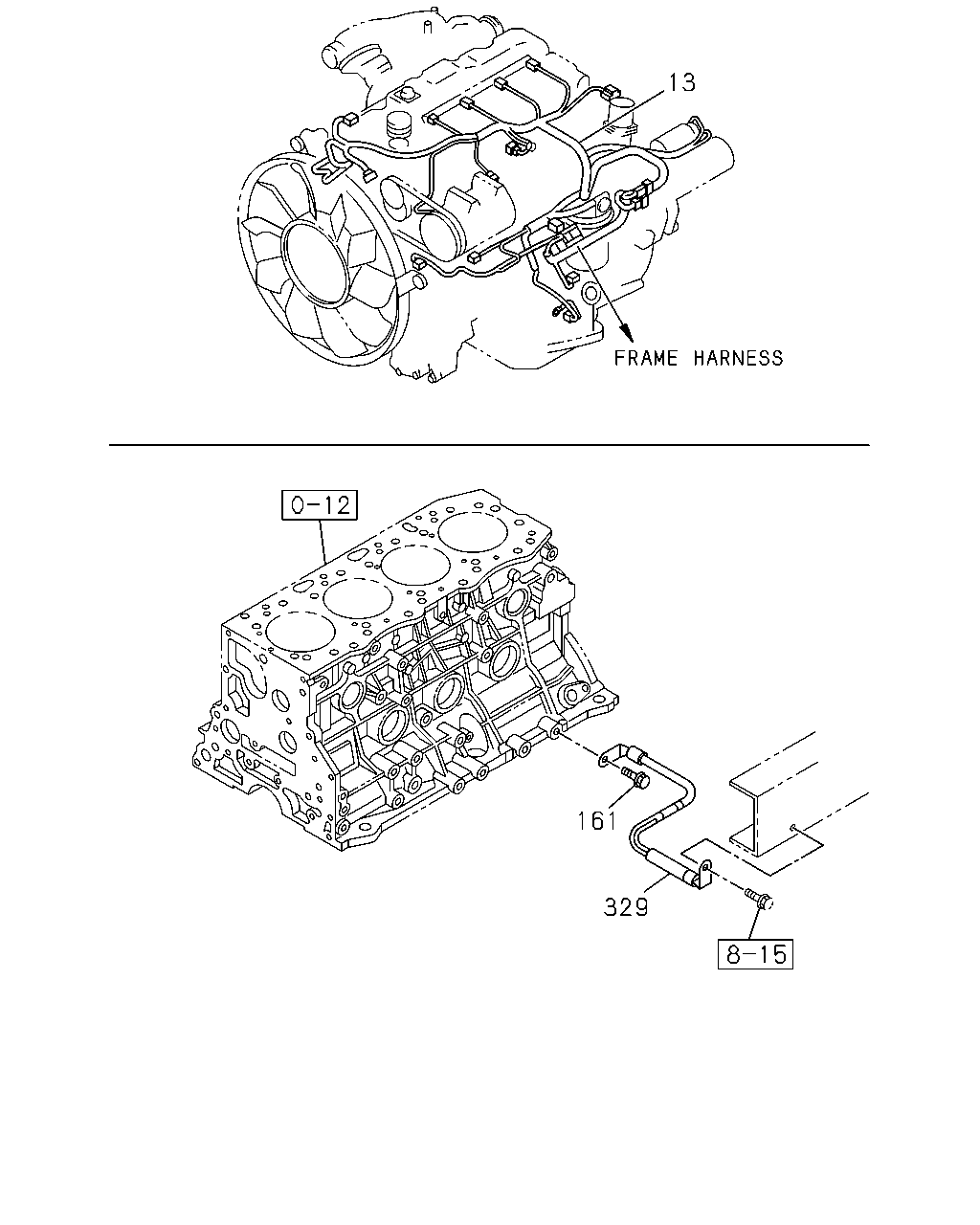

çizim 14073
13 161 329
BalonParca AdiParca NoAdetTipApplied Date A B
13 HARNESS; ENG
EXC. KD PREPARATORY PACK<6HF> 		8-98082-049-4 01 1 0707-1006 ● ●
13 HARNESS; ENG
EXC. KD PREPARATORY PACK<6HF> 		8-98147-726-0 01 1 1007- ● ●
161 BOLT; GROUND,HARNESS
M10X16 FLANGE 		0-28051-016-0 01 1 0707- ● ●
329 CABLE; ENG TO FRAME 8-98043-362-0 01 1 0707- ● ●

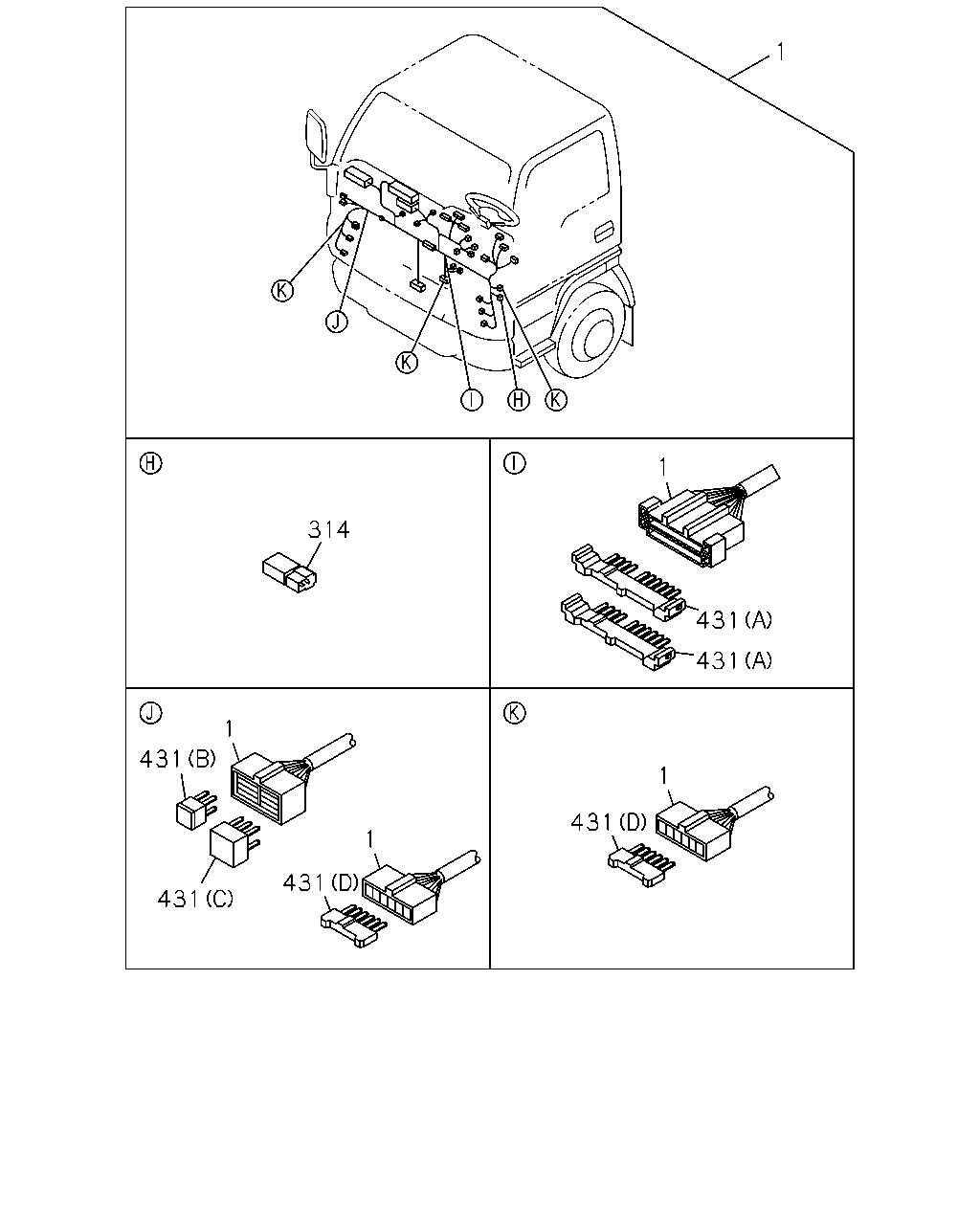

çizim 58325
1 1 314 431 431 1 431 1 431 1 431 431
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB 8-98061-109-1 01 1 0707-0707 ● ●
1 HARNESS; CAB 8-98095-159-0 01 1 0708- ● ●
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 02 1 0707- ● ●
431 CONNECTOR; JOINT
(D) 3P & 3P 		1-82698-170-0 03 1 0707- ● ●
431 CONNECTOR; JOINT
(A) 10P GREEN 		1-82699-599-0 02 1 0707- ● ●
431 CONNECTOR; JOINT
(B) 4P 		8-97077-939-0 01 1 0707- ● ●
431 CONNECTOR; JOINT
(C) 6P 		8-97077-941-0 01 1 0707- ● ●
431 CONNECTOR; JOINT
(E) 6P 		8-97381-428-0 02 1 0707- ● ●

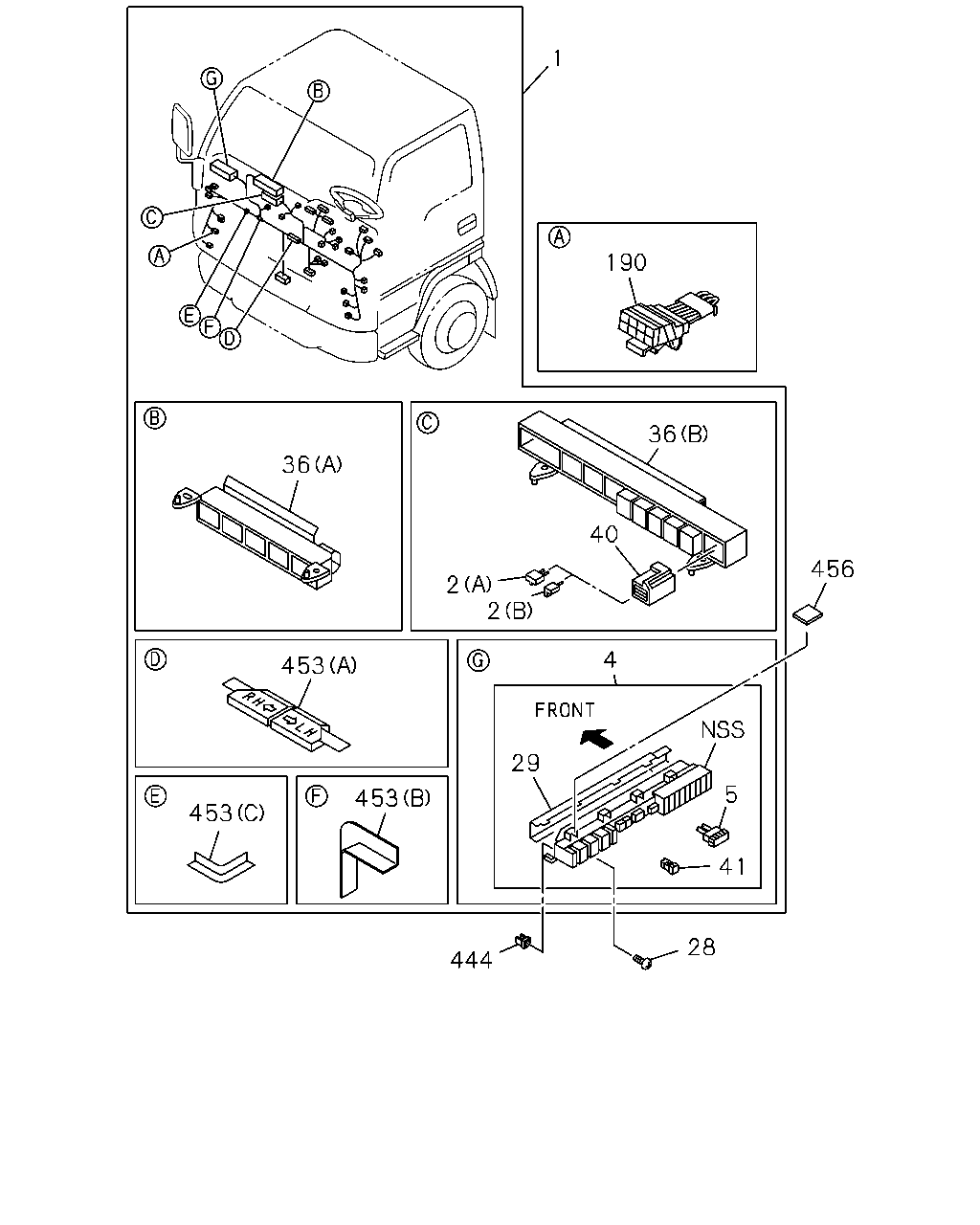

çizim 58338
1 190 36 36 40 456 2 2 4 453 29 5 453 453 41 28 444
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB 8-98061-109-1 01 1 0707-0707 ● ●
1 HARNESS; CAB 8-98095-159-0 01 1 0708- ● ●
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 04 1 0707- ● ●
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 02 1 0707-0707 ● ●
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 01 1 0708- ● ●
4 BOX ASM; FUSE,HARNESS 8-97187-921-1 01 1 0707- ● ●
5 FUSE; FACIA HARNESS
10A MINI RED 		8-97062-022-0 17 1 0707- ● ●
5 FUSE; FACIA HARNESS
15A MINI BLUE 		8-97062-023-0 06 1 0707- ● ●
5 FUSE; FACIA HARNESS
20A MINI YELLOW 		8-97062-024-0 02 1 0707- ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0707-1101 ● ●
28 SCREW; FUSE BOX
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ●
29 COVER; FUSE BOX 8-97074-955-0 01 1 0707- ● ●
36 BOX; RELAY
(A) 		8-97087-640-2 01 1 0707- ● ●
36 BOX; RELAY
(B) 		8-97187-918-1 01 1 0707- ● ●
40 BOX; DIODE
BLACK 8P 		8-97078-064-1 01 1 0707- ● ●
41 PULLER; FUSE 8-97103-388-0 01 1 0707- ● ●
190 CONNECTOR; SHORT CIRCUIT
EXC. INTERMITTENT WIPER<C13> 		8-98036-238-0 01 1 0707- ● ●
444 GROMMET; SCREW,FUSE BOX
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0707- ● ●
453 PROTECTOR; HARNESS
(B) 		8-94417-716-0 01 1 0707- ● ●
453 PROTECTOR; HARNESS
(C) 		8-94452-553-0 01 1 0707- ● ●
453 PROTECTOR; HARNESS
(D) 		8-94482-169-0 01 1 0707- ● ●
453 PROTECTOR; HARNESS
(E) 		8-97062-169-0 01 1 0707- ● ●
453 PROTECTOR; HARNESS
(A) 		8-97074-957-0 01 1 0707- ● ●
456 CUSHION; FUSE BOX
15X30 T=5 		8-94270-366-2 01 1 0707- ● ●

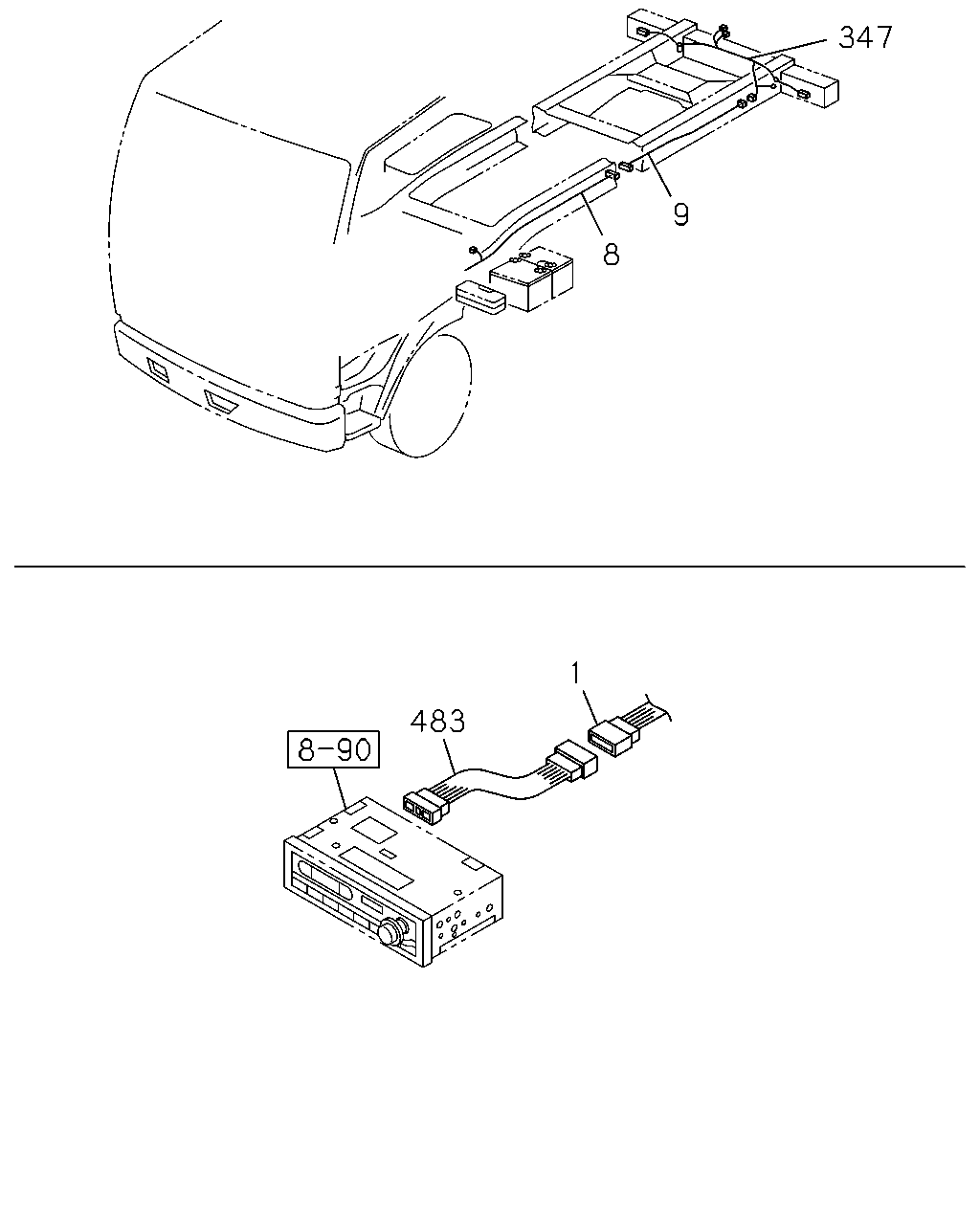

çizim 58655
347 9 8 1 483
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB 8-98061-109-1 01 1 0707-0707 ● ●
1 HARNESS; CAB 8-98095-159-0 01 1 0708- ● ●
8 HARNESS; FRAME,FRT 8-98019-348-6 01 1 0707- ● ●
9 HARNESS; FRAME,RR 8-97381-162-1 01 1 0707- ●
9 HARNESS; FRAME,RR 8-97381-164-1 01 1 0707- ●
347 HARNESS; CABLE,RR BODY 8-97364-151-0 01 1 0707- ● ●
483 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2) 		8-97373-419-0 01 1 0707- ● ●
