◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51139 - ELF300(MEXICO) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#52304) — 54 parça
çizim 13804
60 75 93 75 315 67 419 76 68 68 75
BalonParca AdiParca NoAdetTipApplied Date A B
60 LAMP ASM; FRT COMB 8-98010-892-0 01 1 0707- ● ●
60 LAMP ASM; FRT COMB 8-98010-891-0 01 1 0707- ● ●
67 GASKET; FRT COMB LAMP 8-97378-948-0 02 1 0707- ● ●
68 BULB; FRT COMB LAMP
(A) 24V 21/5W 		8-94125-957-0 02 1 0707- ● ●
68 BULB; FRT COMB LAMP
(B) 24V 21W AMBER 		8-97323-806-0 02 1 0707- ● ●
75 SCREW; FRT COMB LAMP
(A) M6X16 TAPPING 		8-97374-995-0 02 1 0707- ● ●
75 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0707- ● ●
76 LENS; FRT COMB LAMP 8-97378-966-0 01 1 0707- ● ●
76 LENS; FRT COMB LAMP 8-97378-965-0 01 1 0707- ● ●
93 BRACKET; SIDE COMB LAMP 8-97378-945-0 01 1 0707- ● ●
93 BRACKET; SIDE COMB LAMP 8-97378-943-0 01 1 0707- ● ●
315 HARNESS; FRT COMB LAMP 8-98010-916-0 02 1 0707- ● ●
419 LENS; INNER,FRT COMB LAMP 8-97378-947-0 01 1 0707- ● ●
419 LENS; INNER,FRT COMB LAMP 8-97378-946-0 01 1 0707- ● ●

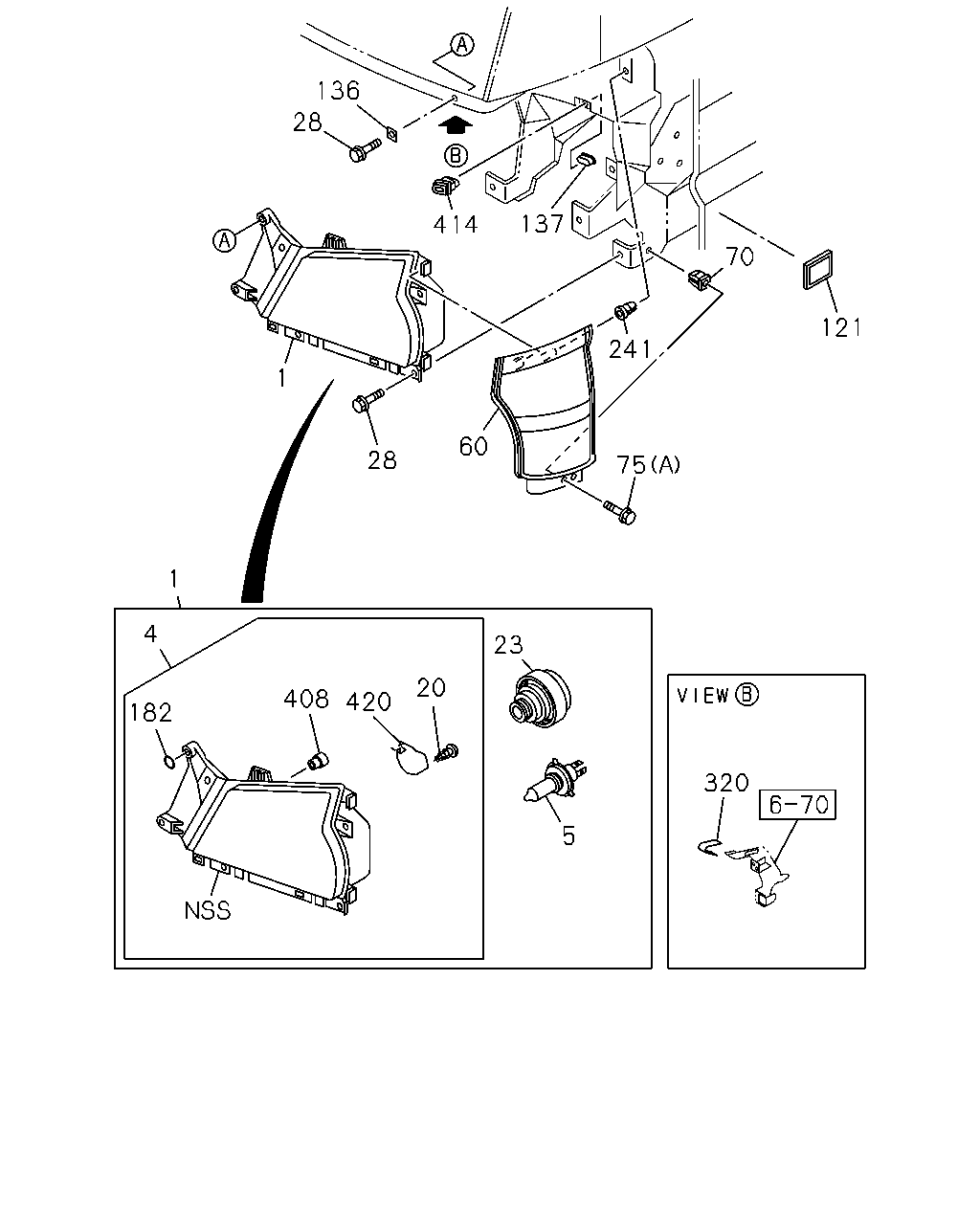

çizim 57447
136 28 414 137 241 70 121 75 60 28 408 420 20 23 5 320 182 4 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 8-98053-914-0 01 1 0707- ● ●
1 LAMP ASM; HEAD 8-98053-913-0 01 1 0707- ● ●
4 HEADLAMP UNIT 8-98009-823-0 01 1 0707- ● ●
4 HEADLAMP UNIT 8-98009-822-0 01 1 0707- ● ●
5 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0707- ● ●
20 SCREW; HEADLAMP 8-97378-871-0 02 1 0707- ● ●
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0707- ● ●
28 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0707-1401 ● ●
28 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1402- ● ●
60 LAMP ASM; FRT COMB 8-98010-892-0 01 1 0707- ● ●
60 LAMP ASM; FRT COMB 8-98010-891-0 01 1 0707- ● ●
70 GROMMET; SCREW,FRT COMB LAMP 1-09983-081-0 02 1 0707- ● ●
75 SCREW; FRT COMB LAMP
(A) M6X16 TAPPING 		8-97374-995-0 02 1 0707- ● ●
75 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0707- ● ●
121 REFLECTOR; REFLEX 8-98013-990-1 02 1 0707- ● ●
136 SEAL; HEADLAMP
25X25 		8-94272-533-0 02 1 0707- ● ●
137 GROMMET; HEADLAMP 8-97581-666-0 02 1 0707- ● ●
182 GASKET; HEADLAMP 8-97378-869-0 02 1 0707- ● ●
241 GROMMET; FRT LAMP 8-97380-030-0 02 1 0707- ● ●
320 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 0707- ● ●
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0707- ● ●
414 PIN; HEADLAMP,RIM 8-97581-667-0 02 1 0707- ● ●
420 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 0707- ● ●

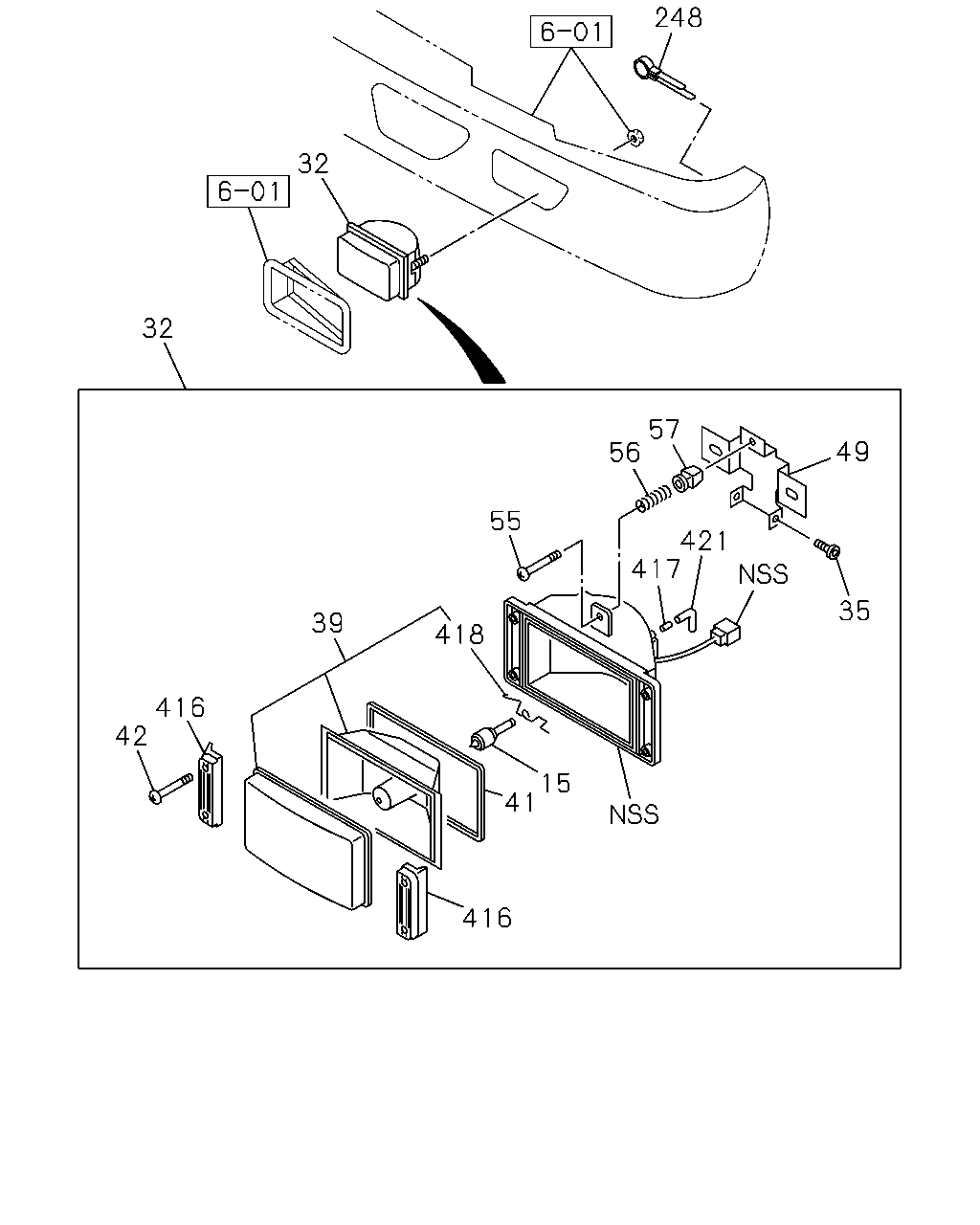

çizim 58326
248 32 32 57 56 49 55 421 417 35 39 418 416 42 15 41 416
BalonParca AdiParca NoAdetTipApplied Date A B
15 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		8-97203-926-0 02 1 0707- ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98022-409-0 01 1 0707- ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98022-408-0 01 1 0707- ● ●
35 SCREW; RIM,FOG LAMP
FOG LAMP<T96> 		8-97378-979-0 04 1 0707- ● ●
39 UNIT; FOG LAMP
FOG LAMP<T96> 		8-98020-463-0 02 1 0707- ● ●
41 GASKET; LENS,FOG LAMP
FOG LAMP<T96> 		8-97378-986-0 02 1 0707- ● ●
42 SCREW; LENS,FOG LAMP
FOG LAMP<T96> 		8-97378-977-0 08 1 0707- ● ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-97379-141-0 01 1 0707- ● ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-97378-985-0 01 1 0707- ● ●
55 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-97378-978-0 02 1 0707- ● ●
56 SPRING; COIL,FOG LAMP
FOG LAMP<T96> 		8-97378-980-0 02 1 0707- ● ●
57 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-97378-981-0 02 1 0707- ● ●
248 CLIP; HARNESS
FOG LAMP<T96> ID=20 		5-09700-321-0 04 1 0707- ● ●
416 CLAMP; LENS,FOG LAMP
FOG LAMP<T96> 		8-97378-976-0 04 1 0707- ● ●
417 FILTER; BREATHER,LAMP
FOG LAMP<T96> 		8-97378-983-0 04 1 0707- ● ●
418 SPRING; BULB,FOG LAMP
FOG LAMP<T96> 		8-97378-982-0 02 1 0707- ● ●
421 TUBE; BREATHER,FOG LAMP
FOG LAMP<T96> 		8-97378-984-0 04 1 0707- ● ●
