7-60 — SEAT BELT (#52303) — 21 parça

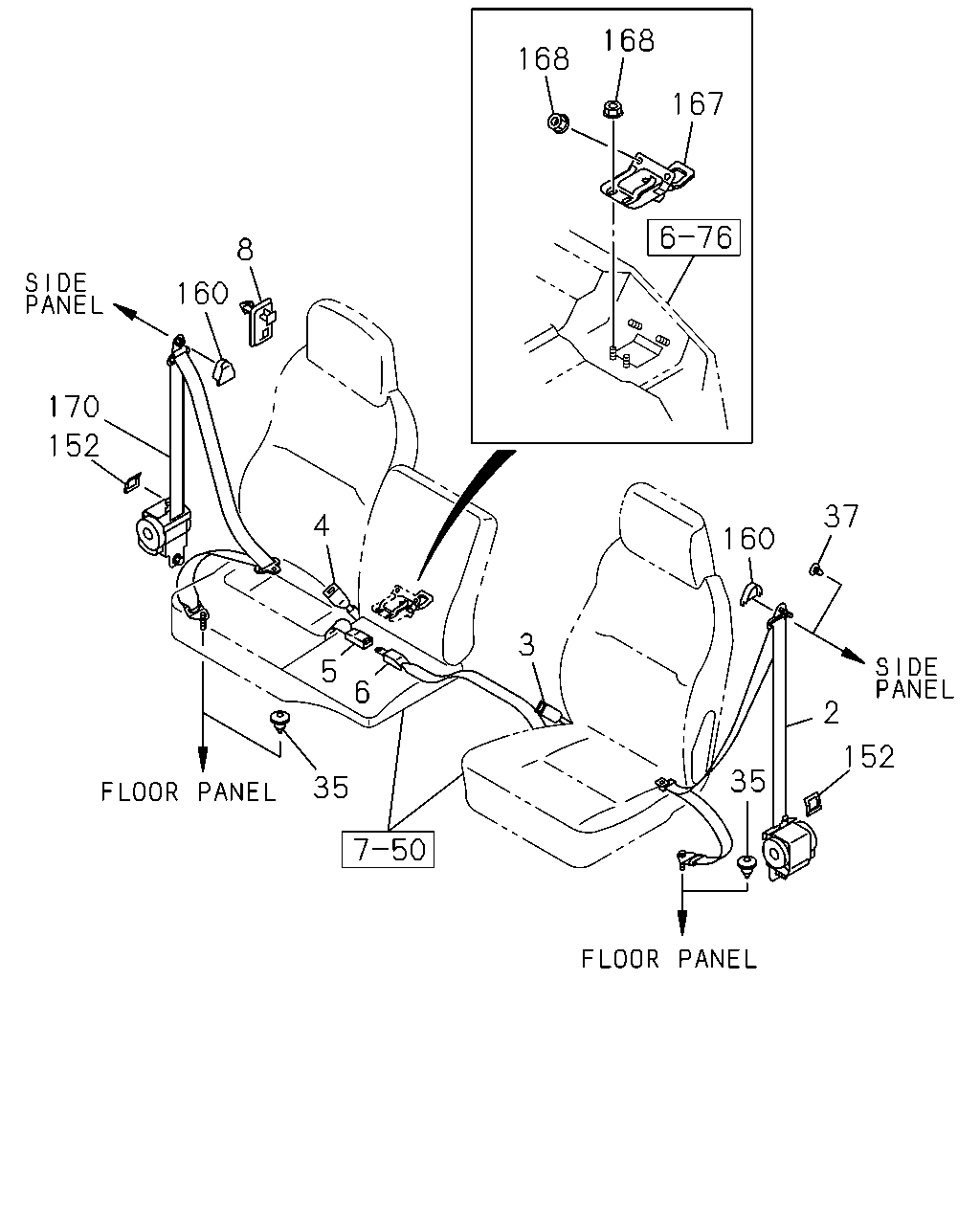

168 168 167 8 160 170 152 37 4 160 3 5 6 2 152 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BELT; SEAT,TONGUE SIDE SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY	8-97400-353-1	01	1	0707-	●	●
2	BELT; SEAT,TONGUE SIDE SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97413-020-0	01	1	0707-	●	●
3	BELT; SEAT,BUCKLE SIDE SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97400-351-0	01	1	0707-	●	●
4	BELT; PASSENGER SEAT,BUCKLE SIDE SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97396-952-0	01	1	0707-	●	●
5	BELT; CENTER SEAT,BUCKLE SIDE GRAY	8-97404-304-0	01	1	0707-	●	●
6	BELT; CENTER SEAT,TONGUE SIDE GRAY	8-97404-967-0	01	1	0707-	●	●
8	HOOK; SEAT BELT SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>	8-94276-268-1	02	1	0707-	●	●
35	GROMMET; SEAT BELT ANCHOR EXC. SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22	9-61168-535-0	03	1	0707-	●	●
37	PLUG; SEAT BELT ANCHOR EXC. SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5	8-94279-726-0	02	1	0707-	●	●
152	PROTECTOR SEAT BELT FRT 3 POINT W/RETRACTOR<A49>	8-97287-563-0	02	1	0707-	●	●
160	COVER; THROUGH ANCHOR SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97396-954-0	02	1	0707-	●	●
167	PLATE; ANCHOR	8-97869-412-2	01	1	0707-	●	●
168	NUT; ANCHOR PLATE M8 FLANGE	5-09440-005-0	04	1	0707-0712	●	●
168	NUT; ANCHOR PLATE M8 FLANGE	0-91180-108-0	04	1	0801-	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY	8-97400-353-1	01	1	0707-	●	●
170	BELT; PASSENGER SEAT,TONGUE SIDE SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97404-966-1	01	1	0707-	●	●

177 161 166 165 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
161	REINFORCEMENT; SEAT BELT ANCHOR	8-97850-442-2	01	1	0707-	●	●
165	HOOK; SEAT BELT ANCHOR	8-97869-416-0	01	1	0707-	●	●
166	BOLT; SEAT BELT ANCHOR M8X25 FLANGE	0-28650-825-0	04	1	0707-	●	●
177	NUT M8 W/LK WASHER	8-94327-073-0	01	1	0707-0805	●	●
177	NUT M8 W/LK WASHER	8-97581-234-0	01	1	0806-	●	●
