7-50 — FRONT SEAT (#52302) — 43 parça
çizim 57482
1 99 18 2 17 19 12 24 228 13 15 72 69 382 67 71 63
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97400-476-3 01 1 0707- ● ●
1 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-365-3 01 1 0707- ● ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97400-477-2 01 1 0707- ● ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-366-2 01 1 0707- ● ●
12 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97400-478-1 01 1 0707- ● ●
12 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-367-1 01 1 0707- ● ●
12 CUSHION; SEAT,FRT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97400-375-1 01 1 0707- ● ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-482-1 01 1 0707- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97400-479-1 01 1 0707- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-368-1 01 1 0707- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97400-376-1 01 1 0707- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-483-1 01 1 0707- ● ●
15 FRAME; CUSHION,FRT SEAT
EXC. MANUAL TILT CAB<RWZ> 		8-97262-070-1 01 1 0707- ● ●
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0707- ● ●
18 COVER; RECLINING
DARK GRAY 		8-97400-095-0 01 1 0707- ● ●
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0707- ● ●
24 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97400-096-0 01 1 0707-0804 ● ●
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97415-446-0 01 1 0805- ● ●
63 ADJUSTER; SEAT SLIDE 8-97854-670-3 01 1 0707- ● ●
67 BOLT; FRT SEAT TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0707- ● ●
69 NUT; FRT SEAT
M8 		1-09984-109-0 01 1 0707- ● ●
71 BOLT; ADJ TO SEAT
M8X35 W/LK WASHER 		0-50540-835-0 02 1 0707- ● ●
72 SPACER; SEAT ADJ 8-97854-671-0 02 1 0707- ● ●
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 0707- ● ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0707- ● ●
382 WASHER; PL,DRIVER SEAT
ID=8.4 OD=22 		8-94127-883-1 01 1 0707- ● ●

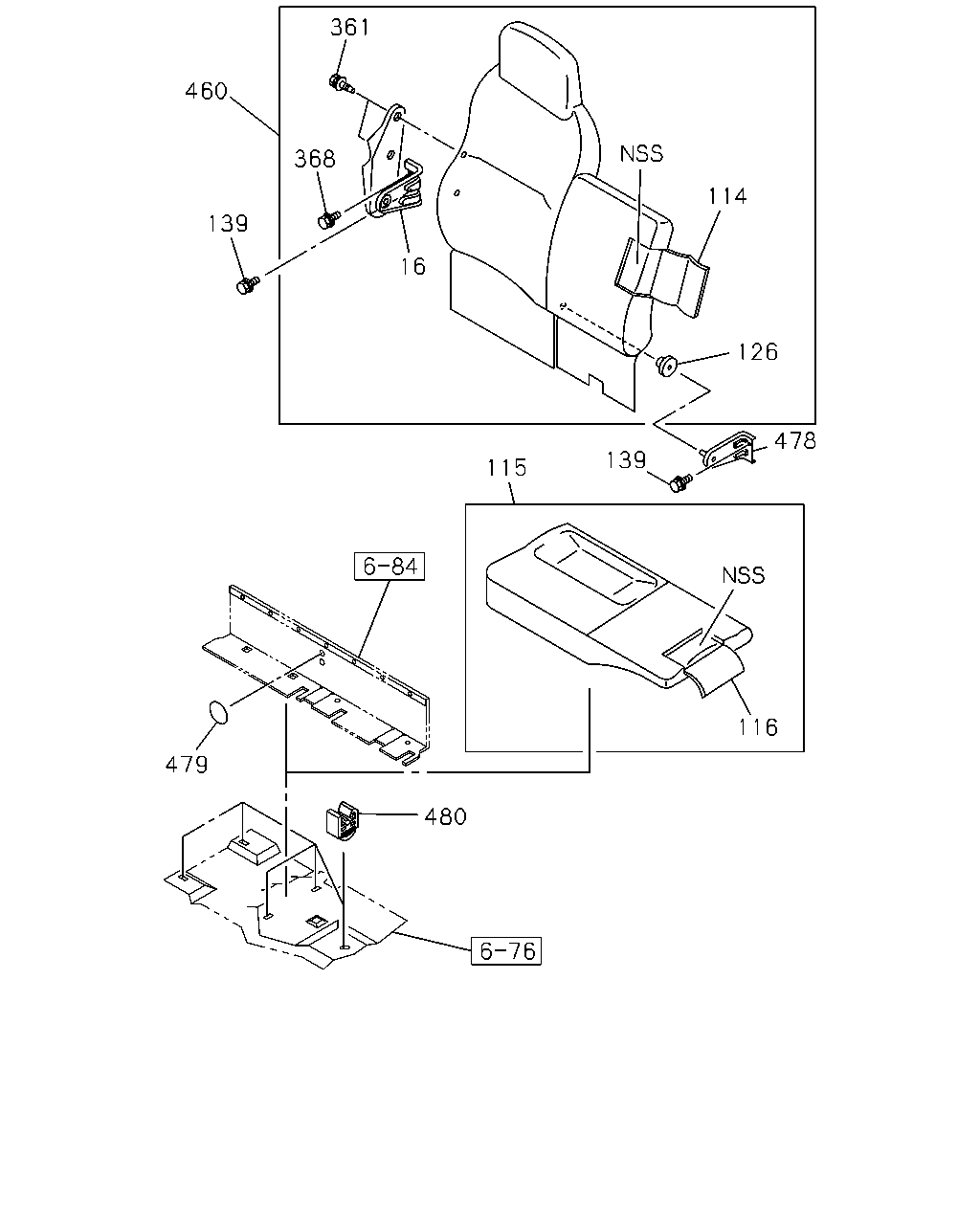

çizim 58337
361 460 368 114 139 16 126 478 139 115 116 479 480
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
BLACK 		8-97859-274-3 01 1 0707- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97400-497-2 01 1 0707- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-373-2 01 1 0707- ● ●
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97400-469-3 01 1 0707- ● ●
115 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-362-3 01 1 0707- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97400-503-1 01 1 0707- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-355-1 01 1 0707- ● ●
126 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 0707-0804 ● ●
126 BUSHING; HINGE,RECLINING 8-98069-558-0 01 1 0805- ● ●
139 BOLT; PASSENGER SEAT
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 0707- ● ●
361 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 0707- ● ●
368 BOLT; SEAT
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0707- ● ●
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97400-465-3 01 1 0707- ● ●
460 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-361-3 01 1 0707- ● ●
478 BRACKET ASM; HINGE,PASSENGER SEAT 8-97868-187-0 01 1 0707- ● ●
479 PLUG; HINGE
OD=25 BLACK 		1-76798-019-0 02 1 0707- ● ●
480 CLIP; CUSHION 8-94279-977-0 05 1 0707- ● ●
