◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51139 - ELF300(MEXICO) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#52301) — 37 parça

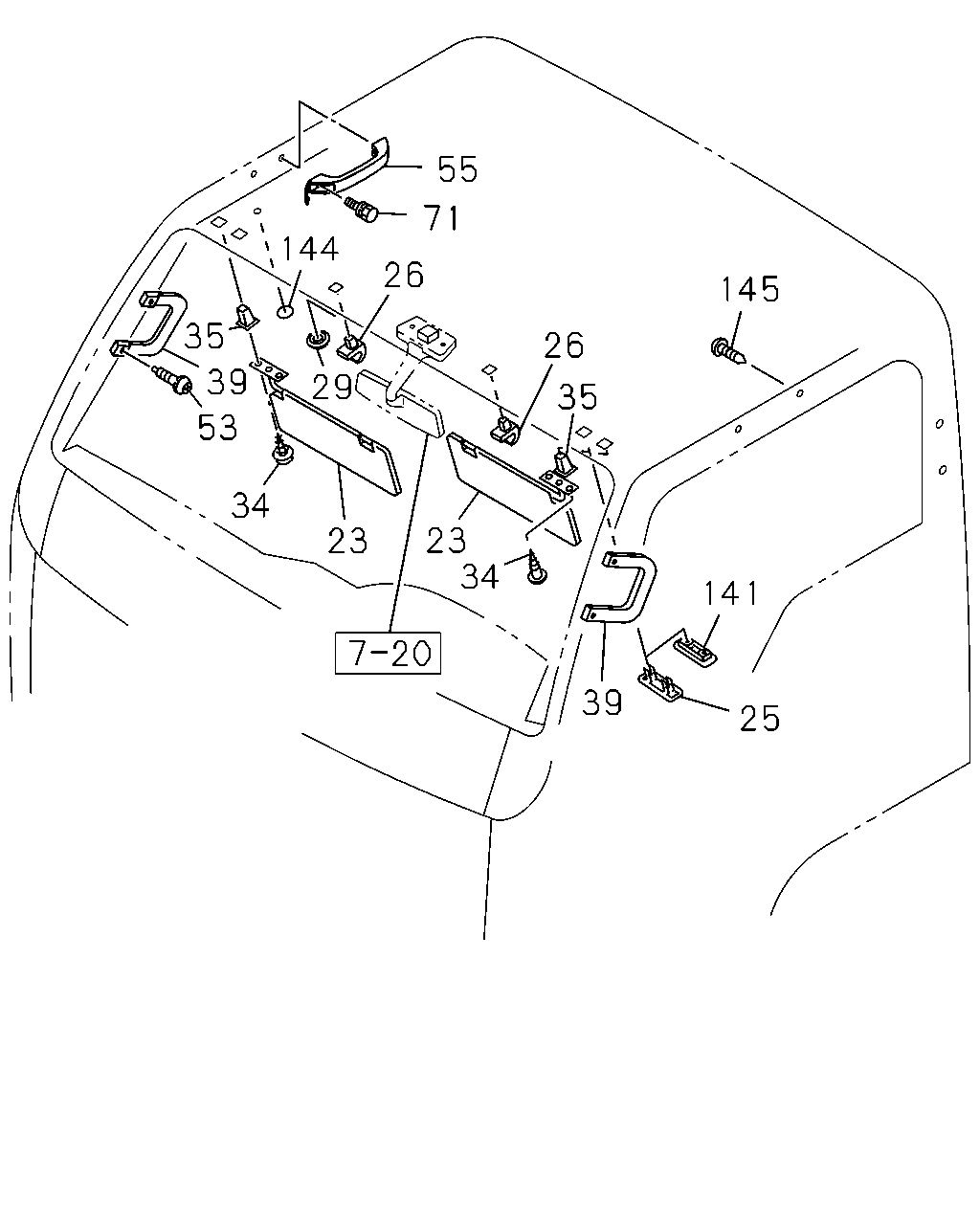

çizim 57481
55 71 144 26 145 35 26 39 29 35 53 34 23 34 23 141 39 25
BalonParca AdiParca NoAdetTipApplied Date A B
23 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97404-452-0 01 1 0707- ● ●
23 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97404-450-0 01 1 0707- ● ●
23 SUN VISOR
TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97404-400-0 01 1 0707- ● ●
23 SUN VISOR
EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97404-398-0 01 1 0707- ● ●
25 COVER; HOLE,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97406-201-3 01 1 0707- ● ●
26 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97406-198-2 02 1 0707- ● ●
26 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97405-171-0 02 1 0707- ● ●
26 HOLDER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97405-171-0 01 1 0707- ● ●
26 HOLDER; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> DARK GRAY 		8-97406-198-2 01 1 0707- ● ●
29 HOLDER; GROMMET,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> OD=15.0 		8-94279-040-0 01 1 0707- ● ●
34 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> M5X18 TAPPING 		0-72180-518-0 04 1 0707- ● ●
34 SCREW; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> M5X18 TAPPING 		0-72180-518-0 04 1 0707- ● ●
34 SCREW; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> M5X18 TAPPING 		0-72180-518-0 02 1 0707- ● ●
35 GROMMET; SCREW,SUN VISOR
SUNVISOR PASSENGER SIDE<D20> 		8-94279-039-0 04 1 0707- ● ●
35 GROMMET; SCREW,SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 		8-94279-039-0 04 1 0707- ● ●
35 GROMMET; SCREW,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 		8-94279-039-0 02 1 0707- ● ●
39 HANDLE; ASSIST,A-POST
GRAY 		8-97409-477-0 02 1 0707- ● ●
53 SCREW; ASSIST HANDLE
M6X28 		8-98004-344-0 04 1 0707- ● ●
55 GRIP; ASSIST,CAB SIDE UPR
ASSIST GRIP PASSENGER<EG5> DARK GRAY 		8-97405-285-2 01 1 0707- ● ●
71 SCREW
ASSIST GRIP PASSENGER<EG5> M6X28 		8-98004-344-0 02 1 0707- ● ●
141 COVER; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY 		8-97859-845-1 01 1 0707- ● ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0707- ● ●
144 SEAL; LOCATION HOLE
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINEBLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0707- ● ●
145 PLUG; HOLE
EXC. TRAY ROOF HEAD<7EJ> OD=12 L=14.8 		8-94279-921-0 04 1 0707- ● ●

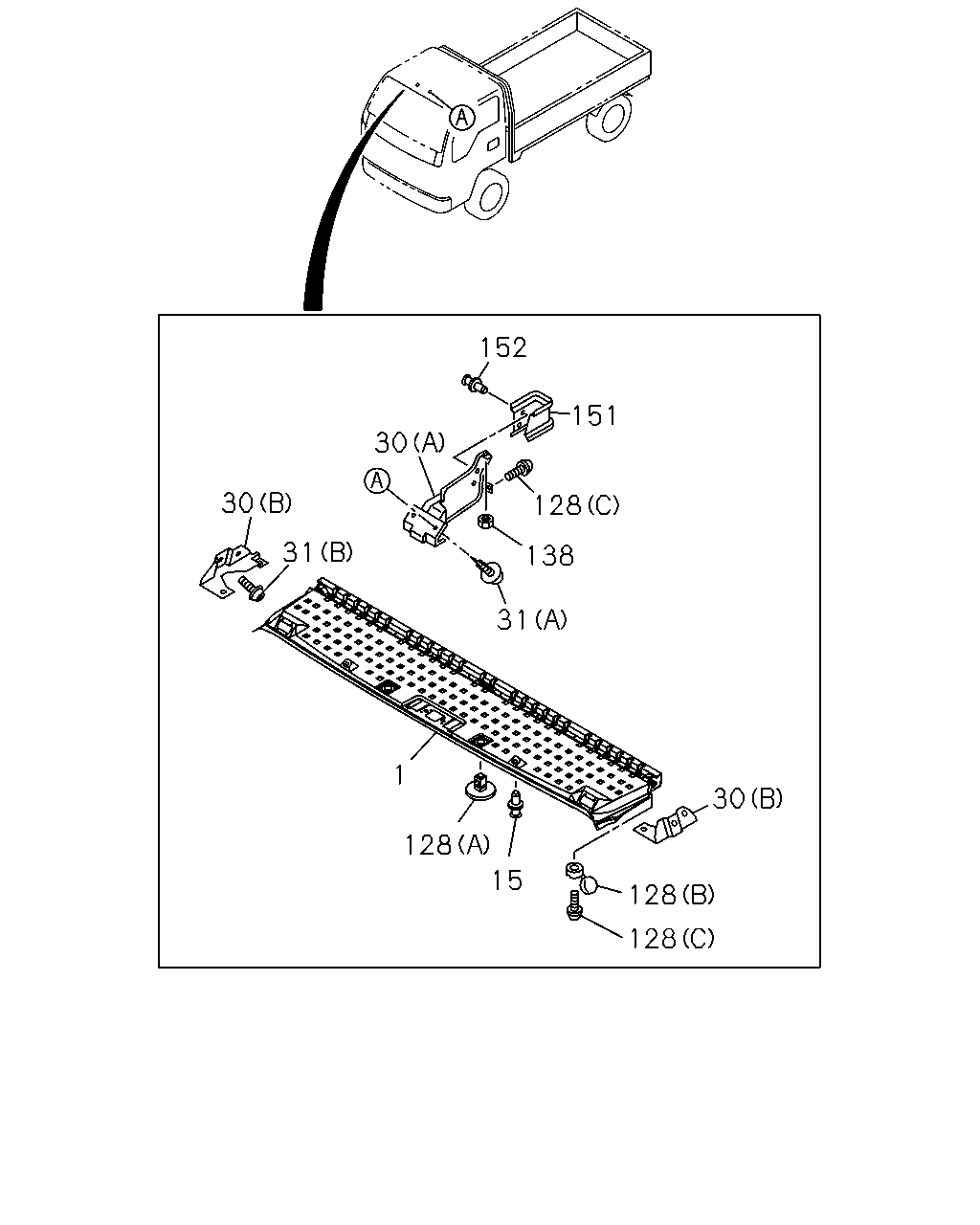

çizim 58023
152 151 30 30 128 31 138 31 1 30 128 15 128 128
BalonParca AdiParca NoAdetTipApplied Date A B
1 BOARD; HEADER SHELF
TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97994-818-1 01 1 0707- ● ●
15 FASTENER; HEADER SHELF BOARD
TRAY ROOF HEAD<7EJ> LIGHT GRAY, D8X15 PUSH RIVET 		8-97892-693-0 02 1 0707- ● ●
30 BRACKET ASM; HEADER SHELF
TRAY ROOF HEAD<7EJ> (A) 		8-97859-388-4 01 1 0707- ● ●
30 BRACKET ASM; HEADER SHELF
TRAY ROOF HEAD<7EJ> (B) 		8-97856-798-3 01 1 0707- ● ●
30 BRACKET ASM; HEADER SHELF
TRAY ROOF HEAD<7EJ> (B) 		8-97856-797-3 01 1 0707- ● ●
31 SCREW; BRKT,HEADER SHELF
TRAY ROOF HEAD<7EJ> (B) M6X16 		0-38050-616-0 04 1 0707- ● ●
31 SCREW; BRKT,HEADER SHELF
TRAY ROOF HEAD<7EJ> (A) M5X16 		8-94279-341-0 02 1 0707- ● ●
128 FASTENER; HEADER SHELF
TRAY ROOF HEAD<7EJ> (B) LIGHT GRAY 		8-97892-153-2 02 1 0707- ● ●
128 FASTENER; HEADER SHELF
TRAY ROOF HEAD<7EJ> (C) M6X16 W/TORQUES 		8-98064-273-0 03 1 0707- ● ●
128 FASTENER; HEADER SHELF
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> (A) LIGHT GRAY 		8-97892-151-0 01 1 0707- ● ●
138 NUT; BRKT,HEADER SHELF
TRAY ROOF HEAD<7EJ> M8 FLANGE 		0-91180-108-0 01 1 0707- ● ●
151 COVER; BRKT
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY 		8-97867-250-0 01 1 0707- ● ●
152 CLIP; BRKT
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY 		8-97867-185-0 02 1 0707- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
