0-85 — AUTO TIMER; INJECTION PUMP (#5230) — 107 parça

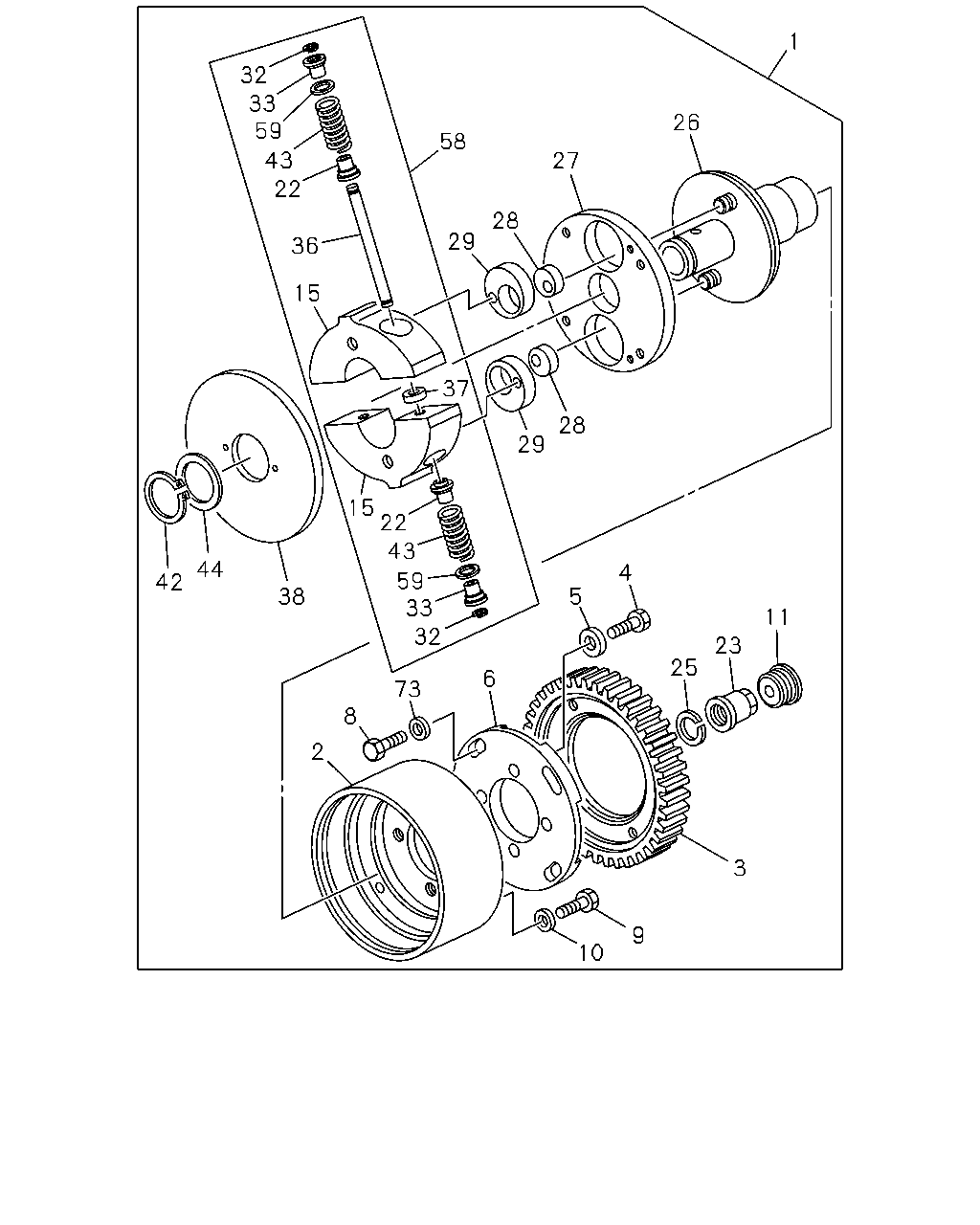

1 32 33 59 26 58 43 27 22 28 29 36 15 37 28 29 15 22 43 44 4 59 33 42 38 5 11 32 23 25 6 73 8 2 3 9 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1	1-15740-490-1	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2	1-15740-490-1	01	1	-0011
1	TIMER ASM; INJ PUMP ASM PART: I = 1-15603-209-1	1-15740-507-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: J = 1-15603-370-1	1-15740-507-0	01	1	-0011
1	TIMER ASM; INJ PUMP ASM PART: E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2	1-15740-530-0	01	1	0012-
1	TIMER ASM; INJ PUMP ASM PART: J = 1-15603-370-1	1-15740-536-0	01	1	0012-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15741-016-0	01	1	-
3	GEAR; DRIVE,INJ PUMP ASM PART: E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, J = 1-15603-370-1	1-12524-085-3	01	1	0012-
3	GEAR; DRIVE,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, I = 1-15603-209-1	1-15789-190-0	01	1	-
3	GEAR; DRIVE,INJ PUMP ASM PART: E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, J = 1-15603-370-1	1-15789-190-0	01	1	-0011
4	BOLT; DRIVE GEAR FLANGE,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-188-0	04	1	-
5	WASHER; DRIVE GEAR FLANGE,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-189-0	04	1	-
6	FLANGE; DRIVE GEAR,INJ PUMP T=1.00 ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15742-036-0	01	1	-
8	BOLT; DRIVE GEAR FIX,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-186-0	04	1	-
9	BOLT; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-190-0	04	1	-
10	WASHER; HSG FIX BOLT,TIMER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-191-0	04	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-698-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: I = 1-15603-209-1, J = 1-15603-370-1	1-15743-143-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2	1-15743-150-0	02	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-635-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-144-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-145-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2	1-15742-150-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: I = 1-15603-209-1, J = 1-15603-370-1	1-15742-158-0	01	1	-
27	PLATE; CAM,TIMER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-239-0	01	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-152-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-151-0	02	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-159-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-176-0	04	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-174-0	02	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-402-0	02	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-283-0	01	1	-
42	RING; SNAP,TIMER COVER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-185-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=46 ASM PART: I = 1-15603-209-1	1-15749-902-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=46 ASM PART: J = 1-15603-370-1	1-15749-902-0	01	1	-0011
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=45 ASM PART: I = 1-15603-209-1	1-15749-903-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=45 ASM PART: J = 1-15603-370-1	1-15749-903-0	01	1	-0011
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=43.5 ASM PART: J = 1-15603-370-1	1-15749-904-0	01	1	-0011
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=43.5 ASM PART: I = 1-15603-209-1	1-15749-904-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.2 L=43.5 ASM PART: J = 1-15603-370-1	1-15749-905-0	01	1	-0011
43	SPRING; PISTON,TIMER,INJ PUMP T=2.2 L=43.5 ASM PART: I = 1-15603-209-1	1-15749-905-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=44 ASM PART: J = 1-15603-370-1	1-15749-906-0	04	1	-0011
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=44 ASM PART: I = 1-15603-209-1	1-15749-906-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: J = 1-15603-370-1	1-15749-952-0	04	1	0012-
44	SHIM; TIMER COVER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-184-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2	1-15743-152-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: I = 1-15603-209-1, J = 1-15603-370-1	1-15743-159-0	01	1	-
59	SHIM; SPR,TIMER T=0.10 ASM PART: I = 1-15603-209-1, J = 1-15603-370-1	1-15749-390-0	AR	1	-
59	SHIM; SPR,TIMER T=0.30 ASM PART: I = 1-15603-209-1, J = 1-15603-370-1	1-15749-391-0	AR	1	-
59	SHIM; SPR,TIMER T=0.50 ASM PART: I = 1-15603-209-1, J = 1-15603-370-1	1-15749-392-0	AR	1	-
59	SHIM; SPR,TIMER T=1.00 ASM PART: I = 1-15603-209-1, J = 1-15603-370-1	1-15749-393-0	AR	1	-
59	SHIM; SPR,TIMER T=0.40 ASM PART: I = 1-15603-209-1, J = 1-15603-370-1	1-15749-493-0	AR	1	-
59	SHIM; SPR,TIMER T=0.70 ASM PART: I = 1-15603-209-1, J = 1-15603-370-1	1-15749-494-0	AR	1	-
73	WASHER; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-187-0	04	1	-

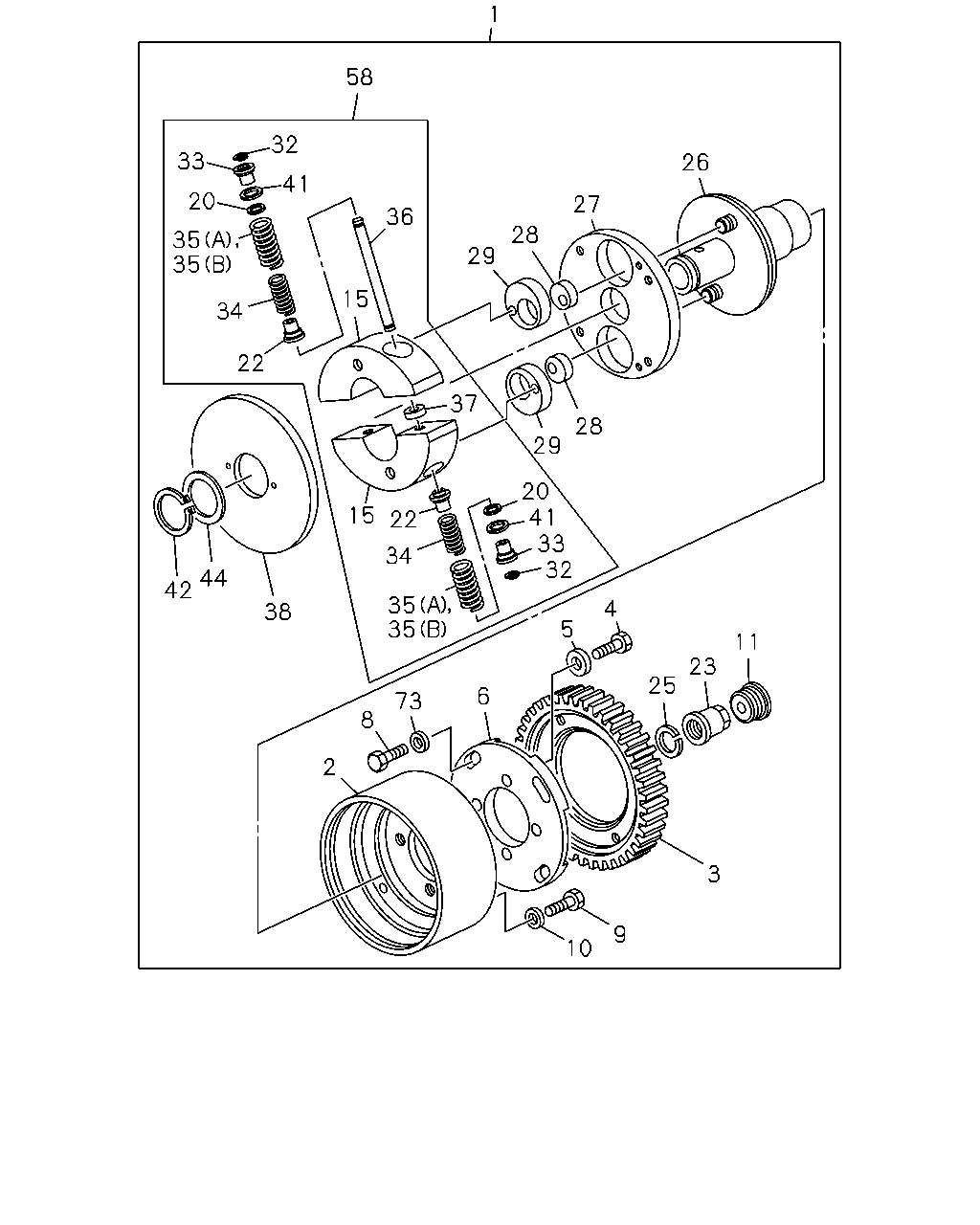

1 58 32 33 26 41 20 27 36 28 35 35 29 15 34 22 37 28 29 20 41 33 32 15 22 34 44 42 35 35 4 38 5 11 23 25 6 73 8 2 3 9 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1	1-15740-490-1	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2	1-15740-490-1	01	1	-0011
1	TIMER ASM; INJ PUMP ASM PART: I = 1-15603-209-1	1-15740-507-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: J = 1-15603-370-1	1-15740-507-0	01	1	-0011
1	TIMER ASM; INJ PUMP ASM PART: E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2	1-15740-530-0	01	1	0012-
1	TIMER ASM; INJ PUMP ASM PART: J = 1-15603-370-1	1-15740-536-0	01	1	0012-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15741-016-0	01	1	-
3	GEAR; DRIVE,INJ PUMP ASM PART: E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, J = 1-15603-370-1	1-12524-085-3	01	1	0012-
3	GEAR; DRIVE,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, I = 1-15603-209-1	1-15789-190-0	01	1	-
3	GEAR; DRIVE,INJ PUMP ASM PART: E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, J = 1-15603-370-1	1-15789-190-0	01	1	-0011
4	BOLT; DRIVE GEAR FLANGE,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-188-0	04	1	-
5	WASHER; DRIVE GEAR FLANGE,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-189-0	04	1	-
6	FLANGE; DRIVE GEAR,INJ PUMP T=1.00 ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15742-036-0	01	1	-
8	BOLT; DRIVE GEAR FIX,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-186-0	04	1	-
9	BOLT; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-190-0	04	1	-
10	WASHER; HSG FIX BOLT,TIMER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-191-0	04	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-698-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: I = 1-15603-209-1, J = 1-15603-370-1	1-15743-143-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2	1-15743-150-0	02	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2	1-15749-394-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2	1-15749-395-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2	1-15749-396-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2	1-15749-397-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2	1-15749-495-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2	1-15749-496-0	AR	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-635-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-144-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-145-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2	1-15742-150-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: I = 1-15603-209-1, J = 1-15603-370-1	1-15742-158-0	01	1	-
27	PLATE; CAM,TIMER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-239-0	01	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-152-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-151-0	02	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-159-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-176-0	04	1	-
34	SPRING; TIMER,INNER,INJ PUMP L=40 ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2	1-15749-883-0	04	1	-
35	SPRING; TIMER,OUTER,INJ PUMP (A), L=45 ASM PART: C = 1-15603-073-1, D = 1-15603-118-1	1-15749-880-0	01	1	-
35	SPRING; TIMER,OUTER,INJ PUMP (A), L=45 ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2	1-15749-880-0	04	1	-
35	SPRING; TIMER,OUTER,INJ PUMP (B), L=44 ASM PART: A = 1-15603-062-2	1-15749-882-0	04	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-174-0	02	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-402-0	02	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-283-0	01	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2	1-15749-390-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2	1-15749-391-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2	1-15749-392-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2	1-15749-393-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2	1-15749-493-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2	1-15749-494-0	AR	1	-
42	RING; SNAP,TIMER COVER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-185-0	01	1	-
44	SHIM; TIMER COVER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-184-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2	1-15743-152-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: I = 1-15603-209-1, J = 1-15603-370-1	1-15743-159-0	01	1	-
73	WASHER; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15603-062-2, B = 1-15603-063-2, C = 1-15603-073-1, D = 1-15603-118-1, E = 1-15603-204-2, F = 1-15603-205-2, G = 1-15603-207-2, H = 1-15603-208-2, I = 1-15603-209-1, J = 1-15603-370-1	1-15749-187-0	04	1	-
