7-40 — INSTRUMENT PANEL AND BOX
(#52298) — 60 parça
Tümü
A - NKC6SC
B - NKC6SF
◀

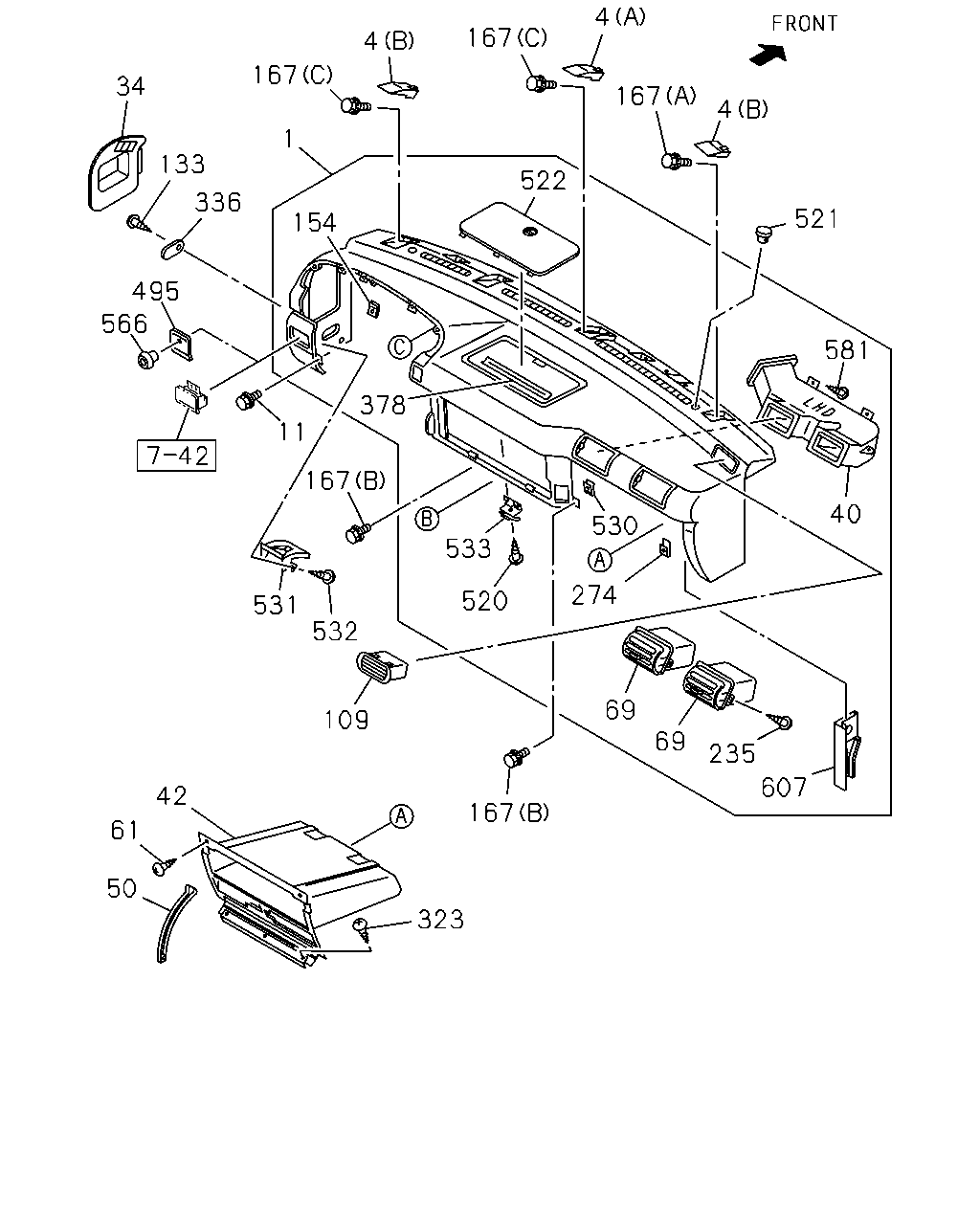

[740A] NO.1 (36 parça)

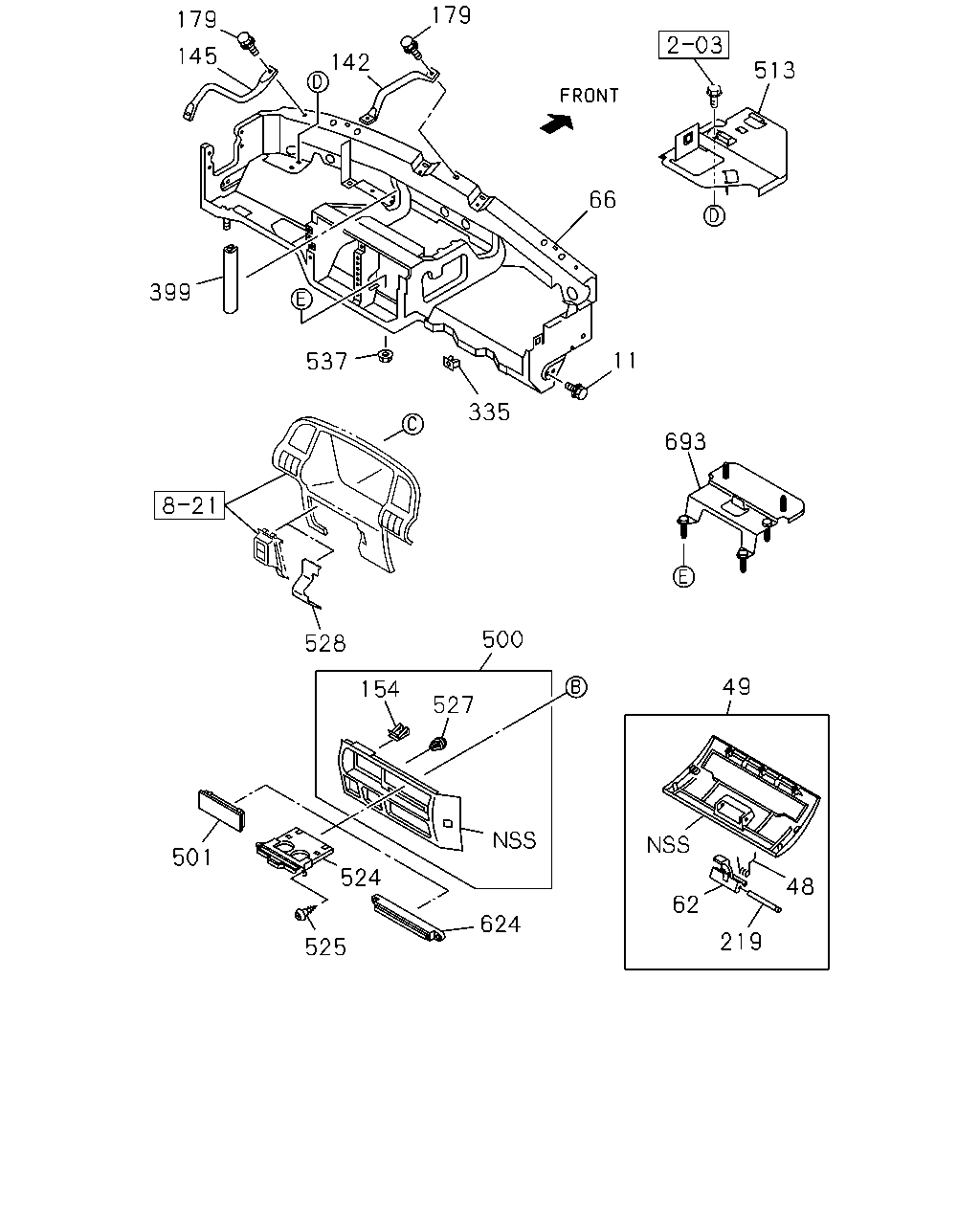

[740A] NO.2 (24 parça)
▶
4
167
4
167
34
167
4
1
133
522
336
521
154
495
566
378
581
11
167
40
530
533
274
520
531
532
69
109
69
235
607
42
167
61
50
323
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PANEL; INST
DARK GRAY
8-97587-476-2
01
1
0707-
●
●
4
COVER; INST PNL
(A) DARK GRAY
8-97582-215-3
02
1
0707-
●
●
4
COVER; INST PNL
(B) DARK GRAY
8-97582-217-3
01
1
0707-
●
●
4
COVER; INST PNL
(B) DARK GRAY
8-97582-216-3
01
1
0707-
●
●
11
BOLT; INST PNL
M8X23 FLANGE
8-97264-766-0
04
1
0707-
●
●
34
LID; OIL TANK
DARK GRAY
8-97585-433-5
01
1
0707-
●
●
40
DUCT; VENT,SIDE CLUSTER BEZEL
8-97262-698-0
01
1
0707-
●
●
42
BOX; GLOVE,INST PNL
8-97853-150-5
01
1
0707-
●
●
50
STOPPER; LID,GLOVE BOX,INST CLUSTER
8-97853-152-0
02
1
0707-
●
●
61
SCREW; GLOVE BOX
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
0707-1101
●
●
61
SCREW; GLOVE BOX
M5X16 HEXALOBULAR SOCKET
8-98177-744-0
04
1
1102-1212
●
●
61
SCREW; GLOVE BOX
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1301-
●
●
69
GRILLE; SIDE,AIR OUTLET
DARK GRAY
8-97582-612-0
02
1
0707-
●
●
109
GRILLE; INST PNL SIDE,UPR
DARK GRAY
8-97585-436-0
01
1
0707-
●
●
133
SCREW; COVER,INST PNL
M5X20 TAPPING HEXALOBULAR
0-72180-520-0
02
1
0707-
●
●
154
NUT
M6 SPIRE NUT
8-97210-973-1
04
1
0707-
●
●
167
BOLT; REINF TO INST
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
06
1
0707-1210
●
●
167
BOLT; REINF TO INST
(B) M6X19.5 W/LK&PL WASHER
8-97360-226-0
06
1
1211-
●
●
167
BOLT; REINF TO INST
(C) M6X25
8-94279-204-0
02
1
0707-
●
●
167
BOLT; REINF TO INST
(A) M6X24 FLANGE
8-94279-231-1
02
1
0707-
●
●
235
SCREW; GRILLE
M5X14
8-94279-325-0
04
1
0707-
●
●
274
NUT; GLOVE BOX
M5 SPIRE NUT
8-94279-051-0
02
1
0707-
●
●
323
SCREW; GLOVE BOX LK
M5X14 TAPPING W/TORQUES
8-98061-856-0
03
1
0707-
●
●
336
COVER; INST PANEL SIDE
DARK GRAY
8-97582-218-4
02
1
0707-
●
●
378
SEAL; INST PANEL
8-97209-399-0
01
1
0707-
●
●
495
BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY
8-97582-214-4
01
1
0707-
●
●
520
SCREW; CLIP,SPRING
M5X14
8-94279-325-0
03
1
0707-
●
●
521
COVER; SUN SENSOR
DARK GRAY
8-97582-334-2
01
1
0707-
●
●
522
LID; RELAY BOX
DARK GRAY
8-97582-494-6
01
1
0707-
●
●
530
CLIP; GLOVE BOX
8-97856-135-0
01
1
0707-
●
●
531
CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU>
8-97853-130-0
01
1
0707-
●
●
532
SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> M5X14 TAPPING W/TORQUES
8-98061-856-0
02
1
0707-
●
●
533
CLIP; SPRING,CTR CLUSTER
8-97853-170-5
02
1
0707-
●
●
566
PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY
8-97582-247-0
01
1
0707-
●
●
581
SCREW
M5X14
8-94279-325-0
02
1
0707-
●
●
607
FIXING ASM; CLIP INST TO M/CSTR
8-97857-893-2
01
1
0707-
●
●
179
179
145
142
513
66
399
11
537
335
693
500
528
49
154
527
501
524
48
62
624
219
525
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
11
BOLT; INST PNL
M8X23 FLANGE
8-97264-766-0
04
1
0707-
●
●
48
SPRING; GLOVE BOX LID
8-97853-750-1
01
1
0707-
●
●
49
LID; GLOVE BOX
DARK GRAY
8-97582-199-5
01
1
0707-
●
●
62
KNOB; GLOVE BOX LID
DARK GRAY
8-97582-487-1
01
1
0707-
●
●
66
REINFORCEMENT; INST PANEL
8-98016-835-2
01
1
0707-
●
●
142
STAY; INST PANEL
8-97856-196-2
01
1
0707-
●
●
145
STAY; INST PANEL SIDE
8-97856-197-2
01
1
0707-
●
●
154
NUT
M6 SPIRE NUT
8-97210-973-1
04
1
0707-
●
●
179
BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER
0-50640-612-0
02
1
0707-
●
●
219
SHAFT; GLOVE BOX LID
5-72547-059-1
01
1
0707-
●
●
335
GROMMET; GLOVE BOX LK
D=8.6X7.7 L=7.5
8-94279-078-0
02
1
0707-
●
●
399
FINISHER; HARNESS
L=50
8-94270-377-1
01
1
0707-
●
●
500
CLUSTER; INST CENTER
DARK GRAY
8-97588-862-4
01
1
0707-
●
●
501
COVER; HOLE,INST CENTER CLUSTER
DARK GRAY
8-97582-210-3
01
1
0707-
●
●
513
BRACKET; RELAY
8-97410-713-2
01
1
0707-
●
●
524
STAND ASM; CUP,INST
CUP HOLDER<7KZ>
8-97853-172-8
01
1
0707-
●
●
525
SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
0707-1101
●
●
525
SCREW; CUP STAND
M5X16 HEXALOBULAR SOCKET
8-98177-744-0
02
1
1102-1212
●
●
525
SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1301-
●
●
527
CLIP; INST CLUSTER
8-97853-169-0
04
1
0707-
●
●
528
COVER; PTO LEVER
PTO TRANSMISSION SIDE(V66) BLACK
8-97868-659-0
01
1
0707-
●
●
537
NUT; BRKT
M6 FLANGE
0-91180-106-0
03
1
0707-
●
●
624
COVER; CUP STAND
EXC. CUP HOLDER<7KZ>
1-72438-139-1
01
1
0707-
●
●
693
BRACKET; DRM
8-98017-994-0
01
1
0707-
●
●
