Sayfa 7-30 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51139 - ELF300(MEXICO) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶

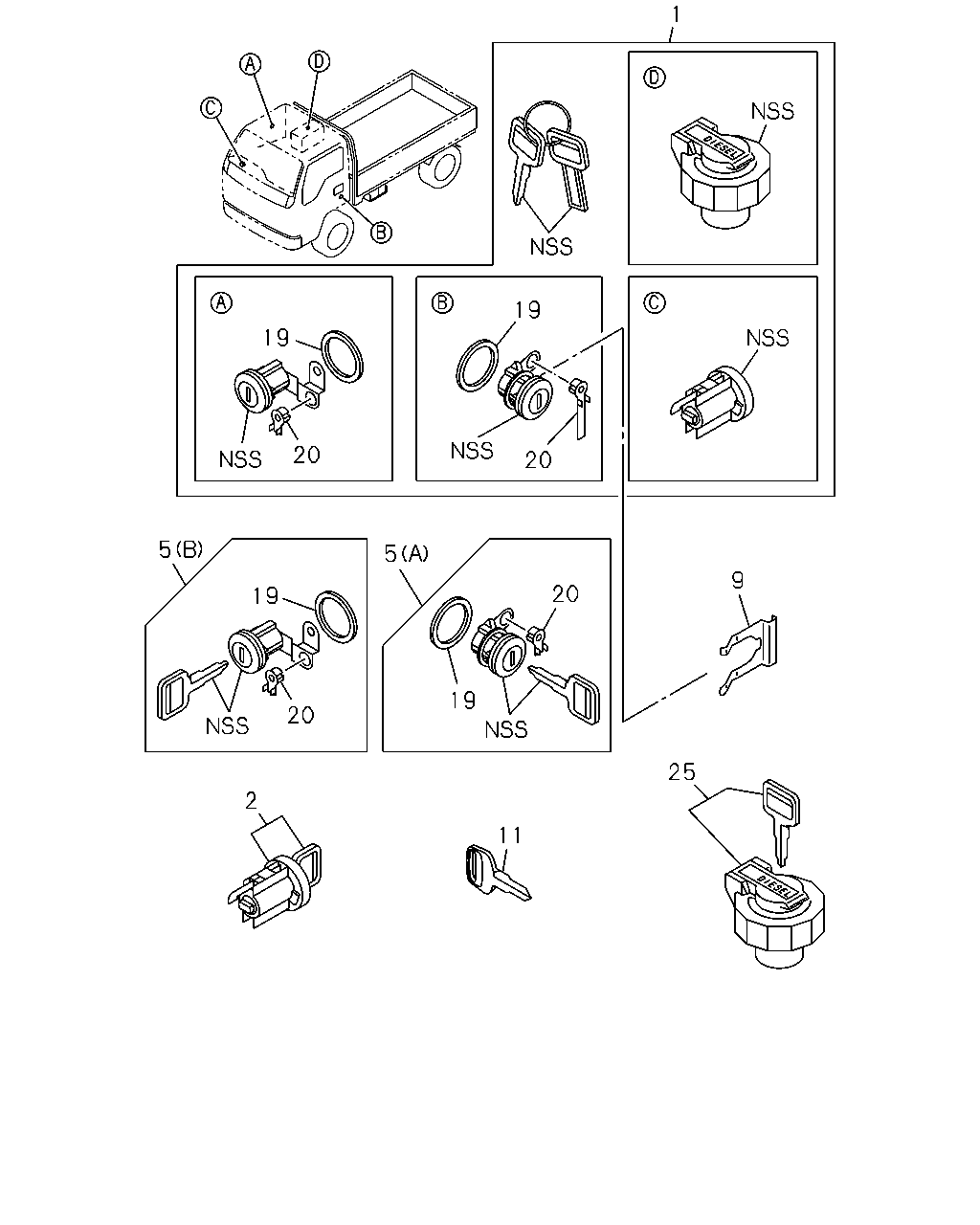

7-30 — LOCK CYLINDER SET (#52297) — 18 parça

1 19 19 20 20 5 5 9 20 19 19 20 25 2 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> EXC. MARK VEHICLE NAME<EK7>	8-97035-294-1	01	1	0707-	●	●
1	CYLINDER SET; CAR LOCK MARK VEHICLE NAME<EK7> FUEL TANK CAP W/LOCK<N05>	8-97092-406-1	01	1	0707-	●	●
1	CYLINDER SET; CAR LOCK MARK VEHICLE NAME<EK7> EXC. FUEL TANK CAP W/LOCK<N05>	8-97092-405-1	01	1	0707-	●	●
1	CYLINDER SET; CAR LOCK EXC. MARK VEHICLE NAME<EK7>,FUEL TANK CAP W/LOCK<N05>	8-97035-293-1	01	1	0707-	●	●
2	BARREL ASM; W/KEY,STRG LOCK MARK VEHICLE NAME<EK7>	8-97095-869-0	01	1	0707-	●	●
2	BARREL ASM; W/KEY,STRG LOCK EXC. MARK VEHICLE NAME<EK7>	8-97095-682-2	01	1	0707-	●	●
5	CYLINDER ASM; DOOR LOCK MARK VEHICLE NAME<EK7> (A)	8-97095-871-0	01	1	0707-	●	●
5	CYLINDER ASM; DOOR LOCK MARK VEHICLE NAME<EK7> (B)	8-97095-870-0	01	1	0707-	●	●
5	CYLINDER ASM; DOOR LOCK EXC. MARK VEHICLE NAME<EK7> (A)	8-97095-685-2	01	1	0707-	●	●
5	CYLINDER ASM; DOOR LOCK EXC. MARK VEHICLE NAME<EK7> (B)	8-97095-684-2	01	1	0707-	●	●
9	CLIP; DOOR LOCK	8-97410-786-0	02	1	0707-	●	●
11	KEY; BLANK MARK VEHICLE NAME<EK7> WO/NOTCH	8-97108-649-0	AR	1	0707-	●	●
11	KEY; BLANK EXC. MARK VEHICLE NAME<EK7> WO/NOTCH	8-97076-337-0	AR	1	0707-	●	●
19	GASKET; DOOR LOCK CYL	8-94128-739-0	02	1	0707-	●	●
20	SNAP; DOOR LOCK CYL BROWN	8-97040-453-0	01	1	0707-	●	●
20	SNAP; DOOR LOCK CYL YELLOW	8-97040-452-0	01	1	0707-	●	●
25	CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05> EXC. MARK VEHICLE NAME<EK7>	8-97095-686-2	01	1	0707-	●	●
25	CAP; FUEL TANK,W/KEY MARK VEHICLE NAME<EK7> FUEL TANK CAP W/LOCK<N05>	8-97095-872-0	01	1	0707-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
