7-20 — MIRROR AND MIRROR STAY (#52296) — 54 parça

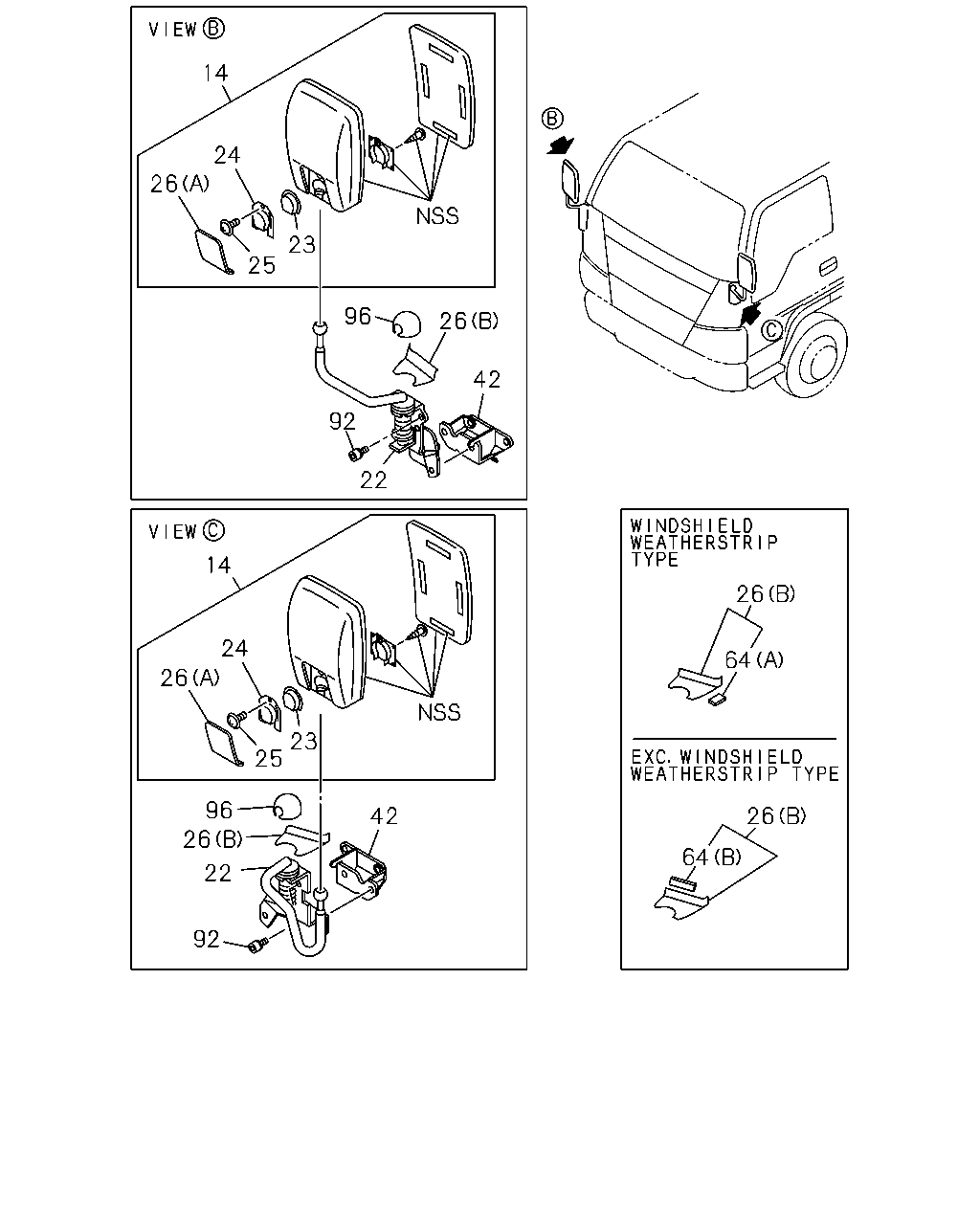

çizim 57541
14 24 26 23 25 96 26 42 92 22 14 26 24 64 26 23 25 96 42 26 26 64 22 92
BalonParca AdiParca NoAdetTipApplied Date A B
14 MIRROR ASM; OUTSIDE 8-94262-542-3 01 1 0707- ● ●
14 MIRROR ASM; OUTSIDE 8-94262-542-3 01 1 0707- ● ●
22 STAY; OUTSIDE MIRROR 8-98039-576-1 01 1 0707- ● ●
22 STAY; OUTSIDE MIRROR 8-98039-572-1 01 1 0707- ● ●
23 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 0707- ● ●
23 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 0707- ● ●
24 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 0707- ● ●
24 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 0707- ● ●
25 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 0707- ● ●
25 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 0707- ● ●
26 COVER; OUTSIDE MIRROR
(A) T=2.3 		8-94262-547-2 01 1 0707- ● ●
26 COVER; OUTSIDE MIRROR
(A) T=2.3 		8-94262-547-2 01 1 0707- ● ●
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97589-166-0 01 1 0707- ● ●
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97589-159-1 01 1 0707- ● ●
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-840-4 01 1 0707-0807 ● ●
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-840-4 01 1 0808-0809 ● ●
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) WHITE 		8-97582-840-4 01 1 0810- ● ●
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-840-4 01 1 0810- ● ●
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-831-5 01 1 0707-0807 ● ●
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-831-5 01 1 0808-0809 ● ●
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) WHITE 		8-97582-831-5 01 1 0810- ● ●
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-831-5 01 1 0810- ● ●
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97589-168-0 01 1 0707- ● ●
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97589-161-1 01 1 0707- ● ●
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-844-4 01 1 0707-0807 ● ●
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-844-4 01 1 0808- ● ●
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-835-5 01 1 0707-0807 ● ●
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-835-5 01 1 0808- ● ●
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97589-167-0 01 1 0707- ● ●
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97589-160-1 01 1 0707- ● ●
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-842-4 01 1 0707-0807 ● ●
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-842-4 01 1 0808- ● ●
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-833-5 01 1 0707-0807 ● ●
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-833-5 01 1 0808- ● ●
42 ATTACHMENT; OUTSIDE MIRROR 8-97581-755-2 01 1 0707- ● ●
42 ATTACHMENT; OUTSIDE MIRROR 8-97581-625-2 01 1 0707- ● ●
64 SEAL; MIRROR
WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-98015-058-0 02 1 0707- ● ●
64 SEAL; MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 		8-98015-057-0 02 1 0707-0807 ● ●
64 SEAL; MIRROR
EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98015-057-0 02 1 0808-0809 ● ●
64 SEAL; MIRROR
IDENTIFICATION LABEL FOR KD<6UT> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 		8-98015-057-0 02 1 0808-0809 ● ●
64 SEAL; MIRROR
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98015-057-0 02 1 0810- ● ●
64 SEAL; MIRROR
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 		8-98015-057-0 02 1 0810- ● ●
92 BOLT; STAY BRKT,MIRROR
M8X30 W/LK WASHER 		8-98020-347-0 10 1 0707- ● ●
96 CAP; MIRROR STAY 8-97581-631-2 02 1 0707- ● ●
çizim 58405
4 162 2 159 3 158 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97406-215-1 01 1 0707- ● ●
1 MIRROR; ROOM
EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97582-242-2 01 1 0707- ● ●
2 SCREW; MIRROR TO BODY
TRAY ROOF HEAD<7EJ> M5X20 		5-09981-059-0 02 1 0707- ● ●
2 SCREW; MIRROR TO BODY
EXC. TRAY ROOF HEAD<7EJ> M5X16 		8-94279-341-0 02 1 0707- ● ●
3 STOPPER; RR VIEW MIRROR
WINDSHIELD WEATHERSTRIP TYPE<7EL> L=31 		8-97859-098-2 01 1 0707- ● ●
3 STOPPER; RR VIEW MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> L=22 		8-97857-352-1 01 1 0707- ● ●
4 GROMMET; SCREW,ROOM MIRROR
TRAY ROOF HEAD<7EJ> 		8-94279-039-0 01 1 0707- ● ●
158 LENS; ROOM LAMP 5-73117-108-1 01 1 0707- ● ●
159 BULB; ROOM LAMP
24V 10W 		5-82194-030-0 01 1 0707- ● ●
162 SEAL; ROOM LAMP
TRAY ROOF HEAD<7EJ> 		8-97856-532-0 01 1 0707- ● ●
