6-76 — FLOOR EQUIPMENT AND SEALING (#52288) — 25 parça

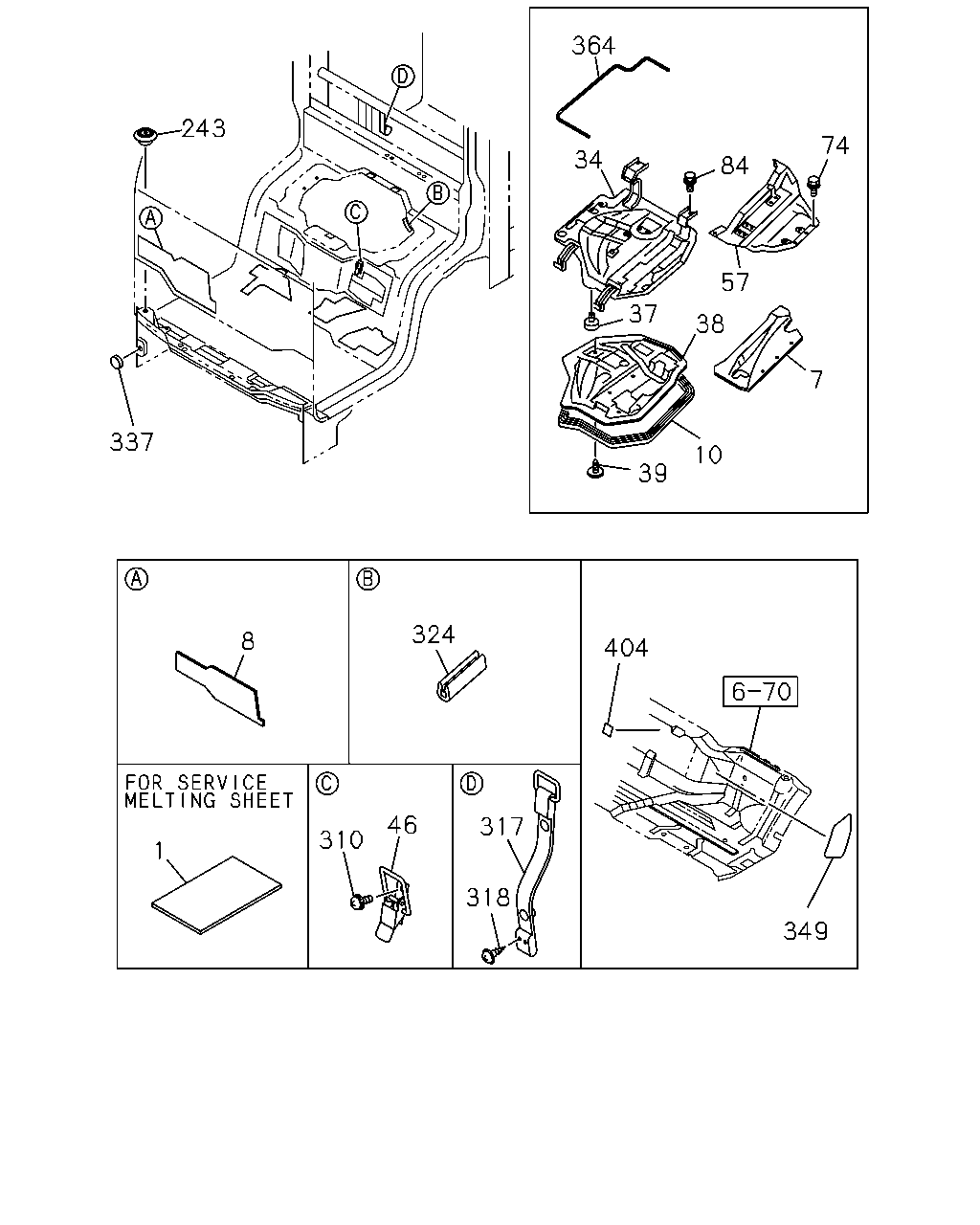

çizim 58404
364 243 74 34 84 57 37 38 7 337 10 39 324 8 404 46 317 310 1 318 349
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 0707- ● ●
7 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97856-207-1 01 1 0707- ● ●
8 MAT; SILENCER,FRT PANEL 8-98019-713-2 02 1 0707- ● ●
10 SEAL; ENG COVER 8-97853-010-4 01 1 0707- ● ●
34 COVER ASM; ENG,CAB FLOOR 8-97850-678-1 01 1 0707- ● ●
37 RUBBER; BUFFER,ENG COVER
OD=30 T=10 		5-74917-001-2 02 1 0707- ● ●
38 INSULATOR; ENG COVER 8-97856-204-1 01 1 0707- ● ●
39 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0707- ● ●
39 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 07 1 0707- ● ●
46 HOOK ASM; ENG COVER 8-97853-632-2 02 1 0707- ● ●
57 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97866-693-1 01 1 0707- ● ●
74 BOLT; SUPPORT COVER TO FLOOR
M8X20 FLANGE 		0-28650-820-0 04 1 0707- ● ●
74 BOLT; SUPPORT COVER TO FLOOR
M8X25 FLANGE 		0-28650-825-0 01 1 0707- ● ●
84 BOLT; ENG COVER HINGE
M8X20 FLANGE 		0-28650-820-0 04 1 0707- ● ●
243 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0707- ● ●
310 SCREW; ENG COVER HOOK
M6X16 		0-38050-616-0 04 1 0707-0810 ● ●
310 SCREW; ENG COVER HOOK
M6X16 FLANGE 		0-28650-616-0 04 1 0811- ● ●
317 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0707- ● ●
318 SCREW; BAND
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0707- ● ●
324 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0707- ● ●
337 SEAL; CLIP HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0707- ● ●
349 PROTECTOR 8-98090-191-1 01 1 0707- ● ●
349 PROTECTOR 8-98090-192-1 01 1 0707- ● ●
364 FINISHER; ENG COVER SIDE
L=1100 		8-97892-744-0 01 1 0707- ● ●
404 SEAL; FLOOR,HOLE 8-98040-837-0 01 1 0707- ● ●
