6-70 — FLOOR PANEL (#52286) — 37 parça

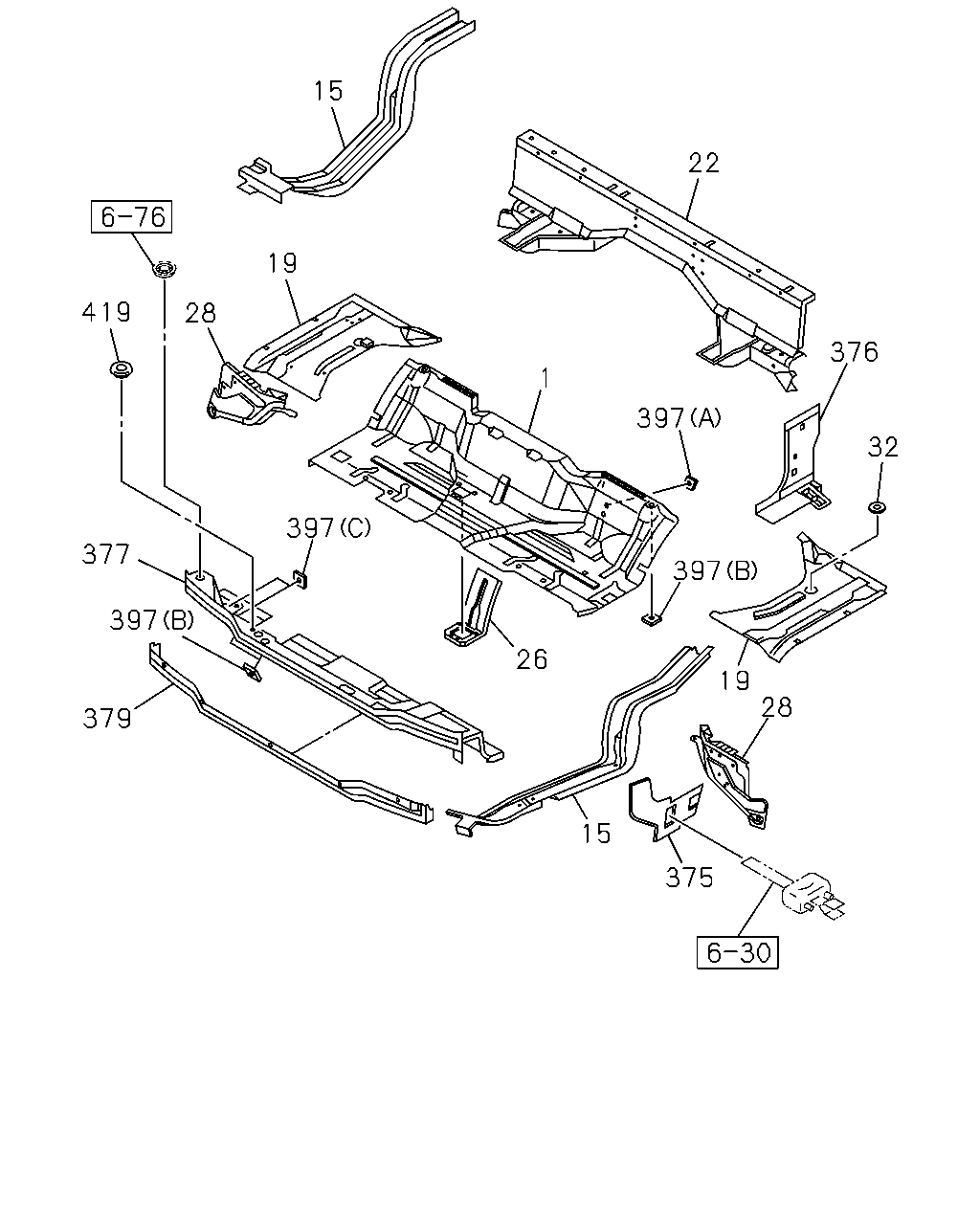

çizim 57009
15 22 19 419 28 376 1 397 32 397 377 397 397 26 19 28 379 15 375
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR
MANUAL TILT CAB<RWZ> 		8-97850-332-7 01 1 0707- ● ●
15 FRAME; UNDER
MANUAL TILT CAB<RWZ> 		8-97850-060-9 01 1 0707- ● ●
15 FRAME; UNDER
MANUAL TILT CAB<RWZ> 		8-98013-405-0 01 1 0707- ● ●
19 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-337-5 01 1 0707- ● ●
19 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-335-5 01 1 0707- ● ●
22 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-345-8 01 1 0707-0711 ● ●
22 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-98082-185-4 01 1 0712- ● ●
26 PANEL; GEAR CONT REINF
MANUAL TILT CAB<RWZ> 		8-97850-005-6 01 1 0707- ● ●
28 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-97850-017-7 01 1 0707-1106 ● ●
28 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-98170-771-0 01 1 1107- ● ●
28 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-97850-338-5 01 1 0707-1106 ● ●
28 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-98170-770-0 01 1 1107- ● ●
32 GROMMET; FLOOR PANEL,LOCATION HOLE
OD=53.5 		8-94356-253-0 02 1 0707- ● ●
375 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97850-087-4 01 1 0707- ● ●
375 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97850-086-5 01 1 0707- ● ●
376 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-923-1 01 1 0707- ● ●
376 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-320-6 01 1 0707- ● ●
377 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> 		8-97850-351-9 01 1 0707- ● ●
379 PANEL
MANUAL TILT CAB<RWZ> 		8-97581-639-0 01 1 0707- ● ●
397 NUT; PIERCE
MANUAL TILT CAB<RWZ> (C) M10 		9-09114-030-0 03 1 0707- ● ●
397 NUT; PIERCE
MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0707- ● ●
397 NUT; PIERCE
MANUAL TILT CAB<RWZ> (B) M8 		9-09114-048-0 04 1 0707- ● ●
397 NUT; PIERCE
MANUAL TILT CAB<RWZ> (B) M8 		9-09114-048-0 03 1 0707- ● ●
419 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) OD=36 		1-09983-092-0 01 1 0707- ● ●

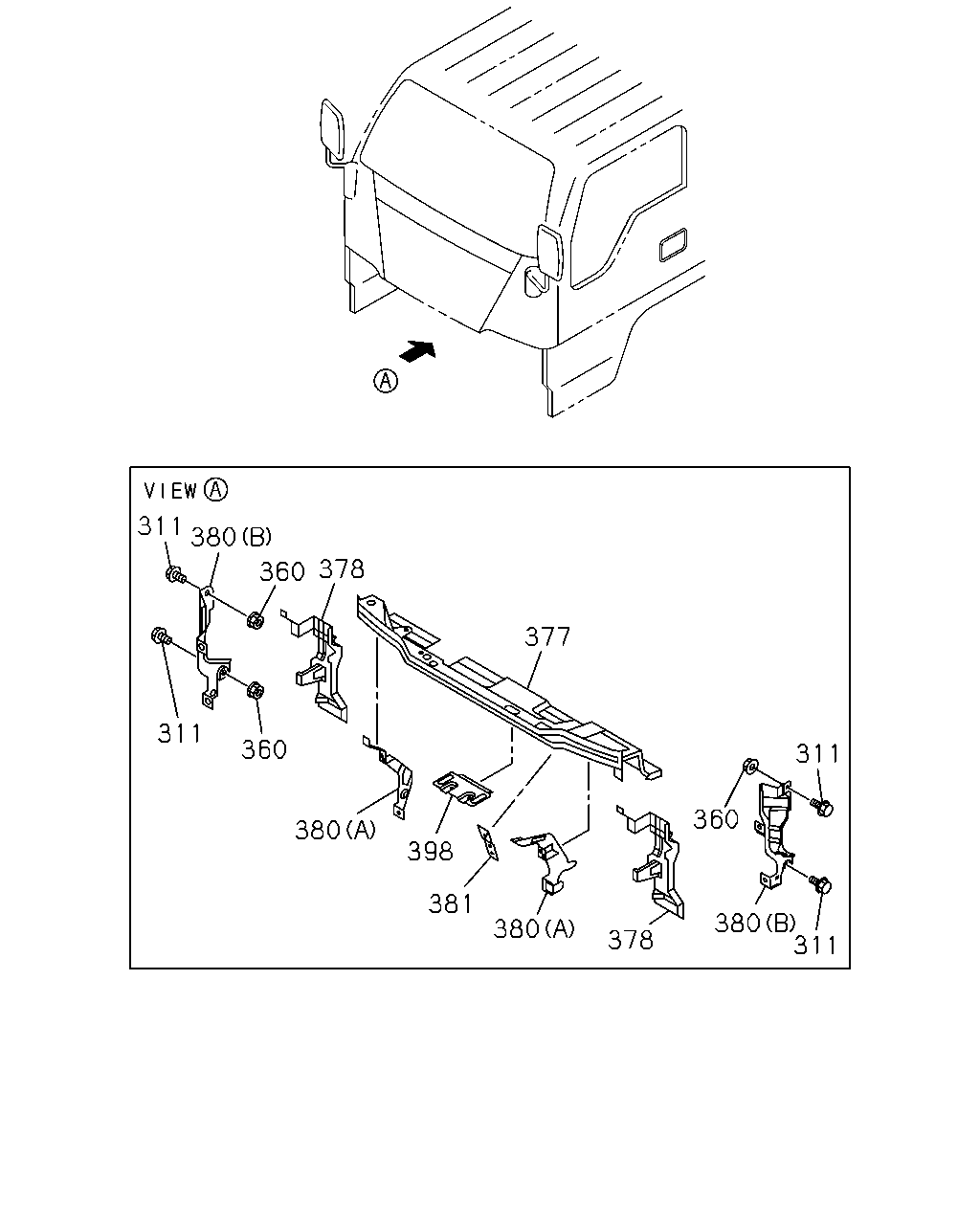

çizim 58462
311 380 378 360 377 311 360 311 360 380 398 381 380 311 380 378
BalonParca AdiParca NoAdetTipApplied Date A B
311 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0707-0804 ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0805- ● ●
360 NUT; BRKT
M6 POP NUT 		8-94279-537-0 02 1 0707-0805 ● ●
360 NUT; BRKT
M6 POP NUT 		8-98013-752-0 02 1 0806- ● ●
377 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> 		8-97850-351-9 01 1 0707- ● ●
378 GASSET; LWR
MANUAL TILT CAB<RWZ> 		8-97581-828-2 01 1 0707- ● ●
378 GASSET; LWR
MANUAL TILT CAB<RWZ> 		8-97581-827-2 01 1 0707- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98006-088-0 01 1 0707- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98006-087-0 01 1 0707- ● ●
380 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> (A) 		8-97850-359-1 01 1 0707- ● ●
380 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> (A) 		8-97850-704-0 01 1 0707- ● ●
381 BRACKET; AIR INTAKE DUCT,FRT
MANUAL TILT CAB<RWZ> 		8-97850-352-1 01 1 0707- ● ●
398 BRACKET; PIPE SUPPORT
MANUAL TILT CAB<RWZ> 		8-97850-318-1 01 1 0707- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
