Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#52282) — 44 parça

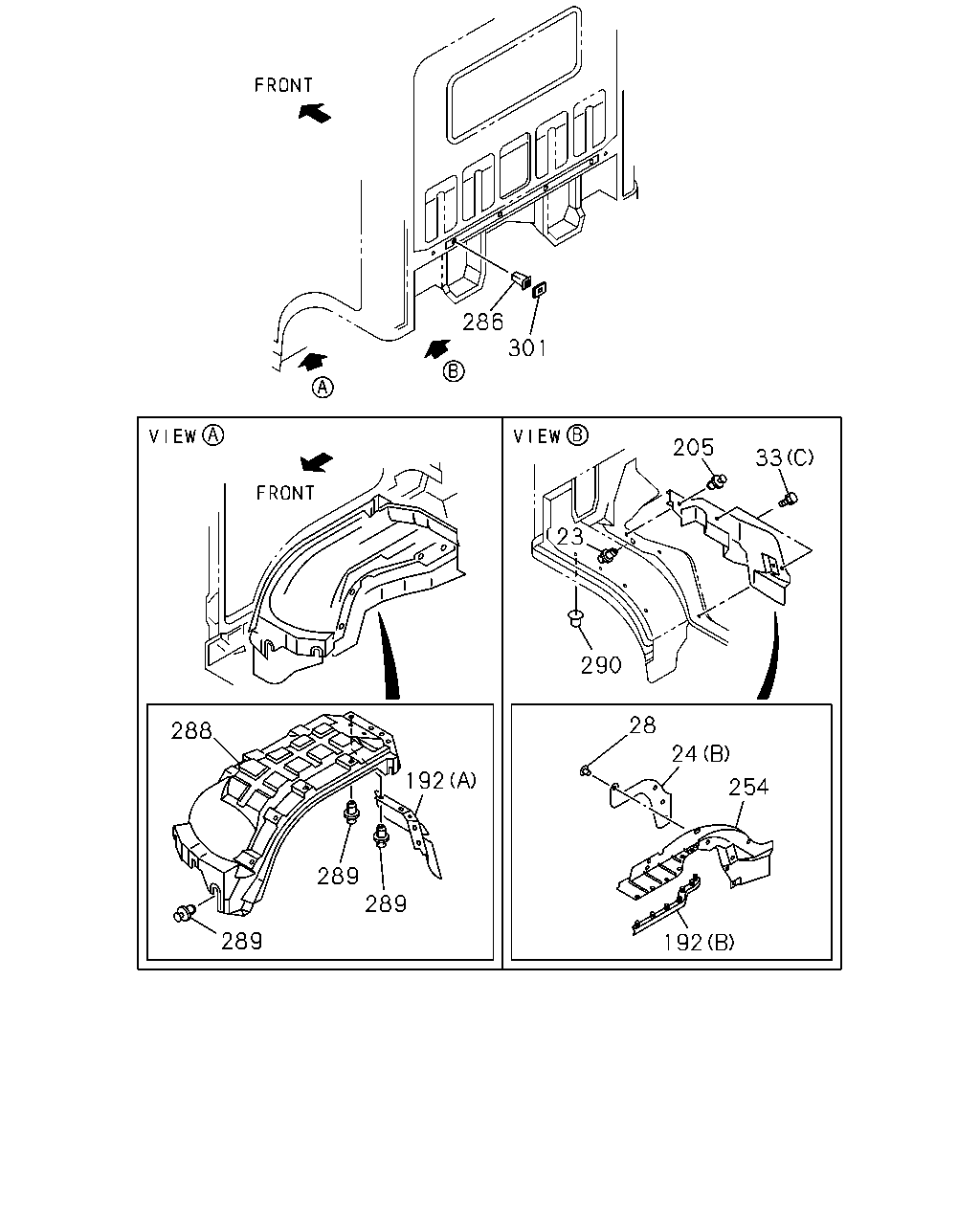

286 301 205 33 23 290 28 288 24 192 254 289 289 289 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	FASTENER; MUD COVER OD=8.3	8-97997-832-0	10	1	0707-	●	●
24	PLATE; MUD COVER (A)	8-97095-186-0	02	1	0707-	●	●
24	PLATE; MUD COVER (B)	8-97996-187-2	01	1	0707-	●	●
28	CLIP OD=14	8-97582-733-0	04	1	0707-	●	●
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28050-616-0	08	1	0707-	●	●
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28050-820-0	05	1	0707-	●	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0707-0805	●	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-	●	●
33	BOLT; MUD COVER (C) M6X26 W/PL WASHER	8-98035-643-0	04	1	0707-	●	●
192	SEAL; MUD COVER (A)	8-97896-994-1	02	1	0707-1106	●	●
192	SEAL; MUD COVER (A)	8-98192-033-0	02	1	1107-	●	●
192	SEAL; MUD COVER (B)	8-98032-333-1	01	1	0707-	●	●
192	SEAL; MUD COVER (B)	8-98032-335-1	01	1	0707-	●	●
205	FASTENER; MUD COVER D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	0707-	●	●
254	COVER; MUD,VALANCE	8-97898-947-5	01	1	0707-	●	●
254	COVER; MUD,VALANCE	8-97898-946-6	01	1	0707-	●	●
286	GROMMET; SCREW,HEAT PROTECTOR	8-97994-312-0	04	1	0707-	●	●
288	LINER; TIRE HOUSE	8-97581-241-0	01	1	0707-	●	●
288	LINER; TIRE HOUSE	8-97581-240-0	01	1	0707-	●	●
289	FASTENER; LINER OD=8.3	8-94279-989-0	18	1	0707-	●	●
290	NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	0707-	●	●
301	HOLDER; HEAT PROTECTOR	8-97994-313-0	04	1	0707-	●	●

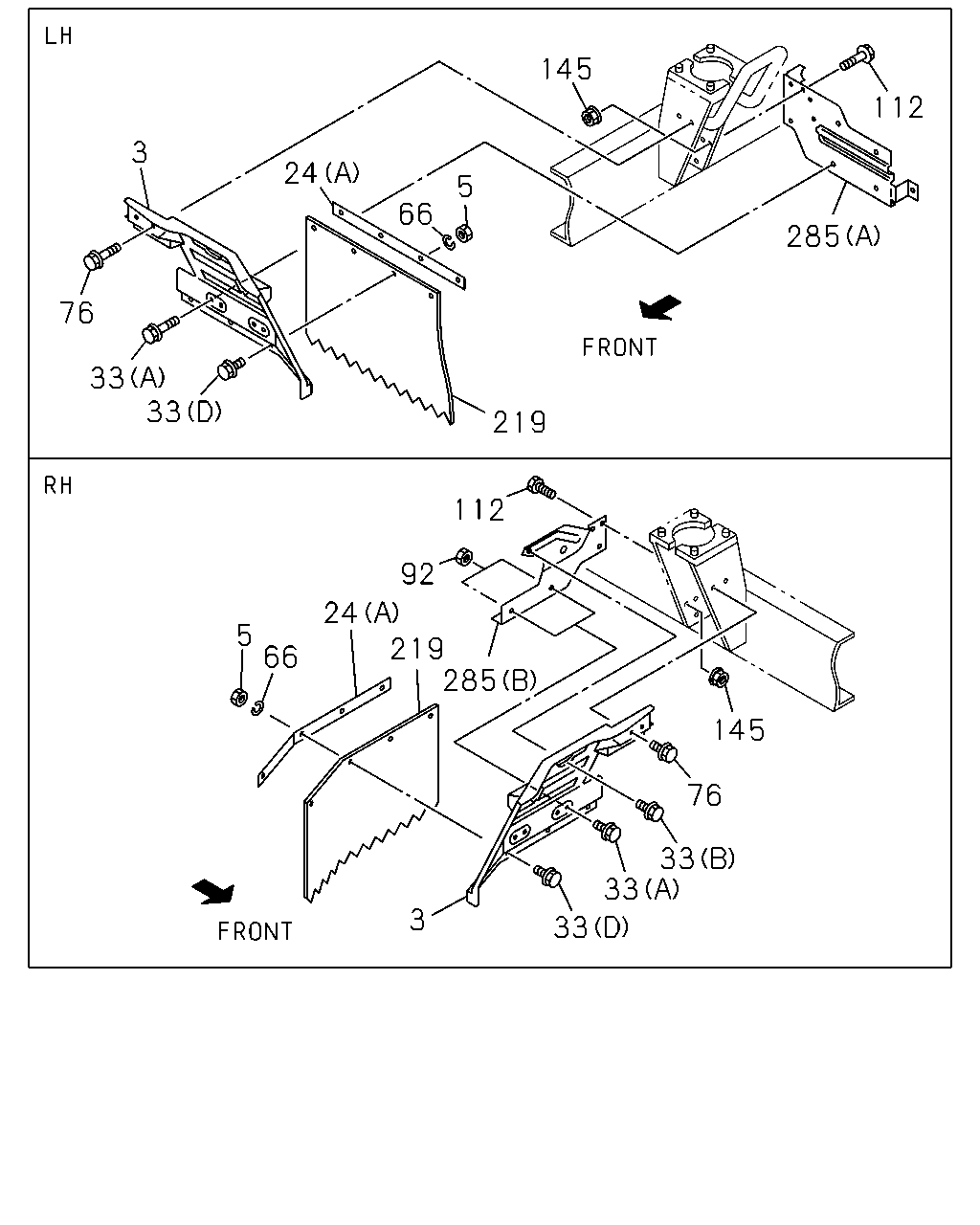

145 112 3 24 5 66 285 76 33 33 219 112 92 24 219 285 5 66 145 76 33 33 3 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	GUARD; MUD,RR	8-97366-988-1	01	1	0707-	●	●
3	GUARD; MUD,RR	8-98003-974-0	01	1	0707-	●	●
5	NUT; FLAP RUBBER M6	0-91111-506-0	08	1	0707-	●	●
24	PLATE; MUD COVER (A)	8-97095-186-0	02	1	0707-	●	●
24	PLATE; MUD COVER (B)	8-97996-187-2	01	1	0707-	●	●
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28050-616-0	08	1	0707-	●	●
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28050-820-0	05	1	0707-	●	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0707-0805	●	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-	●	●
33	BOLT; MUD COVER (C) M6X26 W/PL WASHER	8-98035-643-0	04	1	0707-	●	●
66	WASHER; LK ID=6.1	0-91510-506-0	08	1	0707-	●	●
76	BOLT; MUD GUARD M8X20 FLANGE	0-28050-820-0	02	1	0707-	●	●
92	NUT; MUD COVER M8 FLANGE	0-91180-108-0	02	1	0707-	●	●
112	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	05	1	0707-	●	●
145	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	0707-	●	●
219	FLAP; MUD GUARD	8-97218-078-0	02	1	0707-	●	●
285	BRACKET; MUD COVER (A)	8-97225-272-1	01	1	0707-	●	●
285	BRACKET; MUD COVER (B)	8-97089-653-2	01	1	0707-	●	●

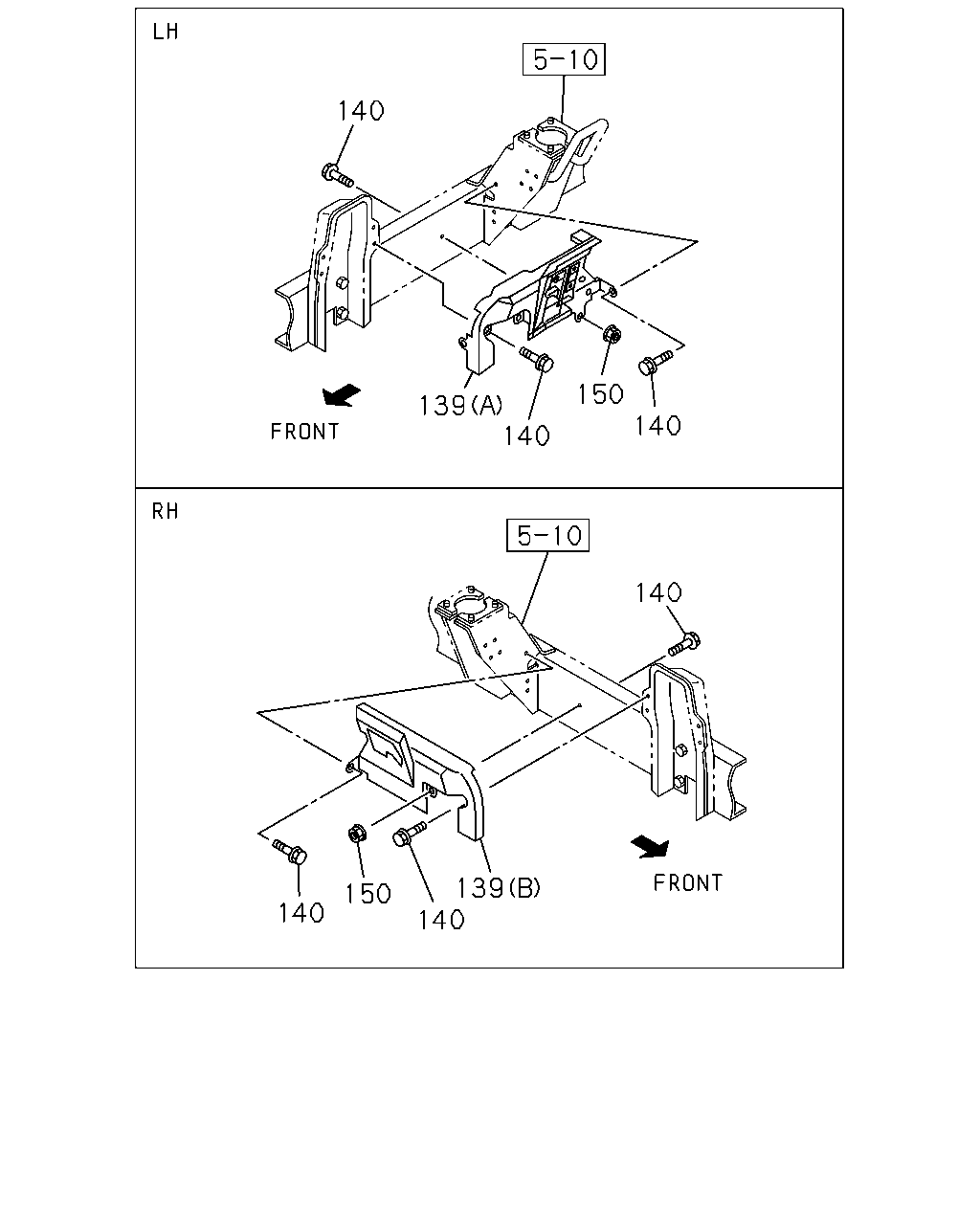

140 150 139 140 140 140 139 140 150 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
139	PANEL; SIDE (A)	8-97388-535-1	01	1	0707-	●	●
139	PANEL; SIDE (B)	8-97388-534-0	01	1	0707-	●	●
140	BOLT; SIDE PANEL M8X25 W/LK&PL WASHER	1-09030-093-0	05	1	0707-	●	●
150	NUT; SIDE PANEL M8 FLANGE	0-91180-108-0	02	1	0707-	●	●
