◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51139 - ELF300(MEXICO) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-32 - FRONT DOOR LOCK AND HANDLE ▶
6-32 — FRONT DOOR LOCK AND HANDLE (#52279) — 34 parça

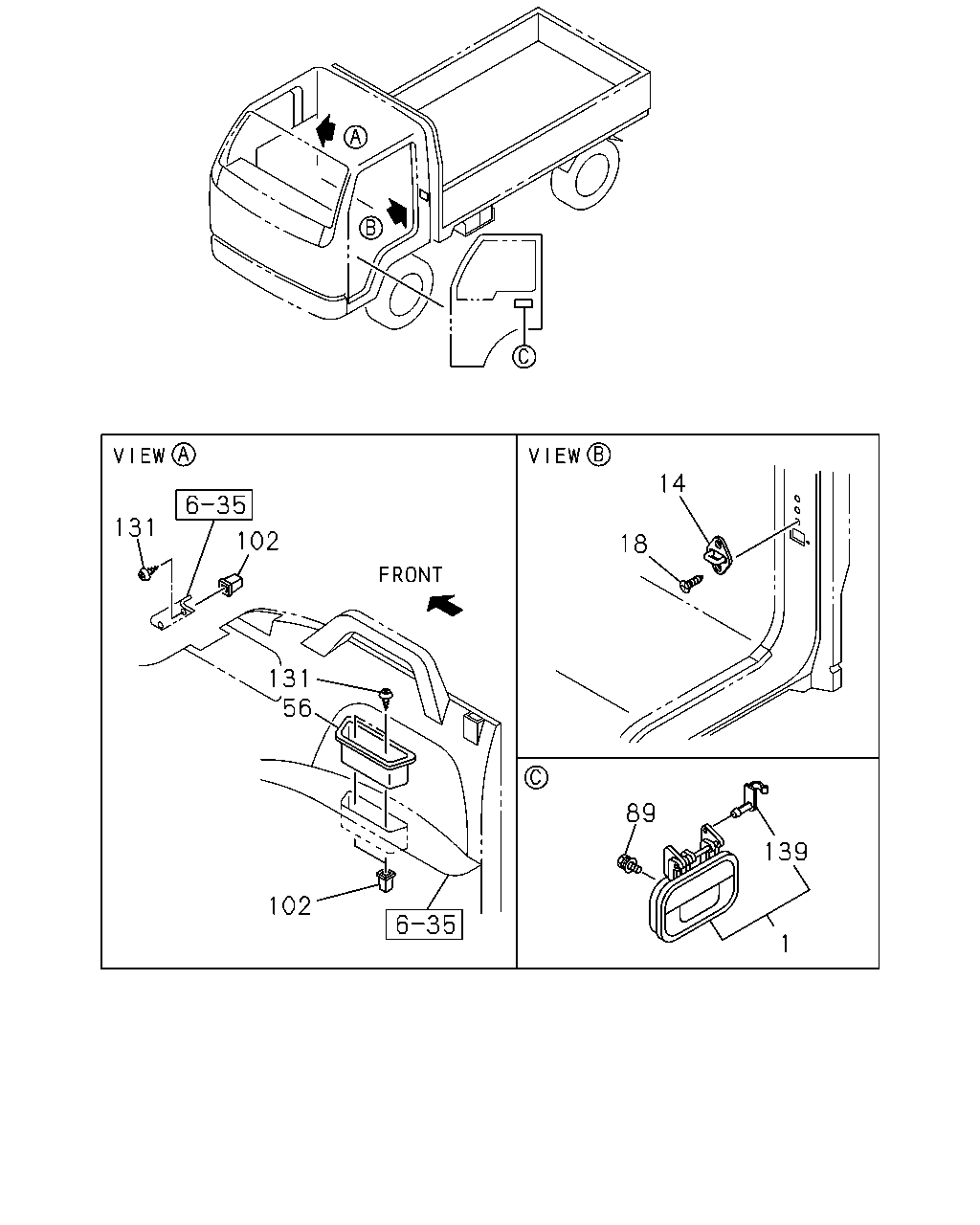

çizim 56832
14 131 102 18 131 56 89 139 102 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; OUTSIDE,FRT DOOR 8-97867-722-1 01 1 0707- ● ●
1 HANDLE; OUTSIDE,FRT DOOR 8-97867-721-1 01 1 0707- ● ●
14 STRIKER; FRT DOOR 8-97221-702-1 02 1 0707- ● ●
18 SCREW; DOOR STRIKER
M8X20 CK-HEAD 		8-98004-343-2 04 1 0707- ● ●
56 ESCUTCHEON; LOCK KNOB
GRAY 		8-97406-318-3 02 1 0707- ● ●
89 BOLT; DOOR OUTSIDE HANDLE
M6X8 W/TORQUES 		8-98064-276-1 04 1 0707- ● ●
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0707- ● ●
131 SCREW; ESCUTCHEON,DOOR PULL
M5X12 HEX SOCKET 		0-72380-512-0 06 1 0707- ● ●
139 HOLDER; ROD,DOOR HANDLE 8-97852-652-1 01 1 0707- ● ●
139 HOLDER; ROD,DOOR HANDLE 8-97852-651-1 01 1 0707- ● ●

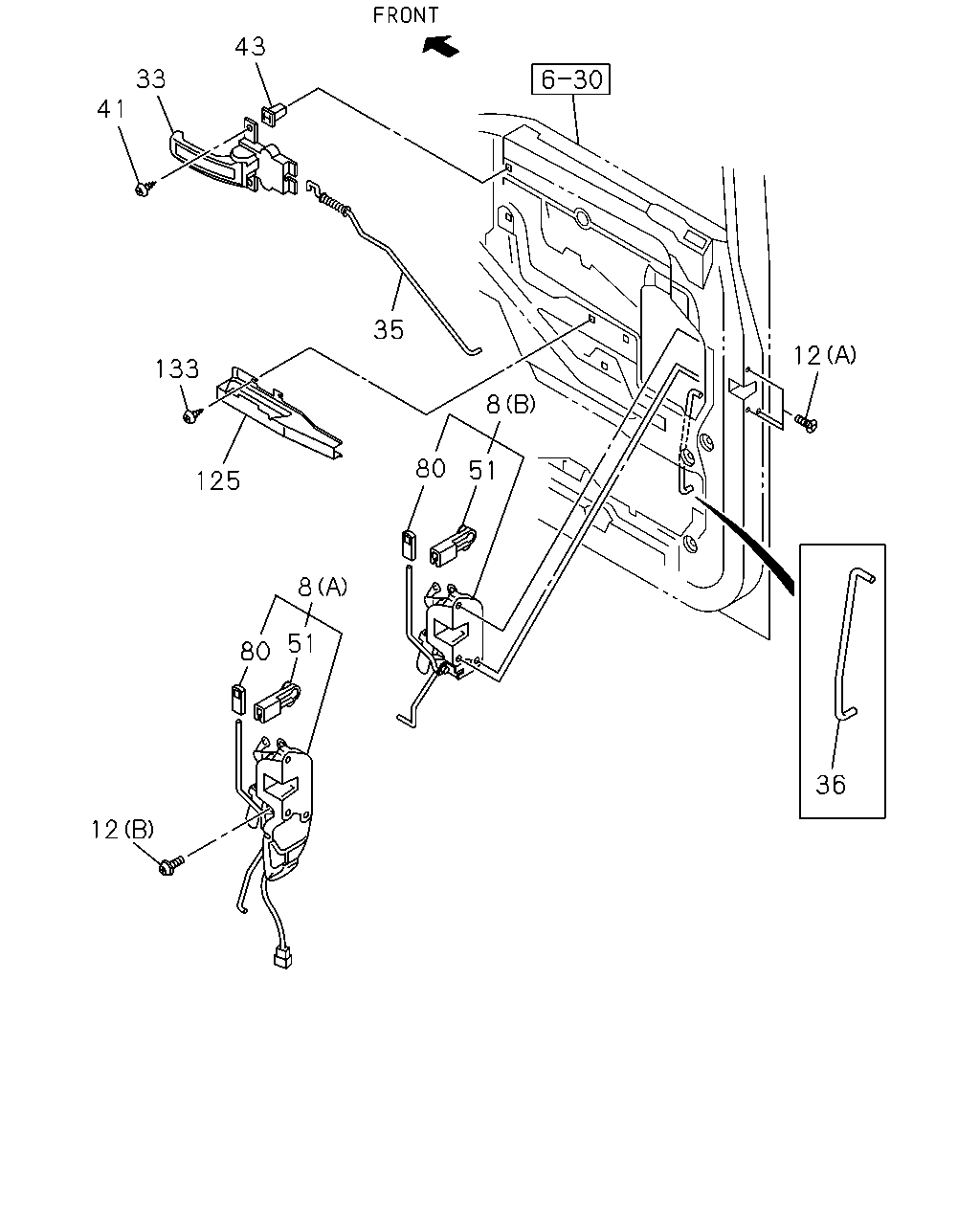

çizim 57553
41 33 43 35 133 125 80 8 51 8 51 80 12 12 36
BalonParca AdiParca NoAdetTipApplied Date A B
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) GRAY 		8-97587-490-2 01 1 0707- ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) GRAY 		8-97588-868-2 01 1 0707-1009 ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) GRAY 		8-97421-009-0 01 1 1010-1405 ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) GRAY 		8-97428-937-0 01 1 1406- ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) GRAY 		8-97406-310-2 01 1 0707- ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) GRAY 		8-97406-309-2 01 1 0707- ● ●
12 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> (B) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 01 1 1406- ● ●
12 SCREW; DOOR LK
(A) M6X14.5 		8-98004-342-0 06 1 0707- ● ●
33 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97409-389-0 01 1 0707- ● ●
33 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97409-388-0 01 1 0707- ● ●
35 LINK; DOOR LOCK,INSIDE 8-97890-887-3 01 1 0707- ● ●
35 LINK; DOOR LOCK,INSIDE 8-97890-886-3 01 1 0707- ● ●
36 LINK; DOOR LOCK,OUTSIDE 8-97890-885-0 01 1 0707- ● ●
36 LINK; DOOR LOCK,OUTSIDE 8-97890-884-0 01 1 0707- ● ●
41 SCREW; INSIDE HANDLE
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 0707- ● ●
43 GROMMET; SCREW,INSIDE LEVER,DOOR
D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 0707- ● ●
51 SNAP; FRT DOOR LOCK CONT ROD 8-97859-069-0 01 1 0707- ● ●
51 SNAP; FRT DOOR LOCK CONT ROD 8-97852-643-0 01 1 0707- ● ●
80 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> GRAY 		8-97582-706-0 01 1 0707- ● ●
80 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> GRAY 		8-97582-706-0 01 1 0707- ● ●
80 KNOB; DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> GRAY 		8-97406-876-0 02 1 0707- ● ●
125 BRACKET; DOOR PULL 8-97869-460-1 01 1 0707- ● ●
125 BRACKET; DOOR PULL 8-97869-459-1 01 1 0707- ● ●
133 SCREW; DOOR PULL STAY
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 06 1 0707- ● ●
