◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51139 - ELF300(MEXICO) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#52278) — 53 parça

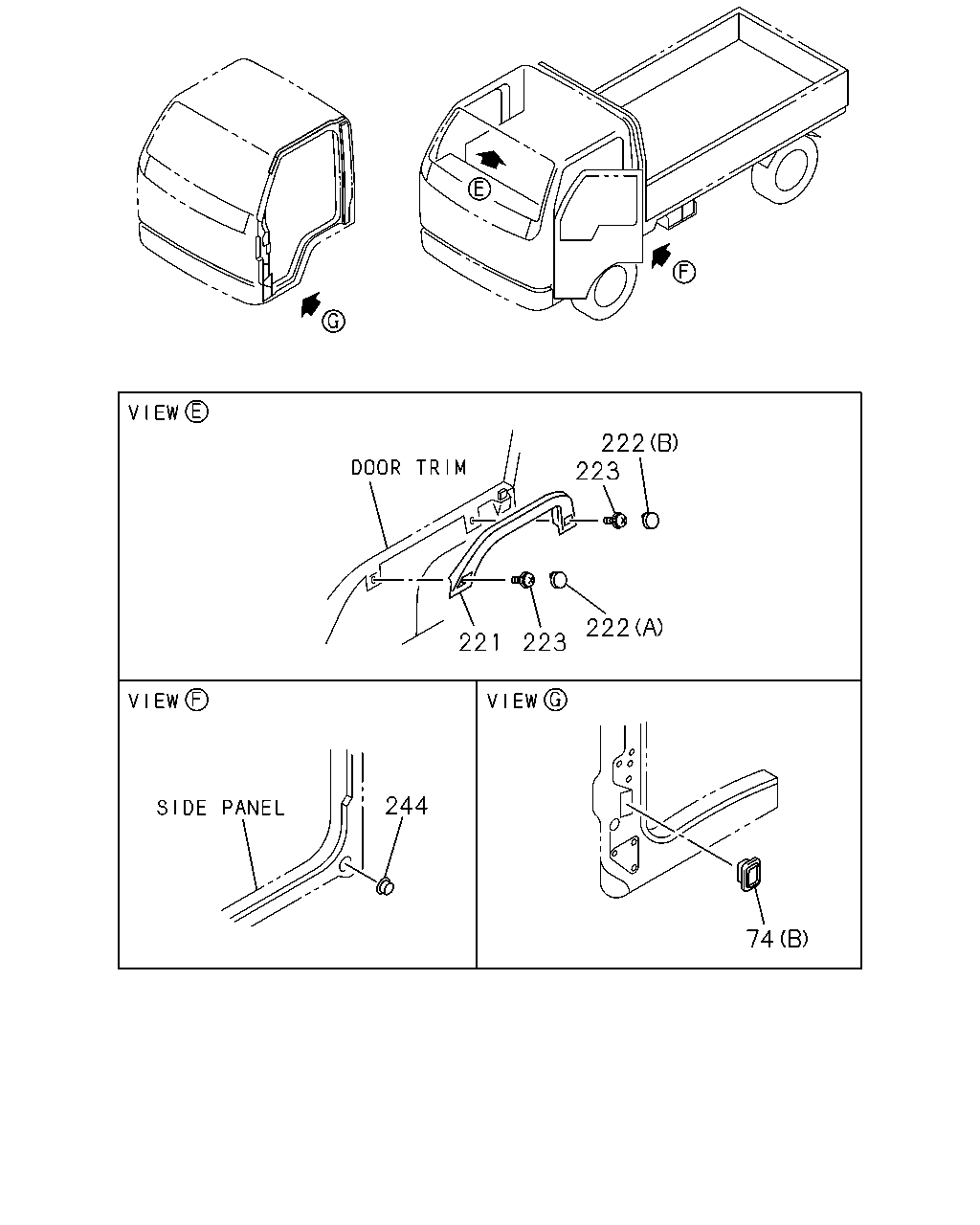

çizim 13101
222 223 221 223 222 244 74
BalonParca AdiParca NoAdetTipApplied Date A B
74 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73> (A) OD=48 T=9.1 		8-94279-053-0 02 1 0707-1003 ● ●
74 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) OD=48 T=9.1 		8-94279-053-0 02 1 1004- ● ●
74 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73> (B) 		8-94279-736-0 02 1 0707-1003 ● ●
74 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) 		8-94279-736-0 02 1 1004- ● ●
221 BAR ASM; DOOR GLASS GUARD
GRAY 		8-97582-310-1 01 1 0707- ● ●
221 BAR ASM; DOOR GLASS GUARD
GRAY 		8-97582-309-1 01 1 0707- ● ●
222 CAP; GUARD BAR
(A) FRONT GRAY 		8-97582-312-0 02 1 0707- ● ●
222 CAP; GUARD BAR
(B) REAR GRAY 		8-97582-313-0 02 1 0707- ● ●
223 SCREW; GUARD BAR
M6X18 W/TORQUES 		8-98064-277-0 04 1 0707- ● ●
244 STOPPER; DOOR 8-97890-484-0 02 1 0707- ● ●

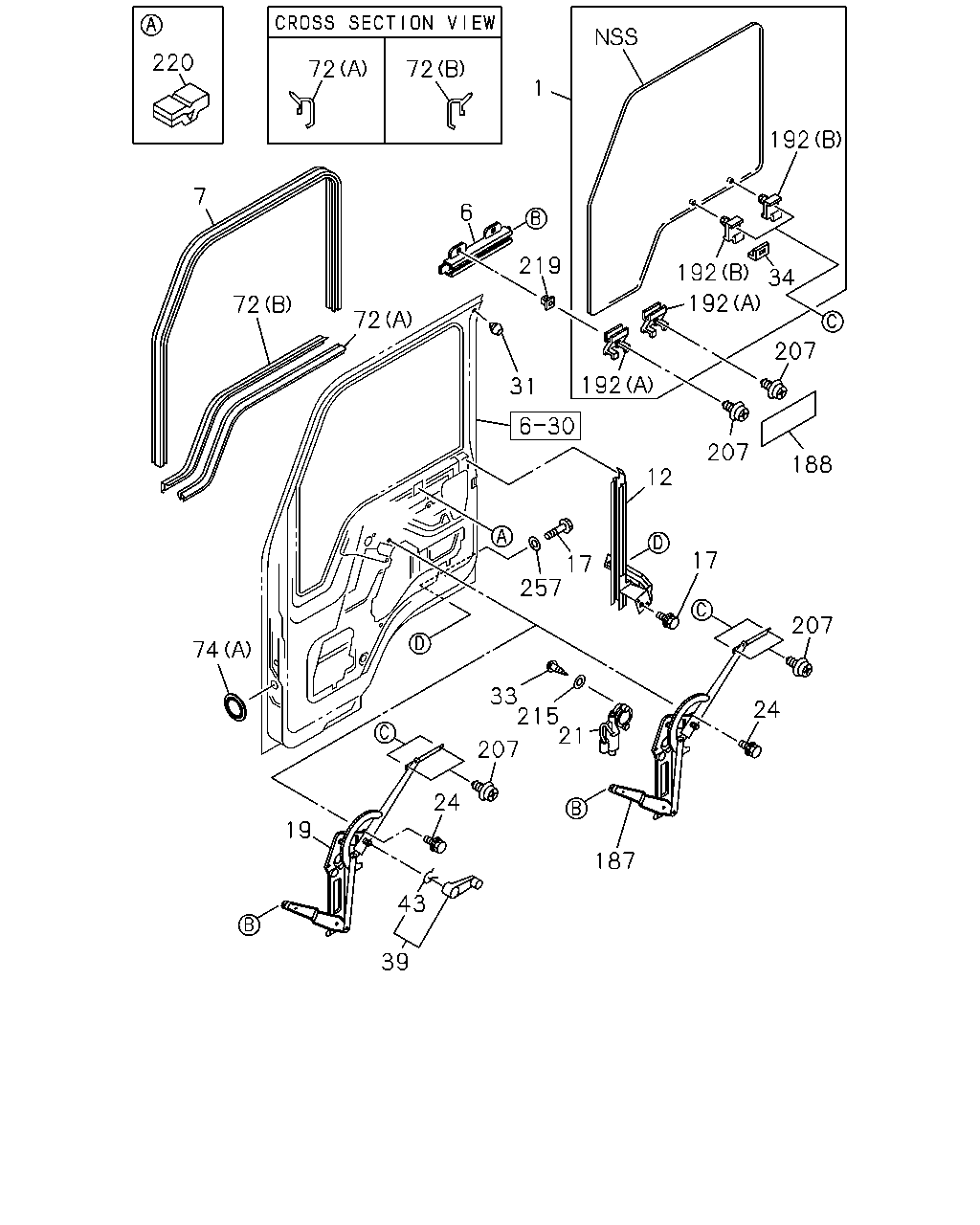

çizim 57569
220 72 72 7 1 72 72 219 31 192 192 192 34 207 192 207 12 188 17 17 207 24 187 21 215 33 207 24 43 39 19 74 257 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
ASAHI 		8-97867-418-1 01 1 0707- ● ●
1 GLASS; FRT DOOR
ASAHI 		8-97867-417-1 01 1 0707- ● ●
6 CHANNEL; DOOR GLASS
W/ROLLER&PROTECTOR 		8-97898-425-1 02 1 0707- ● ●
7 GLASS RUN; FRT DOOR 8-97852-143-4 01 1 0707- ● ●
7 GLASS RUN; FRT DOOR 8-97852-142-4 01 1 0707- ● ●
12 CHANNEL; GLASS RUN,FRT 8-97852-112-5 01 1 0707-1212 ● ●
12 CHANNEL; GLASS RUN,FRT 8-97996-046-0 01 1 1301- ● ●
12 CHANNEL; GLASS RUN,FRT 8-97852-111-5 01 1 0707-1212 ● ●
12 CHANNEL; GLASS RUN,FRT 8-97867-650-0 01 1 1301- ● ●
17 SCREW; RR CHANNEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 04 1 0707-1101 ● ●
17 SCREW; RR CHANNEL
T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 04 1 1102-1212 ● ●
17 SCREW; RR CHANNEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 04 1 1301- ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-116-8 01 1 0707- ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-115-8 01 1 0707- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97898-480-0 01 1 0707- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97898-479-0 01 1 0707- ● ●
24 SCREW; WINDOW REG
M8X6.5 W/TORQUES 		8-98064-275-2 10 1 0707-0710 ● ●
24 SCREW; WINDOW REG
M6X8 W/LK&PL WASHER 		8-94279-401-0 10 1 0711-0802 ● ●
24 SCREW; WINDOW REG
M6X9 LK+W/PL WASHER&TORQUES 		8-98108-677-0 10 1 0803- ● ●
31 STOPPER; RUBBER,DOOR INNER 8-97852-022-1 02 1 0707- ● ●
33 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> 		8-98097-389-0 06 1 0707- ● ●
34 STOPPER; WINDOW REG 8-97852-012-0 02 1 0707- ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97582-306-0 02 1 0707-0709 ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-98090-302-0 02 1 0710- ● ●
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-94220-591-0 02 1 0707- ● ●
72 SEAL; WAIST,FRT DOOR
(A) INNER 		8-97852-118-6 01 1 0707- ● ●
72 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97855-293-6 01 1 0707- ● ●
72 SEAL; WAIST,FRT DOOR
(A) INNER 		8-97852-117-6 01 1 0707- ● ●
72 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97855-292-6 01 1 0707- ● ●
74 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73> (A) OD=48 T=9.1 		8-94279-053-0 02 1 0707-1003 ● ●
74 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) OD=48 T=9.1 		8-94279-053-0 02 1 1004- ● ●
74 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73> (B) 		8-94279-736-0 02 1 0707-1003 ● ●
74 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) 		8-94279-736-0 02 1 1004- ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97868-114-3 01 1 0707- ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97868-113-3 01 1 0707- ● ●
188 PROTECTOR; DOOR SEAL 8-97994-698-1 02 1 0707- ● ●
192 HOLDER; DOOR GLASS
(A) 		8-97852-076-1 04 1 0707- ● ●
192 HOLDER; DOOR GLASS
(B) 		8-97852-077-1 04 1 0707- ● ●
207 SCREW; DOOR GLASS
M4X14.5 TAPPING 		8-98020-522-2 08 1 0707- ● ●
215 SPACER; WINDOW REG
POWER WINDOW FRT DOOR<A32> 		8-97388-942-0 02 1 0707- ● ●
219 GROMMET; SCREW,CHANNEL,REG 8-94326-756-0 04 1 0707- ● ●
220 SEAL; LINK ROD 8-97852-321-0 02 1 0707- ● ●
257 WASHER; G/RUN CHANNEL
ID=6.5 OD=30 		9-09851-911-0 02 1 1301- ● ●
