6-30 — FRONT DOOR AND HINGE (#52277) — 16 parça

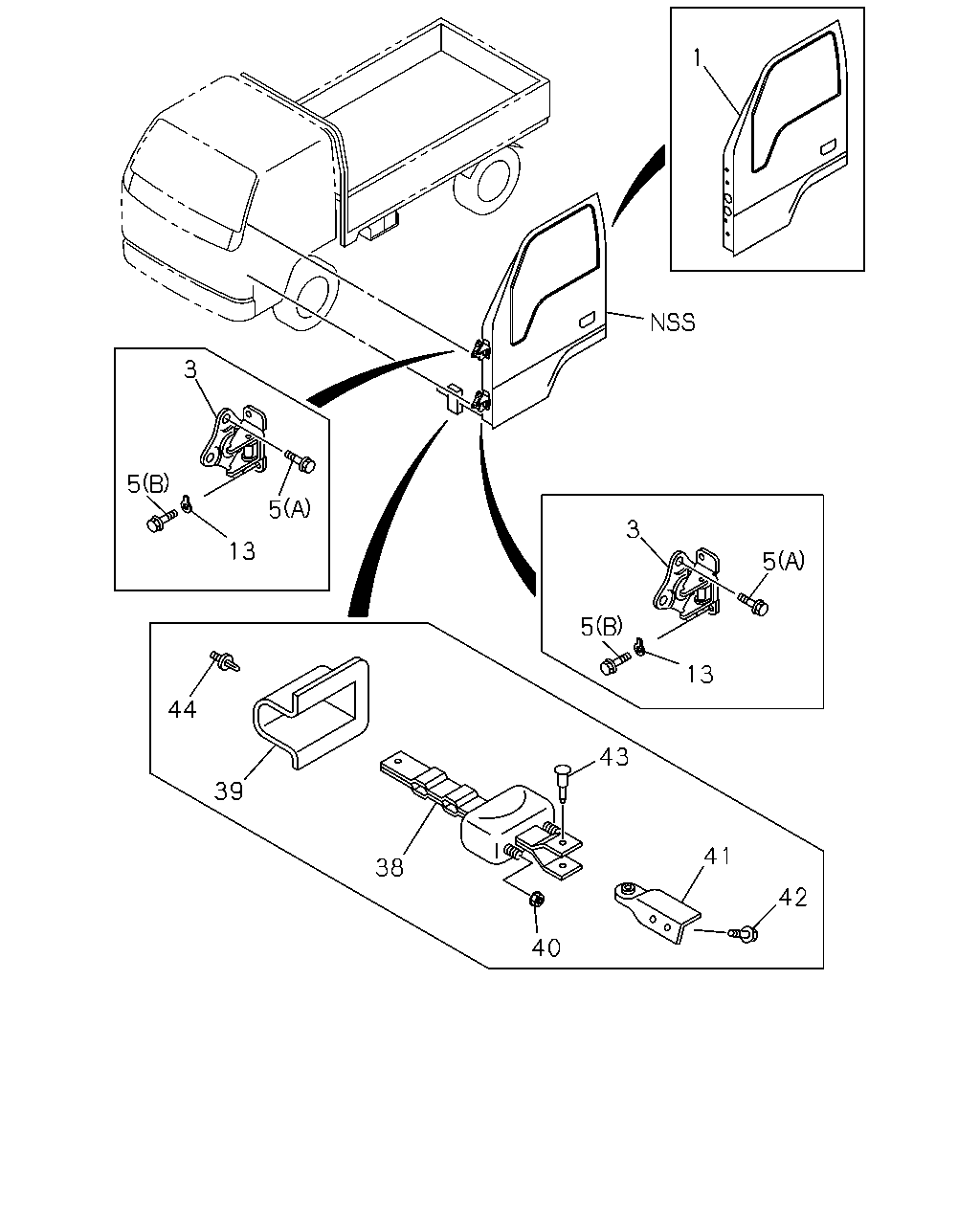

çizim 56862
1 3 5 3 13 5 5 13 44 43 39 41 38 42 40 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 DOOR ASM; FRT,WO/TRIM 8-97581-448-2 01 1 0707- ● ●
1 DOOR ASM; FRT,WO/TRIM 8-97581-447-1 01 1 0707- ● ●
3 HINGE; DOOR FRT 8-97852-007-5 04 1 0707- ● ●
5 BOLT; HINGE
(B) M8X22 FLANGE 		8-94279-098-1 08 1 0707- ● ●
5 BOLT; HINGE
(A) M8X18 W/LK&PL WASHER 		8-94279-232-0 12 1 0707- ● ●
13 WASHER; HINGE
ID=8.1 W/SEAL 		8-97890-584-1 04 1 0707- ● ●
38 CHECKER ASM; DOOR 8-97581-681-3 02 1 0707- ● ●
39 COVER; CHECKER 8-97852-365-5 02 1 0707- ● ●
40 NUT; CHECKER
M8 FLANGE 		0-91180-108-0 04 1 0707- ● ●
41 BRACKET; CHECKER 8-97852-403-1 01 1 0707- ● ●
41 BRACKET; CHECKER 8-97852-402-1 01 1 0707- ● ●
42 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0707-0808 ● ●
42 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-98051-939-0 04 1 0809-1201 ● ●
42 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1202- ● ●
43 PIN 8-97852-057-1 02 1 0707- ● ●
44 FASTENER; COVER
OD=8.3 		8-97997-832-0 02 1 0707- ● ●
