◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51139 - ELF300(MEXICO) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#52276) — 62 parça

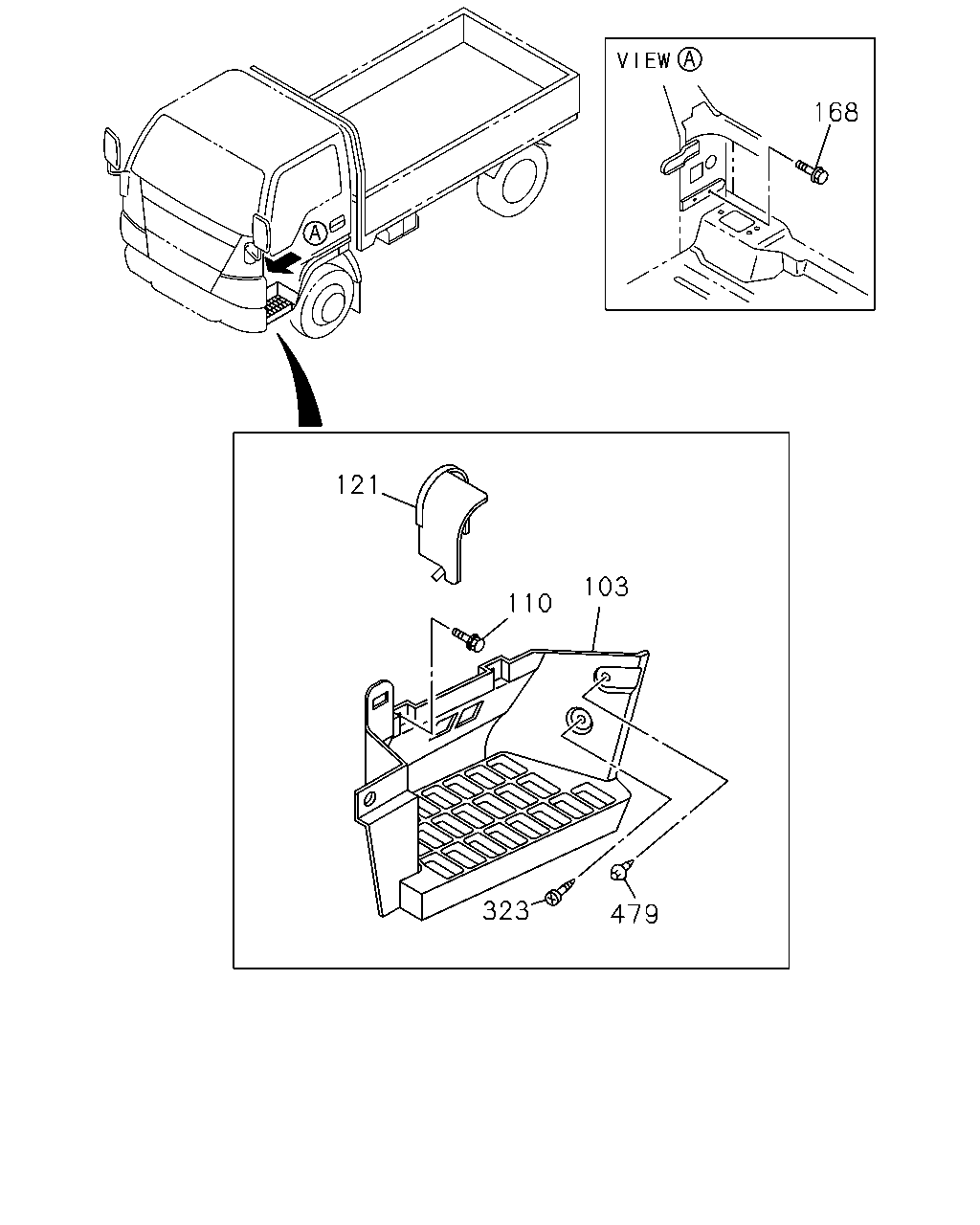

çizim 58322
168 121 103 110 323 479
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP 8-97997-854-0 01 1 0707- ● ●
103 PLATE; STEP 8-97997-853-0 01 1 0707- ● ●
110 BOLT; 1ST STEP PLATE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0707-0908 ● ●
110 BOLT; 1ST STEP PLATE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0909- ● ●
121 COVER; STEP PLATE 8-97997-856-0 01 1 0707- ● ●
121 COVER; STEP PLATE 8-97997-855-0 01 1 0707- ● ●
168 BOLT; BODY SIDE PANEL
M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0707- ● ●
323 SCREW; SET
M8X14 		8-94279-386-1 04 1 0707- ● ●
479 RIVET; STEP PLATE
OD=8 		1-09983-125-0 02 1 0707- ● ●

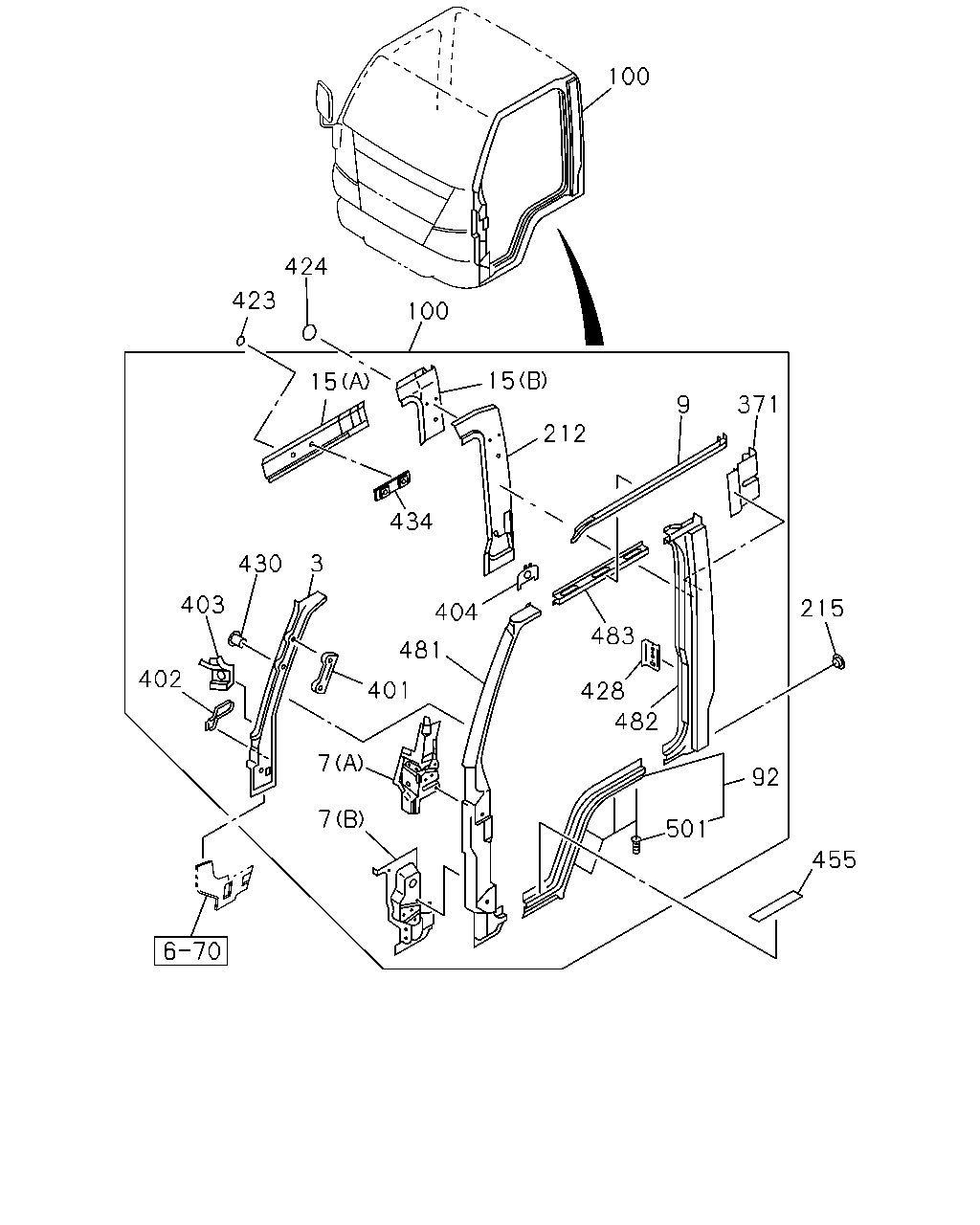

çizim 58330
100 424 423 100 15 15 371 9 212 434 3 430 403 215 404 483 481 402 401 428 482 7 92 7 501 455
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR 8-97851-358-4 01 1 0707- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-97851-357-4 01 1 0707- ● ●
7 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-5 01 1 0707- ● ●
7 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-354-2 01 1 0707- ● ●
7 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-5 01 1 0707- ● ●
7 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-353-2 01 1 0707- ● ●
9 MOLDING; DRIP,CAB SIDE 8-97851-020-9 01 1 0707-1106 ● ●
9 MOLDING; DRIP,CAB SIDE 8-98177-624-0 01 1 1107- ● ●
9 MOLDING; DRIP,CAB SIDE 8-97851-019-9 01 1 0707-1106 ● ●
9 MOLDING; DRIP,CAB SIDE 8-98177-623-0 01 1 1107- ● ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97851-335-5 01 1 0707- ● ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97851-337-6 01 1 0707- ● ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97851-334-5 01 1 0707- ● ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97851-336-6 01 1 0707- ● ●
92 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 0707- ● ●
92 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 0707- ● ●
100 PANEL ASM; BODY SIDE 8-97890-396-1 01 1 0707- ● ●
100 PANEL ASM; BODY SIDE 8-97890-399-1 01 1 0707- ● ●
212 CLOSING; PILLAR 8-97890-453-4 01 1 0707- ● ●
212 CLOSING; PILLAR 8-97890-452-4 01 1 0707- ● ●
215 GROMMET; RR PILLAR
OD=35 		8-94122-971-0 01 1 0707- ● ●
371 PATCH; SEAT BELT 8-97851-049-1 01 1 0707- ● ●
371 PATCH; SEAT BELT 8-97851-048-1 01 1 0707- ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0707- ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0707- ● ●
402 BRACKET; SUPPORT 8-97851-086-1 01 1 0707- ● ●
402 BRACKET; SUPPORT 8-97851-085-1 01 1 0707- ● ●
403 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 0707- ● ●
403 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 0707- ● ●
404 BRACKET 8-97890-317-1 01 1 0707- ● ●
404 BRACKET 8-97890-317-1 01 1 0707- ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 0707- ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0707- ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINEBLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0707- ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINEBLUE(890) OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0707- ● ●
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0707- ● ●
424 SEAL; CLOSING
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINEBLUE(890) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0707- ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97851-446-1 01 1 0707- ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97851-445-1 01 1 0707- ● ●
430 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 0707-0805 ● ●
430 NUT; PANEL
M6 POP NUT 		8-98013-752-0 01 1 0806- ● ●
430 NUT; PANEL
M8 POP NUT 		8-94279-538-0 02 1 0707-0805 ● ●
430 NUT; PANEL
M8 POP NUT 		8-98021-404-0 02 1 0806- ● ●
434 PATCH; ASSIST GRIP 8-94267-191-1 01 1 0707- ● ●
455 PROTECTOR; STEP 8-98027-816-0 02 1 0707- ● ●
481 PANEL; SIDE FRT PILLAR 8-98268-138-0 01 1 0707- ● ●
481 PANEL; SIDE FRT PILLAR 8-98268-139-0 01 1 0707- ● ●
482 PANEL; SIDE RR PILLAR 8-97851-522-4 01 1 0707- ● ●
482 PANEL; SIDE RR PILLAR 8-97851-521-4 01 1 0707- ● ●
483 PANEL; SIDE CANTRAIL 8-97851-525-2 01 1 0707- ● ●
483 PANEL; SIDE CANTRAIL 8-97851-524-2 01 1 0707- ● ●
501 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0707- ● ●
501 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0707- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
