6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#52275) — 15 parça

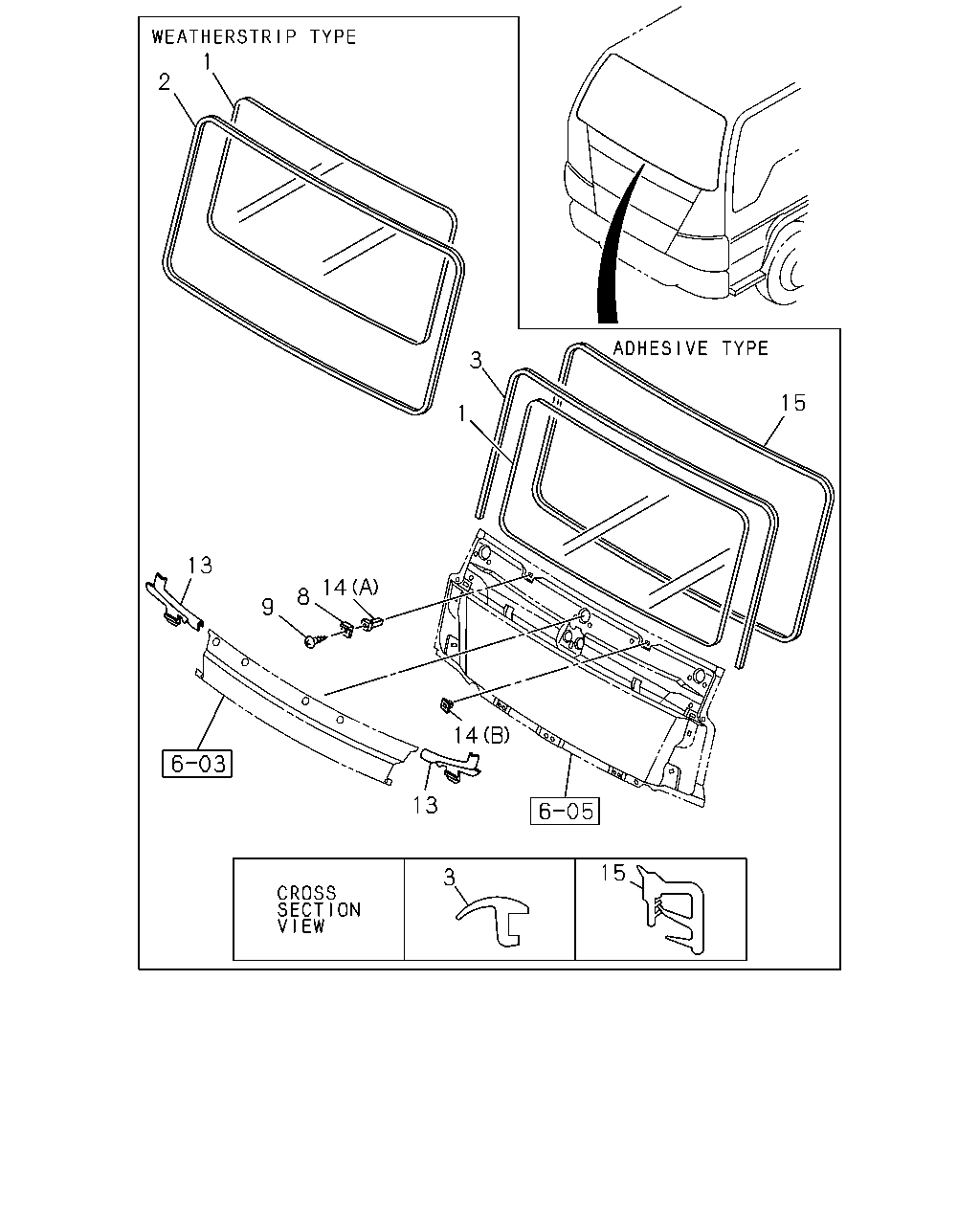

çizim 58658
1 2 13 9 8 14 14 13 3 15 15 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; WINDSHIELD 8-97869-124-0 01 1 0707-0805 ● ●
1 GLASS; WINDSHIELD 8-97997-944-1 01 1 0806- ● ●
2 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97856-351-4 01 1 0707- ● ●
3 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-678-3 01 1 0707- ● ●
8 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-1 02 1 0707-1304 ● ●
8 STOPPER; WINDSHIELD GLASS
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-1 02 1 1305- ● ●
9 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> M5X14 		8-94279-325-0 02 1 0707-1304 ● ●
9 SCREW; STOPPER
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> M5X14 		8-94279-325-0 02 1 1305- ● ●
13 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-618-3 01 1 0707- ● ●
13 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-617-4 01 1 0707- ● ●
14 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>,KD PREPARATORY PACK VAR.4<7TV> (B) D=7.9X7.9 L=11.4 M5 		8-94367-528-0 02 1 1305- ● ●
14 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0707-1304 ● ●
14 GROMMET; SCREW,STOPPER
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1305- ● ●
14 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 14.5X14.5 BLACK 		8-94279-714-0 04 1 0707- ● ●
15 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY 		8-97582-226-7 01 1 0707- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
