◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51139 - ELF300(MEXICO) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#52274) — 27 parça
çizim 13836
525 21
BalonParca AdiParca NoAdetTipApplied Date A B
21 GROMMET; SCREW,FRT SIDE PANEL
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 0707- ● ●
525 SEAL; FENDER
MANUAL TILT CAB<RWZ> OD=25 BLACK 		1-76798-019-0 03 1 0707- ● ●

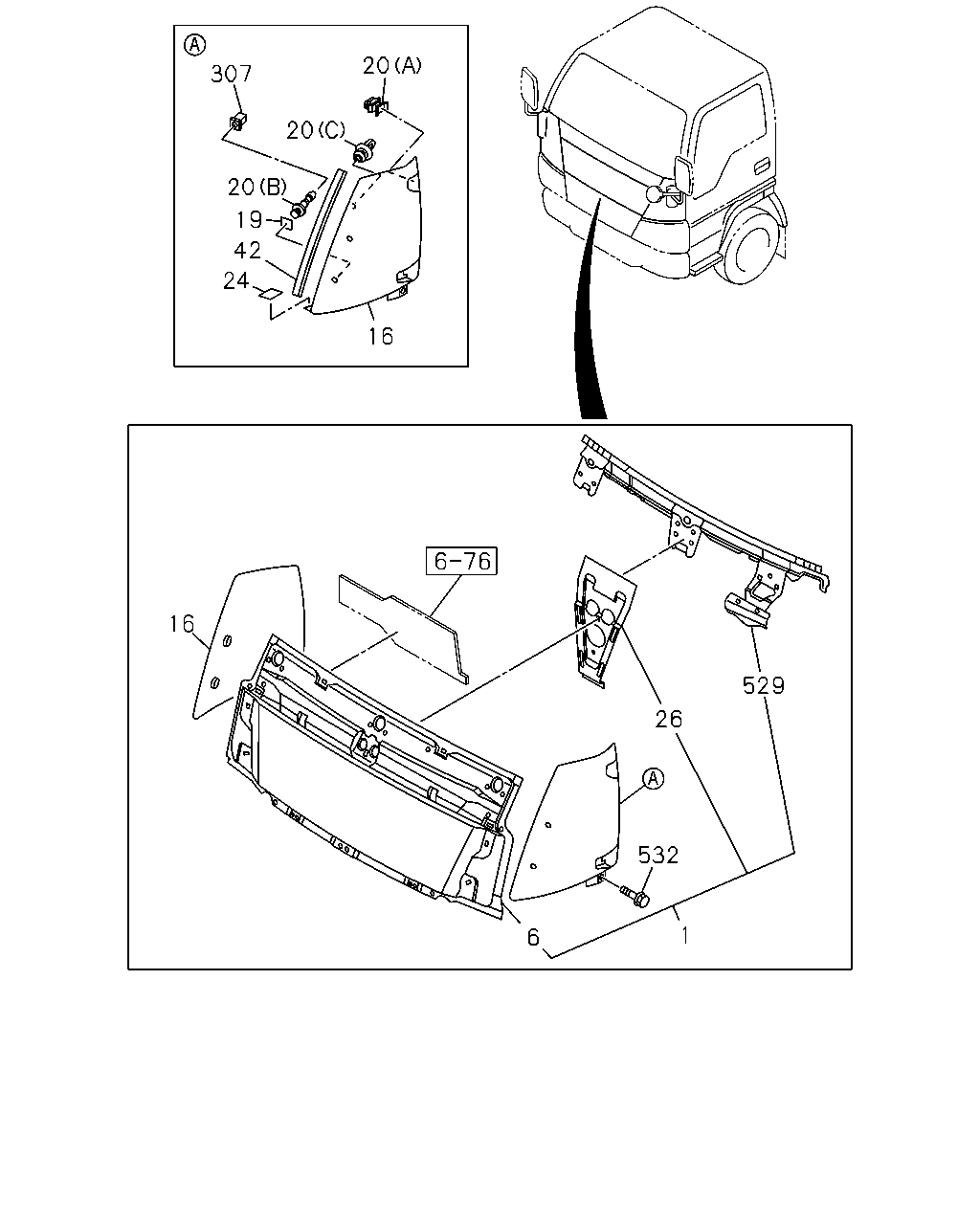

çizim 58914
20 307 20 20 19 42 24 16 16 529 26 532 1 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT 8-97582-868-0 01 1 0707- ● ●
6 PANEL; FRONT 8-97582-871-2 01 1 0707- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97582-451-5 01 1 0707- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97582-467-5 01 1 0707- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97582-455-5 01 1 0707- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97582-471-5 01 1 0707- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97582-459-5 01 1 0707- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97582-475-5 01 1 0707- ● ●
19 SEAL; FRT SIDE PANEL 8-97581-676-0 04 1 0707-1008 ● ●
20 CLIP; FRT PANEL SIDE
(B) D4.2X13 		1-09983-161-0 04 1 0707- ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97581-632-1 04 1 0707- ● ●
20 CLIP; FRT PANEL SIDE
(C) H=11.6 		8-98013-823-0 02 1 0707- ● ●
24 SEAL; FRT PANEL LWR 8-97583-672-0 02 1 0707-0807 ● ●
24 SEAL; FRT PANEL LWR
IDENTIFICATION LABEL FOR KD<6UT> 		8-97583-672-0 02 1 0808-0809 ● ●
24 SEAL; FRT PANEL LWR
KD PREPARATORY PACK VAR.4<7TV> 		8-97583-672-0 02 1 0810- ● ●
26 PANEL; REINF,FRT PANEL CENTER,INNER 8-97851-038-1 01 1 0707- ● ●
42 FINISHER; FRT PANEL,SIDE 8-97581-613-3 01 1 0707-0807 ● ●
42 FINISHER; FRT PANEL,SIDE
IDENTIFICATION LABEL FOR KD<6UT> 		8-97581-613-3 01 1 0808-0809 ● ●
42 FINISHER; FRT PANEL,SIDE
KD PREPARATORY PACK VAR.4<7TV> 		8-97581-613-3 01 1 0810- ● ●
42 FINISHER; FRT PANEL,SIDE 8-97581-614-3 01 1 0707-0807 ● ●
42 FINISHER; FRT PANEL,SIDE
IDENTIFICATION LABEL FOR KD<6UT> 		8-97581-614-3 01 1 0808-0809 ● ●
42 FINISHER; FRT PANEL,SIDE
KD PREPARATORY PACK VAR.4<7TV> 		8-97581-614-3 01 1 0810- ● ●
307 GROMMET; FRT PANEL 8-97583-397-0 04 1 0707- ● ●
529 REINFORCEMENT; PANEL 8-97851-373-2 01 1 0707- ● ●
532 BOLT; FRT PANEL
M6X16 W/PL WASHER 		8-97803-781-0 02 1 0707- ● ●
