51139 - ELF300(MEXICO)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

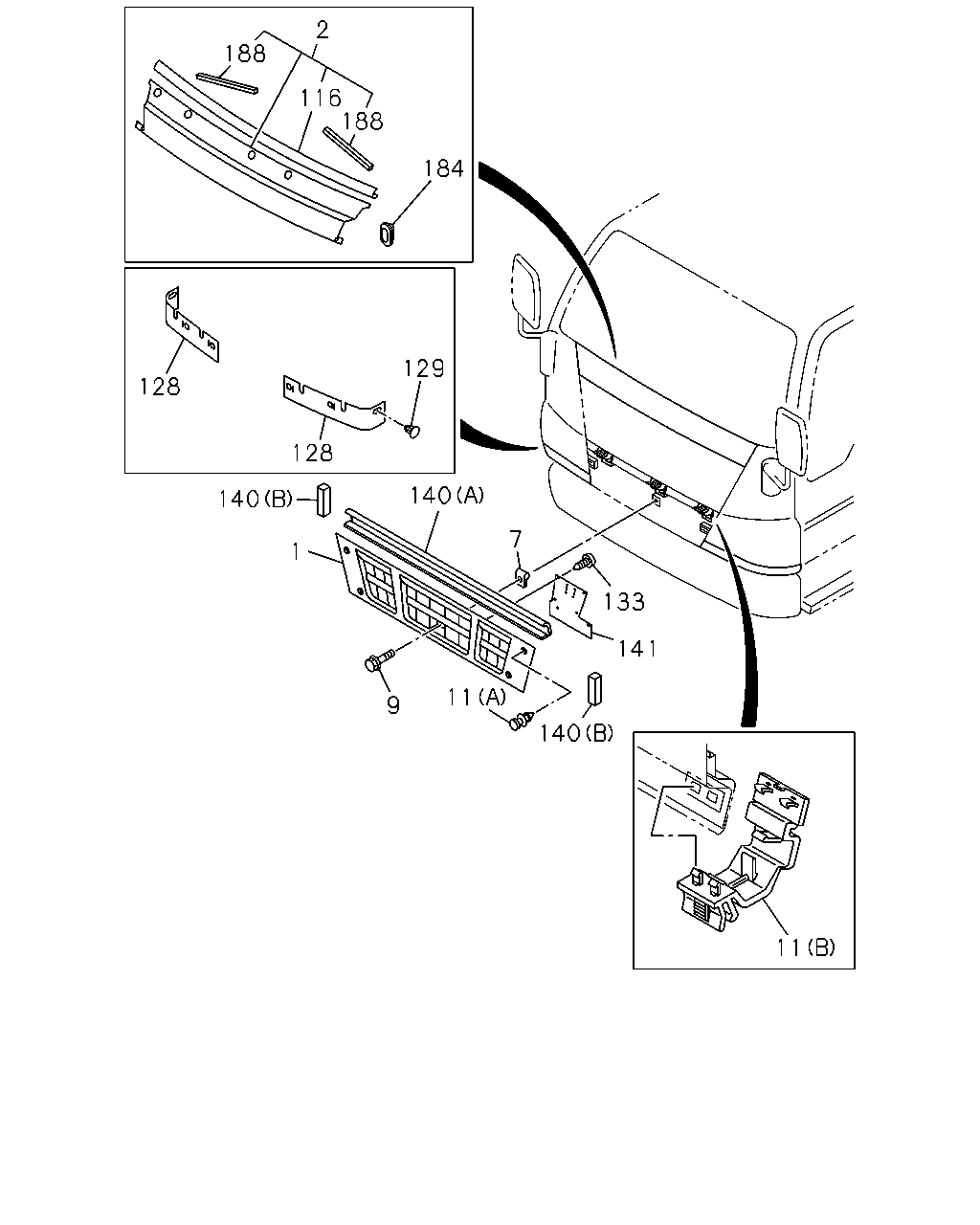

6-03 - RADIATOR GRILLE
▶
6-03 — RADIATOR GRILLE
(#52272) — 25 parça
Tümü
A - NKC6SC
B - NKC6SF
2
188
116
188
184
129
128
128
140
140
7
1
133
141
11
9
140
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE
8-97582-414-4
01
1
0707-
●
●
1
GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE
8-97582-418-4
01
1
0707-
●
●
1
GRILLE; RAD
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER
8-97582-410-4
01
1
0707-
●
●
1
GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR
8-97581-825-2
01
1
0707-
●
●
2
GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL
8-97585-546-3
01
1
0707-
●
●
2
GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL
8-97582-873-5
01
1
0707-
●
●
7
NUT; SPIRE,RAD GRILLE
8-98014-760-0
01
1
0707-
●
●
9
SCREW; RAD GRILLE
M6X20 W/PL WASHER TAPPING
8-94321-767-1
01
1
0707-0805
●
●
9
SCREW; RAD GRILLE
M6X20 W/PL WASHER
8-98059-504-0
01
1
0806-
●
●
11
CLIP; RAD GRILLE
(B) WHITE
8-97102-415-0
03
1
0707-
●
●
11
CLIP; RAD GRILLE
(A)
8-97581-651-2
04
1
0707-
●
●
11
CLIP; RAD GRILLE
(A)
8-97581-651-2
04
1
0707-
●
●
116
MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97581-655-1
01
1
0707-
●
●
128
COVER; HEADLAMP GRILLE
8-98015-934-0
02
1
0707-
●
●
129
CLIP; COVER HEADLAMP GRILLE
D=6.5
8-97855-279-0
02
1
0707-
●
●
133
SCREW; COVER
M5X12 W/PL WASHER
8-94385-565-0
06
1
0707-
●
●
133
SCREW; COVER
M5X12 W/PL WASHER
8-94385-565-0
06
1
0707-
●
●
140
SEAL; RAD GRILLE
(A)
8-97581-664-0
01
1
0707-
●
●
140
SEAL; RAD GRILLE
(A)
8-97581-664-0
01
1
0707-
●
●
140
SEAL; RAD GRILLE
(B)
8-97583-411-1
02
1
0707-
●
●
140
SEAL; RAD GRILLE
(B)
8-97583-411-1
02
1
0707-
●
●
141
COVER; RAD GRILLE
8-97581-648-1
01
1
0707-
●
●
141
COVER; RAD GRILLE
8-97581-648-1
01
1
0707-
●
●
184
GROMMET; ORNAMENT
8-97581-668-0
02
1
0707-
●
●
188
SEAL; ORNAMENT
8-97584-800-0
02
1
0707-
●
●
